Advantech FPM-3191G-R3BE 19" SXGA Industrial Monitor with Resistive Touch Control, Direct VGA, and DVI Ports
- Brand: Advantech
- MPN: FPM-3191G-R3BE
- Part #: IPCAVH220711

Product URL: https://www.pbtech.com/au/product/IPCAVH220711/Advantech-FPM-3191G-R3BE-19-SXGA-Industrial-Monito
Features

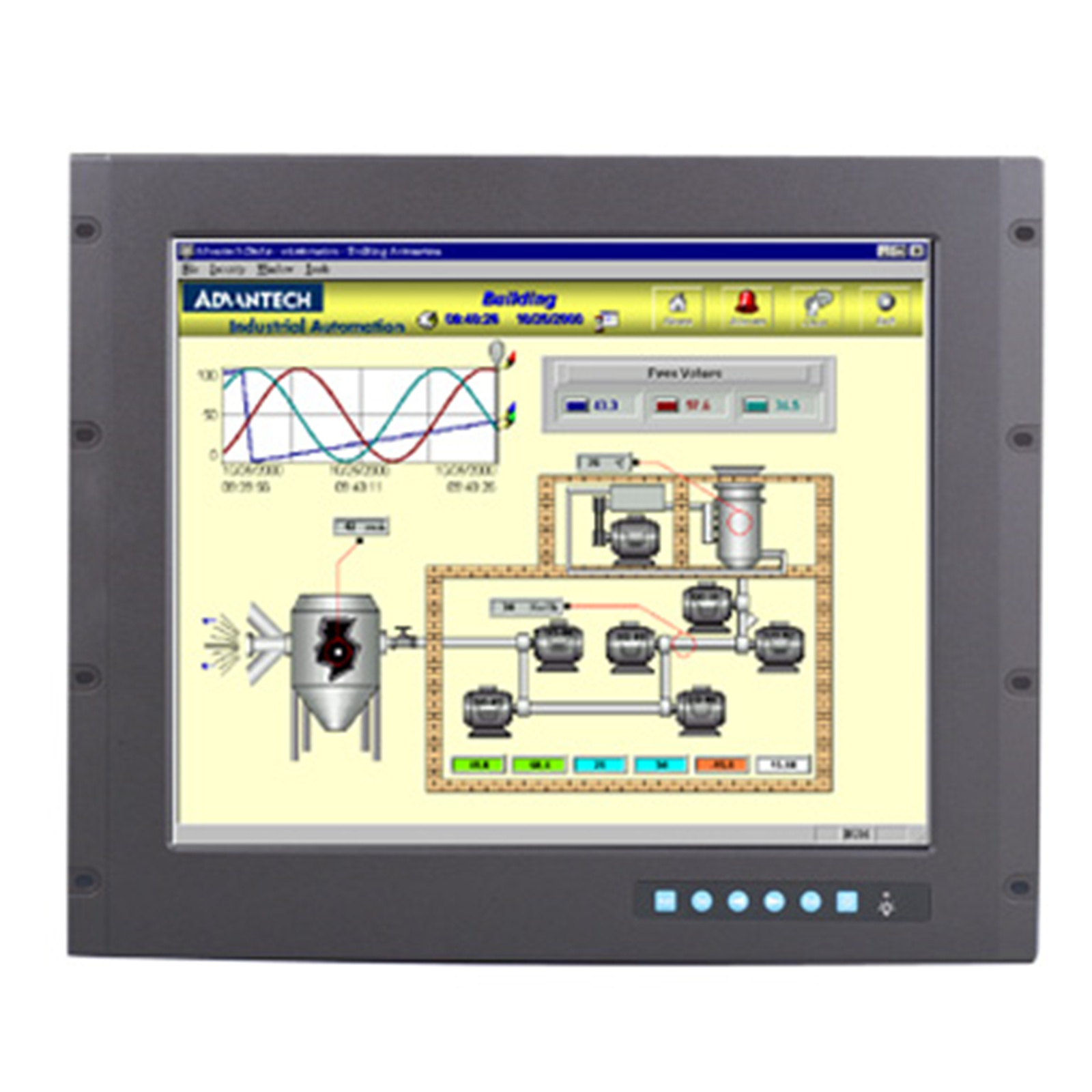

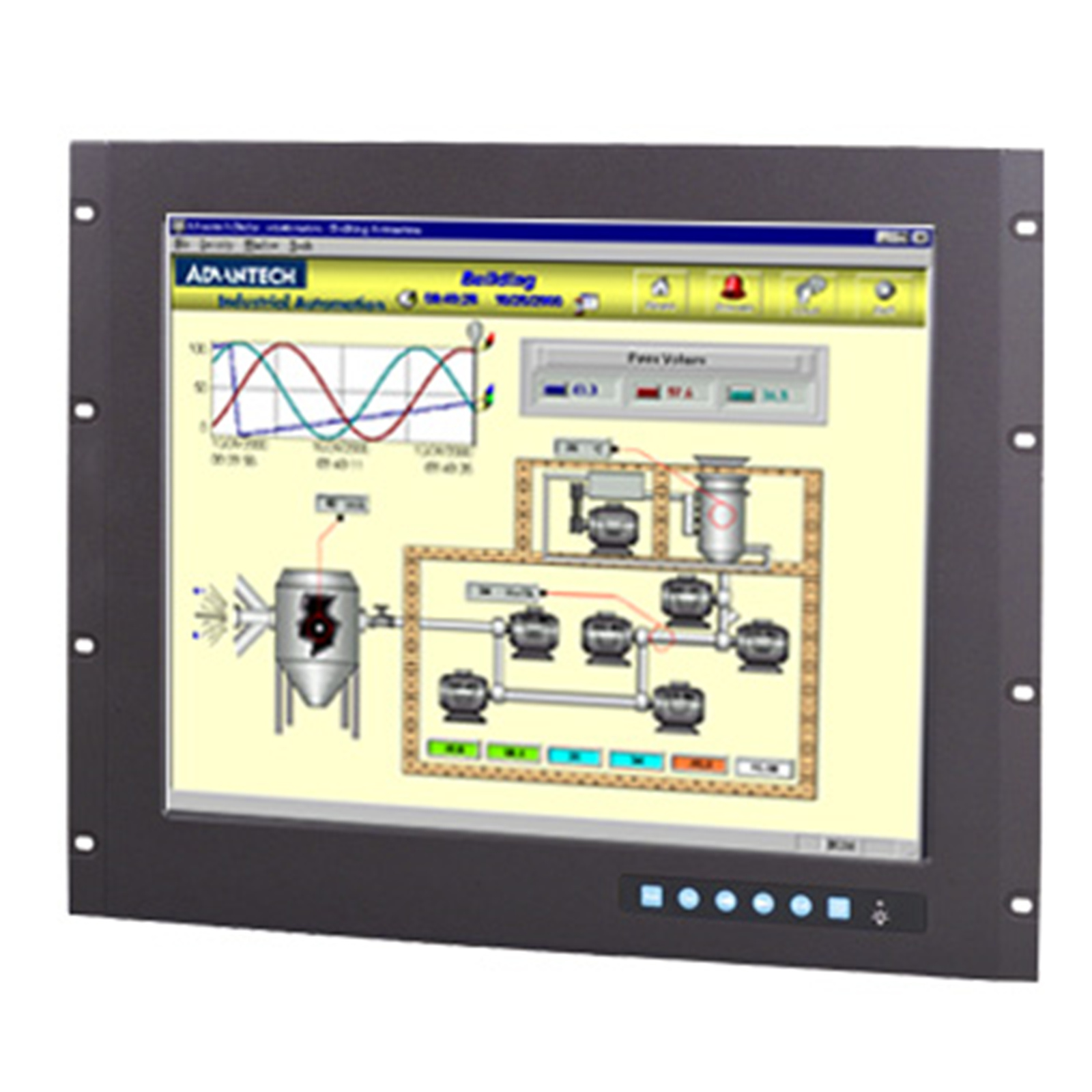

FPM-3191G is a 19" color TFT LCD flat panel monitor specifically designed for industrial applications. With a display size of 19", FPM-3191G provides an adequate display area with sharp and vivid images. The monitor also supports direct VGA signal transmissions, allowing users to upgrade the displays without altering the existing infrastructure. The provision of OSD function keys makes it easy to adjust the onscreen display. Furthermore, the stainless steel chassis and IP65-rated aluminum front panel ensure suitability for industrial applications.
- 19" SXGA TFT LED LCD with 50K backlight lifetime
- Robust design with stainless steel chassis and aluminum front panel
- Anti-glare screen with tempered glass and IP65-certified front panel
- Lockable OSD control pad on rear cover
- Supports 24 VDC power input
- Supports panel, wall, desktop, rack, or VESA arm mounting
- Supports 9U pre-drilled rackmount mounting holes
For more information: https://advdownload.advantech.com/productfile/PIS/FPM-3191G/file/FPM-3191G_DS(122922)20230106154719.pdf
Specifications
General
OSD Controls
OSD control pad on front panel
Certification
BSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)
482 x 399.2 x 67 mm (18.98 x 15.71 x 2.64 in)
Enclosure
Front panel: Aluminum with coating
Rear cover: Stainless steel chassis
Mount Options
Panel, wall, desktop, VESA arm, and 19" rackmount
Power Input
Phoenix Jack: 24 VDC input
Power Consumption 18 W + 20%
Video Port
VGA & DVI-D port
Weight (Net)
10.65 kg (23.46 Ibs)
LCD Display
Display Type
SXGA TFT LCD with LED backlight
Display Size
19"
Max. Resolution
1280 x 1024
Max. Color
16.7M
Viewing Angle (H/V °)
170/160
Luminance (cd/m²)
350
Backlight Life
50,000 hr
Contrast Ratio
1000:1
Touchscreen
Driver
Penmount 6000
Interface
RS-232 and USB
Lifespan
35 million touches at a single point
Light Transmission
> 80%
OS Support
Windows XP,2000,Vista,7,8/8.1,10 , XP/7/8/10 Embedded,CE,Linux
Power Consumption
+5 V @ 100 mA
Touch Resolution
Linearity
Environment
Operating Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature
-30 ~ 80 °C (-22 ~ 176 °F)
Humidity (Storage)
90% @ 50 °C non-condensing
IP Rating
Front panel is IP65 compliant
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
