Advantech IMC-150LPC-M LRE Ethernet over Coaxial Extender, Master

PB Tech price

NZD $ 401 .00

$ 401 .00

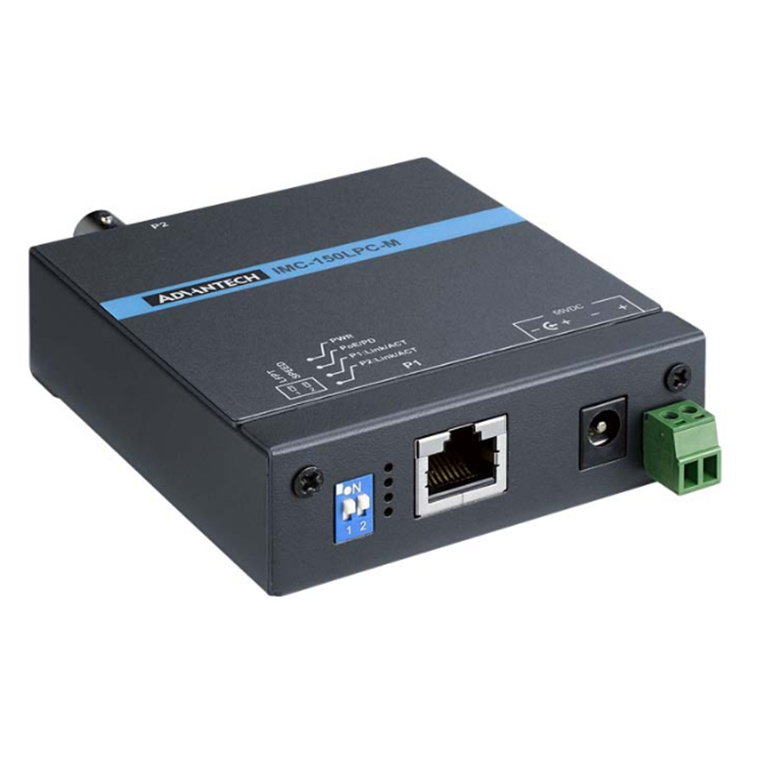

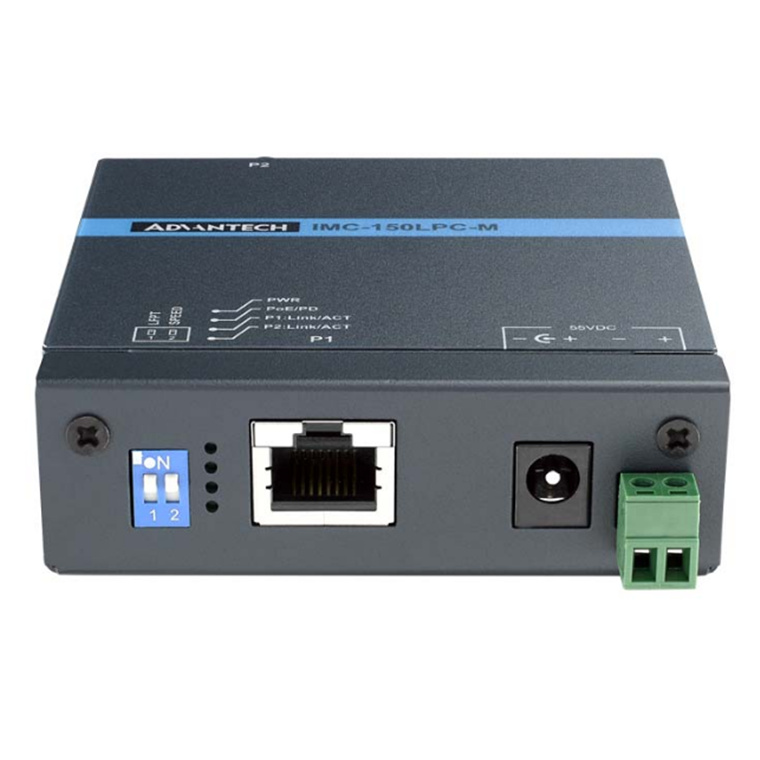

Advantech IMC-150LPC-M LRE Ethernet over Coaxial Extender, Master

Brand: Advantech
MPN: IMC-150LPC-M
Part #: IPCAVH220742
UPC:

PB Tech price

NZD $ 401 .00

In stock at Supplier

Delivery: Order now and it ships on 30 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: IMC-150LPC-M
Part #: IPCAVH220742
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech's IMC-150LPC-M and IMC-150LPC-R are designed to be used as a pair. IMC-150LPC-M is designed for use at a central site while IMC 150LPC-R is used at a remote site. Both devices are capable of extending data and power transmission by >15.4W at 300 m (985 ft) using extant coaxial cables. Indeed, this solution converts analogue cables into Ethernet connection cables while saving on installation/digitalization costs. IMC-150LPC-M and IMC-150LPC-R further support PD power-off via a management switch to enable users to control the unit remotely. This series is compliant with EN50121-4 standards for trackside installation and is capable of withstanding electromagnetic interference for rail networks.

- Delivers data up to 300 m (985 ft) at 100Mbps with power via coaxial cable
- Extends power >15.4 watt power with 300 m (985 ft) long coaxial cable
- Railway Trackside EN 50121-4 EMC certified
- Features copper-based Link Fault Pass Through (LFPT)
- Supports Remote PD power ON/OFF by disabling/enabling port via management switch

For more information: https://advdownload.advantech.com/productfile/PIS/IMC-150LPC/file/IMC-150LPC_DS(042022)20220420110811.pdf

Specifications

MPN

IMC-150LPC-M
Industrial Long Reach PoE+ Extender, Master

Communications

Standard

IEEE 802.3, 802.3u, 802.3x, 802.3at/af

LAN

10BASE-T/100BASE-TX

Transmission Speed

Up to 100 Mbps

Interface

Connectors

1 x 10/100Mbps RJ-45
1 x 10/100Mbps BNC Female

DIP Switch

PIN 1 LFPT ON/OFF
PIN 2 (reserved, no function)

LED Indicators

PWR/PoE
P1: LNK/ACT P2: LNK/ACT

Power

Power Input

54~57VDC

Connectors

2P Pluggable Terminal Block, DC Jack

Physical

Enclosure

IP30, Metal shell with solid mounting kits

Dimensions (W x H x D)

84 x 80 x 25 mm (3.3 x 3.15 x .984 in)

Mounting

Wall

Protection

Reverse Polarity

Present

Environment

Operating Temperature

-40 ~ 75 °C (-40 ~ 167 °F)

Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Operating Humidity

10 ~ 95% (non-condensing)

Storage Humidity

10 ~ 95% (non-condensing)

Certifications

Safety

LVD EN62368

EMI

CE, FCC,

EMS

EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8

Railway Trackside

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Manufacturer Part No:

IMC-150LPC-M

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220742

Product Model:

IMC-150LPC-M

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
