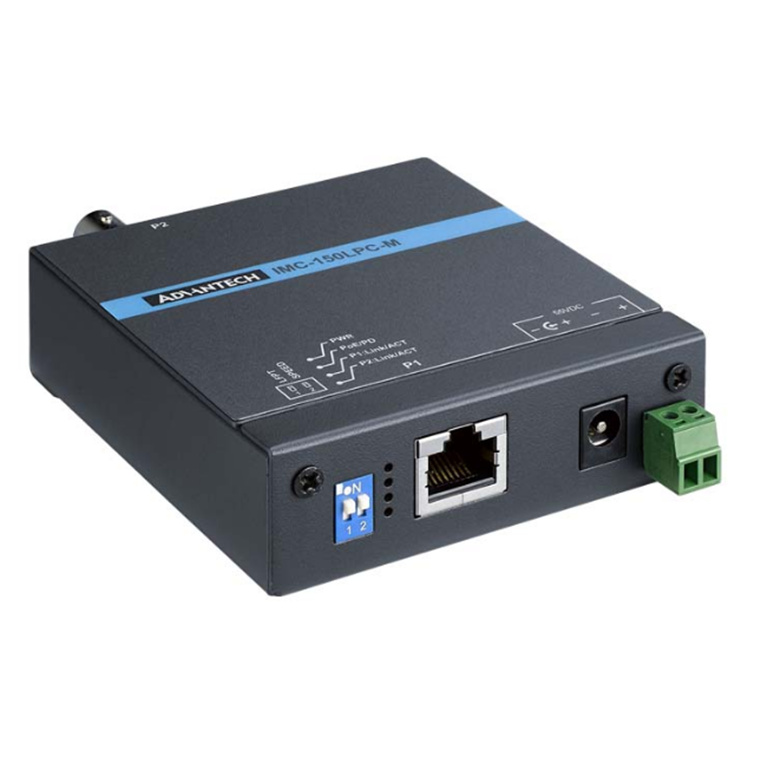

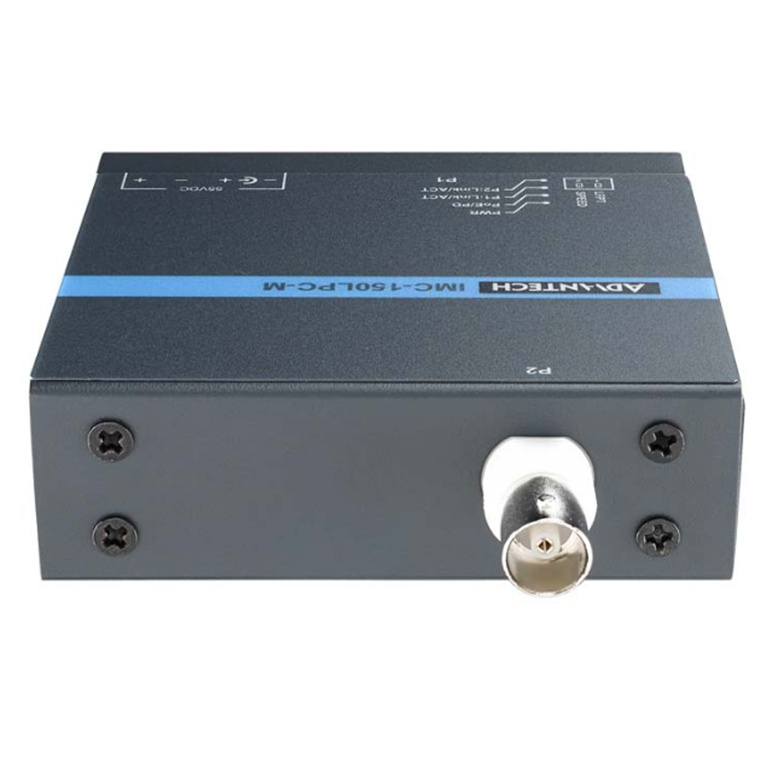

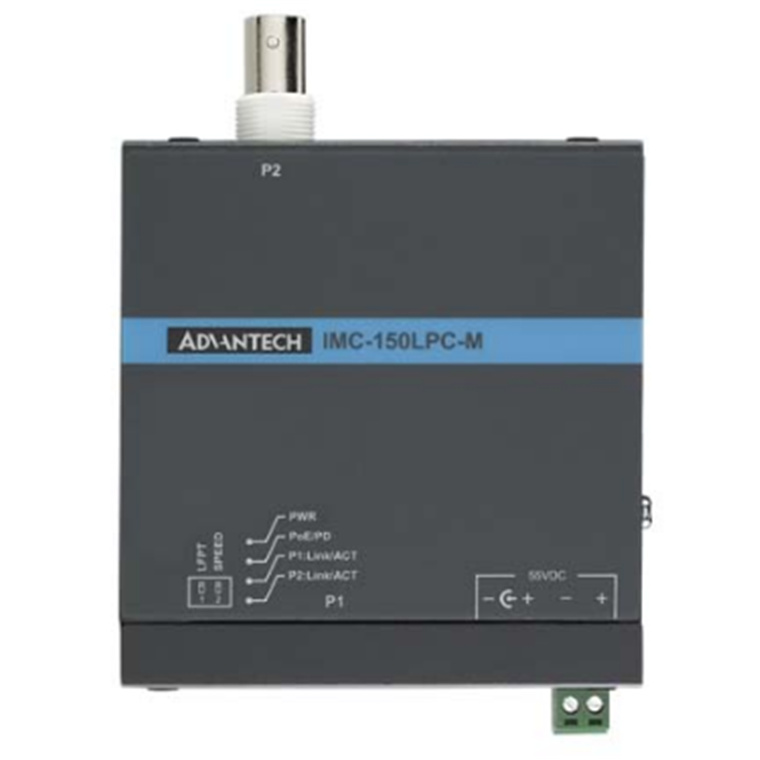

Advantech IMC-150LPC-M LRE Ethernet over Coaxial Extender, Master
- Brand: Advantech
- MPN: IMC-150LPC-M
- Part #: IPCAVH220742

Product URL: https://www.pbtech.com/au/product/IPCAVH220742/Advantech-IMC-150LPC-M-LRE-Ethernet-over-Coaxial-E
Features
Advantech's IMC-150LPC-M and IMC-150LPC-R are designed to be used as a pair. IMC-150LPC-M is designed for use at a central site while IMC 150LPC-R is used at a remote site. Both devices are capable of extending data and power transmission by >15.4W at 300 m (985 ft) using extant coaxial cables. Indeed, this solution converts analogue cables into Ethernet connection cables while saving on installation/digitalization costs. IMC-150LPC-M and IMC-150LPC-R further support PD power-off via a management switch to enable users to control the unit remotely. This series is compliant with EN50121-4 standards for trackside installation and is capable of withstanding electromagnetic interference for rail networks.
- Delivers data up to 300 m (985 ft) at 100Mbps with power via coaxial cable
- Extends power >15.4 watt power with 300 m (985 ft) long coaxial cable
- Railway Trackside EN 50121-4 EMC certified
- Features copper-based Link Fault Pass Through (LFPT)
- Supports Remote PD power ON/OFF by disabling/enabling port via management switch
For more information: https://advdownload.advantech.com/productfile/PIS/IMC-150LPC/file/IMC-150LPC_DS(042022)20220420110811.pdf
Specifications
MPN
IMC-150LPC-M
Industrial Long Reach PoE+ Extender, Master
Communications
Standard
IEEE 802.3, 802.3u, 802.3x, 802.3at/af
LAN
10BASE-T/100BASE-TX
Transmission Speed
Up to 100 Mbps
Interface
Connectors
1 x 10/100Mbps RJ-45
1 x 10/100Mbps BNC Female
DIP Switch
PIN 1 LFPT ON/OFF
PIN 2 (reserved, no function)
LED Indicators
PWR/PoE
P1: LNK/ACT P2: LNK/ACT
Power
Power Input
54~57VDC
Connectors
2P Pluggable Terminal Block, DC Jack
Physical
Enclosure
IP30, Metal shell with solid mounting kits
Dimensions (W x H x D)
84 x 80 x 25 mm (3.3 x 3.15 x .984 in)
Mounting
Wall
Protection
Reverse Polarity
Present
Environment
Operating Temperature
-40 ~ 75 °C (-40 ~ 167 °F)
Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
10 ~ 95% (non-condensing)
Storage Humidity
10 ~ 95% (non-condensing)
Certifications
Safety
LVD EN62368
EMI
CE, FCC,
EMS
EN 61000-4-2
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-6
EN 61000-4-8
Railway Trackside
EN 50121-4
Shock
IEC 60068-2-27
Freefall
IEC 60068-2-32
Vibration
IEC 60068-2-6
