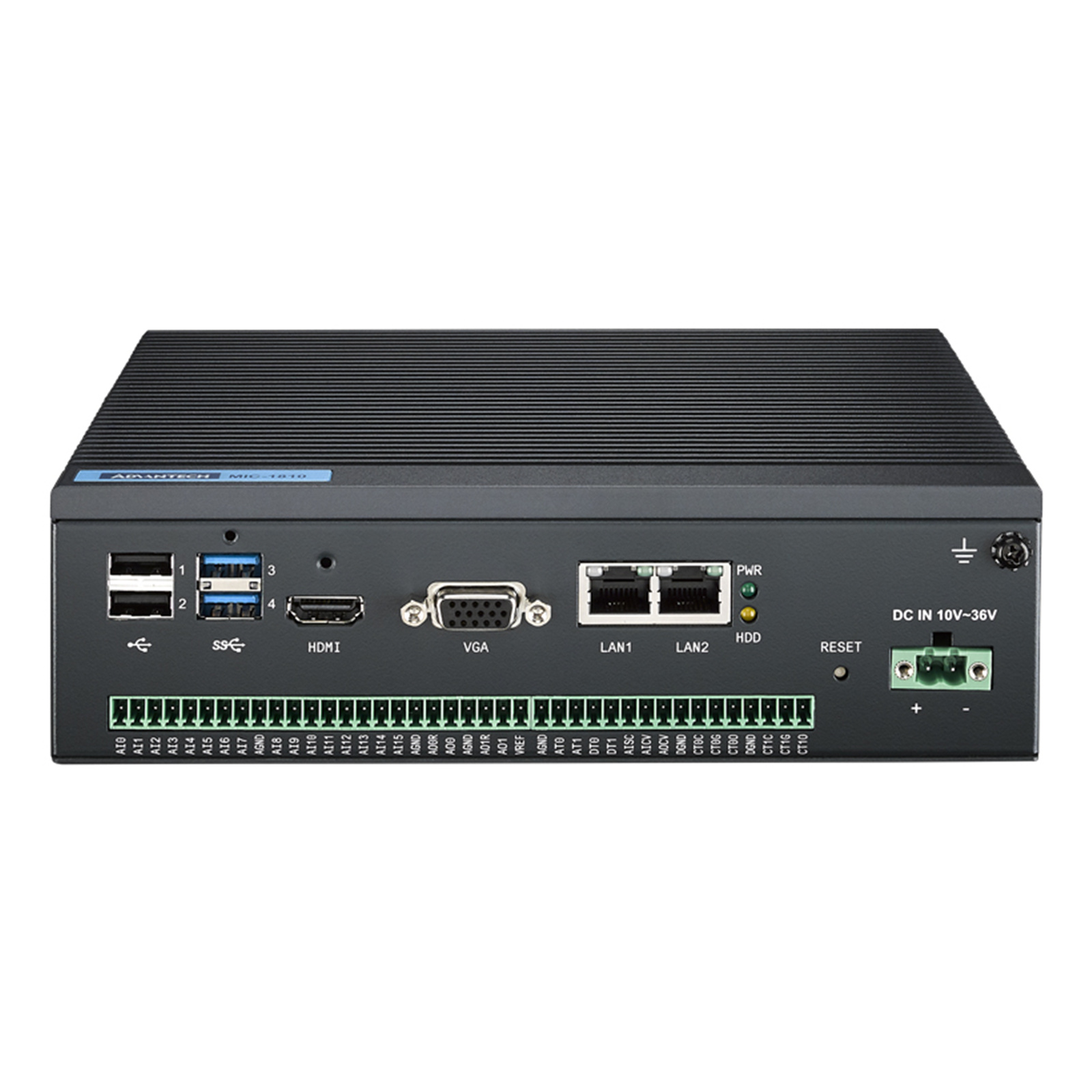

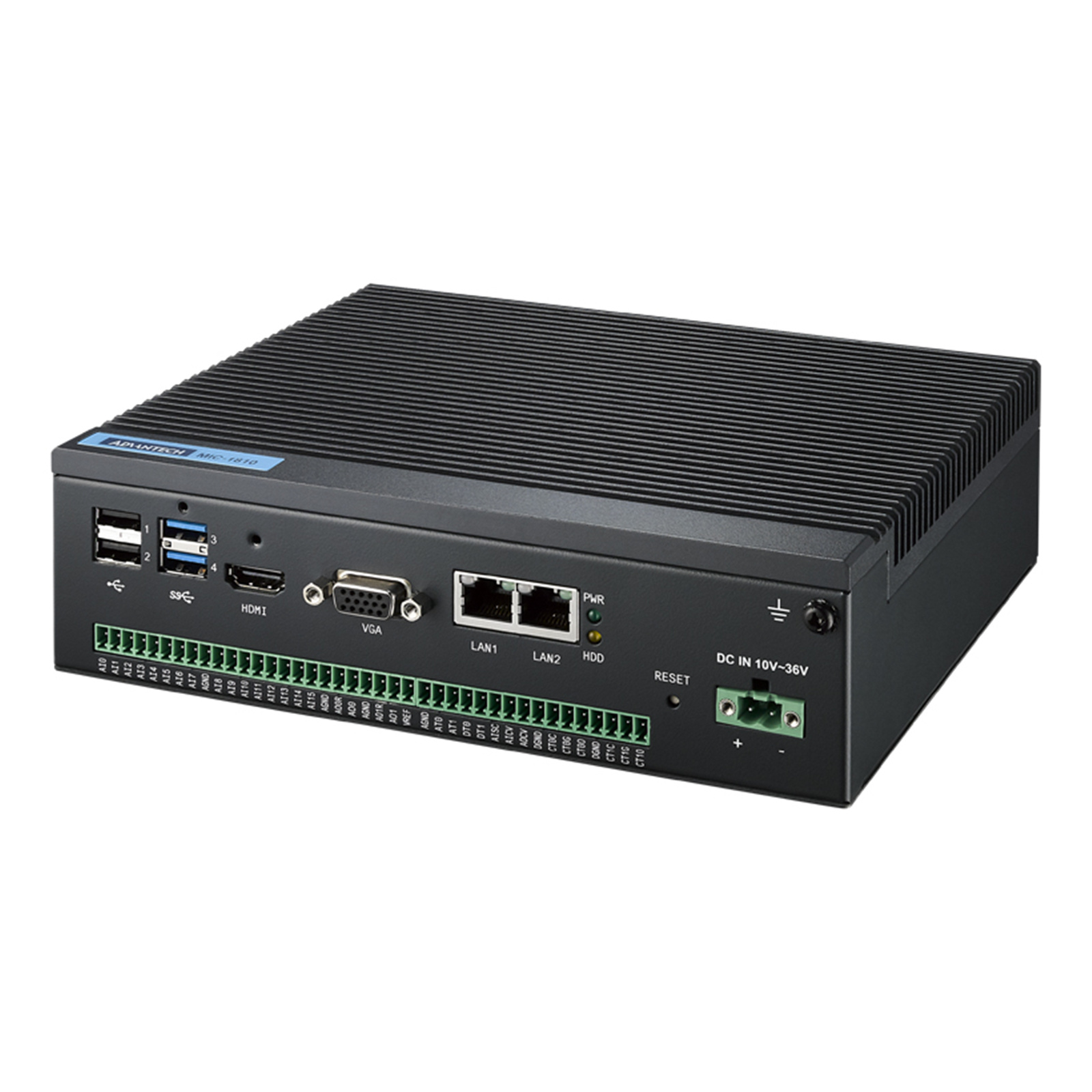

Advantech MIC-1810-U0A1E 12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel Core i3 /Celeron Processer

PB Tech price

NZD $ 2,523 .50

$ 2,523 .50

Advantech MIC-1810-U0A1E 12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel Core i3 /Celeron Processer

Brand: Advantech
MPN: MIC-1810-U0A1E
Part #: IPCAVH220947
UPC:

PB Tech price

NZD $ 2,523 .50

In stock at Supplier

Delivery: Order now and it ships on 01 Oct

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: MIC-1810-U0A1E
Part #: IPCAVH220947
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel® Core™ i3*/Celeron® Processer

MIC-1810 is a stand-alone automation controller featuring an integrated DAQ module and signal conditioning to provide digital I/O, analog I/O, and counter functions. This applicationready controller also supports serial communication ports and several other networking interfaces to enable seamless integration and rapid system development.

- 16x analog inputs, up to 800 kS/s, 12-bit resolution
- 2x analog outputs, up to 500 kS/s, 12-bit resolution
- Support for digital trigger and analog trigger
- 16x Isolated digital input, 8x isolated digital output
- 2x 32-bit programmable counter/timers
- Onboard FIFO memory (4,096 samples)
- 2x RS-232/422/485 ports
- 2x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported

Specifications

Analog Input

Channels

16-ch single ended, 8-ch differential

Resolution

12 bits

Sample Rate

Single channel: 800 kS/s max.;
Multiple channels: 500 kS/s max.
Note: The sampling rate of each channel is influenced by the number of used channels.
For example, if 4 channels are used, the sampling rate will be 500k/4 = 125 kS/s per channel.

Trigger Reference

Digital and analog triggers

Trigger Mode

Start, Delayed Start
Stop, Delayed Stop

FIFO Size

4,096 samples

Overvoltage Protection

30 Vp-p

Input Impedance

1 GO

Sampling Modes

Software and external clock

Input Range

Software programmable

Analog Output

Channels

Resolution

12 bits

Sample Rate

500 kS/s max.

Output Range

Software programmable

Isolated Digital Input

?Channels

Input Voltage

Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)

Interrupt Capable

Ch. 2 (IDI0 & IDI8)

Isolation Protection

2,500 V DC

Opto-Isolator Response

100 µs

Input Resistance

3.2 kO @ 1 W

Isolated Digital Output

?Channels

Output Type

Sink (NPN)

Output Voltage

5~40VDC

Sink Current

350mA max./channel @ 25°C,
250mA max./channel @ 60°C

Isolation Protection

2,500 V DC

Opto-Isolator Response

100 µs

Counter

?Channels

Resolution

32 bits

Compatibility

5 V/TTL

Max. Input Frequency

10 MHz

Pulse Generation

Yes

Timebase Stability

50 ppm

General

?Dimensions (W x H x D)

200 x 58 x 156 mm (7.87" x 2.28" x 6.14")

?Power Consumption

Typ. 11W @ 24V, Max. 31.7W @24V

?Power Requirements

10 ~ 36 VDC

?Weight

2.4 kg (typical)

?OS Support

Up to Windows 10 / Linux

System Hardware

?CPU

Intel® Celeron® 3955U processer, 2.0 GHz
(MIC-1810-U0A1E)
Intel® Core™ i3-6100U processor, 2.3 GHz
(MIC-1810-U3A1E*)

Memory

4G SODIMM DDR3-1600 (Max. 16GB expansion available)

Indicators

LEDs for Power, IDE and LAN (Active, Status)

USB

USB 2.0 *2, USB 3.0 *2

Storage

1 x 2.5" HDD/SSD, installation subject to ordered configuration

Expansion

Mini PCIe full size *1 (iDoor)

Environment

?Storage Humidity

5 ~ 95% RH, non-condensing

Operating Temperature

-20 ~ 60 °C (-4 ~140 °F) @ 5 ~ 85% RH with 0.7m/s air flow

?Storage Temperature

-20 ~ 80 °C (-4 ~ 176 °F)

Manufacturer Part No:

MIC-1810-U0A1E

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH220947

Product Model:

MIC-1810-U0A1E

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
