Features
12-Bit, 500 KS/s, 16-Ch DAQ Platform with Intel® Core™ i3*/Celeron® Processer

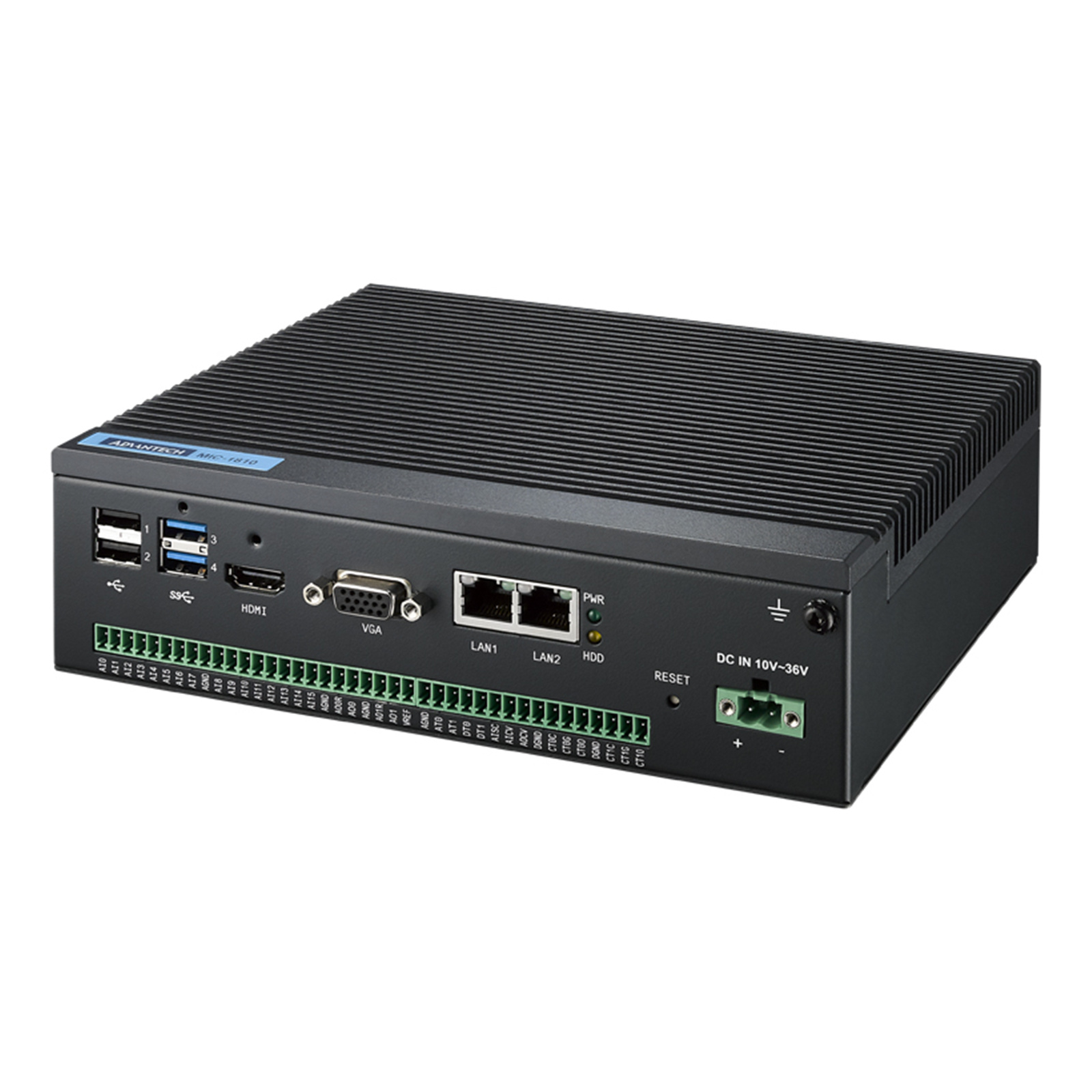

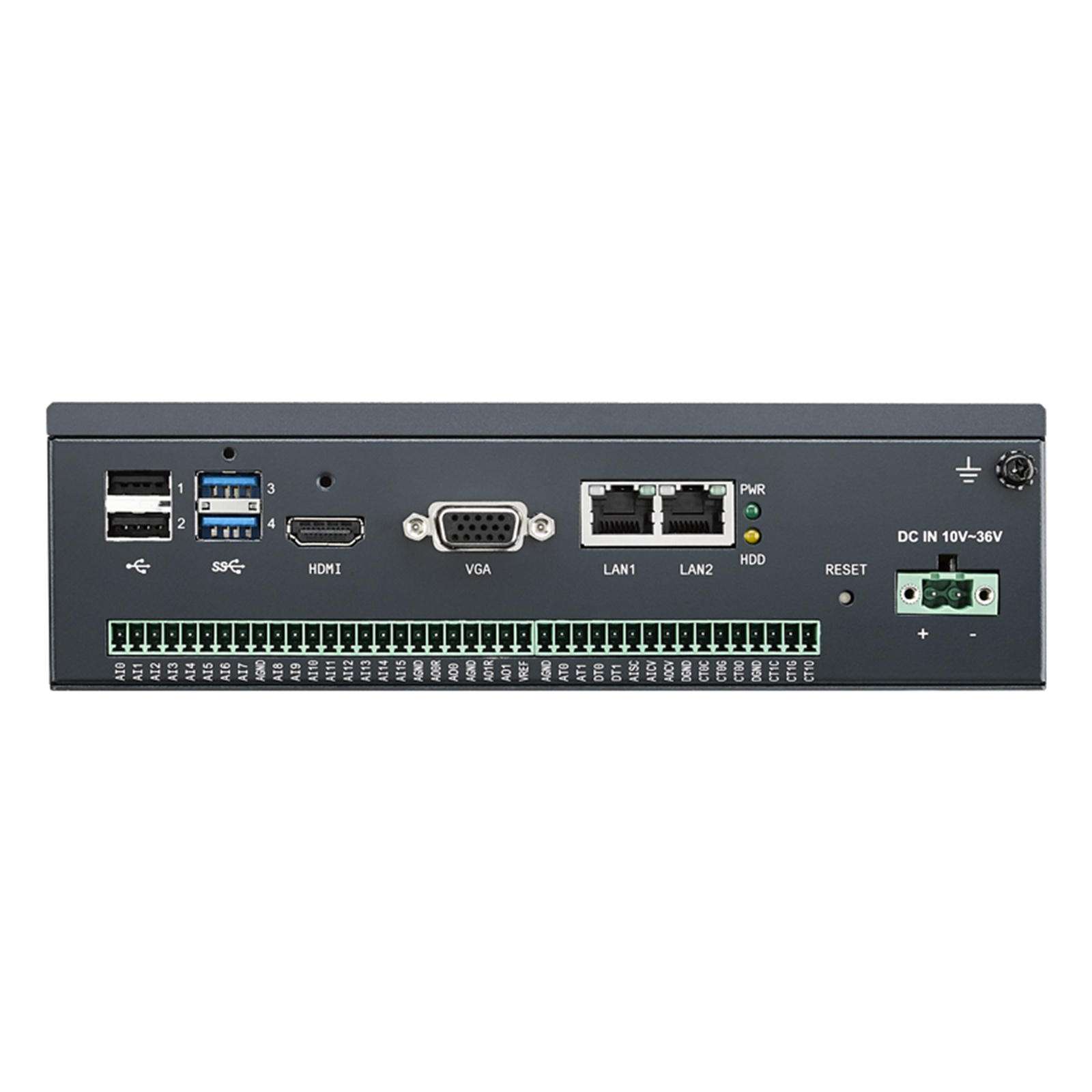

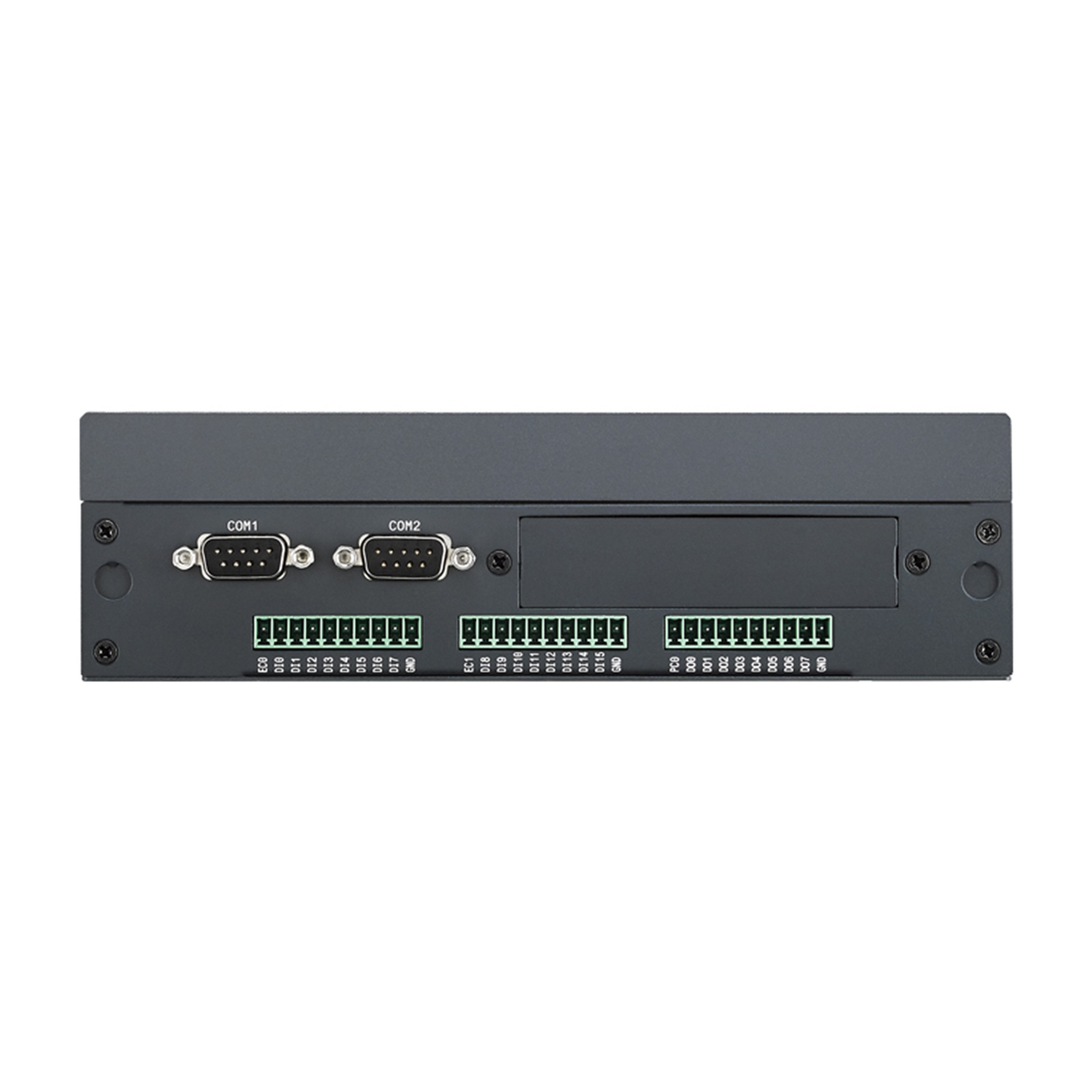

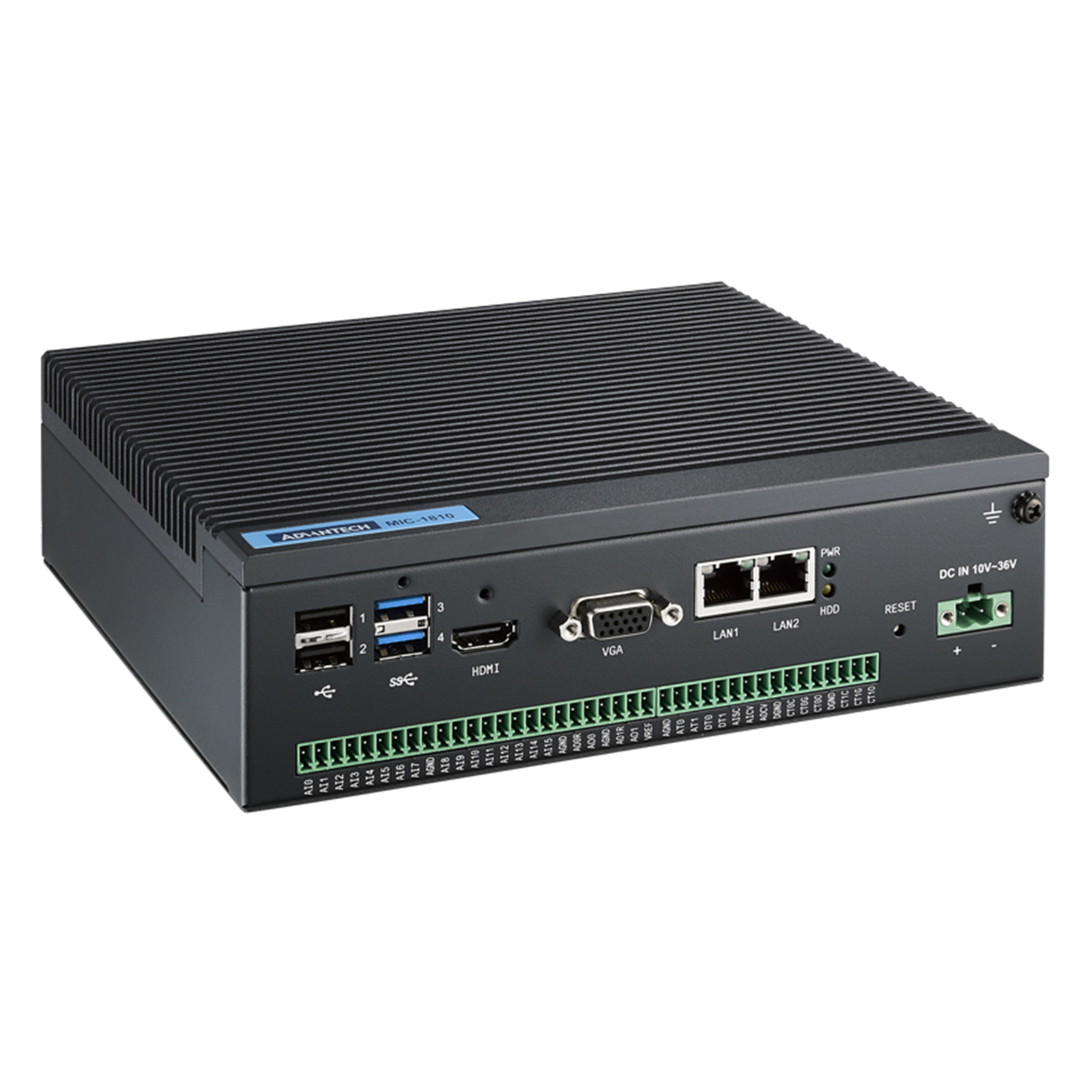

MIC-1810 is a stand-alone automation controller featuring an integrated DAQ module and signal conditioning to provide digital I/O, analog I/O, and counter functions. This applicationready controller also supports serial communication ports and several other networking interfaces to enable seamless integration and rapid system development.
- 16x analog inputs, up to 800 kS/s, 12-bit resolution
- 2x analog outputs, up to 500 kS/s, 12-bit resolution
- Support for digital trigger and analog trigger
- 16x Isolated digital input, 8x isolated digital output
- 2x 32-bit programmable counter/timers
- Onboard FIFO memory (4,096 samples)
- 2x RS-232/422/485 ports
- 2x 10/100/1000 Base-T RJ-45 LAN ports
- 2 x USB 2.0 and 2 x USB 3.0 ports
- iDoor expansion supported
Specifications
Analog Input
Channels
16-ch single ended, 8-ch differential
Resolution
12 bits
Sample Rate
Single channel: 800 kS/s max.;
Multiple channels: 500 kS/s max.
Note: The sampling rate of each channel is influenced by the number of used channels.
For example, if 4 channels are used, the sampling rate will be 500k/4 = 125 kS/s per channel.
Trigger Reference
Digital and analog triggers
Trigger Mode
Start, Delayed Start
Stop, Delayed Stop
FIFO Size
4,096 samples
Overvoltage Protection
30 Vp-p
Input Impedance
1 GO
Sampling Modes
Software and external clock
Input Range
Software programmable
Analog Output
Channels
2
Resolution
12 bits
Sample Rate
500 kS/s max.
Output Range
Software programmable
Isolated Digital Input
?Channels
16
Input Voltage
Logic 0: 3 V max.
Logic 1: 10 V min. (30 V max.)
Interrupt Capable
Ch. 2 (IDI0 & IDI8)
Isolation Protection
2,500 V DC
Opto-Isolator Response
100 µs
Input Resistance
3.2 kO @ 1 W
Isolated Digital Output
?Channels
8
Output Type
Sink (NPN)
Output Voltage
5~40VDC
Sink Current
350mA max./channel @ 25°C,
250mA max./channel @ 60°C
Isolation Protection
2,500 V DC
Opto-Isolator Response
100 µs
Counter
?Channels
2
Resolution
32 bits
Compatibility
5 V/TTL
Max. Input Frequency
10 MHz
Pulse Generation
Yes
Timebase Stability
50 ppm
General
?Dimensions (W x H x D)
200 x 58 x 156 mm (7.87" x 2.28" x 6.14")
?Power Consumption
Typ. 11W @ 24V, Max. 31.7W @24V
?Power Requirements
10 ~ 36 VDC
?Weight
2.4 kg (typical)
?OS Support
Up to Windows 10 / Linux
System Hardware
?CPU
Intel® Celeron® 3955U processer, 2.0 GHz
(MIC-1810-U0A1E)
Intel® Core™ i3-6100U processor, 2.3 GHz
(MIC-1810-U3A1E*)
Memory
4G SODIMM DDR3-1600 (Max. 16GB expansion available)
Indicators
LEDs for Power, IDE and LAN (Active, Status)
USB
USB 2.0 *2, USB 3.0 *2
Storage
1 x 2.5" HDD/SSD, installation subject to ordered configuration
Expansion
Mini PCIe full size *1 (iDoor)
Environment
?Storage Humidity
5 ~ 95% RH, non-condensing
Operating Temperature
-20 ~ 60 °C (-4 ~140 °F) @ 5 ~ 85% RH with 0.7m/s air flow
?Storage Temperature
-20 ~ 80 °C (-4 ~ 176 °F)
