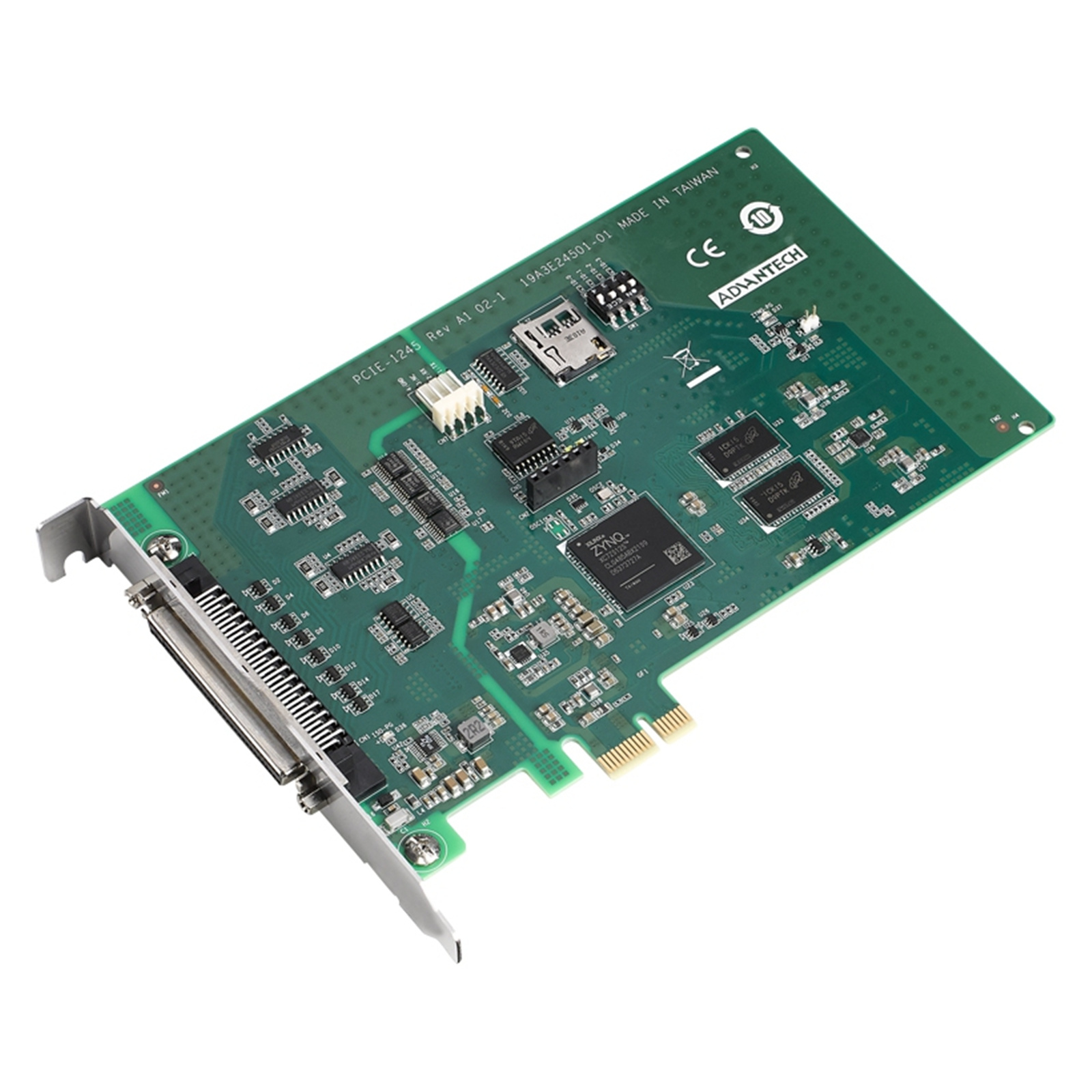

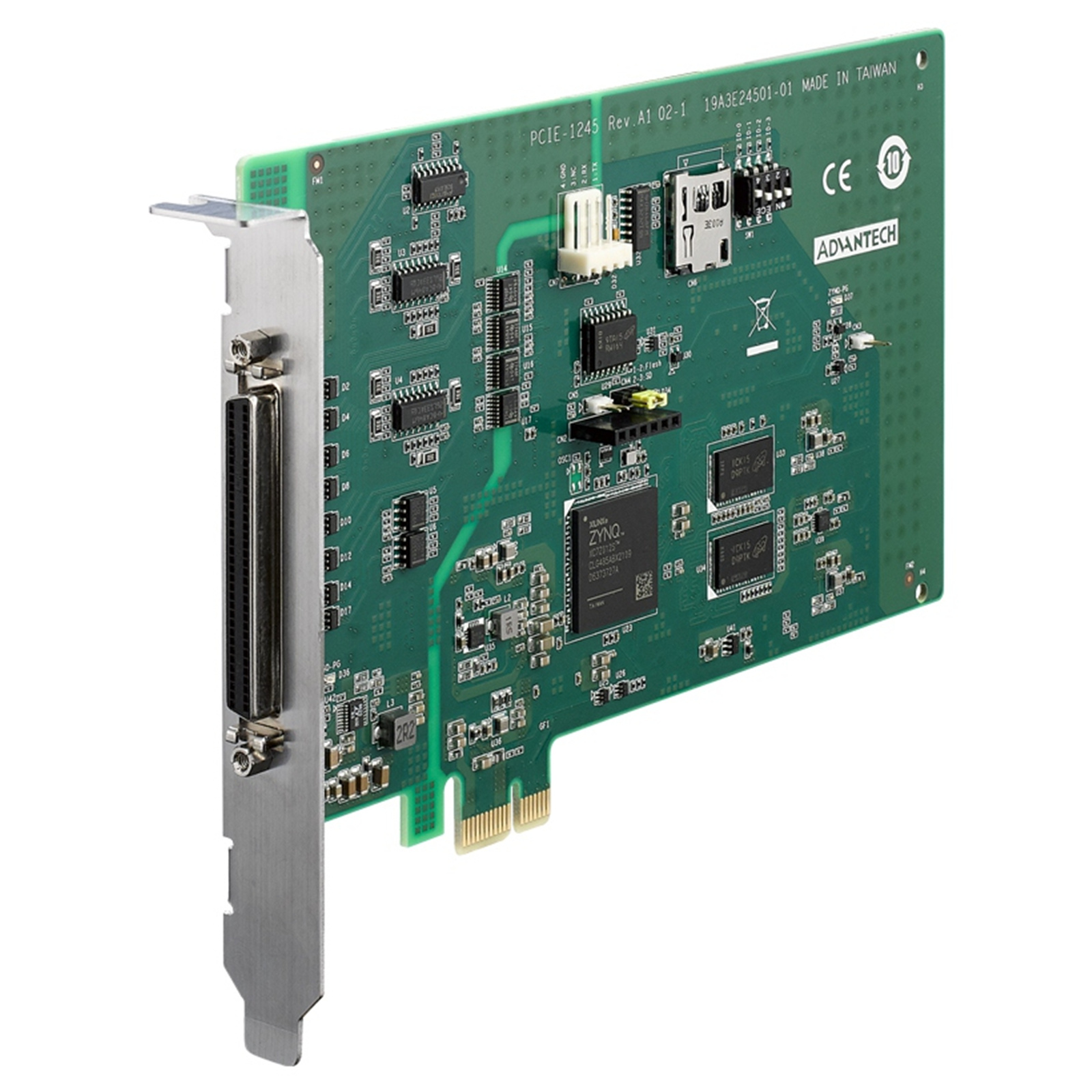

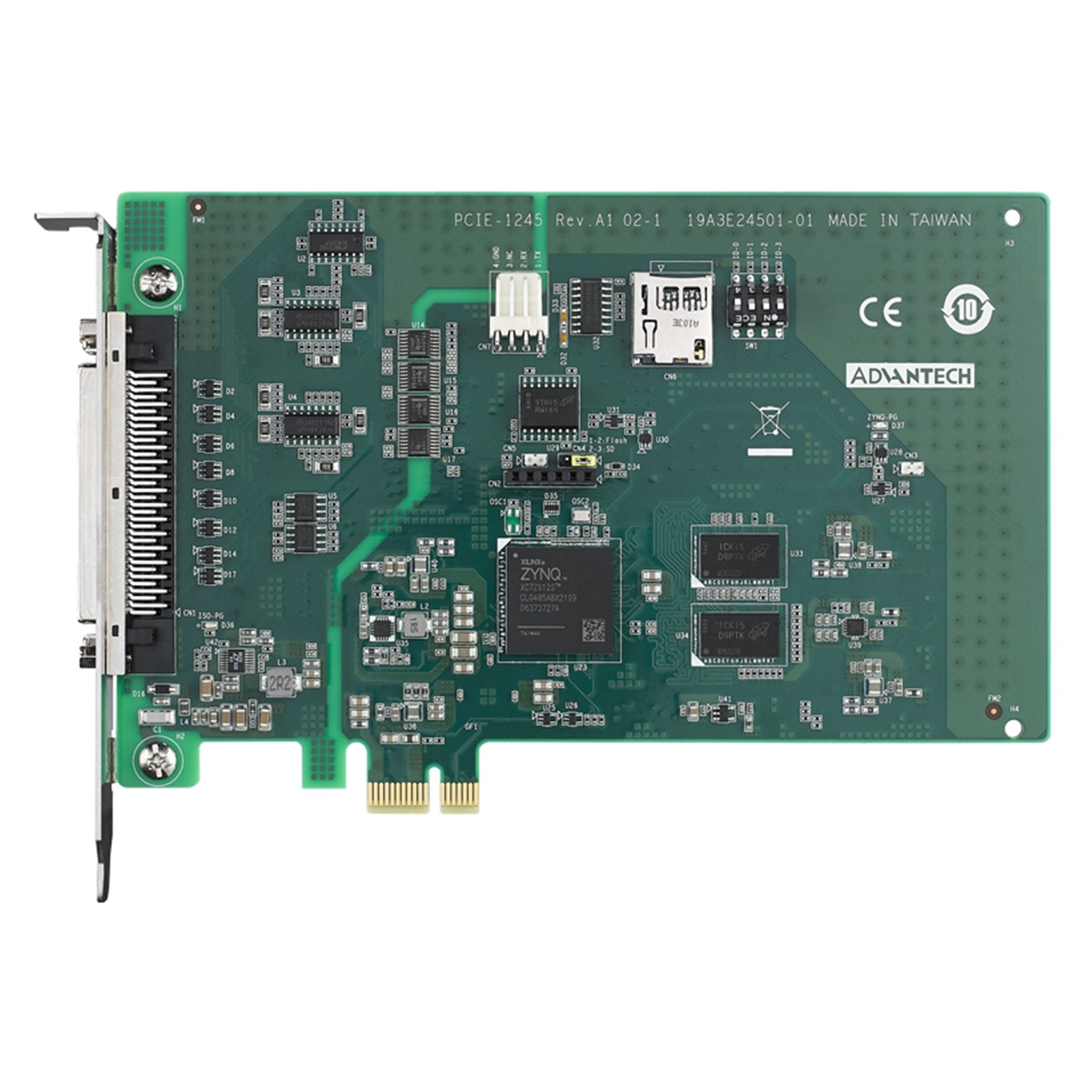

Advantech PCIE-1245E-AE Economic 4-Axis Motion Control Universal PCI Express Card

PB Tech price
PB Tech price
NZD $ 933 .33
$ 933 .33
$933.33  +GST
$933.33

Advantech PCIE-1245E-AE Economic 4-Axis Motion Control Universal PCI Express Card

  • Brand: Advantech
  • MPN: PCIE-1245E-AE
  • Part #: IPCAVH221059
  • UPC:
PB Tech price
NZD $ 933 .33 $ 933 .33


Delivery: Order now and it ships on 24 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$933.33  +GST
$933.33

Features

Full 4-Axis Motion Control Universal PCI Express Card

- Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz
- Supports memory buffer (10 K points) for trajectory planning
- Supports point-to-point, line and E-Gear; Supports hardware emergency input
- Circular and helical interpolation (PCIE-1245 only)
- Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)
- 1D&2D plane position compensation (PCIE-1245 only)
- Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)
- Dynamic PWM output for velocity following (PCIE-1245 only)

Specifications

Pulse Type Motion Control

Max. Output Speed

5 Mbps

Pulse Output Type

CW/CCW or pulse/direction

Velocity Profiles

T-Curve, S-Curve

Interpolation

2/3-axis linear, 2/3-axis circular

Counter/Encoder Input

Counting Range

32-bit

Channels

4

Encoder Type and Interface

Input Type

Quadrature (x1, x2, x4 A/B phase) or CW/CCW or P/D

Max. Input Frequency

10 MHz under x4 A/B phase mode

Manufacturer Part No:
PCIE-1245E-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221059
Product Model:
PCIE-1245E-AE
Warranty: 12 months *
