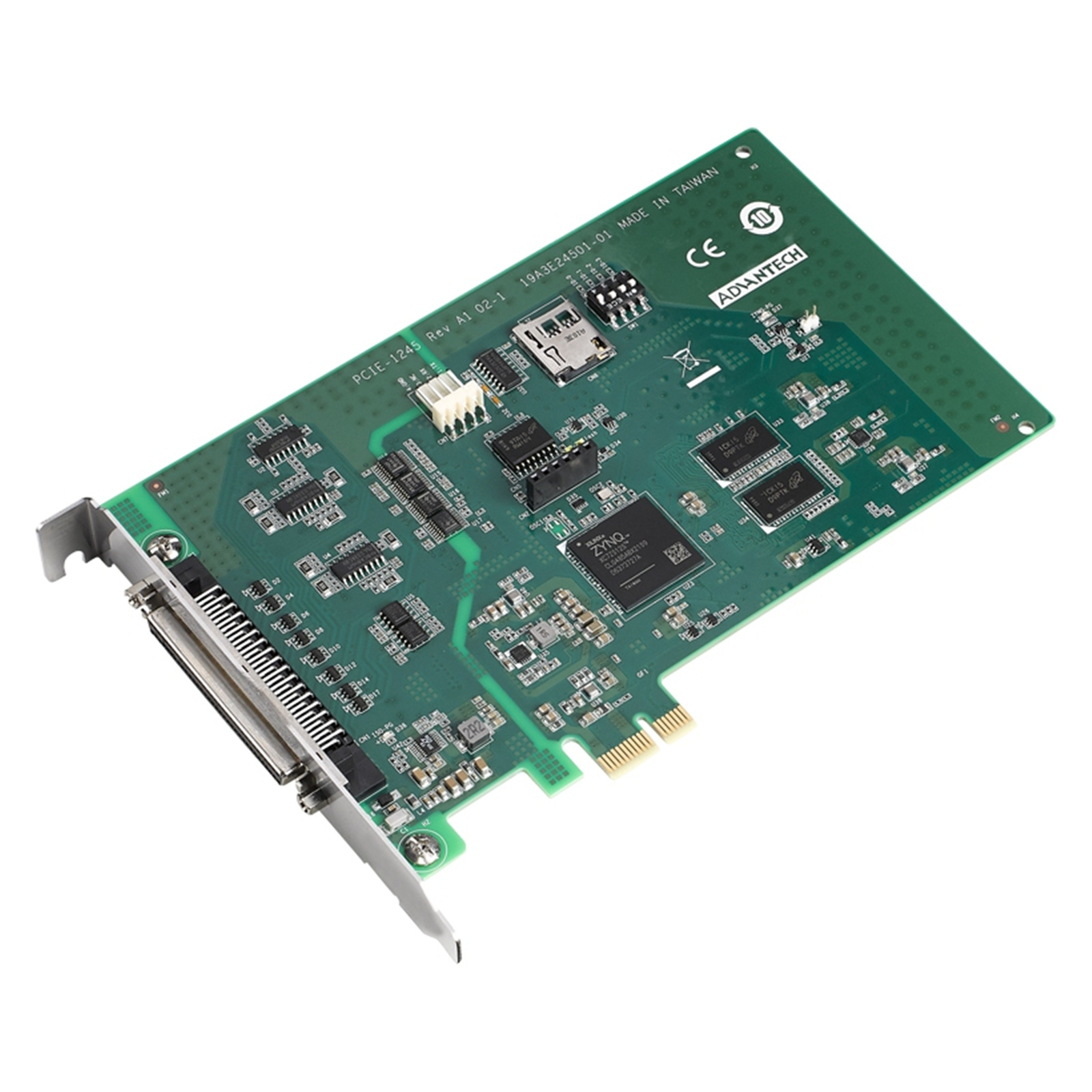

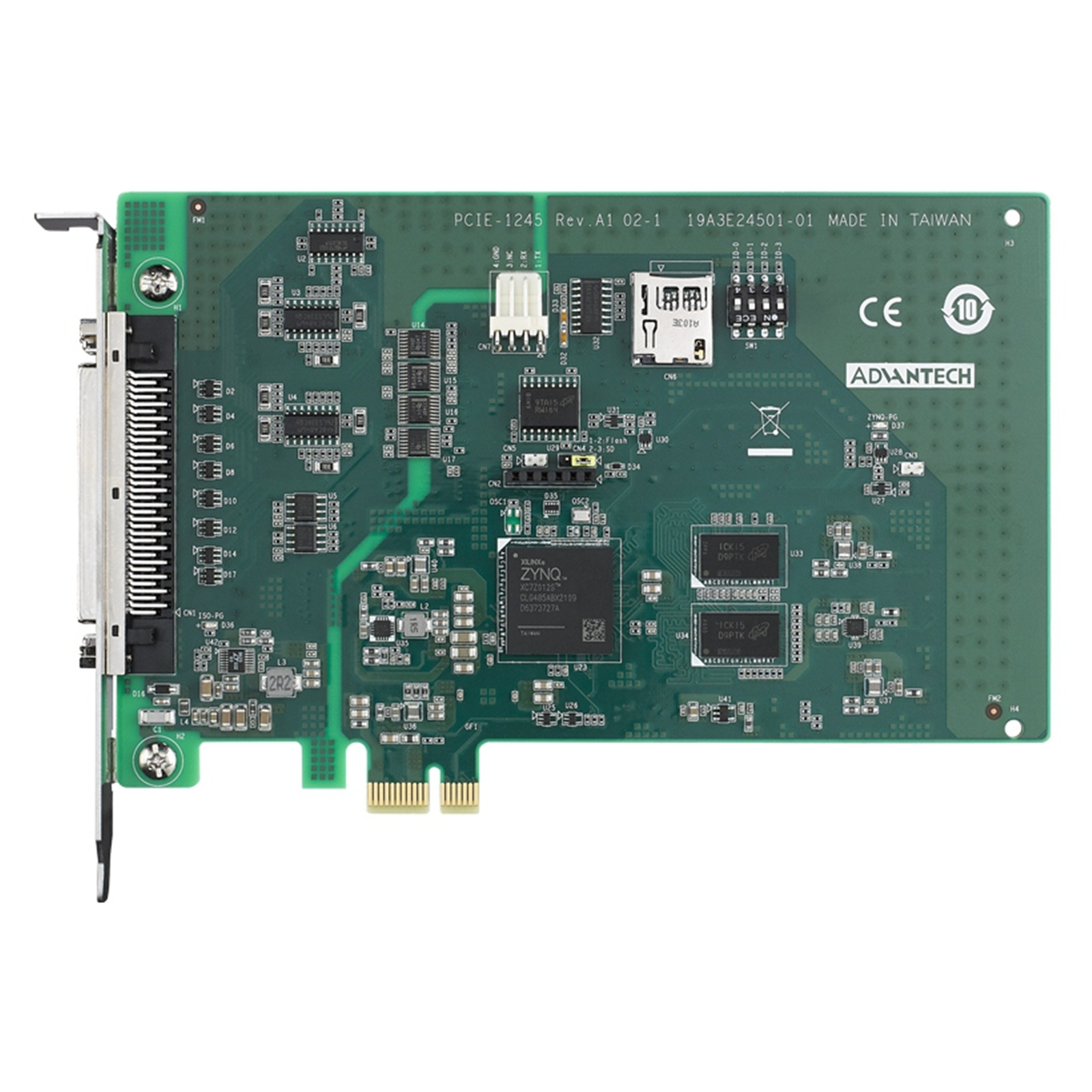

Advantech PCIE-1245E-AE Economic 4-Axis Motion Control Universal PCI Express Card
Advantech PCIE-1245E-AE Economic 4-Axis Motion Control Universal PCI Express Card
- Brand: Advantech
- MPN: PCIE-1245E-AE
- Part #: IPCAVH221059
- UPC:
View all shipping info
- Brand: Advantech
- MPN: PCIE-1245E-AE
- Part #: IPCAVH221059
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial Automation & I/O





Advantech PCIE-1245E-AE Economic 4-Axis Motion Control Universal PCI Express Card
- Brand: Advantech
- MPN: PCIE-1245E-AE
- Part #: IPCAVH221059

Product URL: https://www.pbtech.com/au/product/IPCAVH221059/Advantech-PCIE-1245E-AE-Economic-4-Axis-Motion-Con
Features
Full 4-Axis Motion Control Universal PCI Express Card
- Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz
- Supports memory buffer (10 K points) for trajectory planning
- Supports point-to-point, line and E-Gear; Supports hardware emergency input
- Circular and helical interpolation (PCIE-1245 only)
- Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)
- 1D&2D plane position compensation (PCIE-1245 only)
- Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)
- Dynamic PWM output for velocity following (PCIE-1245 only)
Specifications
Pulse Type Motion Control
Max. Output Speed
5 Mbps
Pulse Output Type
CW/CCW or pulse/direction
Velocity Profiles
T-Curve, S-Curve
Interpolation
2/3-axis linear, 2/3-axis circular
Counter/Encoder Input
Counting Range
32-bit
Channels
4
Encoder Type and Interface
Input Type
Quadrature (x1, x2, x4 A/B phase) or CW/CCW or P/D
Max. Input Frequency
10 MHz under x4 A/B phase mode
