Advantech TPC-B300-J20A Modular TPC - Computing Box Module with Intel Celeron J6412

PB Tech price
PB Tech price
NZD $ 1,140 .00
$ 1,140 .00
$1,140.00  +GST
$1,140.00

Advantech TPC-B300-J20A Modular TPC - Computing Box Module with Intel Celeron J6412

  • Brand: Advantech
  • MPN: TPC-B300-J20A
  • Part #: IPCAVH500012
  • UPC:
PB Tech price
NZD $ 1,140 .00 $ 1,140 .00
In stock at Supplier
Delivery: Order now and it ships on 24 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,140.00  +GST
$1,140.00
Add To Compare
Stock Alerts
+ 2 More

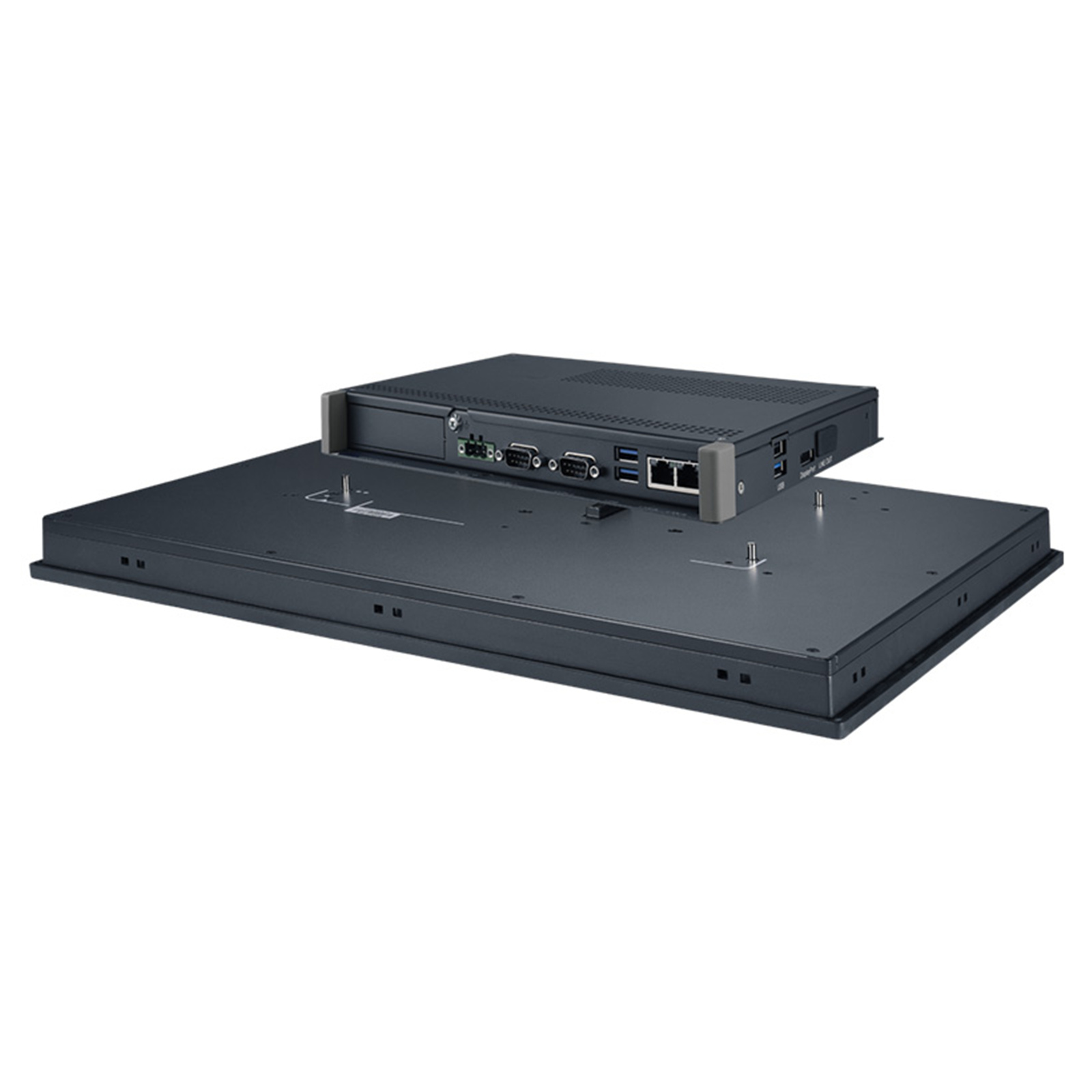

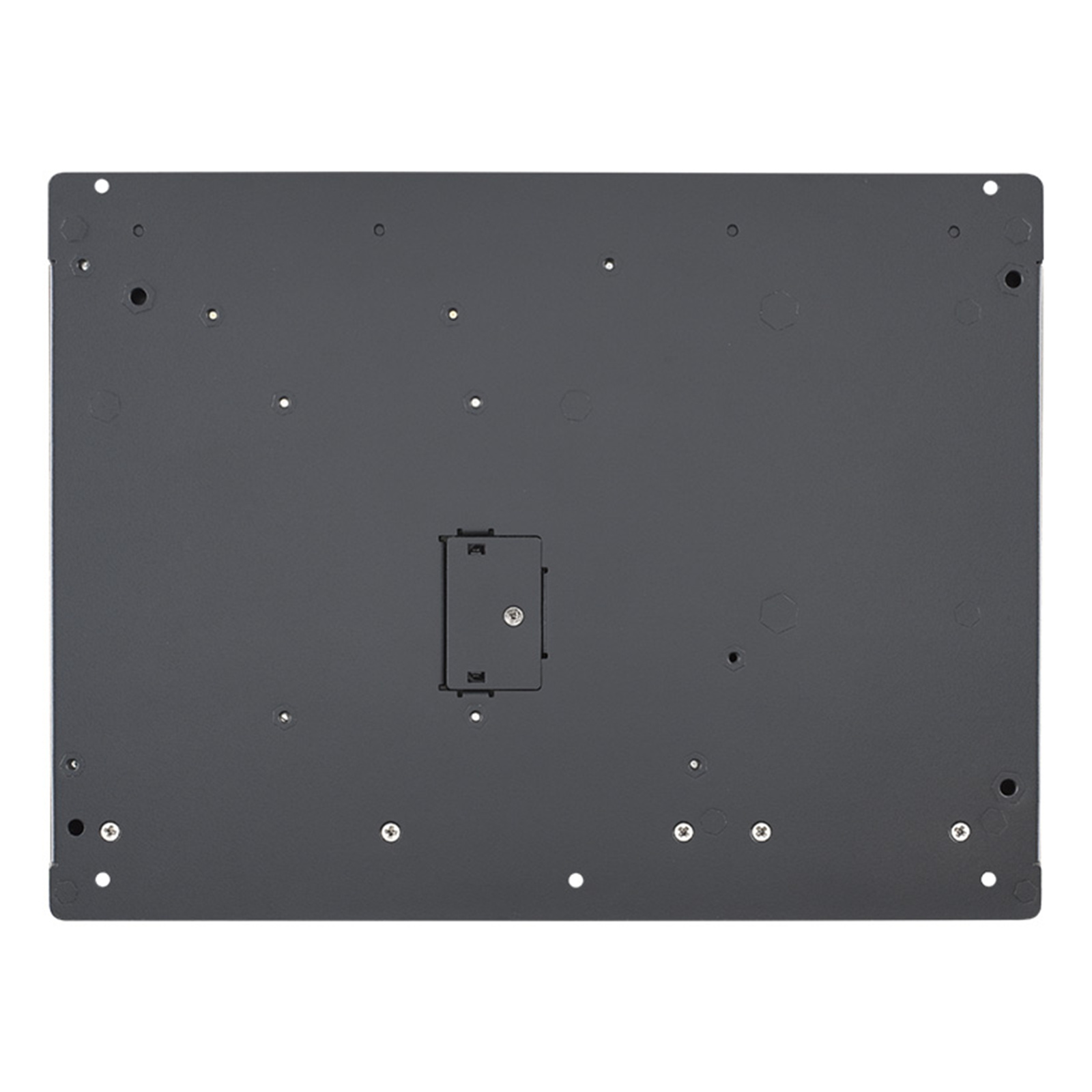

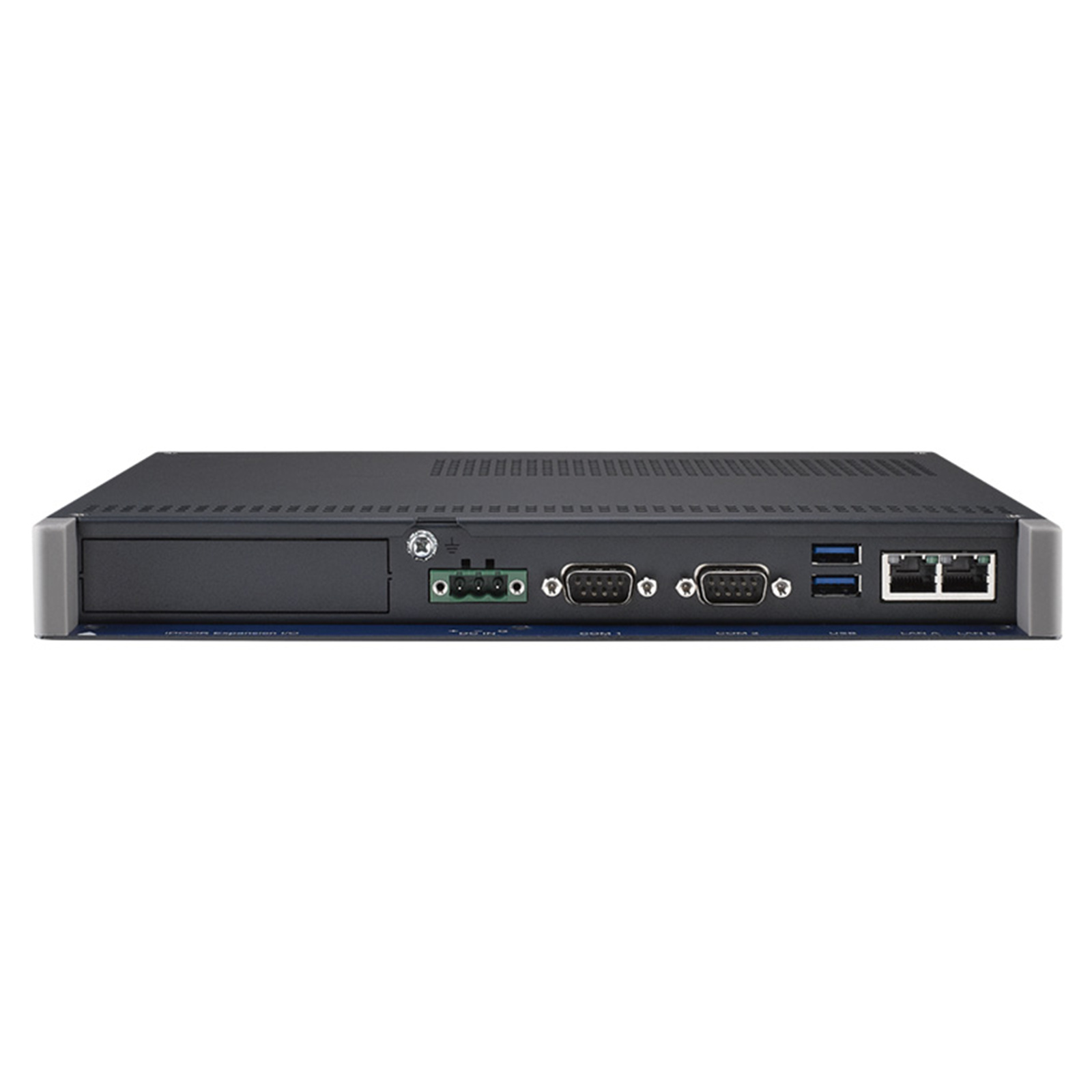

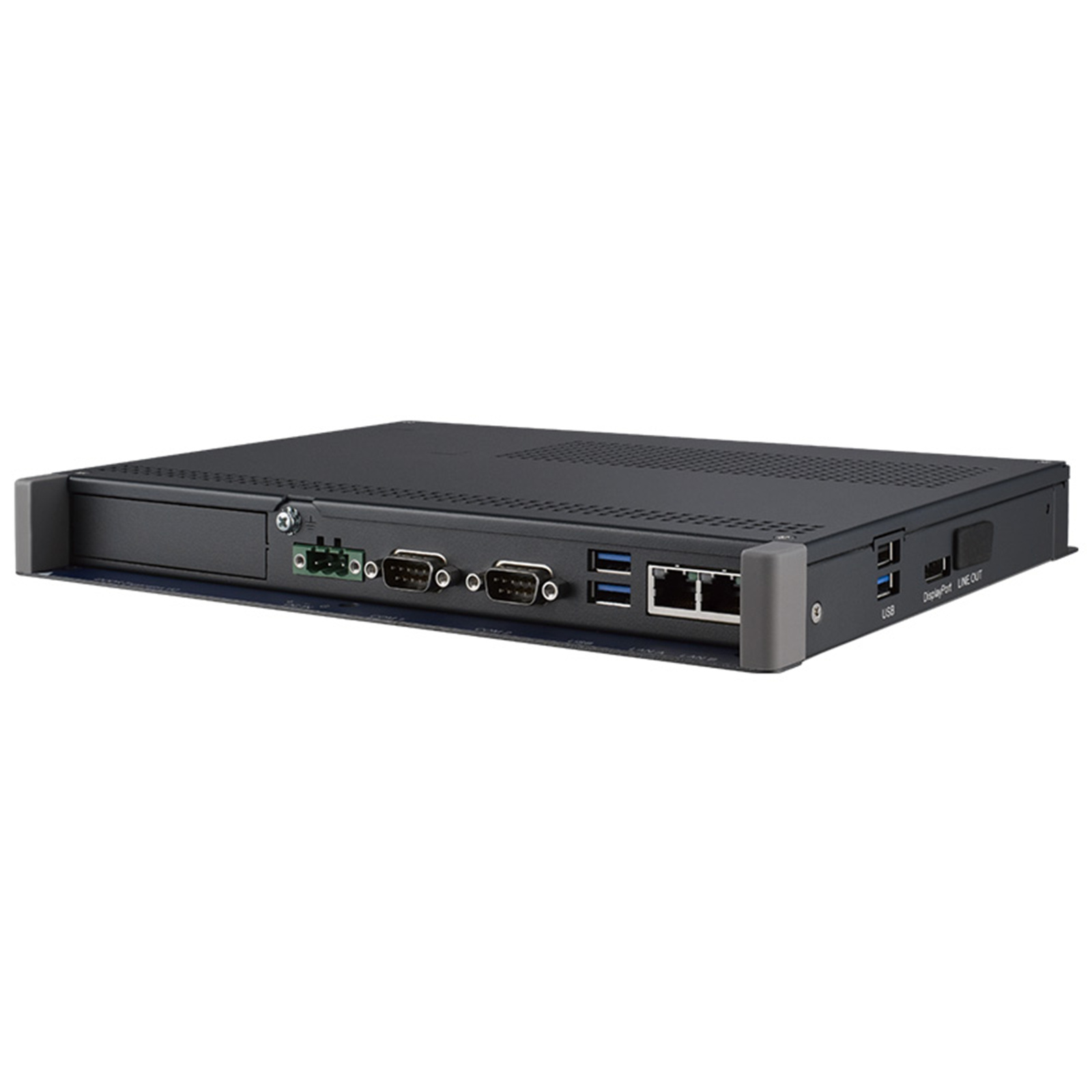

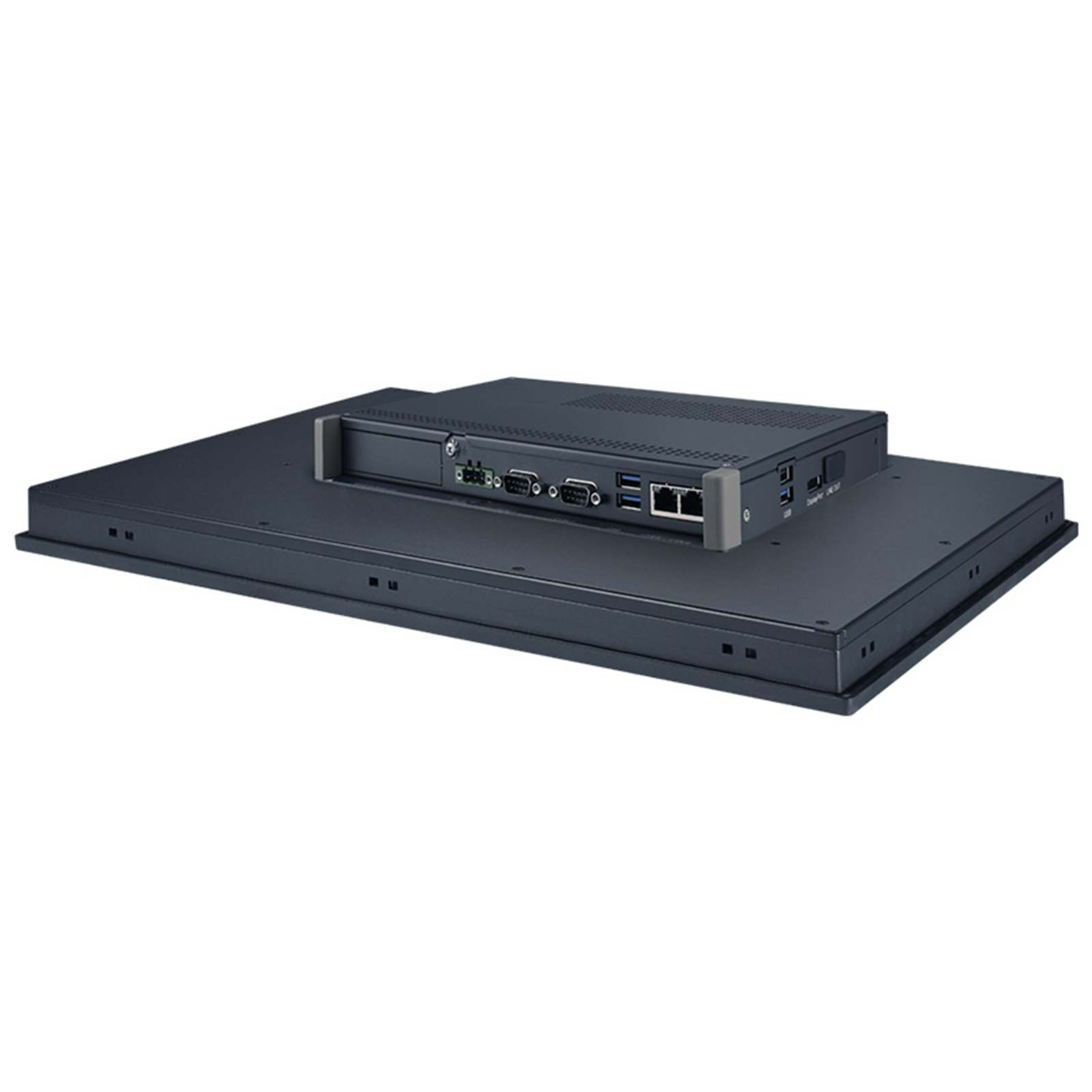

Click or hover over image to enlarge
  • Brand: Advantech
  • MPN: TPC-B300-J20A
  • Part #: IPCAVH500012
  • UPC:
Returns & Warranty Bulk Quote Print Page

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Advantech TPC-B300-J20A Modular TPC - Computing Box Module with Intel...
Advantech TPC-B300-J20A Modular TPC - Computing Box Module with Intel Celeron J6412
Advantech FPM-D21W-CE 21.5" FHD (1920x1080) PCAP 250 nits modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
Advantech FPM-D24W-CE 23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368
Total:
NZD $ 4,453 .85
NZD $ 4,453 .85
Buy together and save $61.15 $61.15
Advantech FPM-D21W-CE 21.5" FHD (1920x1080) PCAP 250 nits modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
Advantech FPM-D21W-CE 21.5" FHD (1920x1080) PCAP 250 nits modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models

Advantech FPM-D21W-CE 21.5" FHD (1920x1080) PCAP 250 nits modular front display design compatible...

Ships tomorrow
$1,575.00 $1,575.00
NZD

$1,546.01

$1,546.01

Advantech FPM-D24W-CE 23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models
Advantech FPM-D24W-CE 23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520, TPC-B300 models

Advantech FPM-D24W-CE 23.8" (FHD) modular front display design compatible with TPC-B610, TPC-B520,...

Ships tomorrow
$1,704.55 $1,704.55
NZD

$1,673.18

$1,673.18

Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368
Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368

Advantech Power adaptor 96PSA-A150W24T2-4 A/D 100-240V 150W 24V W/PFC C14 CORD END 62368

Ships on 24 Sep
NZD

$94.66

$94.66

Features

Modular TPC - Computing Box Module with Intel Atom and Celeron CPU

  • Computing Box powered by Intel Atom® X6425E/ Intel® Celeron® J6412 with DDR4 SODIMM slot (up to 32GB)
  • Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
  • 1 x Full-size mini PCIe for iDoor expansion
  • 1 x M.2 Key-E 2230 for WIFI + BT module
  • 1 x M.2 Key-M 2280 for SATA SSD
  • 1 x 2.5" SATA SSD expansion
  • 2 x 2.5Gb LAN
  • Supports TPM2.0 hardware security
  • Wide Temp Support. Range -20~60 °C (Atom™ X6425E)

Specifications

Environment

Operating Temperature

-20~55 °C (-4~131 °F)

Storage Temperature

-20~70 °C (-4~158 °F)

Vibration Protection

1 Grms1 Grms

Hardware

Certification

CB, UL, CE, FCC Class A, CCC, BSMI

CPU

Intel® Celeron® J6412 2.00 GHz, Quad core

Expansion

1 x Full-size mPCIe slot

Hardware Security

TPM 2.0

I/O

1 x RS-232, 1 x RS-232/422/485

LAN

2 x 10/100/1000/2500 Mbps

Memory

1 x DDR4 SO-DIMM Slot

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, AndroidMicrosoft® Windows 10 LTSC, Microsoft® Windows 10 LTSB, Linux, Android

Power Input

24 VDC ±20%

Storage

1 x SATA M.2 SSD slot (2280 M-Key), 1 x 2.5" SSD/HDD Bay

I/O Interface

USB Ports

3 x USB 3.2, 1 x USB 2.0

Mechanical

Dimension (W x H x D)

269 x 203 x 30 mm

Mounting

Panel, Wall, Stand, VESA

Weight (Net)

2 kg (4.41 lb)2 kg (4.41 lb)

Manufacturer Part No:
TPC-B300-J20A
Brand:
Advantech
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH500012
Product Model:
TPC-B300-J20A
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
