JimiLab LL303 LTE Solar Powered GNSS Tracker LTE & GSM Network, GPS & BDS & LBS Positioning, Solar & Magnetic Charging

PB Tech price
PB Tech price
NZD $ 179 .53
$ 179 .53
$179.53  +GST
$179.53

JimiLab LL303 LTE Solar Powered GNSS Tracker LTE & GSM Network, GPS & BDS & LBS Positioning, Solar & Magnetic Charging

  • Brand: JimiLab
  • MPN: LL303
  • Part #: IPCJIM0009
  • UPC:
PB Tech price
NZD $ 179 .53 $ 179 .53


Delivery: Order now and it ships tomorrow
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$179.53  +GST
$179.53

Features

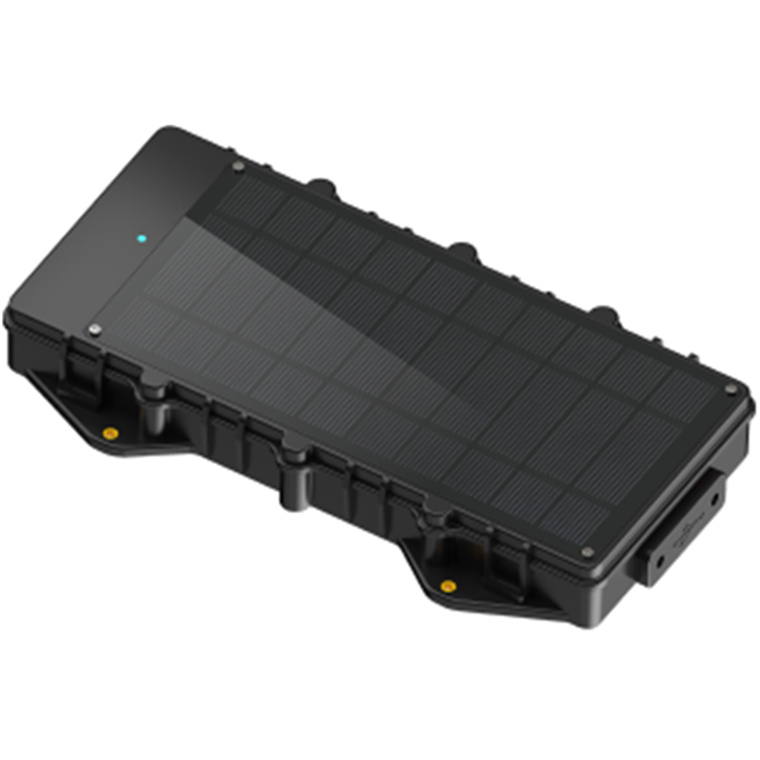

The LL303 is a 4G solar-powered tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.

Contact [email protected], to register account for free softtware and APP.

Specifications

GNSS

Positioning system

GPS+BDS+LBS+WiFi+AGPS

Positioning accuracy

<2.5m CEP

Tracking sensitivity

-165dBm

Acquisition sensitivity

-148dBm

TTFF (open sky)

Avg. hot start =1sec
Avg. cold start =32sec

Cellular

Communication network

LTE Cat 1/Cat M1/Cat NB2/GSM

Frequency

LL303-C:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41

LL303-E:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8

LL303-L:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8

LL303-A:
LTE-FDD: B2/B4/B5/B12/B13/B25/B26/B66
GSM: B2/B3/B5/B8

Power

Battery

10,000mAh/3.7V industrial-grade Li-Polymer battery

Solar power

5V/390mA (Standard Operating Voltage/Current @STC)
STC: Direct illumination with 38,000lux halogen lamp on the test bench.

Magnetic charger

5V/2A

Working modes

Mode 1: Regular GPS mode
Mode 2: Tracking mode
Mode 3: Power-saving mode

Standby time

Up to 2 years in power-saving mode

Interface

LED indication

Cellular (Green), Power (Red)

SIM

Nano-SIM

Tamper proof

Hall effect sensor

Physical specification

Dimensions

200.0 x 90.0 x 25.0mm (without base)

Weight

480g (without base)

Operating environment

Operating temperature

-20 to +70C

Operating humidity

5%~95%, non-condensing

IP rating

IP67

Highlights

Sensors

Accelerometer, Temperature&humidity sensor, Hall effect sensor

Bluetooth

Support BLE 5.0 protocol

Scenarios

Low battery alert, Tamper alert, Vibrating Alert

Note

* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.

Manufacturer Part No:
LL303
Brand:
JimiLab
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCJIM0009
Product Model:
LL303
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
