JimiLab LL303 LTE Solar Powered GNSS Tracker LTE & GSM Network, GPS & BDS & LBS Positioning, Solar & Magnetic Charging
- Brand: JimiLab
- MPN: LL303
- Part #: IPCJIM0009

Product URL: https://www.pbtech.com/au/product/IPCJIM0009/JimiLab-LL303-LTE-Solar-Powered-GNSS-Tracker-LTE
Features

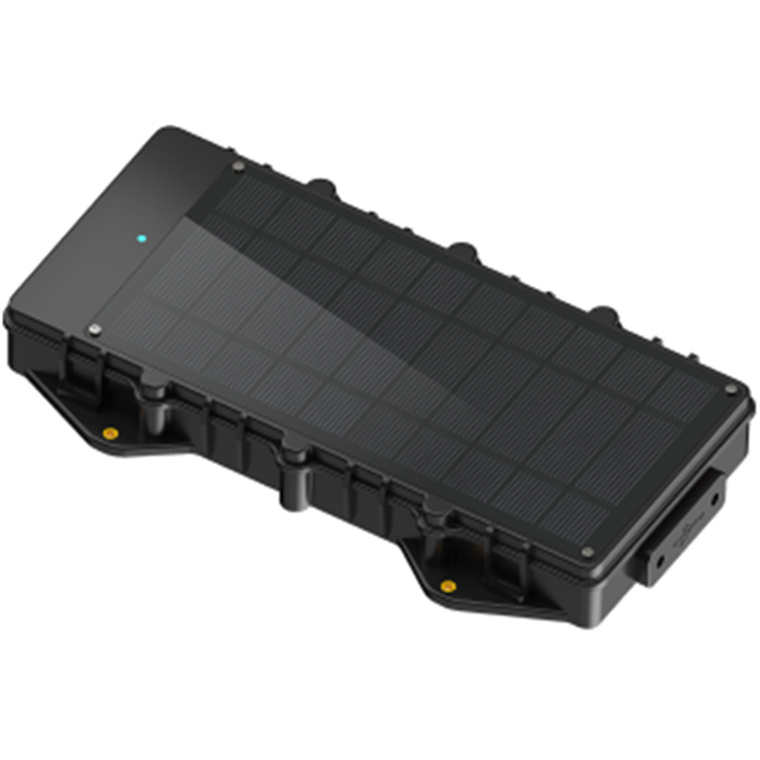

The LL303 is a 4G solar-powered tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.
Contact [email protected], to register account for free softtware and APP.
Specifications
GNSS
Positioning system
GPS+BDS+LBS+WiFi+AGPS
Positioning accuracy
<2.5m CEP
Tracking sensitivity
-165dBm
Acquisition sensitivity
-148dBm
TTFF (open sky)
Avg. hot start =1sec
Avg. cold start =32sec
Cellular
Communication network
LTE Cat 1/Cat M1/Cat NB2/GSM
Frequency
LL303-C:
LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
LL303-E:
LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8
LL303-L:
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8
LL303-A:
LTE-FDD: B2/B4/B5/B12/B13/B25/B26/B66
GSM: B2/B3/B5/B8
Power
Battery
10,000mAh/3.7V industrial-grade Li-Polymer battery
Solar power
5V/390mA (Standard Operating Voltage/Current @STC)
STC: Direct illumination with 38,000lux halogen lamp on the test bench.
Magnetic charger
5V/2A
Working modes
Mode 1: Regular GPS mode
Mode 2: Tracking mode
Mode 3: Power-saving mode
Standby time
Up to 2 years in power-saving mode
Interface
LED indication
Cellular (Green), Power (Red)
SIM
Nano-SIM
Tamper proof
Hall effect sensor
Physical specification
Dimensions
200.0 x 90.0 x 25.0mm (without base)
Weight
480g (without base)
Operating environment
Operating temperature
-20 to +70C
Operating humidity
5%~95%, non-condensing
IP rating
IP67
Highlights
Sensors
Accelerometer, Temperature&humidity sensor, Hall effect sensor
Bluetooth
Support BLE 5.0 protocol
Scenarios
Low battery alert, Tamper alert, Vibrating Alert
Note
* We reserve the right of final interpretation of this page. All information is for reference only and is subject to change without further notice.
