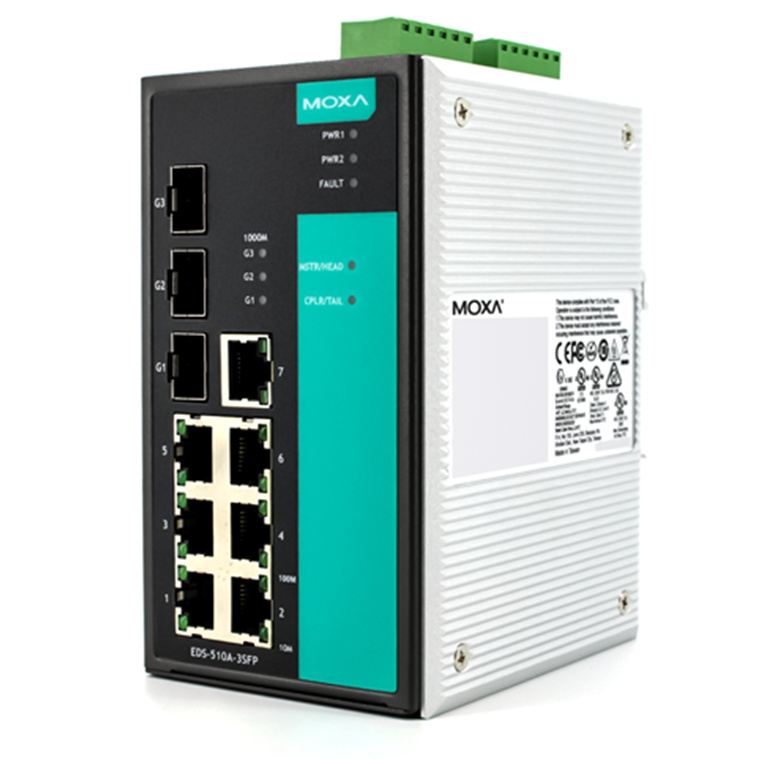

MOXA Layer 2 Managed Switches EDS-510A-3SFP Industrial Gigabit Managed Ethernet Switch with 7 10/100BaseT(X) ports, 3 SFP (mini-GBIC) ports, 0 to 60°C
- Brand: MOXA
- MPN: EDS-510A-3SFP
- Part #: IPCMXAEDS510A01

Product URL: https://www.pbtech.com/pacific/product/IPCMXAEDS510A01/MOXA-Layer-2-Managed-Switches-EDS-510A-3SFP-Indust
Features
The EDS-510A Gigabit managed redundant Ethernet switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundant Turbo Ring (recovery time < 20 ms) and RSTP/STP (IEEE 802.1w/D) can increase system reliability and the availability of your network backbone. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.
- Command Line Interface (CLI) for quickly configuring major managed functions
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
- DHCP Option 82 for IP address assignment with different policies
- Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
- Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
- Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
- Port Trunking for optimum bandwidth utilization
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management prevents unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Automatic warning by exception through e-mail, relay output
Specifications
General
Model Name
EDS-510A-3SFP
10/100BaseT(X) Ports RJ45 Connector
7
1000Base SFP Slots
3
Operating Temp.
-10 to 60°C
Input/Output Interface
Alarm Contact Channels
2
Relay output with current carrying capacity of 1 A @ 24 VDC
Digital Input Channels
2
Digital Inputs
+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
7
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
10/100/1000BaseT(X) Ports (RJ45 connector)
EDS-510A-1GT2SFP Series: 1
EDS-510A-3GT Series: 3
Supported functions:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection
1000BaseSFP Slots
EDS-510A-1GT2SFP Series: 2
EDS-510A-3SFP Series: 3
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP
Switch Properties
IGMP Groups
256
MAC Table Size
8 K
Max. No. of VLANs
64
Packet Buffer Size
1 Mbits
Priority Queues
4
VLAN ID Range
VID 1 to 4094
Serial Interface
Console Port
RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)
DIP Switch Configuration
Ethernet Interface
Turbo Ring, Master, Coupler, Reserve
Power Parameters
Connection
2 removable 6-contact terminal block(s)
Input Current
EDS-510A-1GT2SFP Series: 0.38 A @ 24 VDC
EDS-510A-3GT Series: 0.48 A @ 24 VDC
EDS-510A-3SFP Series: 0.33 A @ 24 VDC
Input Voltage
24 VDC
Redundant dual inputs
Operating Voltage
12 to 45 VDC
Overload Current Protection
Supported
Reverse Polarity Protection
Supported
Physical Characteristics
Housing
Metal
IP Rating
IP30
Dimensions
80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)
Weight
1170 g (2.58 lb)
Installation
DIN-rail mounting
Wall mounting (with optional kit)
Environmental Limits
Operating Temperature
Standard Models: -10 to 60°C (14 to 140°F)
Storage Temperature (package included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
