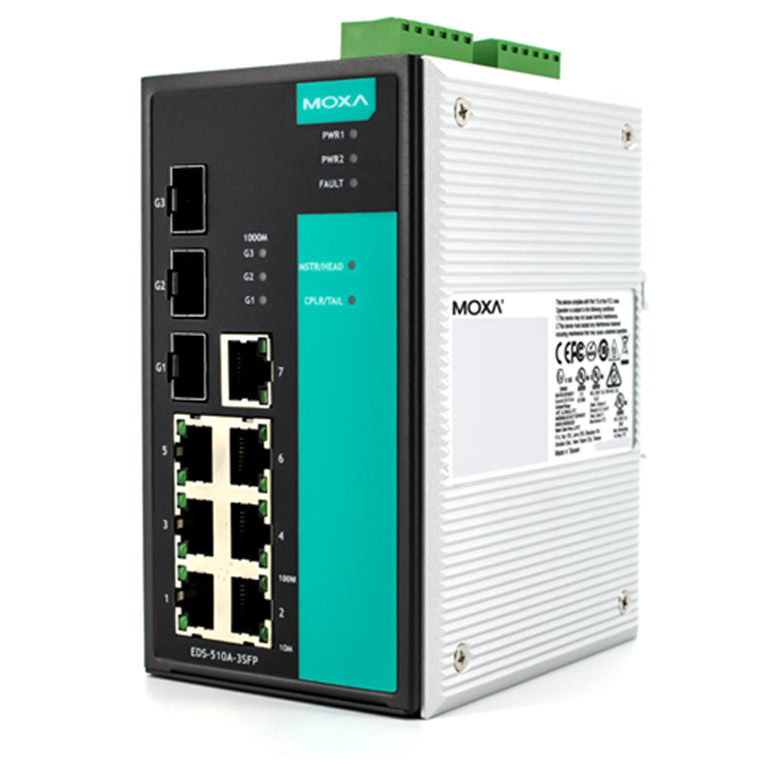

MOXA Layer 2 Managed Switches EDS-510A-3SFP Industrial Gigabit Managed Ethernet Switch with 7 10/100BaseT(X) ports, 3 SFP (mini-GBIC) ports, 0 to 60°C

PB Tech price
PB Tech price
$ 2,195 .44
 +GST
$ 2,414 .98
 inc GST
$2,195.44  +GST
$2,414.98

MOXA Layer 2 Managed Switches EDS-510A-3SFP Industrial Gigabit Managed Ethernet Switch with 7 10/100BaseT(X) ports, 3 SFP (mini-GBIC) ports, 0 to 60°C

  • Brand: MOXA
  • MPN: EDS-510A-3SFP
  • Part #: IPCMXAEDS510A01
  • UPC:
PB Tech price
$ 2,195 .44 $ 2,414 .98
 +GST  inc GST


Delivery: Order now and it ships on 26 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$2,195.44  +GST
$2,414.98

Features

The EDS-510A Gigabit managed redundant Ethernet switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundant Turbo Ring (recovery time < 20 ms) and RSTP/STP (IEEE 802.1w/D) can increase system reliability and the availability of your network backbone. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.

- Command Line Interface (CLI) for quickly configuring major managed functions
- IPv6 Ready logo awarded (IPv6 Logo Committee certified)
- IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
- DHCP Option 82 for IP address assignment with different policies
- Support EtherNet/IP and Modbus/TCP protocols for device management and monitoring
- Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
- Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP for network redundancy
- IGMP snooping and GMRP for filtering multicast traffic
- Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
- QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
- Port Trunking for optimum bandwidth utilization
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
- SNMPv1/v2c/v3 for different levels of network management
- RMON for efficient network monitoring and proactive capability
- Bandwidth management prevents unpredictable network status
- Lock port function for blocking unauthorized access based on MAC address
- Automatic warning by exception through e-mail, relay output

Specifications

General

Model Name

EDS-510A-3SFP

10/100BaseT(X) Ports RJ45 Connector

7

1000Base SFP Slots

3

Operating Temp.

-10 to 60°C

Input/Output Interface

Alarm Contact Channels

2
Relay output with current carrying capacity of 1 A @ 24 VDC

Digital Input Channels

2

Digital Inputs

+13 to +30 V for state 1
-30 to +3 V for state 0
Max. input current: 8 mA

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

7
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

10/100/1000BaseT(X) Ports (RJ45 connector)

EDS-510A-1GT2SFP Series: 1
EDS-510A-3GT Series: 3
Supported functions:
Auto negotiation speed
Full/Half duplex mode
Auto MDI/MDI-X connection

1000BaseSFP Slots

EDS-510A-1GT2SFP Series: 2
EDS-510A-3SFP Series: 3

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.1X for authentication
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.3x for flow control
IEEE 802.3ad for Port Trunk with LACP

Switch Properties

IGMP Groups

256

MAC Table Size

8 K

Max. No. of VLANs

64

Packet Buffer Size

1 Mbits

Priority Queues

4

VLAN ID Range

VID 1 to 4094

Serial Interface

Console Port

RS-232 (TxD, RxD, GND), 10-pin RJ45 (115200, n, 8, 1)

DIP Switch Configuration

Ethernet Interface

Turbo Ring, Master, Coupler, Reserve

Power Parameters

Connection

2 removable 6-contact terminal block(s)

Input Current

EDS-510A-1GT2SFP Series: 0.38 A @ 24 VDC
EDS-510A-3GT Series: 0.48 A @ 24 VDC
EDS-510A-3SFP Series: 0.33 A @ 24 VDC

Input Voltage

24 VDC
Redundant dual inputs

Operating Voltage

12 to 45 VDC

Overload Current Protection

Supported

Reverse Polarity Protection

Supported

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions

80.2 x 135 x 105 mm (3.16 x 5.31 x 4.13 in)

Weight

1170 g (2.58 lb)

Installation

DIN-rail mounting
Wall mounting (with optional kit)

Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Manufacturer Part No:
EDS-510A-3SFP
Brand:
Product Type:
-
UPC
-
Product Family:
Layer 2 Managed Switches
Shipping Weight:
1.55 kg
PB Part No:
IPCMXAEDS510A01
Product Model:
EDS-510A-3SFP
Warranty: 60 months *
