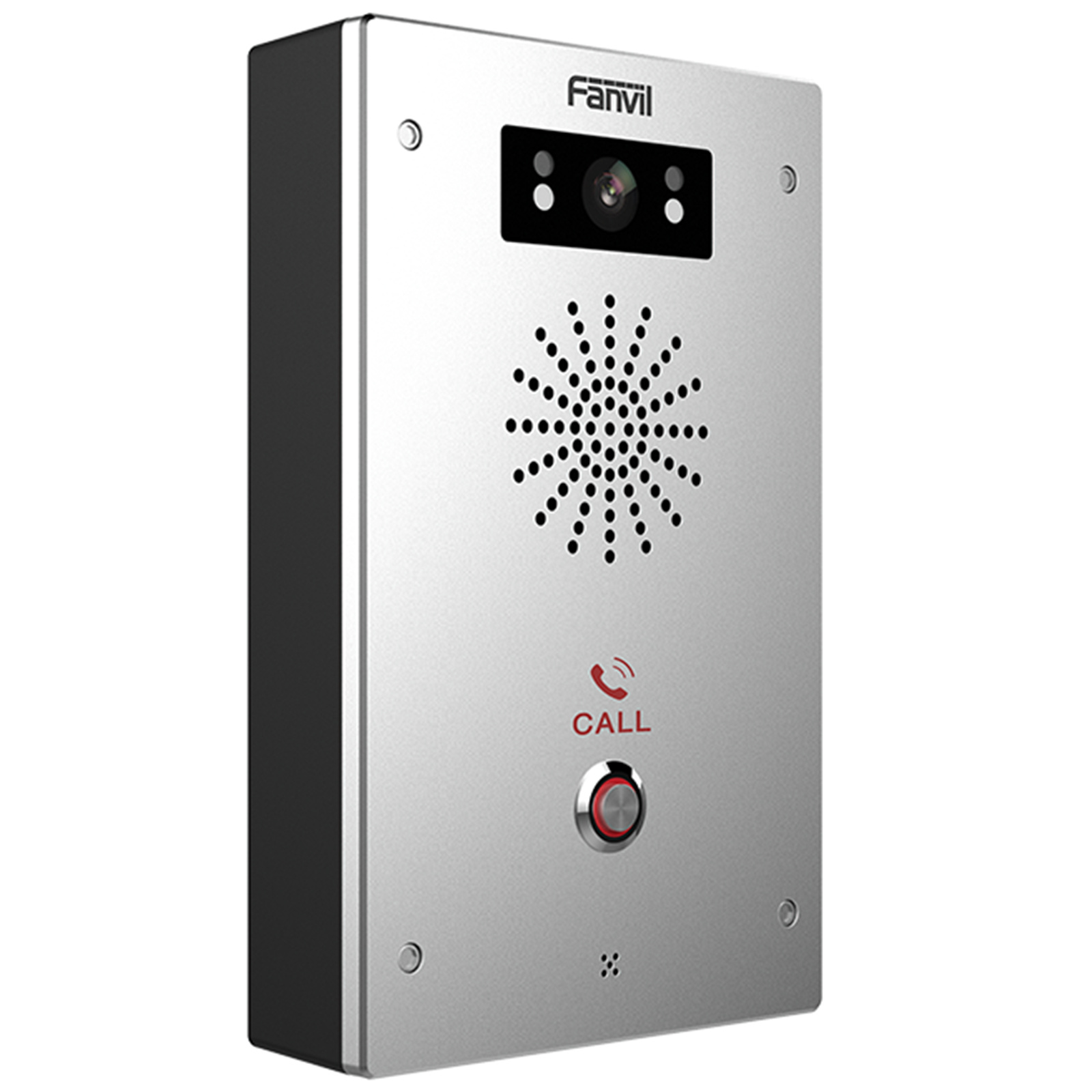

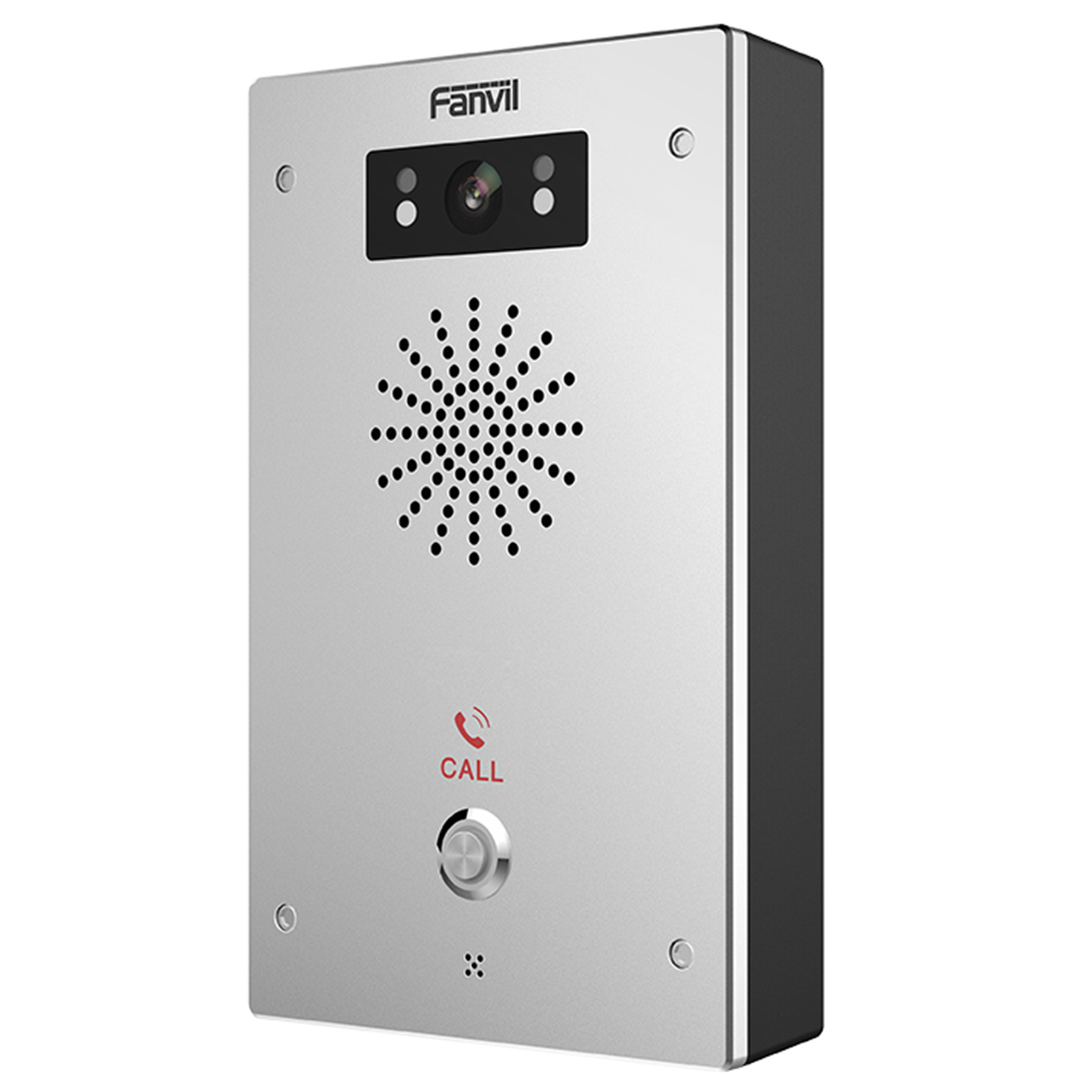

Fanvil FAN-i16SV The i16SV SIP intercom (supercedes the i16V) is wall mountable,dustproof,waterproof& has an anti-collision design. IP65 and IK10 rated

PB Tech price

NZD $ 335 .65

$ 335 .65

Fanvil FAN-i16SV The i16SV SIP intercom (supercedes the i16V) is wall mountable,dustproof,waterproof& has an anti-collision design. IP65 and IK10 rated

Brand: Fanvil
MPN: FAN-i16SV
Part #: IPHFAN1110
UPC:

PB Tech price

NZD $ 335 .65

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Fanvil
MPN: FAN-i16SV
Part #: IPHFAN1110
UPC:

Be the first to review this product

Colour

Returns & Warranty Bulk Quote Print Page

Features

Fanvil i16SV IP65/IK10 SIP Video Intercom

The Fanvil i16SV is a reliable two-way intercom that also serves and a broadcasting solution. It has HD Voice and Audio so that communication between the person at the door and the person in the building is always clear. A. built-in 3CX speaker helps to reduce background noise and the full-duplex 720P camera has infrared night vision technology.

- Built-in HD camera with infrared night vision, adopt H.264 codec
- IP65 waterproof and dustproof.
- IK10 anti-collision with robust die-cast aluminum frame
- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
- Audio line out port, expandable external active speaker.
- Built-in 2 short-in detect port and 2 short-out control port
- Support built-in TF card slot for data storage or audio offline broadcasting.
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.

Specifications

Functions

Device Functions

Auto-answering
Programmable DSS keys
Through button or web page volume adjustment
Network time synchronization
Time Plan (task management)
Incoming call multicast
Dynamic multicast function
HTTP API
Action URL / Active URI

Call Functions

Call out / answer / reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call (Hide caller ID)

Audio

Narrowband codec

G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K

Wideband codec

G.722, Opus

DTMF

In-band, Out-of-Band (RFC2833/ SIP INFO)

Video

Sensor

1/2.8" color CMOS

Pixels

2 Mega

Video coding

H.264

Resolution

720P/1080P

Minimum illumination

0.1Lux, support for infrared illumination

Viewing angle

Diagonal: 126°
Horizontal: 98°
Vertical: 65°

Network

Physical

10/100 Mbps Ethernet

IP mod

IPv4/IPv6/IPv4&IPv6

IP configuration

Static IP / DHCP / PPPoE

VPN

L2TP / OpenVPN

Physical Specifications

DSS key (support LED)

RJ45 port

x1, connect the network
PoE enabled

Line out port

x1, connect the active speaker
Out: adjustable by volume, max up to1.2Vpp.
Port: terminal socket

Recording output port

x1, connect audio device
Out: mixed output of local microphone voice and call voice recording
Impedance: 15 Ohm
Port: terminal socket

Short circuit input and output port x2 (built-in relay)

Relay: MAX DC30V / 2A, AC125V / 0.5A
Active switching output: 12V/500mA DC(only 1 relay support)
Port: terminal socket

Tamper alarm switch

TF card slot

x1, connect TF card

DC port x1

DC power input

DC12V~24V/1A

Port

2 Pin terminal socket

PoE level

Class 3

Protection level

IP65 and IK10

Housing material

aluminum alloy shell

Installation

wall-mounted

Working temperature

-30? ~ 60?

Storage temperature

- 40? ~ 70?

Working humidity

10~95%

Device dimensions

195x120x40 mm

Manufacturer Part No:

FAN-i16SV

Brand:

Fanvil

Product Type:

UPC

Product Family:

Shipping Weight:

2 kg

PB Part No:

IPHFAN1110

Product Model:

Warranty: 12 months *
