Fanvil FAN-i16SV The i16SV SIP intercom (supercedes the i16V) is wall mountable,dustproof,waterproof& has an anti-collision design. IP65 and IK10 rated
- Brand: Fanvil
- MPN: FAN-i16SV
- Part #: IPHFAN1110

Product URL: https://www.pbtech.com/au/product/IPHFAN1110/Fanvil-FAN-i16SV-The-i16SV-SIP-intercom-supercedes
Features

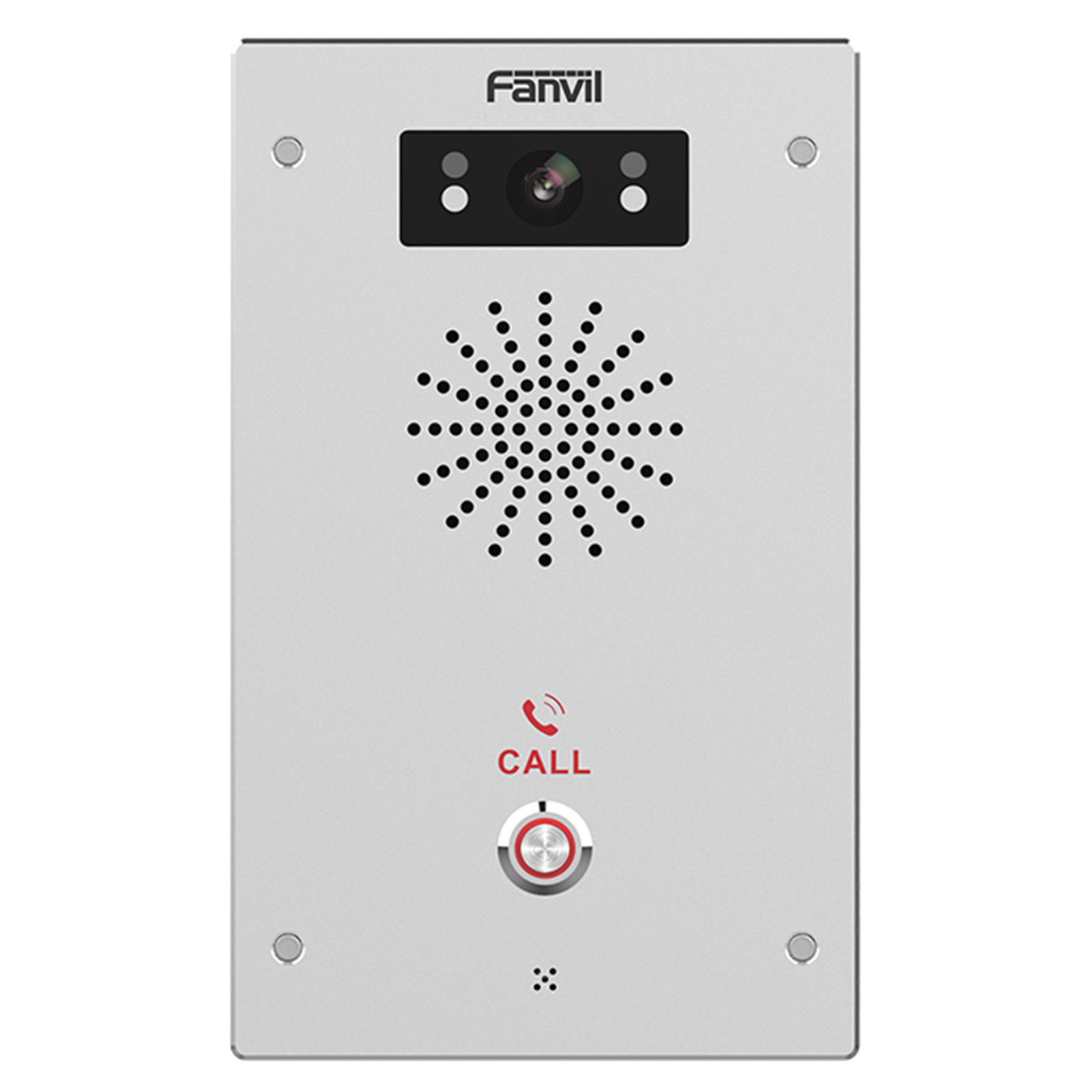

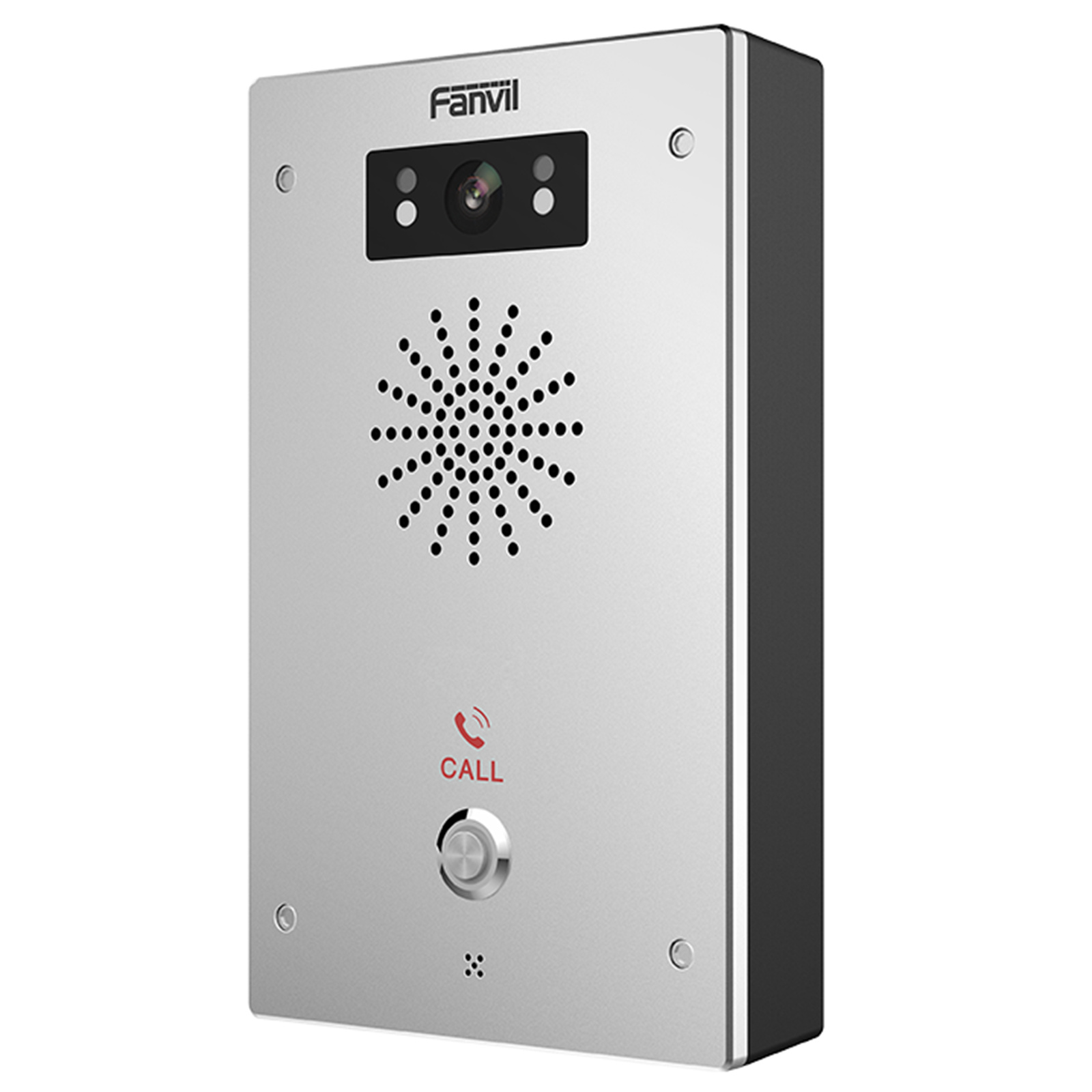

Fanvil i16SV IP65/IK10 SIP Video Intercom
The Fanvil i16SV is a reliable two-way intercom that also serves and a broadcasting solution. It has HD Voice and Audio so that communication between the person at the door and the person in the building is always clear. A. built-in 3CX speaker helps to reduce background noise and the full-duplex 720P camera has infrared night vision technology.
- Built-in HD camera with infrared night vision, adopt H.264 codec
- IP65 waterproof and dustproof.
- IK10 anti-collision with robust die-cast aluminum frame
- Anti-tamper- alarming as long as the cover is apart from the housing, and reporting to the control center at the same time
- HD voice speech quality with built-in 3W speaker and Acoustic Echo Canceller
- Audio line out port, expandable external active speaker.
- Built-in 2 short-in detect port and 2 short-out control port
- Support built-in TF card slot for data storage or audio offline broadcasting.
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch,Elastix, Avaya etc.
Specifications
Functions
Device Functions
Auto-answering
Programmable DSS keys
Through button or web page volume adjustment
Network time synchronization
Time Plan (task management)
Incoming call multicast
Dynamic multicast function
HTTP API
Action URL / Active URI
Call Functions
Call out / answer / reject
Call waiting
Intercom, Multicast
Speed dial
Anonymous call (Hide caller ID)
Audio
Narrowband codec
G.711A/U, G.729A/B,iLBC,G.723.1,G.726-32K
Wideband codec
G.722, Opus
DTMF
In-band, Out-of-Band (RFC2833/ SIP INFO)
Video
Sensor
1/2.8" color CMOS
Pixels
2 Mega
Video coding
H.264
Resolution
720P/1080P
Minimum illumination
0.1Lux, support for infrared illumination
Viewing angle
Diagonal: 126°
Horizontal: 98°
Vertical: 65°
Network
Physical
10/100 Mbps Ethernet
IP mod
IPv4/IPv6/IPv4&IPv6
IP configuration
Static IP / DHCP / PPPoE
VPN
L2TP / OpenVPN
Physical Specifications
DSS key (support LED)
1
RJ45 port
x1, connect the network
PoE enabled
Line out port
x1, connect the active speaker
Out: adjustable by volume, max up to1.2Vpp.
Port: terminal socket
Recording output port
x1, connect audio device
Out: mixed output of local microphone voice and call voice recording
Impedance: 15 Ohm
Port: terminal socket
Short circuit input and output port x2 (built-in relay)
Relay: MAX DC30V / 2A, AC125V / 0.5A
Active switching output: 12V/500mA DC(only 1 relay support)
Port: terminal socket
Tamper alarm switch
1
TF card slot
x1, connect TF card
DC port x1
DC power input
DC power input
DC12V~24V/1A
Port
2 Pin terminal socket
PoE level
Class 3
Protection level
IP65 and IK10
Housing material
aluminum alloy shell
Installation
wall-mounted
Working temperature
-30? ~ 60?
Storage temperature
- 40? ~ 70?
Working humidity
10~95%
Device dimensions
195x120x40 mm
