LENKENG LKV565P HDMI 2.0 Extender over Cat6/6e with PoE for Rx. Supports up to4K60Hz.ZeroLatency. One Way IR Remote Control. Transmit HDMI Signal up to 70m. EDID Passback. L/R Audio Output Rx

PB Tech price

NZD $ 162 .77

$ 162 .77

LENKENG LKV565P HDMI 2.0 Extender over Cat6/6e with PoE for Rx. Supports up to4K60Hz.ZeroLatency. One Way IR Remote Control. Transmit HDMI Signal up to 70m. EDID Passback. L/R Audio Output Rx

Name: LENKENG LKV565P HDMI 2.0 Extender over Cat6/6e with PoE for Rx. Supports up to4K60Hz.ZeroLatency. One Way IR Remote Control. Transmit HDMI Signal up to 70m. EDID Passback. L/R Audio Output Rx
Brand: LENKENG
SKU: KVMLNK1163
Price: 162.77 NZD
Availability: InStock
Rating: 5 (1 reviews)

Brand: LENKENG
MPN: LKV565P
Part #: KVMLNK1163
UPC:

PB Tech price

NZD $ 162 .77

In stock

Delivery: Order now and it ships tomorrow

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: LENKENG
MPN: LKV565P
Part #: KVMLNK1163
UPC:

1 review

Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"Using an Integra DRX-4 Receiver with a Panasonic TH-58EX780Z TV. Connected the two over a Cat 6a run. Device works as expected driving a 4K, 50hz picture to the TV.

Not using soun ...view more"

By: ColinB54 18/02/25

Verified Owner

Features

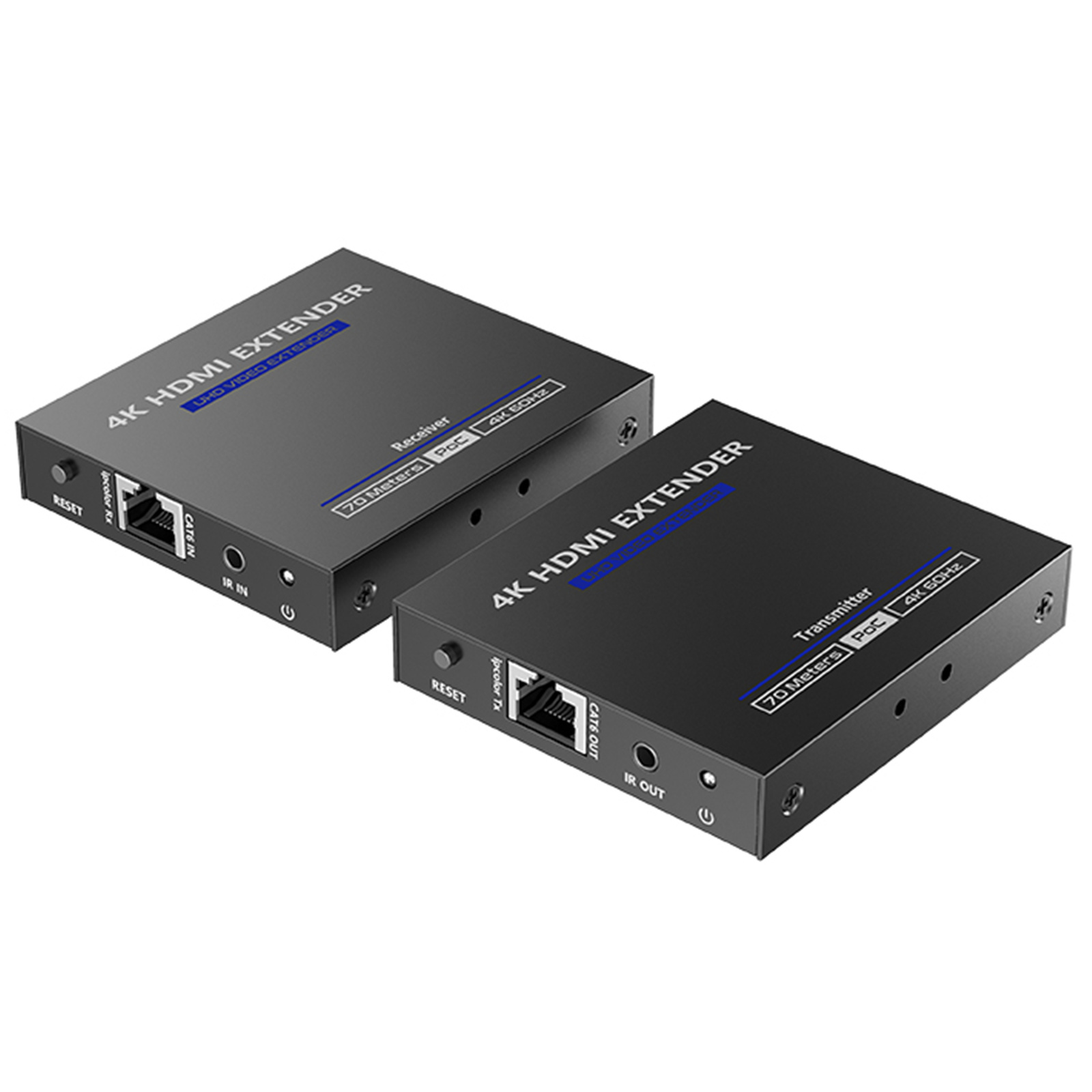

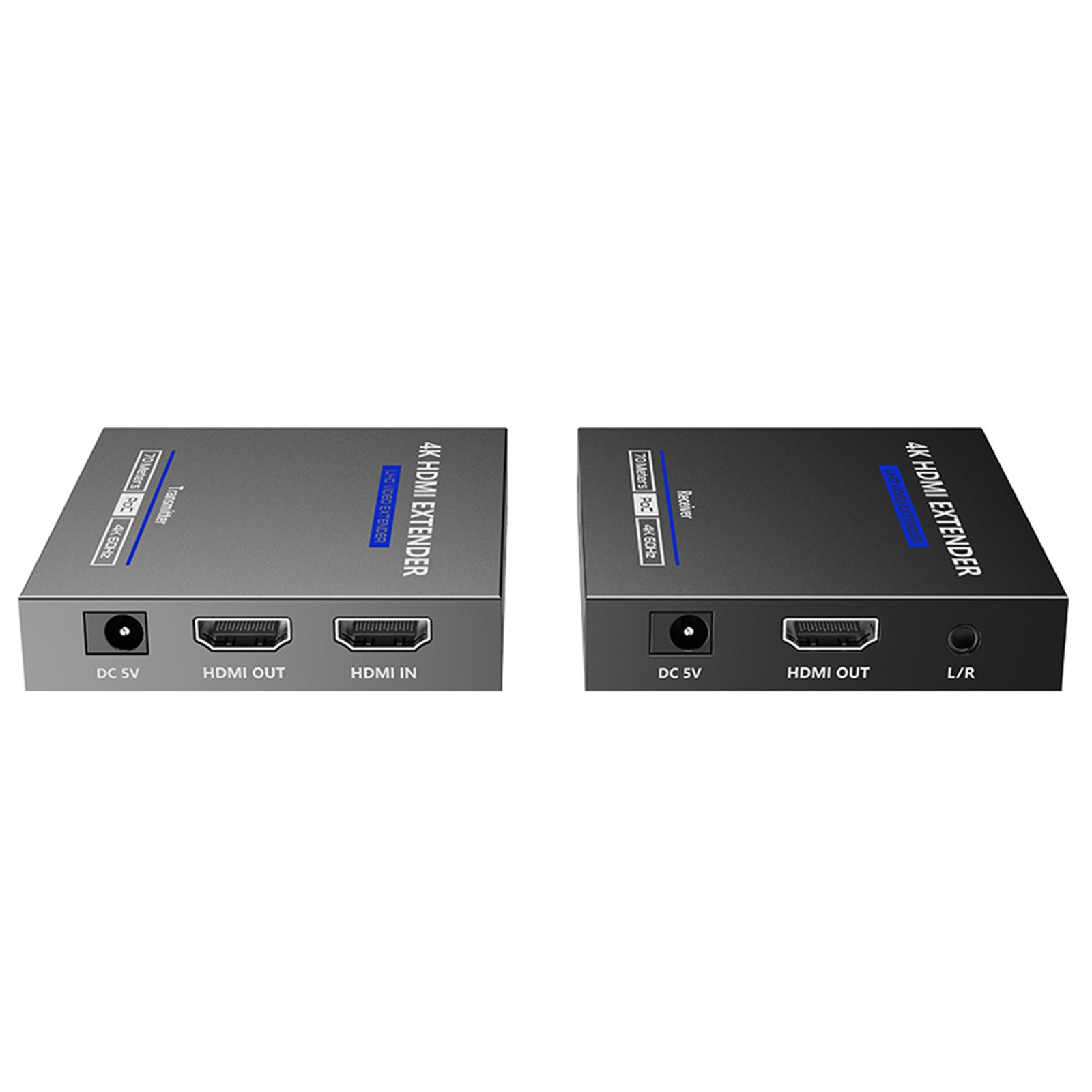

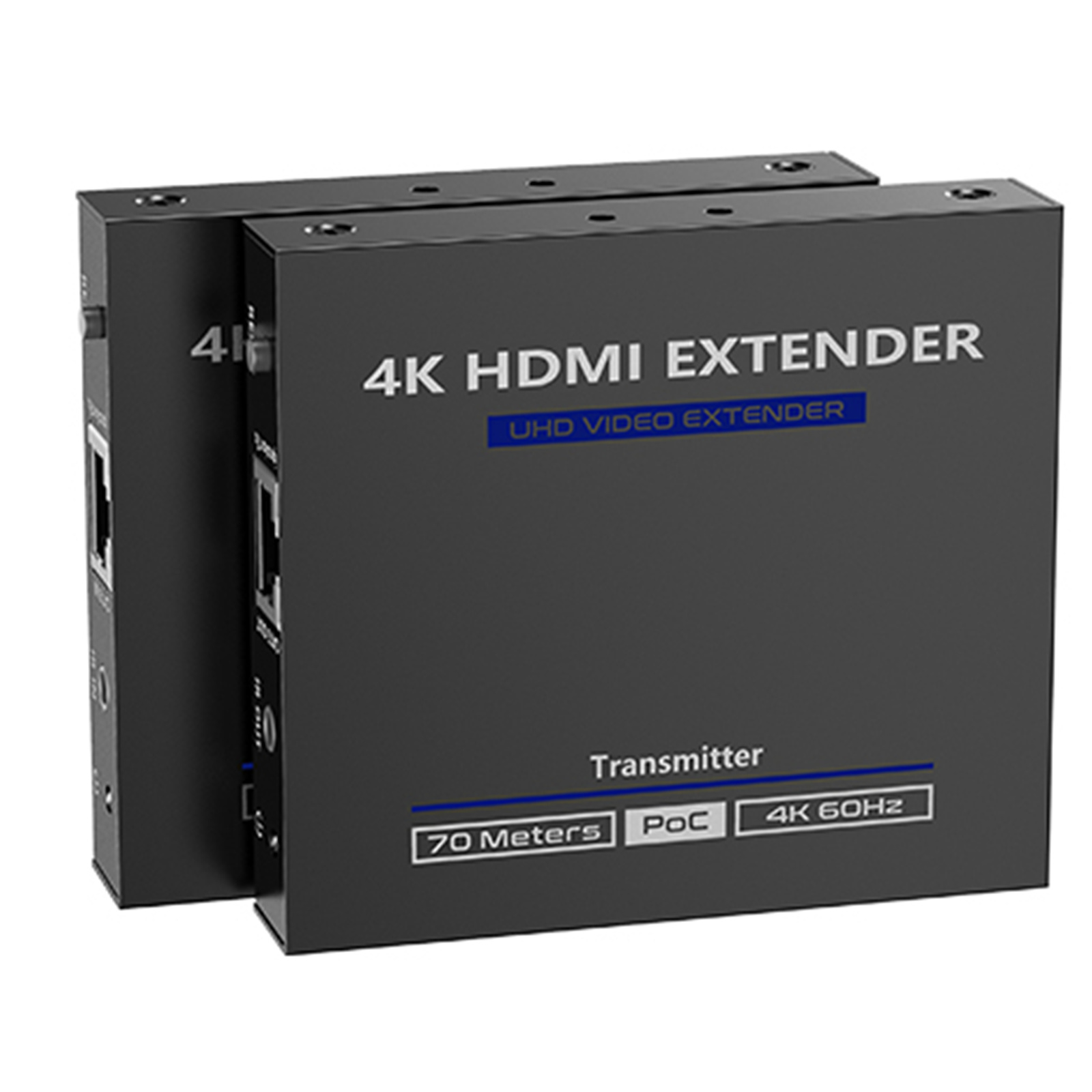

This is an HDMI point-to-point extender kit, it can realize zero-latency transmission. The 4K@60Hz HDMI signal can be extended by 70m through CAT6/6A/7 network cable. It supports HDMI loop out, IR passthrough, 3.5mm audio output, etc. This kit is a reliable, ultra-high-definition video transmission solution, which is widely used in security monitoring, home theater, broadcasting, training and other fields.

Zero Latency Transmission for 70 Meters

Support CAT6/6A/7 network cable, the maximum transmission distance can reach 70 meters

4k A 60Hz HDR for Visually Lossless Transmission

Support 3840x2160 HDR, with ipcolor IMAGE - a new standard for visually lossless transmission solution, the image can be more clear, higher saturation and show more outstanding details.

Support PoC-Power over Network Cable

Only TX Power Supply Needed.

Specifications

HDMI Length

=5m

Maximum transfer rate

18Gbps

Maximum transmission bandwidth

600MHz

EDID passthrough

Yes

Compatibility

HDMI 2.0(Deep color, 4K, HDR, YUV4:4:4)
HDCP 2.2

Resolutions

720p @ 50/60Hz?1080i @ 50/60Hz?1080p @ 50/60Hz? 3840x2160 @ 24/25/30/50/60Hz?4096x2160 @ 24/25Hz? 1280x960?1280x800?1280x768?1680x1050? 1360x768?1366x768?1600x900?1024x768?800x600

Transmission distance

CAT6/6A/7=70m

Audio formats

LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos

IR interface

TX:1x 3.5mm IR OUT Female
RX:1x 3.5mm IR IN Female

Receiving range=

=5m

Infrared frequency

20KHz~60KHz

Power Supply

TX:DC5V/2A
RX:DC5V/2A

Power Consumption

TX:<4W
RX:<4W

Working temperature

-20?~60?

Storage temperature

-30?~70?

Humidity

0~90%RH(No condensation)

Housing

Metal

Weight

TX:140g
RX:140g

Color

Black

Dimensions

TX/RX:85.0(L)*75.5(W)*16.5(H)mm

Manufacturer Part No:

LKV565P

Brand:

LENKENG

Product Type:

UPC

Product Family:

Shipping Weight:

0.65 kg

PB Part No:

KVMLNK1163

Product Model:

Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
