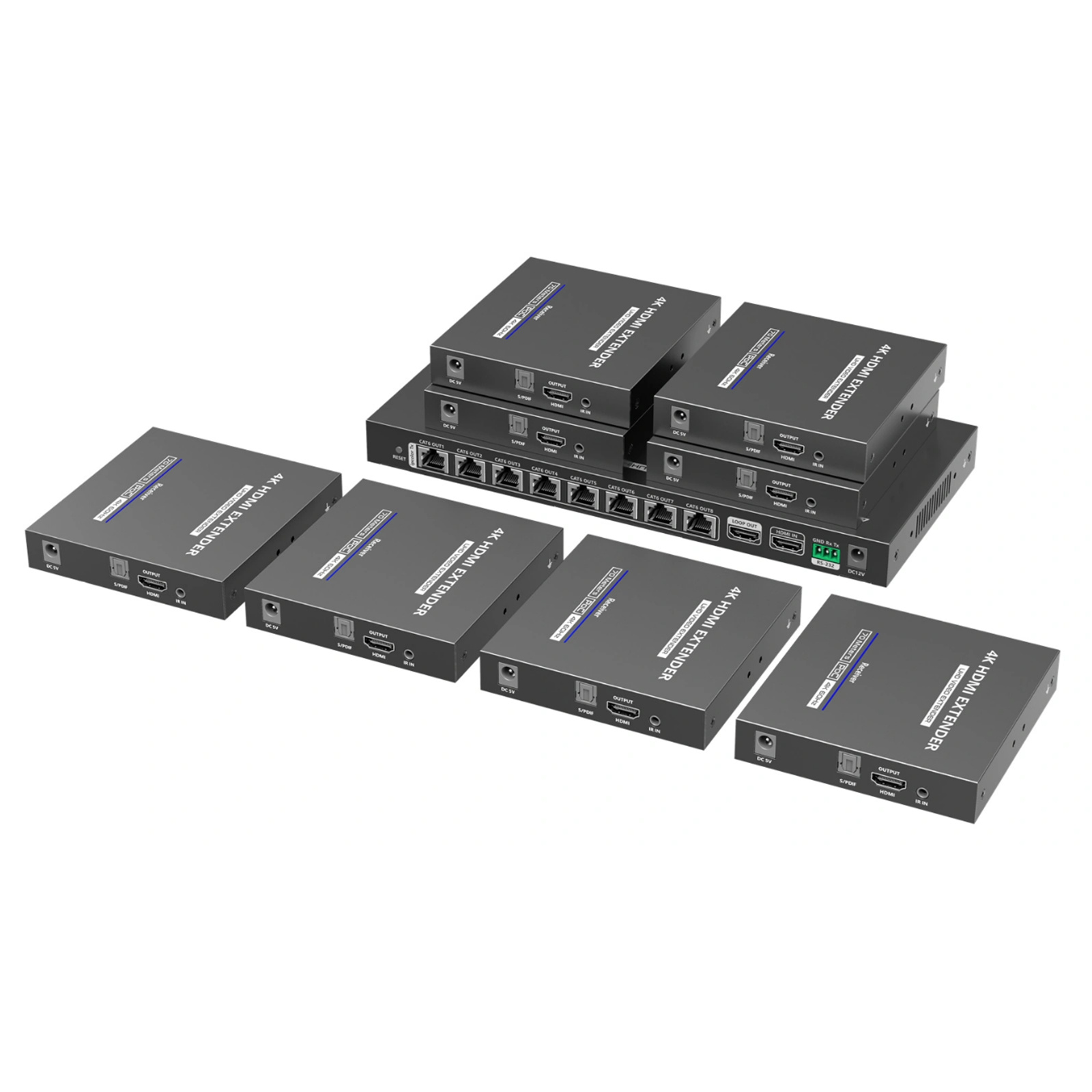

LENKENG LKV828P 1-In-8-Out 4K 60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible withCAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
LENKENG LKV828P 1-In-8-Out 4K 60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible withCAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
- Brand: LENKENG
- MPN: LKV828P
- Part #: KVMLNK1176
- UPC:
- Brand: LENKENG
- MPN: LKV828P
- Part #: KVMLNK1176
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular KVM Extenders





LENKENG LKV828P 1-In-8-Out 4K 60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible withCAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
- Brand: LENKENG
- MPN: LKV828P
- Part #: KVMLNK1176

Product URL: https://www.pbtech.com/pacific/product/KVMLNK1176/LENKENG-LKV828P-1-In-8-Out-4K-60Hz-HDMI-Extender-1
Features
LENKENG 1-In-8-Out 4K@60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.
1-In-8-Out extender kit, which integrates the functions of distribution nd extension. It distributes 1 HDMI input signal to 8 identical signal outputs, extends these signals up to 70m and supports 4K@60Hz resolution. It also supports IR passback, RS-232 control and more.
- Zero-latency transmission
- Split and extend on HDMI input signal to eight identical network output signals
- Supports 4K@30Hz via CAT6/6A/7 network cable, maximum at transmission distance of up to 70m
- Supports IR passback (20KHz ~ 60KHz)
- Transmitter supports HDMI loop out
- Receiver can output the digital audio of source device from S/PDIF port
- Supports EDID passthrough or manually set the EDID of the product
- Supports RS-232 command control
- Surge protection, lightning protection, ESD protection
- Equipped with rack mount ears
- Supports PoE, only the transmitter is required to supply power
Specifications
Split mode
1 IN 8 OUT
Input
1 x HDMI
Output
8 x RJ45
HDMI signal
HDMI 2.0 compatible with HDCP 2.2
PoE
Support
Resolution
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz
Transmission Distance
CAT6/6A/7=70m
HDMI LOOP OUT
Support up to 4K@60Hz loop output
IR pass back
Support IR pass back, Support 20-60khz IR devices
EDID
Support EDID passthrough and EDID switch
RS-232
Support RS-232 command control
Protection
ESD protection, surge protection, lightning protection
Working Temperature
-20°C~60°C
Storage Temperature
-30°C~70°C
Humidity (no condensation)
0%~90%
Power supply
TX: DC12V/5A
Power consumption
TX<32W, RX<4W
Weight
TX: 731g, RX: 243g
Material
Iron
Dimension
TX: 264.0(L) x 120.0(W) x 23.0(H) mm, RX: 105.5(L) x 102.5(W) x 20.0(H) mm
Dimensions (L×W×H mm)
TX: 272.0(L) x 96.5(W) x 23.0(H) mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm
