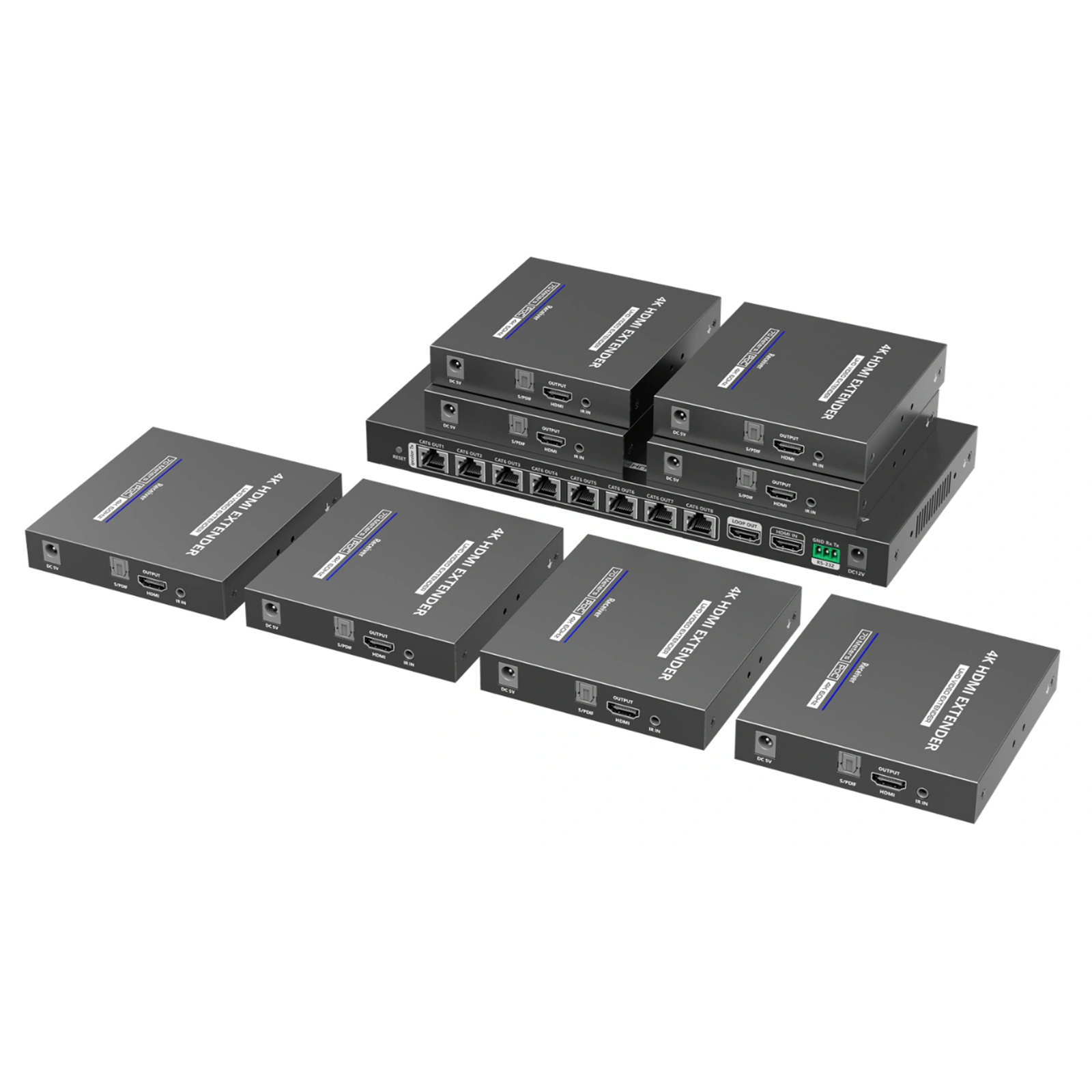

LENKENG LKV828P 1-In-8-Out 4K 60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible withCAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

PB Tech price
PB Tech price
$ 1,122 .45
 +GST
$ 1,234 .70
 inc GST
$1,122.45  +GST
$1,234.70

LENKENG LKV828P 1-In-8-Out 4K 60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible withCAT6/6a/7Cables,Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

  • Brand: LENKENG
  • MPN: LKV828P
  • Part #: KVMLNK1176
  • UPC:
PB Tech price
$ 1,122 .45 $ 1,234 .70
 +GST  inc GST


Delivery: Order now and it ships on 08 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,122.45  +GST
$1,234.70

Features

LENKENG 1-In-8-Out 4K@60Hz HDMI Extender. 1x HDMI in & 8x RJ45 out. Compatible with CAT6/6a/7 Cables, Transmit up to 70m, Plug & Play, Wall-mountable, Supports EDID, Includes 1x Transmitter & 8x Rx.

1-In-8-Out extender kit, which integrates the functions of distribution nd extension. It distributes 1 HDMI input signal to 8 identical signal outputs, extends these signals up to 70m and supports 4K@60Hz resolution. It also supports IR passback, RS-232 control and more.

- Zero-latency transmission

- Split and extend on HDMI input signal to eight identical network output signals

- Supports 4K@30Hz via CAT6/6A/7 network cable, maximum at transmission distance of up to 70m

- Supports IR passback (20KHz ~ 60KHz)

- Transmitter supports HDMI loop out

- Receiver can output the digital audio of source device from S/PDIF port

- Supports EDID passthrough or manually set the EDID of the product

- Supports RS-232 command control

- Surge protection, lightning protection, ESD protection

- Equipped with rack mount ears

- Supports PoE, only the transmitter is required to supply power

Specifications

Split mode

1 IN 8 OUT

Input

1 x HDMI

Output

8 x RJ45

HDMI signal

HDMI 2.0 compatible with HDCP 2.2

PoE

Support

Resolution

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz

Transmission Distance

CAT6/6A/7=70m

HDMI LOOP OUT

Support up to 4K@60Hz loop output

IR pass back

Support IR pass back, Support 20-60khz IR devices

EDID

Support EDID passthrough and EDID switch

RS-232

Support RS-232 command control

Protection

ESD protection, surge protection, lightning protection

Working Temperature

-20°C~60°C

Storage Temperature

-30°C~70°C

Humidity (no condensation)

0%~90%

Power supply

TX: DC12V/5A

Power consumption

TX<32W, RX<4W

Weight

TX: 731g, RX: 243g

Material

Iron

Dimension

TX: 264.0(L) x 120.0(W) x 23.0(H) mm, RX: 105.5(L) x 102.5(W) x 20.0(H) mm

Dimensions (L×W×H mm)

TX: 272.0(L) x 96.5(W) x 23.0(H) mm, RX: 75.0(L) x 80.0(W) x 18.0(H)mm

Manufacturer Part No:
LKV828P
Brand:
LENKENG
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
KVMLNK1176
Product Model:
LKV828P
Warranty: 12 months *
