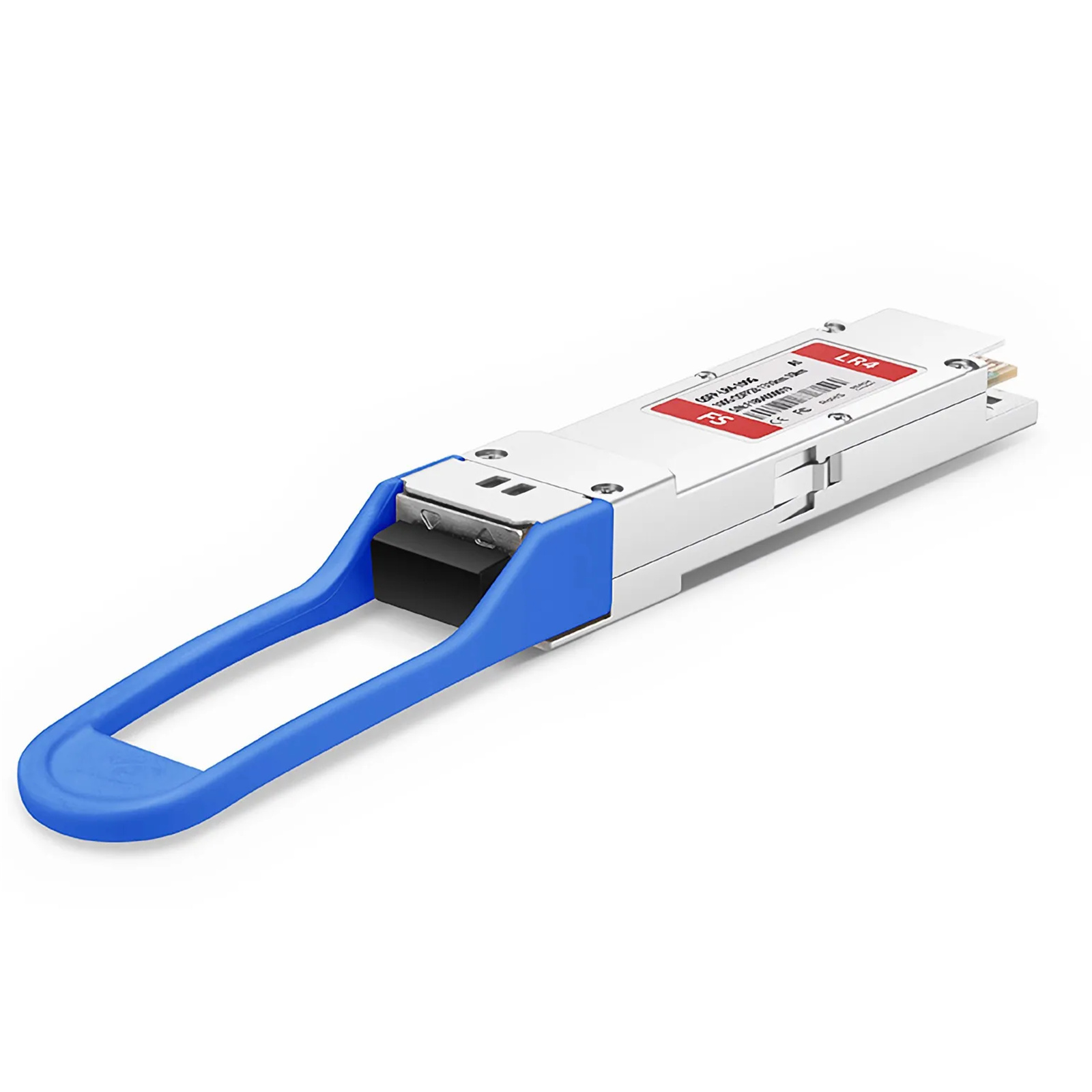

FS Arista Networks QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

FS Arista Networks QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

  • Brand: FS
  • MPN: FS-104847
  • Part #: NETFS104847
  • UPC:

Features

Arista Networks QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module

- Built-in Semtech Chip, Max. Power Consumption 3.5W
- Tested in Targeted Switches for Superior Performance
- Adopt Reliable, Airtight, and Radiative BOX Packaging
- FS BOX - Support Real-time Configuration
- Applied to Long-distance Connectivity in Campus Network, Data Center, and Enterprise Core Layer
- Hot Pluggable QSFP28 MSA Module, Compliant with IEEE 802.3 100GBASE-LR4 Standard
- Interoperable with Other IEEE-compliant 100G Interfaces for Seamless Integration
- Digital Optical Monitoring for Strong Diagnostics

Leading Performance and Quality for 100G

With built-in Semtech Chip and equipped with individually designed BOX packaging, the QSFP28 transceiver offers high speed and low power in 100G links.

Tested in Host Devices for Proven Interoperability

Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipment to ensure you get high quality and reliable optics.

Enable Seamless Connectivity for Your Network

Reconfiguring transceivers online for multi-vendor compatibility, FS BOX reduces inventory costs and improves flexibility.

Specifications

MPN

FS-104847

Form Factor

QSFP28

Wavelength

1310nm

Connector

Duplex LC/UPC

Transmitter Type

4 x LAN WDM EML

TX Power

-4.3~4.5dBm

Power Budget

6.3dB

Max. Power Consumption

3.5W

DDM/DOM

Supported

Modulation (Electrical)

4x25G NRZ

CDR (Clock and Data Recovery)

TX & RX Built-in CDRMTBF

MTBF

8,340,283 Hours

Max. Data Rate

103.125Gbps (4x 25.78Gbps)

Max. Cable Distance

10km

Media

SMF

Receiver Type

PIN

Minimum Receiver Power

-10.6dBm

Receiver Overload

4.5dBm

Extinction Ratio

>4dB

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Packaging Technology

BOX Packaging

Bit Error Ratio (BER)

1E-12

Modulation (Optical)

4x25G NRZ

Manufacturer Part No:
FS-104847
Brand:
FS
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
NETFS104847
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
