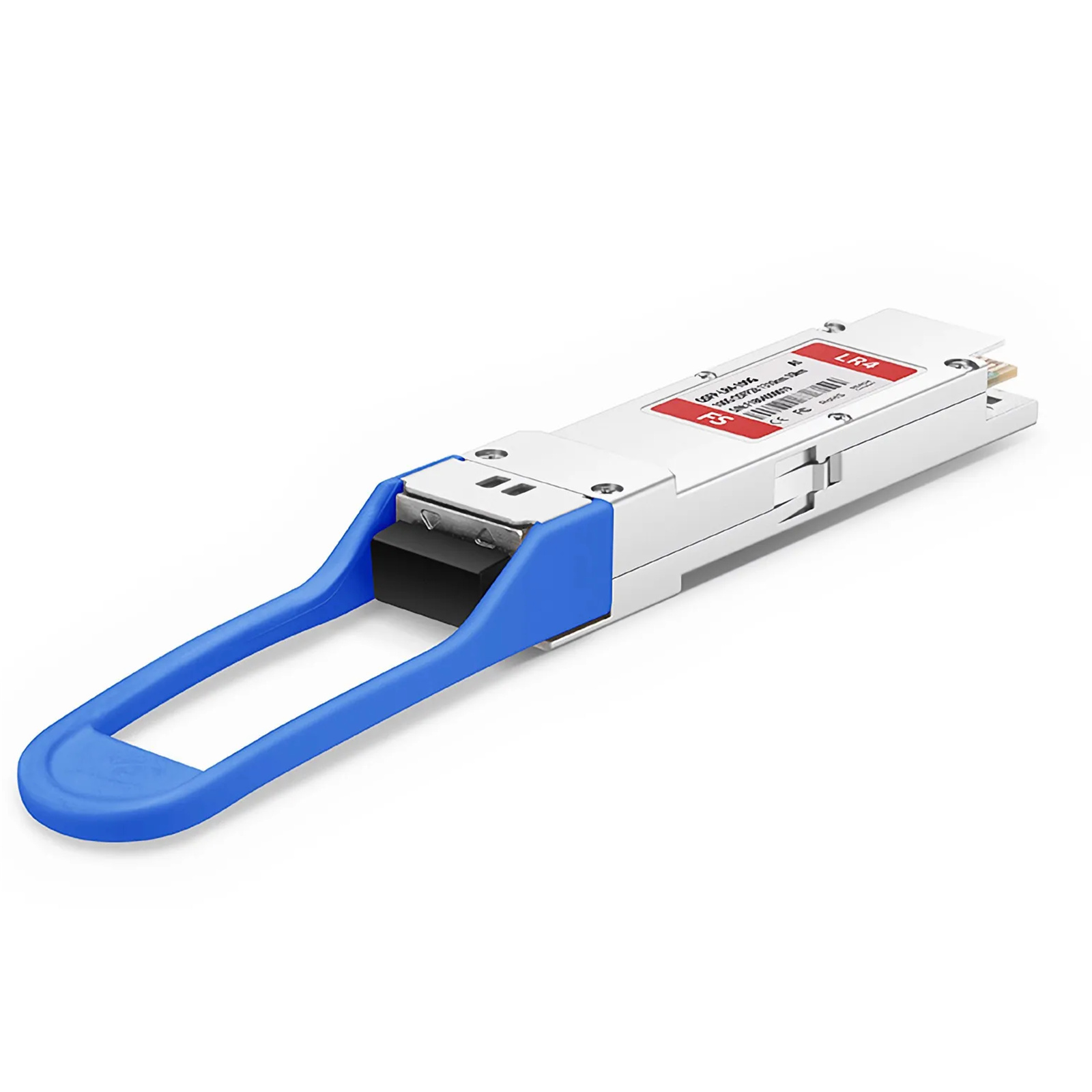

FS Arista Networks QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
- Brand: FS
- MPN: FS-104847
- Part #: NETFS104847
Product URL: https://www.pbtech.com/product/NETFS104847/FS-Arista-Networks-QSFP-100G-LR4-Compatible-100GBA
Features
Arista Networks QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 1310nm 10km DOM Duplex LC/UPC SMF Optical Transceiver Module
- Built-in Semtech Chip, Max. Power Consumption 3.5W
- Tested in Targeted Switches for Superior Performance
- Adopt Reliable, Airtight, and Radiative BOX Packaging
- FS BOX - Support Real-time Configuration
- Applied to Long-distance Connectivity in Campus Network, Data Center, and Enterprise Core Layer
- Hot Pluggable QSFP28 MSA Module, Compliant with IEEE 802.3 100GBASE-LR4 Standard
- Interoperable with Other IEEE-compliant 100G Interfaces for Seamless Integration
- Digital Optical Monitoring for Strong Diagnostics
Leading Performance and Quality for 100G
With built-in Semtech Chip and equipped with individually designed BOX packaging, the QSFP28 transceiver offers high speed and low power in 100G links.

Tested in Host Devices for Proven Interoperability
Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability
Qualified through a rigorous process with advanced equipment to ensure you get high quality and reliable optics.

Enable Seamless Connectivity for Your Network
Reconfiguring transceivers online for multi-vendor compatibility, FS BOX reduces inventory costs and improves flexibility.

Specifications
MPN
FS-104847
Form Factor
QSFP28
Wavelength
1310nm
Connector
Duplex LC/UPC
Transmitter Type
4 x LAN WDM EML
TX Power
-4.3~4.5dBm
Power Budget
6.3dB
Max. Power Consumption
3.5W
DDM/DOM
Supported
Modulation (Electrical)
4x25G NRZ
CDR (Clock and Data Recovery)
TX & RX Built-in CDRMTBF
MTBF
8,340,283 Hours
Max. Data Rate
103.125Gbps (4x 25.78Gbps)
Max. Cable Distance
10km
Media
SMF
Receiver Type
PIN
Minimum Receiver Power
-10.6dBm
Receiver Overload
4.5dBm
Extinction Ratio
>4dB
Commercial Temperature Range
0 to 70°C (32 to 158°F)
Packaging Technology
BOX Packaging
Bit Error Ratio (BER)
1E-12
Modulation (Optical)
4x25G NRZ
