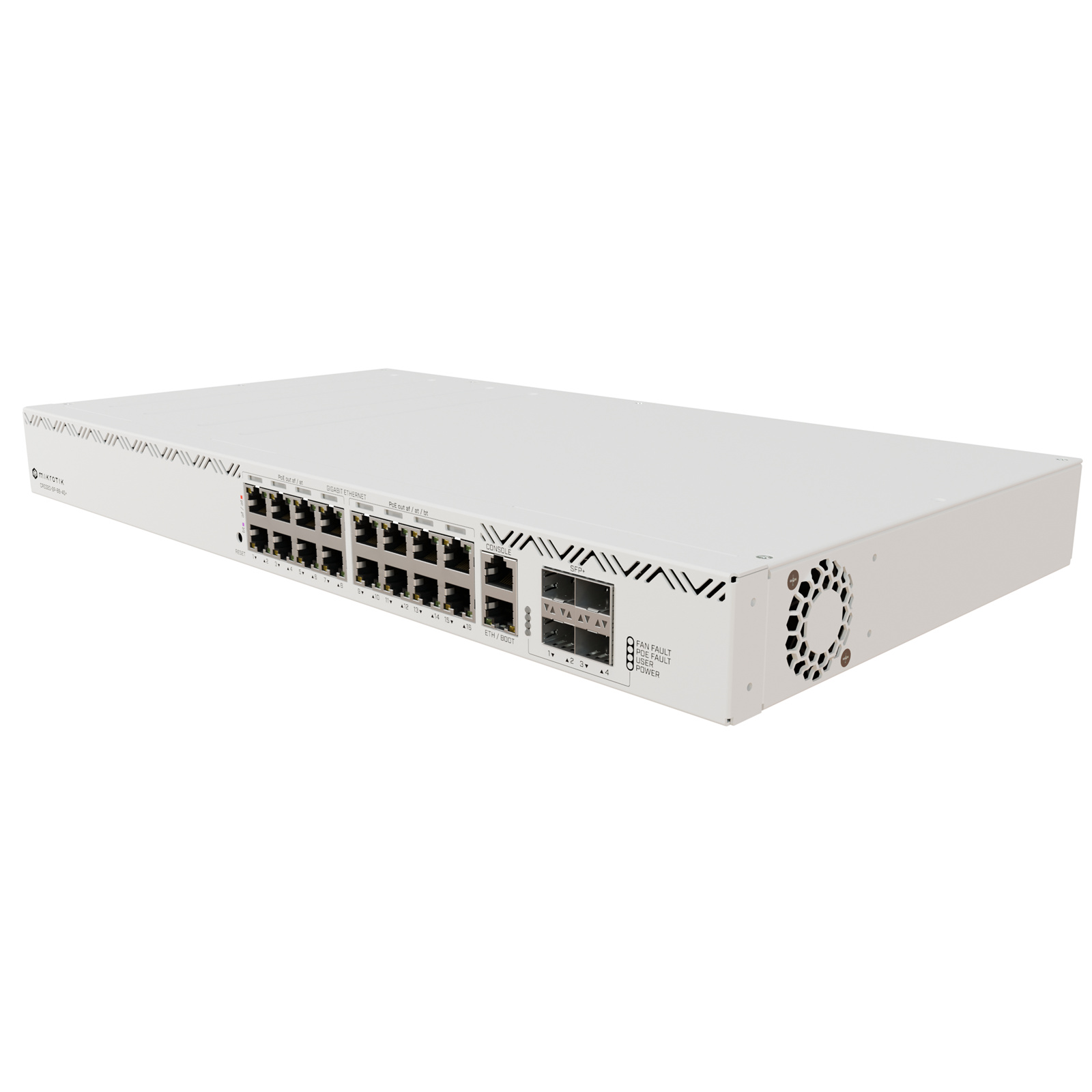

MikroTik CRS320-8P-8B-4S+RM 16 Port Gigabit PoE Switch (8x 802.3af/at and 8x802.3af/at/bt compliant) with 4 SFP+ Fiber Uplink Ports
MikroTik CRS320-8P-8B-4S+RM 16 Port Gigabit PoE Switch (8x 802.3af/at and 8x802.3af/at/bt compliant) with 4 SFP+ Fiber Uplink Ports
- Brand: MikroTik
- MPN: CRS320-8P-8B-4S+RM
- Part #: NETMKT1476
- UPC:
- Brand: MikroTik
- MPN: CRS320-8P-8B-4S+RM
- Part #: NETMKT1476
- UPC:
Features
MikroTik CRS320-8P-8B-4S+RM 16 Port Gigabit 802.3af/at/bt PoE Switch with 4 SFP+ Uplinks.
The first MikroTik high-power PoE++ switch - for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables - create a cleaner space with PoE++!
The MikroTik CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn't have to. MikroTik's first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures - CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we've reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

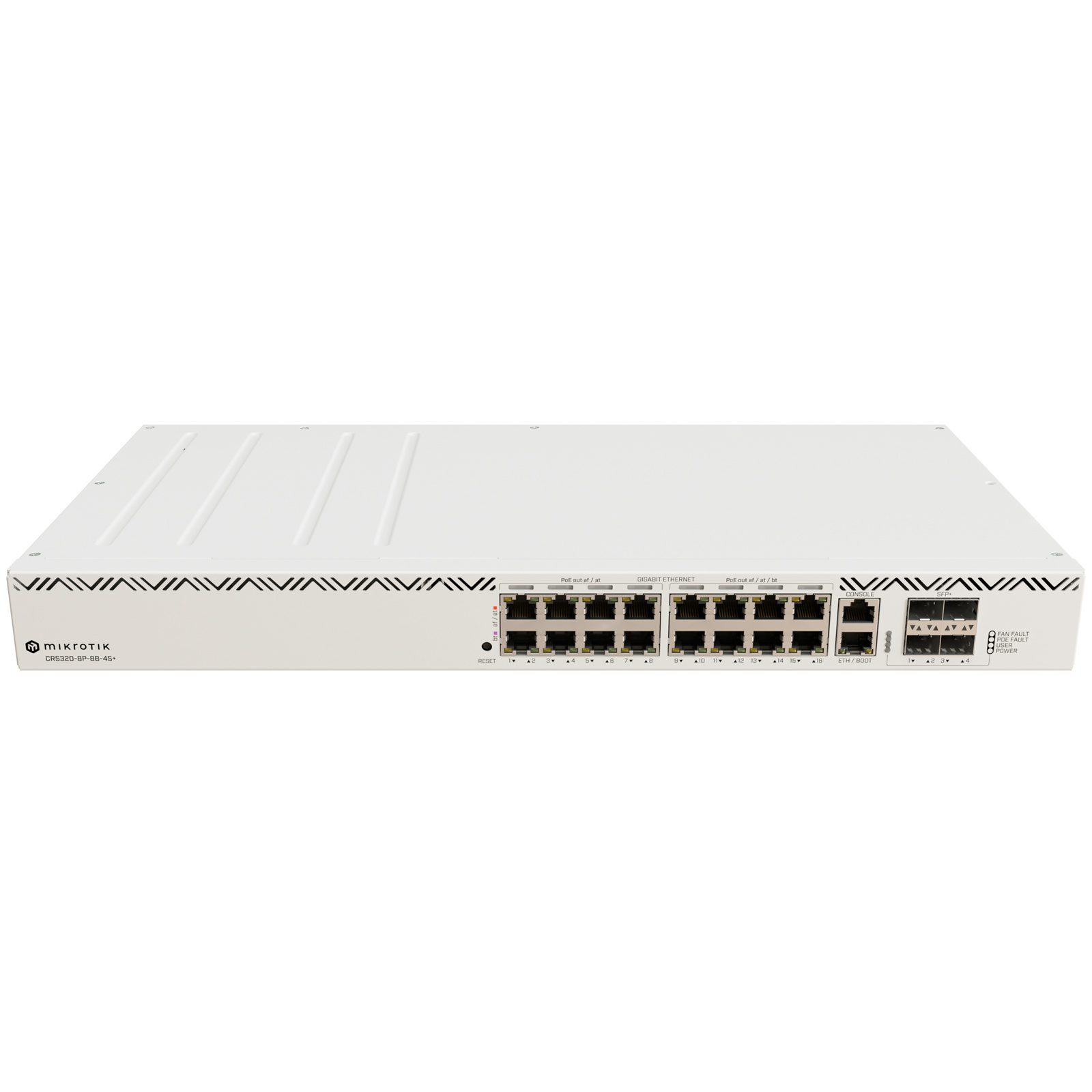

There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There's also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip - the same one you've seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you've been looking for a way to simplify your cable management - this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power "802.3af/at/bt-compatible" Powered Devices, you must avoid specific grounding scenarios. Please refer to the Official Help Page (https://help.mikrotik.com/docs/spaces/UM/pages/250708058/CRS320-8P-8B-4S+RM)

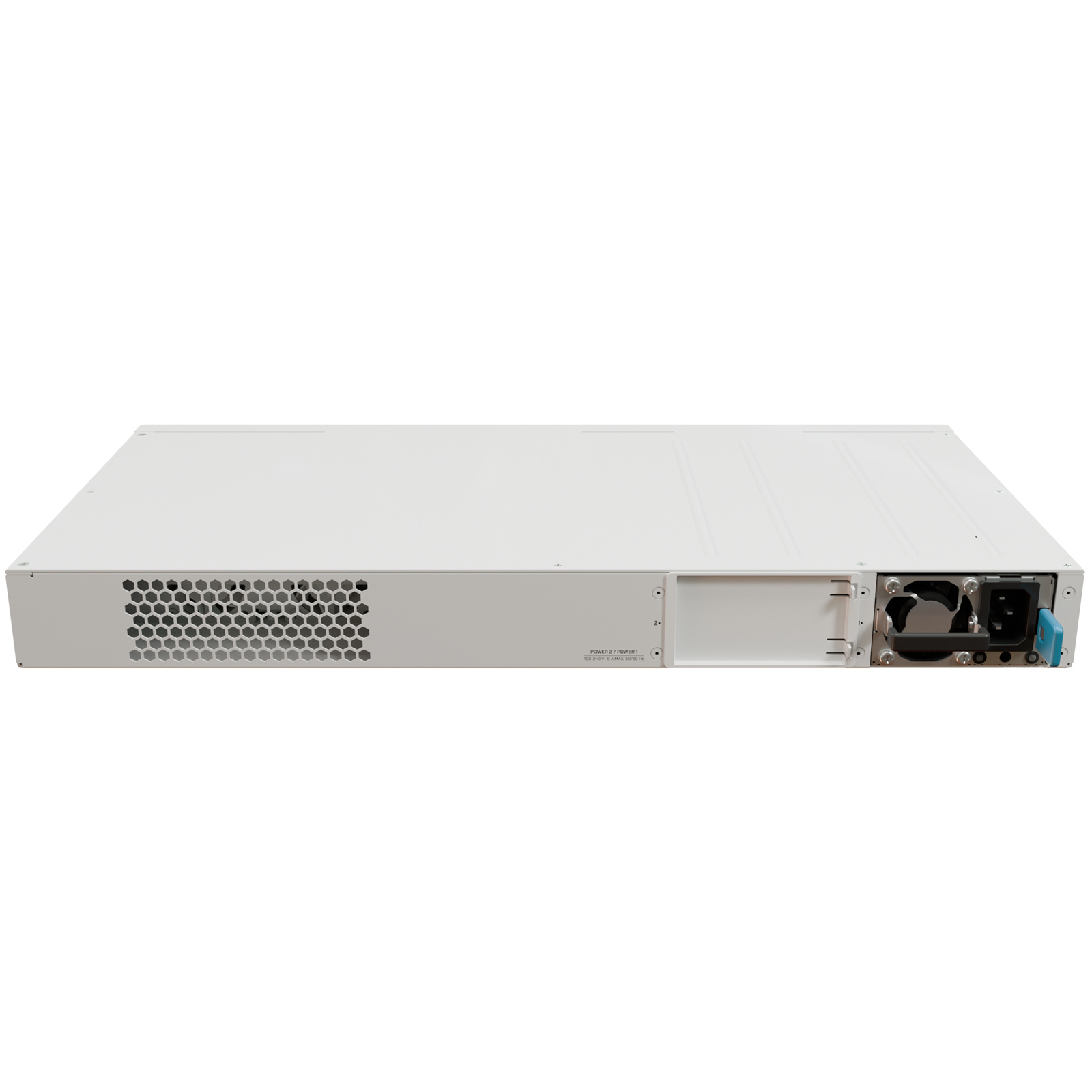

One hot-swappable PSU is included.
- Max Power Output: 1150 W!
- 17x 1Gbps Ethernet Ports (Support 10M / 100M / 1G Speeds)
- 4x 10Gbps SFP+ Ports (Support 1G / 2.5G / 10G Speeds, depending on module)
- PoE+ (802.3af/at) on Ports #1-8 - Up to 30W per port
- PoE++ (802.3af/at/bt) on Ports #9-16 - Up to 90W per port
- PSU Expansion Slot
- Console Port
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
MikroTik CRS320-8P-8B-4S+RM 16 Port Gigabit PoE Switch (8x 802.3af/at and 8x802.3af/at/bt compliant) with 4 SFP+ Fiber Uplink Ports
- Brand: MikroTik
- MPN: CRS320-8P-8B-4S+RM
- Part #: NETMKT1476
Product URL: https://www.pbtech.com/pacific/product/NETMKT1476/MikroTik-CRS320-8P-8B-4SRM-16-Port-Gigabit-PoE-Swi
Features
MikroTik CRS320-8P-8B-4S+RM 16 Port Gigabit 802.3af/at/bt PoE Switch with 4 SFP+ Uplinks.
The first MikroTik high-power PoE++ switch - for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables - create a cleaner space with PoE++!
The MikroTik CRS320-8P-8B-4S+RM Cable management can get really exhausting. But it doesn't have to. MikroTik's first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!
4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures - CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we've reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.
There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There's also a console port, and four 10G SFP+ fiber ports for uplink.
At its core, this convenient switch has a phenomenal Marvel switch-chip - the same one you've seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.
If you've been looking for a way to simplify your cable management - this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.
Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power "802.3af/at/bt-compatible" Powered Devices, you must avoid specific grounding scenarios. Please refer to the Official Help Page (https://help.mikrotik.com/docs/spaces/UM/pages/250708058/CRS320-8P-8B-4S+RM)
One hot-swappable PSU is included.
- Max Power Output: 1150 W!
- 17x 1Gbps Ethernet Ports (Support 10M / 100M / 1G Speeds)
- 4x 10Gbps SFP+ Ports (Support 1G / 2.5G / 10G Speeds, depending on module)
- PoE+ (802.3af/at) on Ports #1-8 - Up to 30W per port
- PoE++ (802.3af/at/bt) on Ports #9-16 - Up to 90W per port
- PSU Expansion Slot
- Console Port
Specifications
Brand
MikroTik
MPN
CRS320-8P-8B-4S+RM
CPU
Dual-Core 800 MHz
CPU architecture
ARM 32bit
Size of RAM
256 MB
RAM type
DDR3
Storage
32 MB, Flash
Number of 1G Ethernet ports
17 (Support 10M / 100M / 1G speeds)
Number of 10G SFP+ ports
4 (Support 1G / 2.5G / 10G speeds, depending on module)
Switch chip model
98DX226S
Operating system
RouterOS v7 only, License level 5
Dimensions
444 x 235 x 44 mm
Operating temperature
-10°C to +50°C
Number of AC inputs
1
Nominal current
10.35 A
Max current
11 A
AC input range
100-240 V
Frequency
50-60 Hz
Smart PoE
Controller
PoE-out ports
Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
Max out per port output (input > 30 V)
560 (af/at) / 1667 (bt) mA
Max total out
17.82 A
Total output power
963 W
Total output current
17.82 A
Max power consumption (without attachments)
36 W
Max power consumption
600 W (1150 W with additional PSU)
