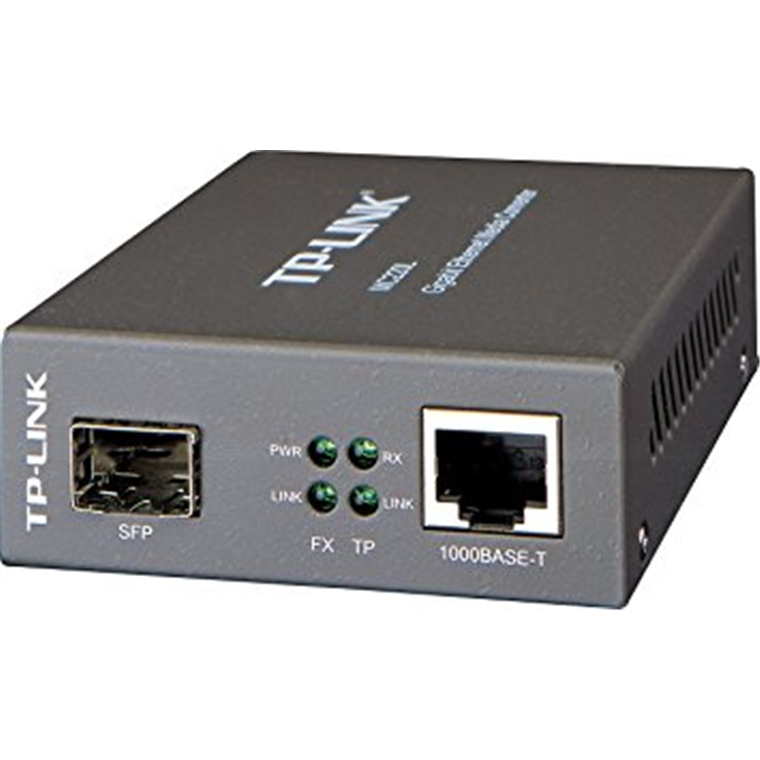

TP-Link MC220L Gigabit Media Converter - Fiber SFP - RJ45, Single-mode with TL-SM311LS or Multi-mode with TL-SM311LM
- Brand: TP-Link
- MPN: MC220L
- Part #: NETTPL0220
Product URL: https://www.pbtech.com/pacific/product/NETTPL0220/TP-Link-MC220L-Gigabit-Media-Converter---Fiber-SFP
Features
http://www.tp-link.com/us/products/details/cat-43_MC220L.html
Gigabit Ethernet Media Converter
MC220L
Highlights:
- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber
What This Product Does
The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.
Specifications
MEDIA CONVERTER & MODULE
Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber
Ports
1 Gigabit SFP port
1 1000M RJ45 port (Auto MDI/MDIX)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Network Media 100BASE-FX
Multi-mode/Single-mode Fiber
LED Indicators
PWR, LINK, RX
Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply
External Power Adapter
Safety & Emission
FCC, CE
Environment
Operating Temperature:
0~40C (32~104F)
Storage Temperature:
-40?70C (-40~158F)
Operating Humidity:
10%~90% non-condensing
Storage Humidity:
5%~90% non-condensing
