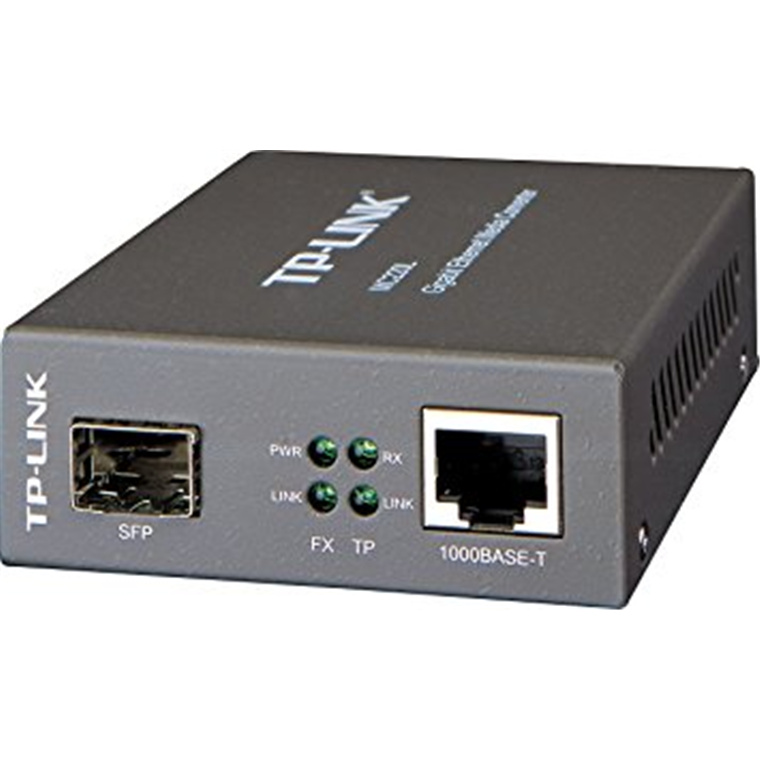

TP-Link MC220L Gigabit Media Converter - Fiber SFP - RJ45, Single-mode with TL-SM311LS or Multi-mode with TL-SM311LM

Normally $43.48
Normally $47.83
You save 5%
You save 5%
$ 40 .87
 +GST
$ 44 .96
 inc GST
$40.87  +GST
$44.96  inc GST

TP-Link MC220L Gigabit Media Converter - Fiber SFP - RJ45, Single-mode with TL-SM311LS or Multi-mode with TL-SM311LM

  • Brand: TP-Link
  • MPN: MC220L
  • Part #: NETTPL0220
  • UPC:
BEST VALUE
Normally $43.48
Normally $47.83
You save 5%
You save 5%
PB Tech price
$ 40 .87 $ 44 .96
 +GST  inc GST


Delivery: Order now and it ships on 22 Apr
Estimated Delivery Times
NSW, VIC, ACT, QLD - Within 4-8 working days
SA, WA, TAS, NT - Within 8-12 working days

View all shipping info
$40.87  +GST
$44.96  inc GST

Six easy payments of $7.49 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Features

http://www.tp-link.com/us/products/details/cat-43_MC220L.html



Gigabit Ethernet Media Converter
MC220L


Highlights:

- Complies with IEEE 802.3ab and IEEE 802.3z
- FX port supports hot-swappable
- Extends fiber distance up to 0.55km for multi-mode fiber and 10km for single-mode fiber


What This Product Does

The MC220L is a media converter designed to convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX/LX/LH standards, the MC220L is designed for use with multi-mode/single-mode fiber cable utilizing the SC/LC-Type connector. It works at 850nm on both transmitting and receiving data when adopting multi-mode fiber and 1310nm on both transmitting and receiving data when adopting single-mode.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK�s 19��system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC220L will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers and 10 kilometers when utilizing single-mode fiber.

Specifications

MEDIA CONVERTER & MODULE

Standards and Protocols
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x


Basic Function

Full Duplex Flow Control (IEEE 802.3x)
Extends fiber distance up to 0.5km using 50/125um fiber


Ports
1 Gigabit SFP port
1 1000M RJ45 port (Auto MDI/MDIX)

Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Network Media 100BASE-FX
Multi-mode/Single-mode Fiber

LED Indicators
PWR, LINK, RX

Dimensions (W*D*H)
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply
External Power Adapter

Safety & Emission
FCC, CE


Environment

Operating Temperature:
0~40C (32~104F)

Storage Temperature:
-40?70C (-40~158F)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90% non-condensing

Manufacturer Part No:
MC220L
Brand:
Product Type:
Gigabit Media Converter
UPC
-
Product Family:
-
Shipping Weight:
0.447 kg
PB Part No:
NETTPL0220
Product Model:
MC220L
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
