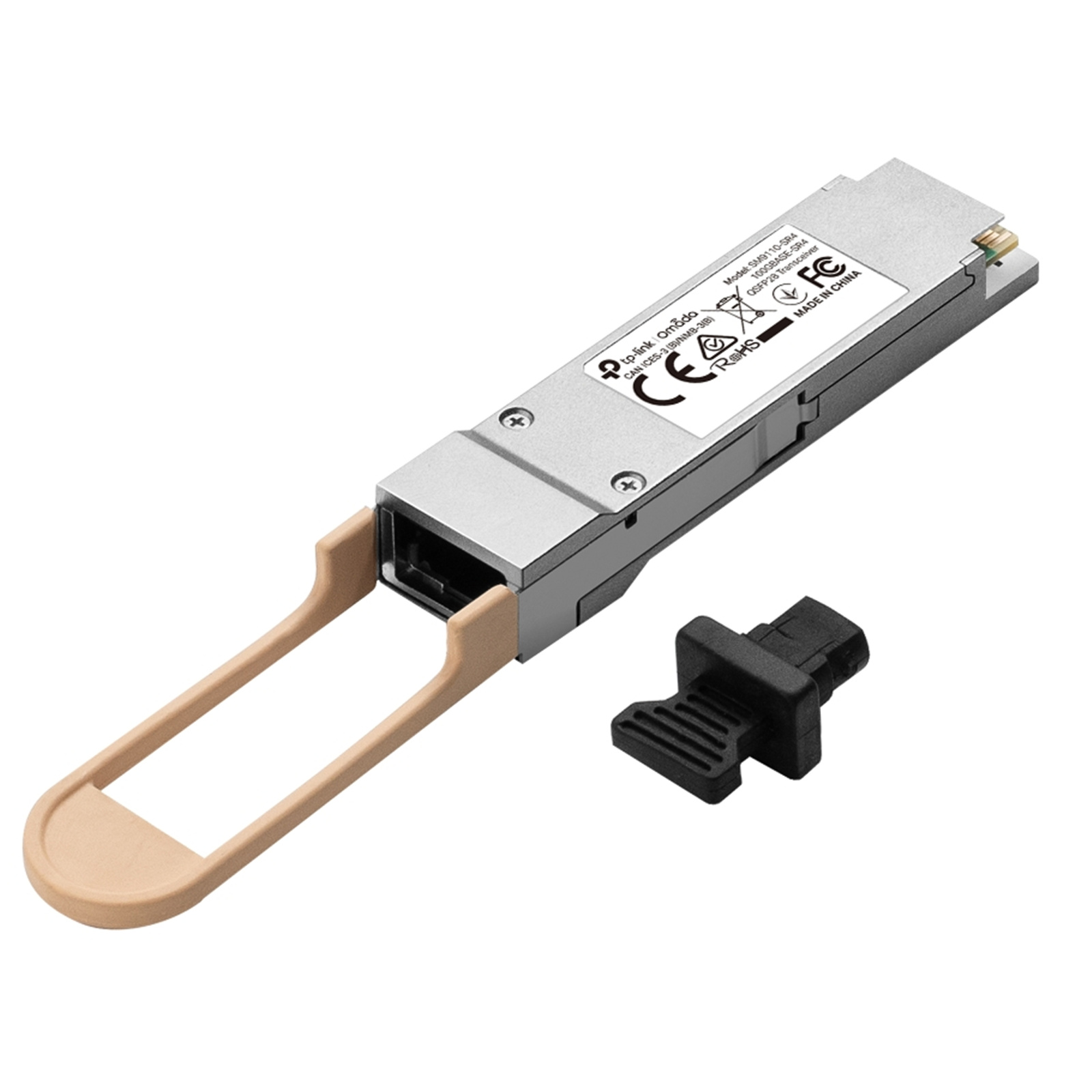

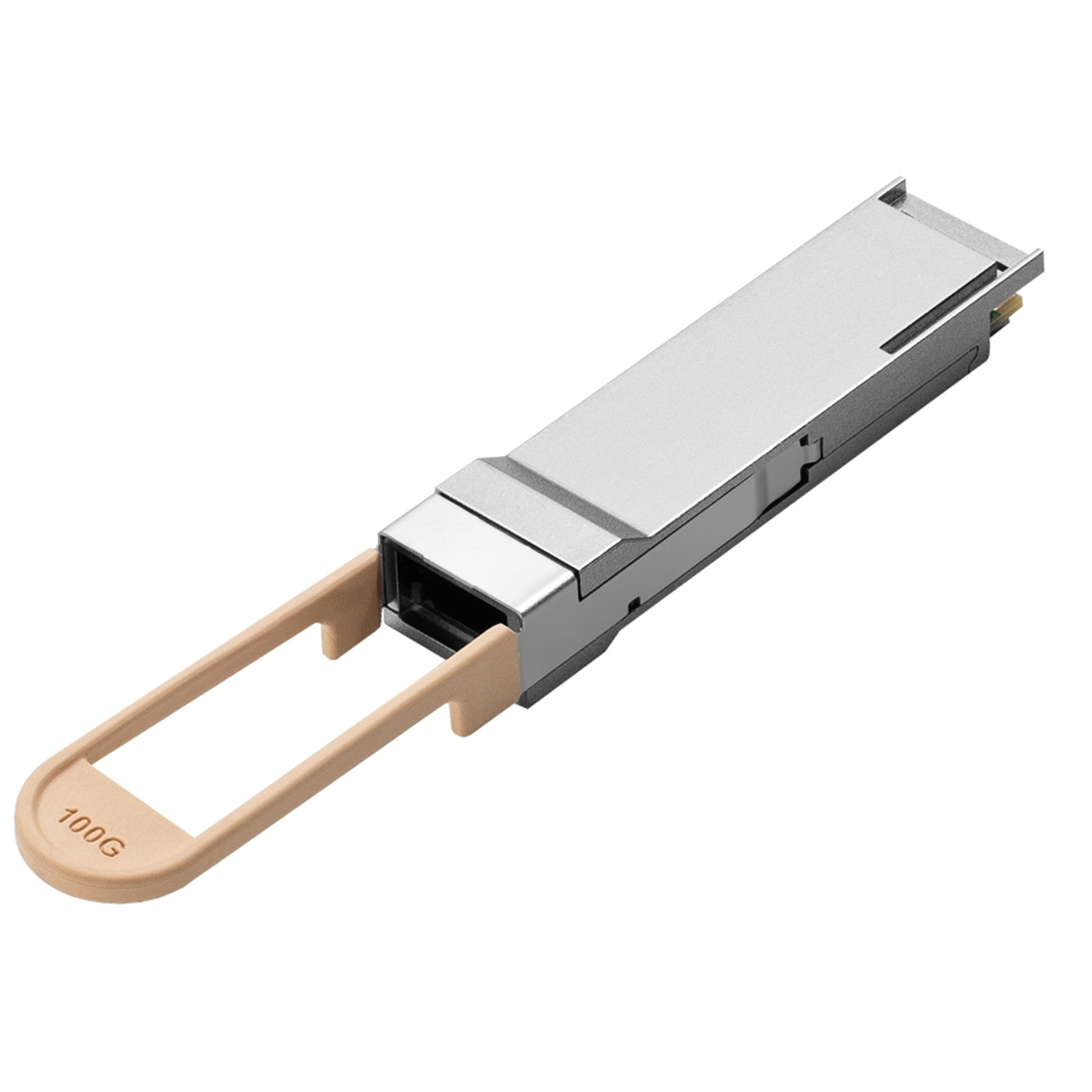

TP-Link Omada SM9110-SR4 100GBASE-SR4 QSFP28 Transceiver
- Brand: TP-Link
- MPN: SM9110-SR4
- Part #: NETTPL91104

Product URL: https://www.pbtech.com/pacific/product/NETTPL91104/TP-Link-Omada-SM9110-SR4-100GBASE-SR4-QSFP28-Trans
Features
Omada 100GBASE-SR4 QSFP28 Transceiver
- 100GBASE-SR4 multi-mode QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).
Specifications
Transceiver
Form Factor
QSFP28
Standards and Protocols
- IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
- SFF-8665, SFF-8636, SFF-8436,
- CPRI, eCPRI
- TCP/IP
Wave Length
850 nm
Power Supply
3.3 V
Power Consumption
Max 1.8 W at 100 Gbps
Max 1.54 W at 40 Gbps
Fiber Type
50/125um MMF (Multimode)
Max. Cable Length
70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps)
100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)
Data Rate
Dual Rate 103.125 Gbps and 41.2 Gbps
Connector
MTP/MPO-12
Transmitter Type
VCSEL 850 nm
Receiver Type
PIN
Transmitter Power
-8.4 dBm to 2.4 dBm @103.125 Gbps
-7.6 dBm to 2.4 dBm @41.2 Gbps
Receiver Sensitivity
<-10.3 dBm @103.125 Gbps
<-9.5 dBm @41.2 Gbps
Receiver Overload
>2.4 dBm @103.125 Gbps
>2.4 dBm @41.2 Gbps
Extinction Ratio
>2 dB @103.125 Gbps
>3 dB @41.2 Gbps
Regulatory Compliance
CE, FCC, RoHS
HARDWARE FEATURES
DDM
Yes
QSFP28 MSA
Yes
Hot Swappable
Yes
Dimensions ( W x D x H )
4.88*0.72*0.46 in (124*18.35*11.7 mm)
PACKAGE CONTENTS
Package Contents
- SM9110-SR4
- Installation Guide
ENVIRONMENT
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 185°F)
Operating Humidity
0 to 85% RH Non-condensing
Storage Humidity
0 to 85% RH Non-condensing
