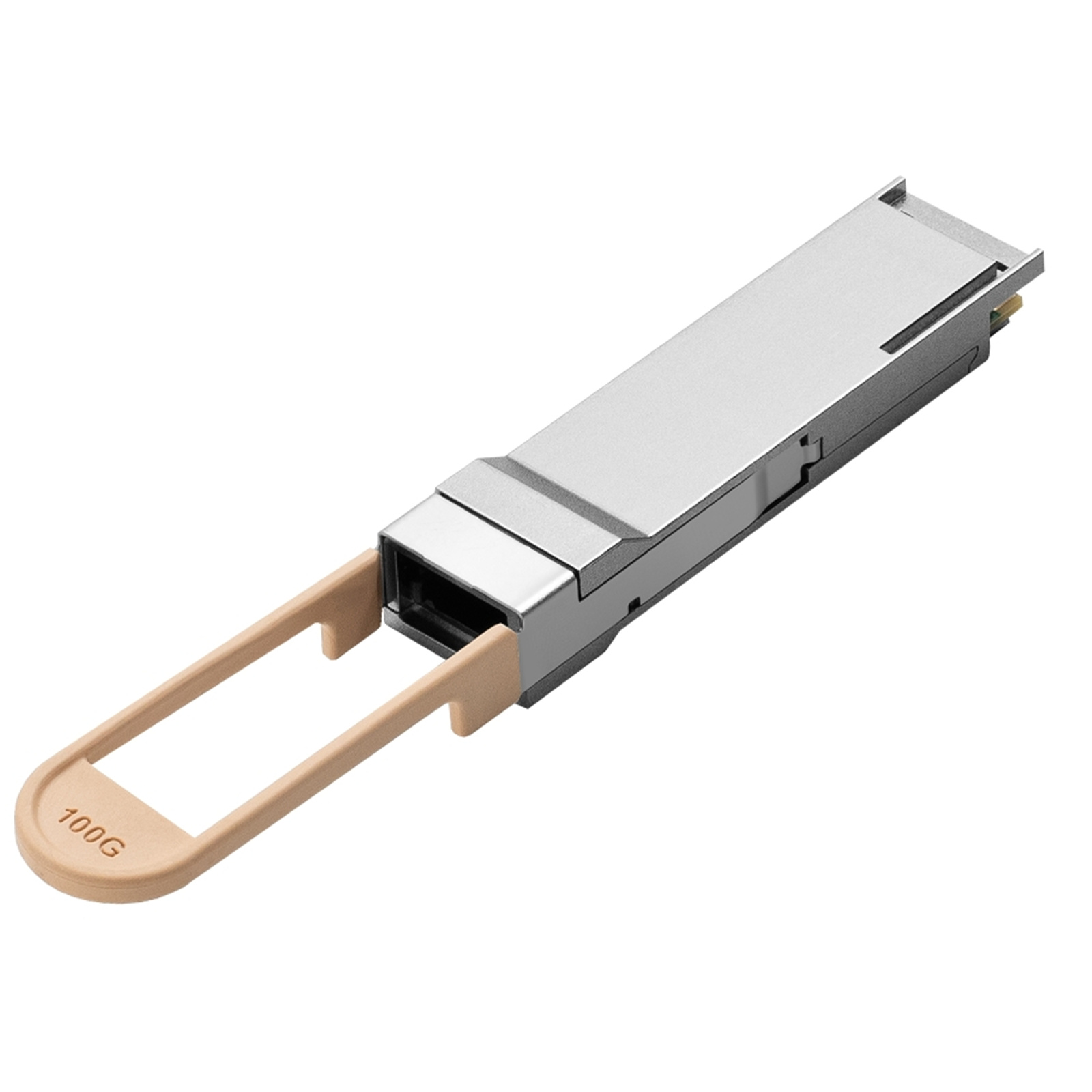

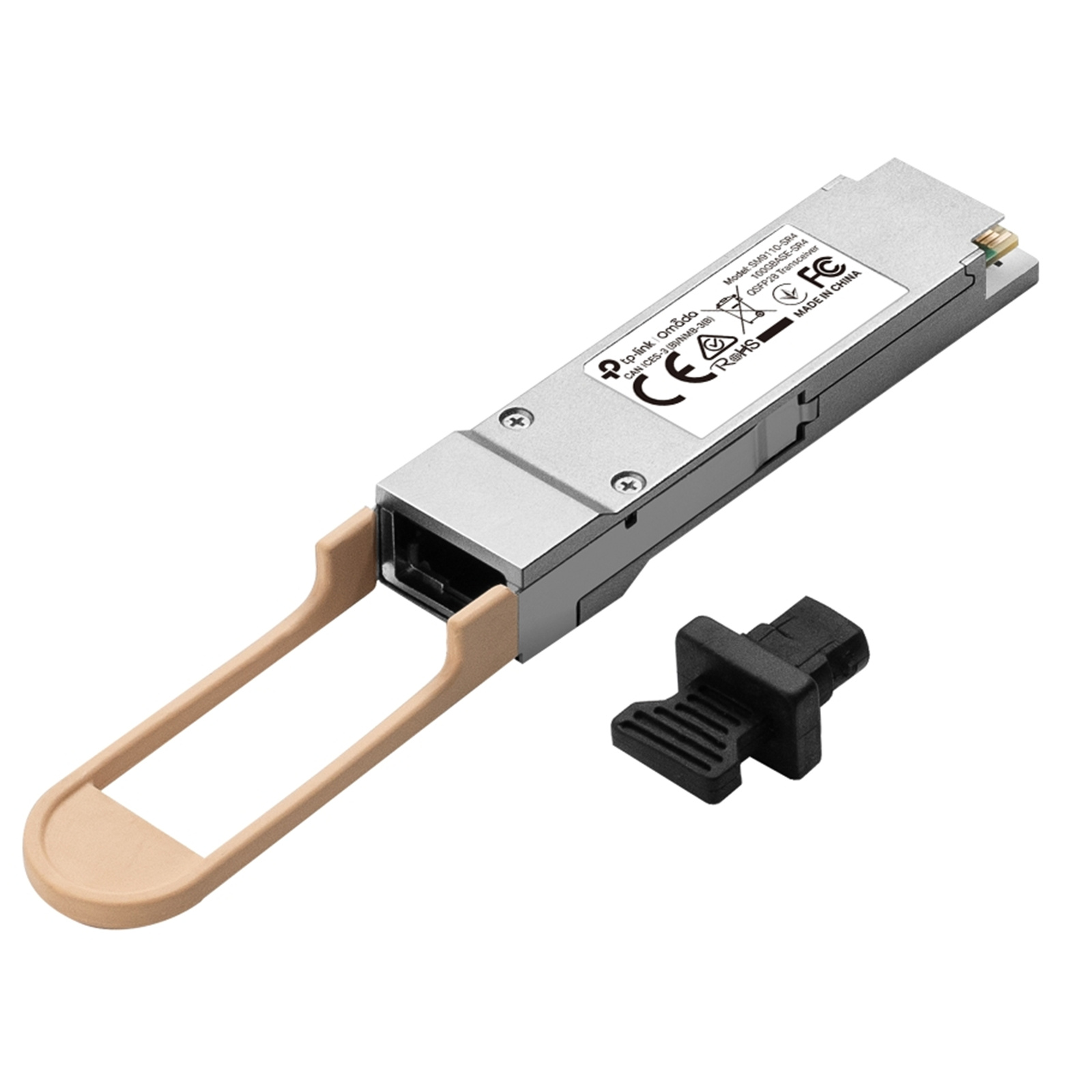

TP-Link Omada SM9110-SR4 100GBASE-SR4 QSFP28 Transceiver

PB Tech price
PB Tech price
$ 114 .77
 +GST
$ 126 .25
 inc GST

Out of stock

TP-Link Omada SM9110-SR4 100GBASE-SR4 QSFP28 Transceiver

  • Brand: TP-Link
  • MPN: SM9110-SR4
  • Part #: NETTPL91104
  • UPC:
PB Tech price
$ 114 .77 $ 126 .25
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Features

Omada 100GBASE-SR4 QSFP28 Transceiver

- 100GBASE-SR4 multi-mode QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

The SM9110-SR4 is designed to extend transmission distance based on ultra-fast Ethernet connectivity. It is a 100G/40GBASE-SR4 high performance 850nm multi-mode QSFP28 transceiver. It supports 100G Ethernet connection up to 100 m (OM4) and 40G Ethernet connection up to 150 m (OM4).

Specifications

Transceiver

Form Factor

QSFP28

Standards and Protocols

- IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA,
- SFF-8665, SFF-8636, SFF-8436,
- CPRI, eCPRI
- TCP/IP

Wave Length

850 nm

Power Supply

3.3 V

Power Consumption

Max 1.8 W at 100 Gbps
Max 1.54 W at 40 Gbps

Fiber Type

50/125um MMF (Multimode)

Max. Cable Length

70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78Gbps)
100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)

Data Rate

Dual Rate 103.125 Gbps and 41.2 Gbps

Connector

MTP/MPO-12

Transmitter Type

VCSEL 850 nm

Receiver Type

PIN

Transmitter Power

-8.4 dBm to 2.4 dBm @103.125 Gbps
-7.6 dBm to 2.4 dBm @41.2 Gbps

Receiver Sensitivity

<-10.3 dBm @103.125 Gbps
<-9.5 dBm @41.2 Gbps

Receiver Overload

>2.4 dBm @103.125 Gbps
>2.4 dBm @41.2 Gbps

Extinction Ratio

>2 dB @103.125 Gbps
>3 dB @41.2 Gbps

Regulatory Compliance

CE, FCC, RoHS

HARDWARE FEATURES

DDM

Yes

QSFP28 MSA

Yes

Hot Swappable

Yes

Dimensions ( W x D x H )

4.88*0.72*0.46 in (124*18.35*11.7 mm)

PACKAGE CONTENTS

Package Contents

- SM9110-SR4
- Installation Guide

ENVIRONMENT

Operating Temperature

0°C to 70°C (32°F to 158°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0 to 85% RH Non-condensing

Storage Humidity

0 to 85% RH Non-condensing

Manufacturer Part No:
SM9110-SR4
Brand:
Product Type:
-
UPC
-
Product Family:
Omada
Shipping Weight:
0.5 kg
PB Part No:
NETTPL91104
Product Model:
SM9110-SR4
Warranty: Not applicable
