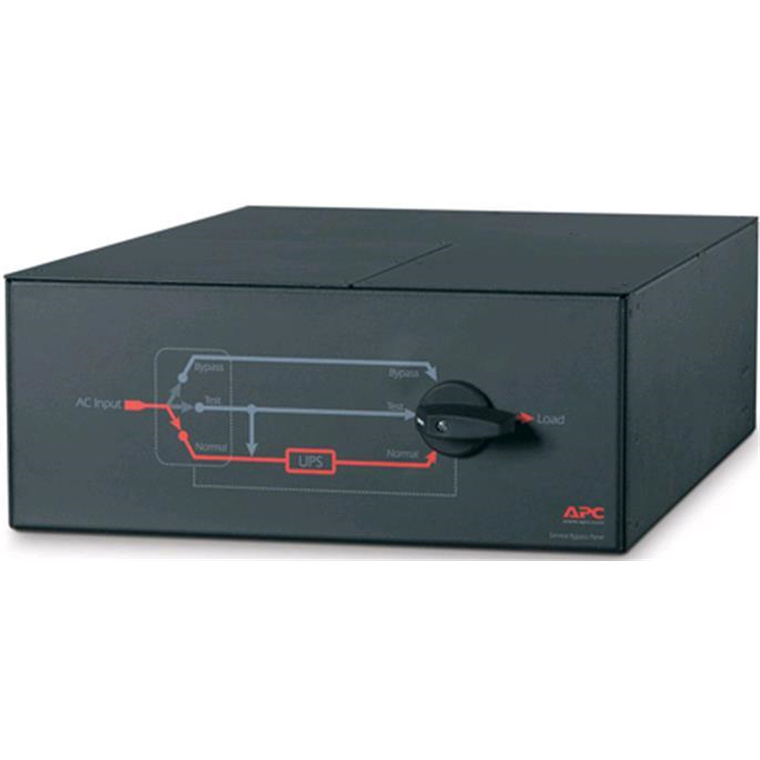

APC SCHNEIDER SBP16KP Service Bypass Panel 200V HDWIRE INPUT

PB Tech price
PB Tech price
NZD $ 3,685 .22
$ 3,685 .22
$3,685.22  +GST
$3,685.22

APC SCHNEIDER SBP16KP Service Bypass Panel 200V HDWIRE INPUT

  • Brand: APC
  • MPN: SBP16KP
  • Part #: SURAPC1063612
  • UPC:
PB Tech price
NZD $ 3,685 .22 $ 3,685 .22


Delivery: Order now and it ships on 10 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$3,685.22  +GST
$3,685.22
  • Brand: APC
  • MPN: SBP16KP
  • Part #: SURAPC1063612
  • UPC:

Cable Length

N/A

Number of Outlets

N/A

USB Ports

N/A

Features

APC Service Bypass Panel- 200/208/240V; 100A; MBB; Hardwire input/output

Specifications

Output

Nominal Output Voltage

120V , 200V , 208V , 230V

Other Output Voltages

220, 240

Overload Protection

Yes

Maximum Total Current Draw

100

Output Connections

(1) Hard Wire 3-wire (2PH + G) (Battery Backup)

Input

Nominal Input Voltage

200V , 208V , 230V , 480V 3PH

Input frequency

50/60 Hz

Input Connections

Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)

Acceptable Input Voltage

200-240 VAC

Number of Power Cords

1

Load Power Factor Range

0 to 1

Load Capacity

20000 VA

Maximum Input Current

100 A

Maximum Line Current

100 A

Physical

Maximum Height

178 mm , 17.8 cm

Maximum Width

432 mm , 43.2 cm

Maximum Depth

660 mm , 66.0 cm

Rack Height

4 U

Net Weight

21.36 kg

Shipping weight

31.36 kg

Shipping Height

305 mm , 30.5 cm

Shipping Width

610 mm , 61.0 cm

Shipping Depth

991 mm , 99.1 cm

Color

Black

Environmental

Operating Environment

-20 - 50 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0-4500 meters

Storage Temperature

-40 - 65 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0-15000 meters

Conformance

Approvals

CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778

Standard warranty

2 years (parts only)

Sustainable Offer Status

RoHS

Compliant

Manufacturer Part No:
SBP16KP
Brand:
APC
Product Type:
Service Bypass Panel
UPC
-
Product Family:
SCHNEIDER
Shipping Weight:
1 kg
PB Part No:
SURAPC1063612
Product Model:
SBP16KP
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
