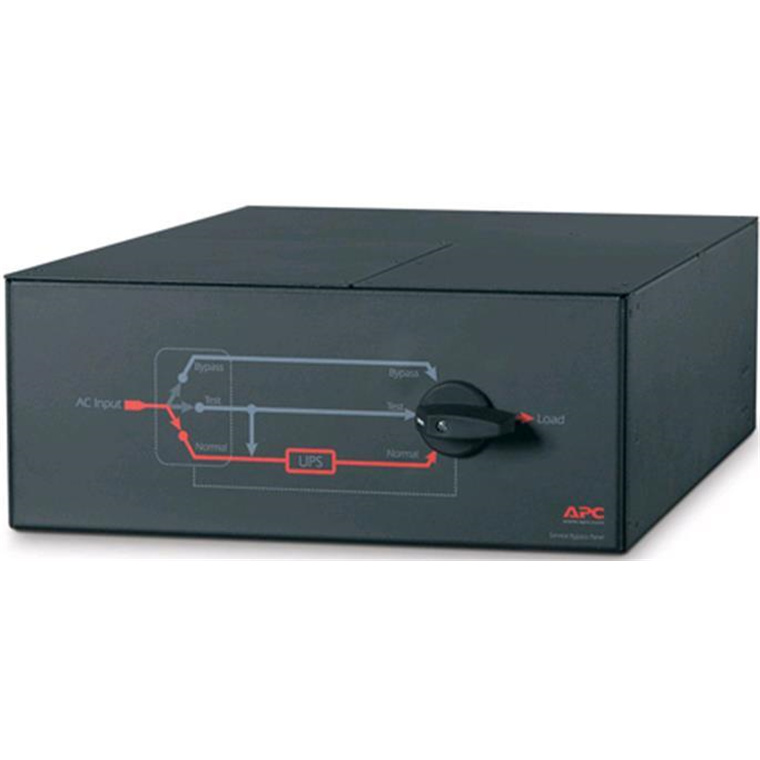

APC SCHNEIDER SBP16KP Service Bypass Panel 200V HDWIRE INPUT
APC SCHNEIDER SBP16KP Service Bypass Panel 200V HDWIRE INPUT
- Brand: APC
- MPN: SBP16KP
- Part #: SURAPC1063612
- UPC:
View all shipping info
- Brand: APC
- MPN: SBP16KP
- Part #: SURAPC1063612
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Power Boards & Adapters





APC SCHNEIDER SBP16KP Service Bypass Panel 200V HDWIRE INPUT
- Brand: APC
- MPN: SBP16KP
- Part #: SURAPC1063612

Product URL: https://www.pbtech.com/au/product/SURAPC1063612/APC-SCHNEIDER-SBP16KP-Service-Bypass-Panel-200V-HD
Features
Specifications
Output
Nominal Output Voltage
120V , 200V , 208V , 230V
Other Output Voltages
220, 240
Overload Protection
Yes
Maximum Total Current Draw
100
Output Connections
(1) Hard Wire 3-wire (2PH + G) (Battery Backup)
Input
Nominal Input Voltage
200V , 208V , 230V , 480V 3PH
Input frequency
50/60 Hz
Input Connections
Hard Wire 3-wire (2PH + G), Hard Wire 3 wire (1PH+N+G), Hard Wire 4-wire (2PH+N+G), Hard Wire 5-wire (3PH + N + G)
Acceptable Input Voltage
200-240 VAC
Number of Power Cords
1
Load Power Factor Range
0 to 1
Load Capacity
20000 VA
Maximum Input Current
100 A
Maximum Line Current
100 A
Physical
Maximum Height
178 mm , 17.8 cm
Maximum Width
432 mm , 43.2 cm
Maximum Depth
660 mm , 66.0 cm
Rack Height
4 U
Net Weight
21.36 kg
Shipping weight
31.36 kg
Shipping Height
305 mm , 30.5 cm
Shipping Width
610 mm , 61.0 cm
Shipping Depth
991 mm , 99.1 cm
Color
Black
Environmental
Operating Environment
-20 - 50 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0-4500 meters
Storage Temperature
-40 - 65 °C
Storage Relative Humidity
0 - 95 %
Storage Elevation
0-15000 meters
Conformance
Approvals
CSA, EN 60950, GOST, IEC 60950, IEC 60950, UL 1778
Standard warranty
2 years (parts only)
Sustainable Offer Status
RoHS
Compliant
