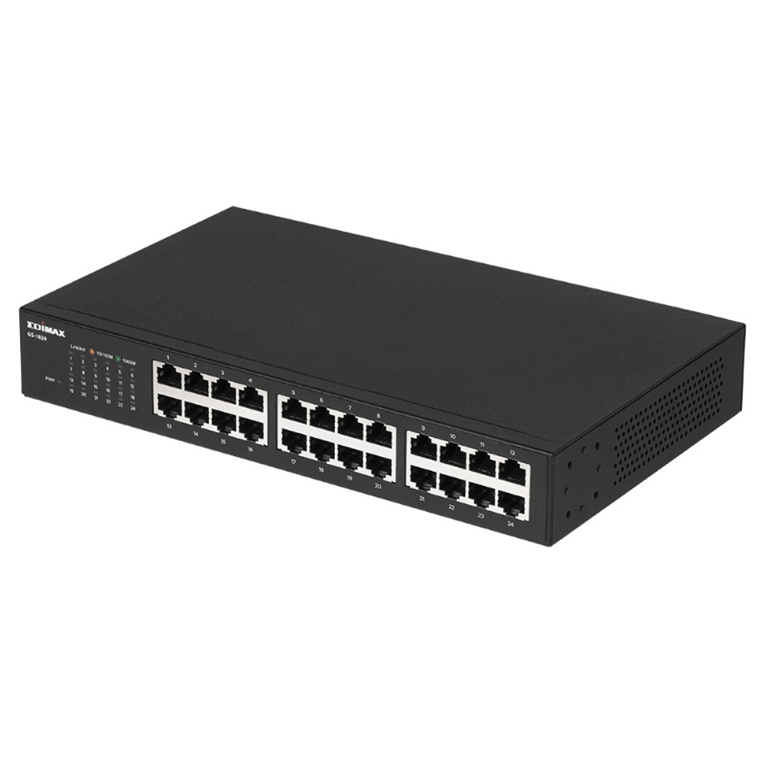

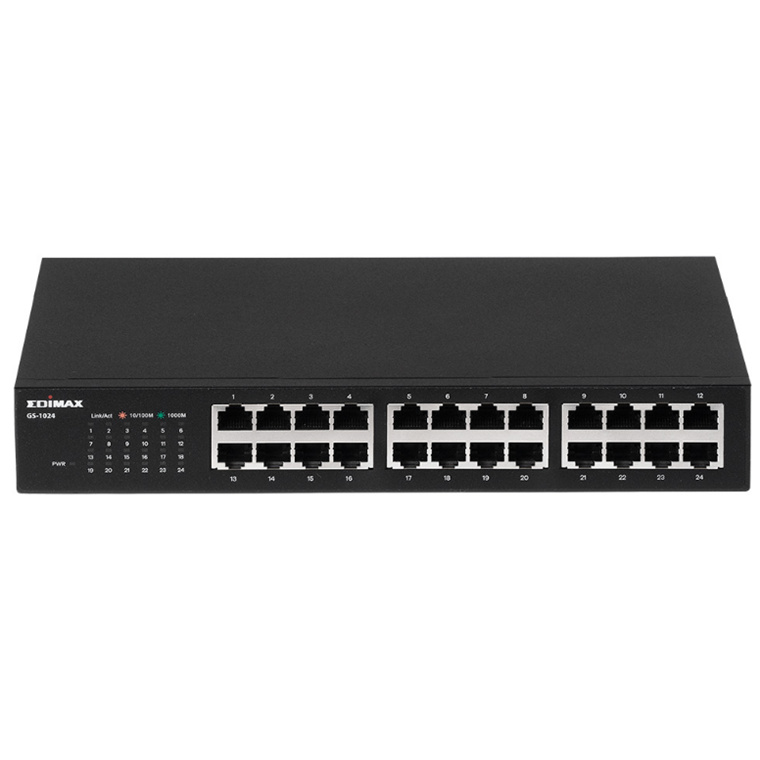

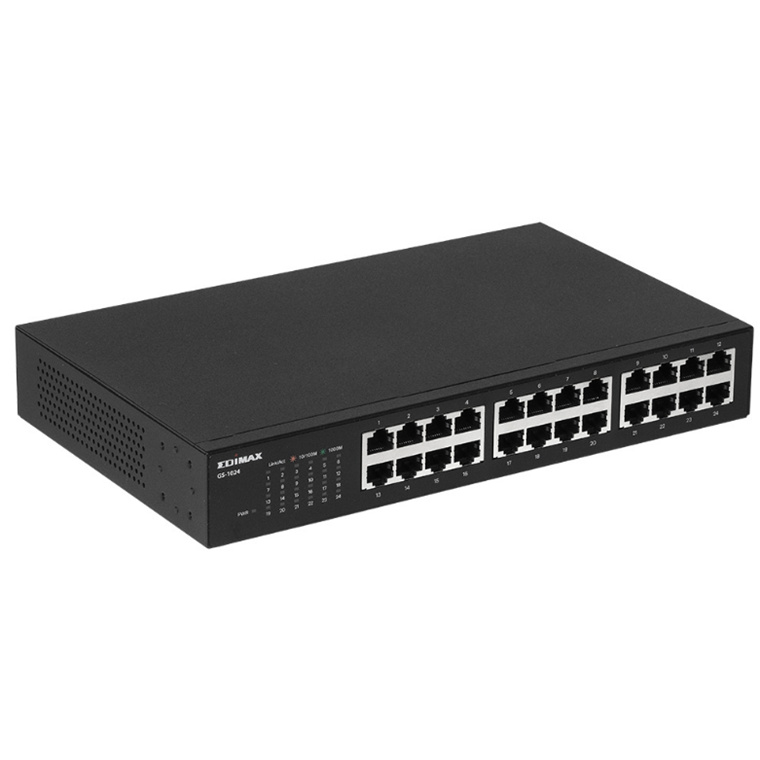

Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
- Brand: Edimax
- MPN: GS-1024
- Part #: SWHEDM1063
- UPC:4717964705020
Product URL: https://www.pbtech.com/pacific/product/SWHEDM1063/Edimax-24-Port-Gigabit-Rack-Mount-Unmanaged-Switch
Features
Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
- Equipped 24 Gigabit Ethernet ports with full-duplex and 10KB jumbo frames support
- Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
- Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction
- Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.
QoS for Improved Traffic
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.
Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop, wall-mount or rack-mount for flexible deployment.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
HARDWARE
Ports
24 x RJ-45 10/100/1000Base-T ports
Transmission Method
Store and forward
LED Indicator
Per port: Link/Act
Per unit: Power
Power Input

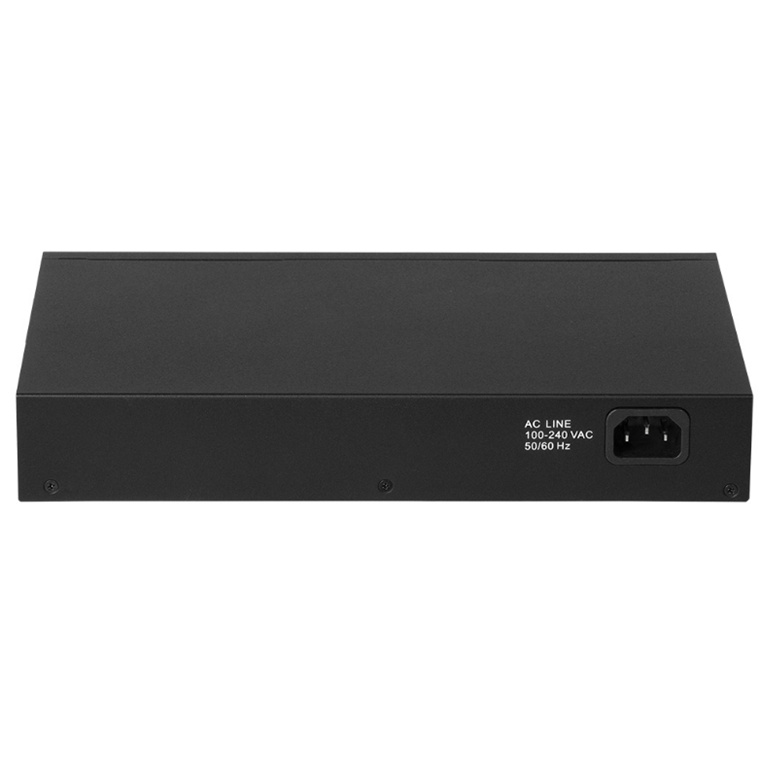

100-240V AC, 50-60Hz, internal power supply
Power Consumption
19W (Max.)
Mounting

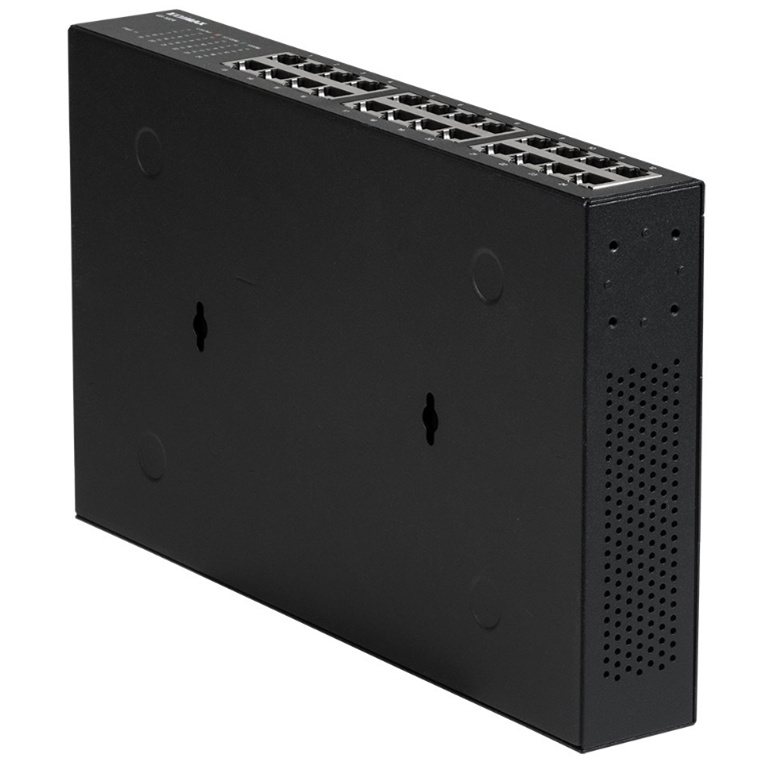

Rack-mount / wall-mount / desktop (rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimensions
268(W) x 42(H) x 160(D) mm
Weight
1.416kg
PERFORMANCE
Switching Capacity
48Gbps
MAC Address
8K
Buffer Memory
4.1Mb
Jumbo Frame
10KB
Filtering / Forwarding Rates
35.7Mpps(Max.)
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.1p QoS (Quality of Service)
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3az Energy Efficient Etherent
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Certification
CE, FCC, BSMI
