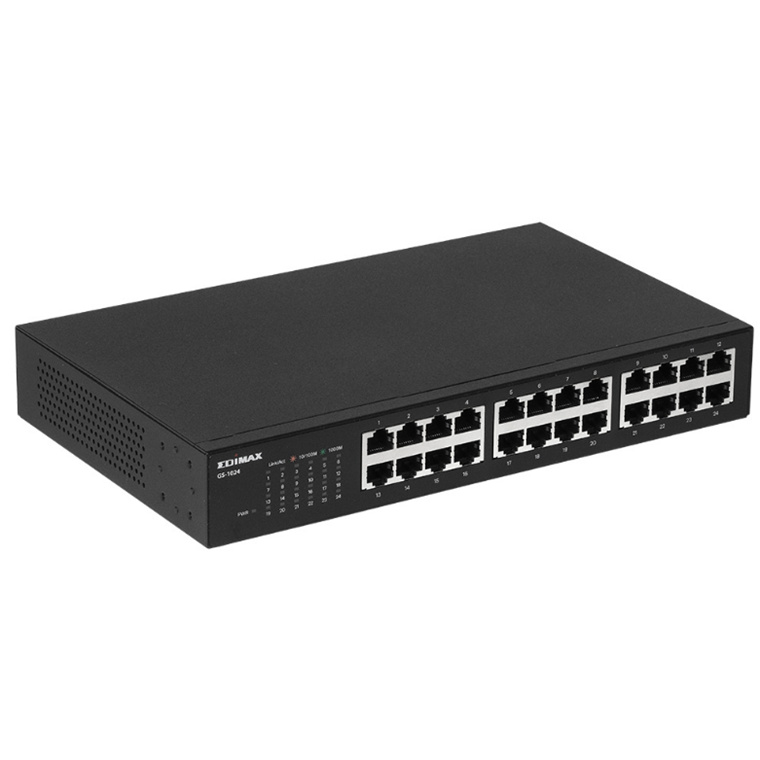

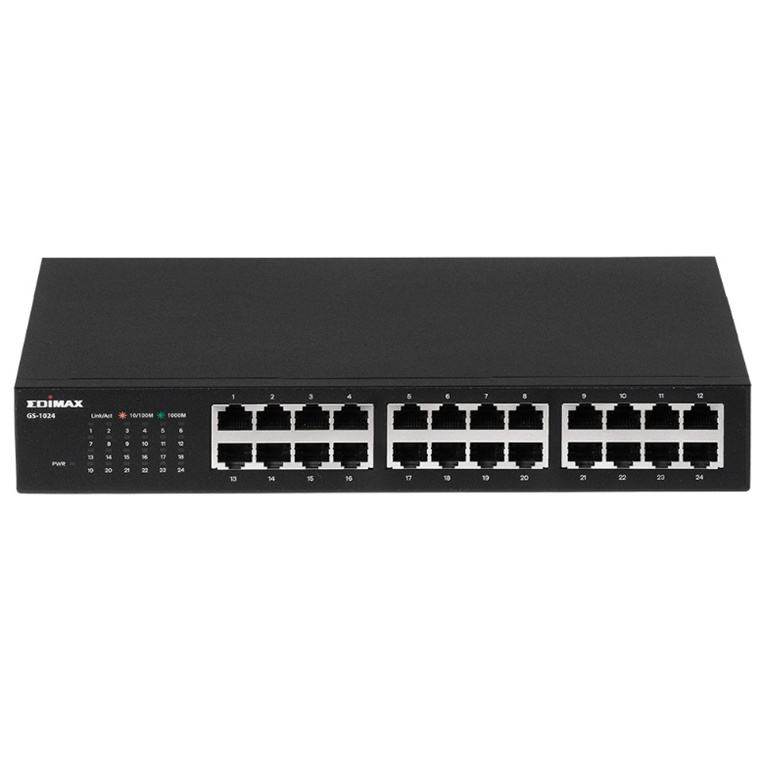

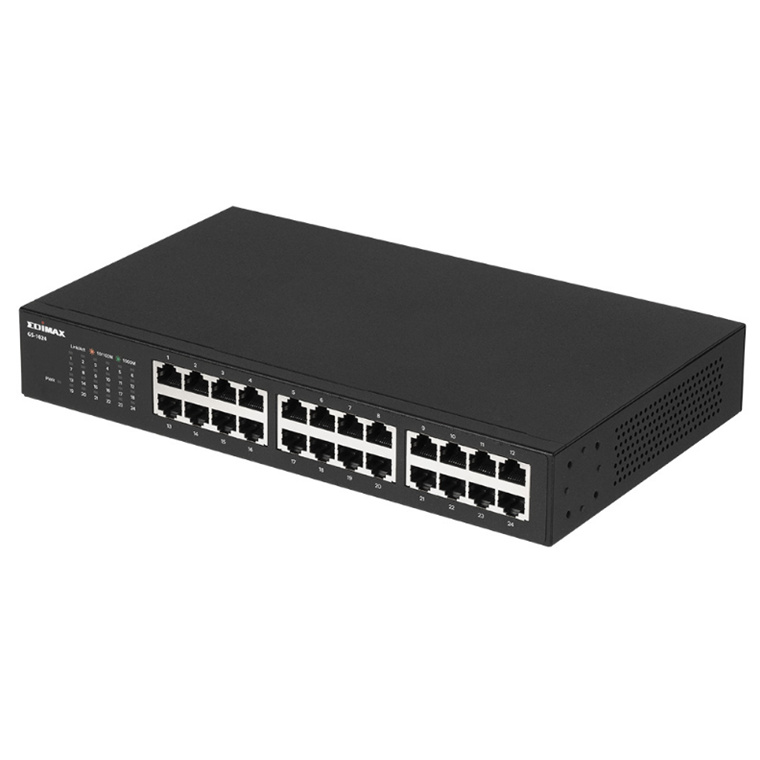

Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
- Brand: Edimax
- MPN: GS-1024
- Part #: SWHEDM1063
- UPC: 4717964705020
View all shipping info
- Brand: Edimax
- MPN: GS-1024
- Part #: SWHEDM1063
- UPC: 4717964705020
Features
Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
- Equipped 24 Gigabit Ethernet ports with full-duplex and 10KB jumbo frames support
- Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
- Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction
- Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.
QoS for Improved Traffic
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.
Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop, wall-mount or rack-mount for flexible deployment.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
- Brand: Edimax
- MPN: GS-1024
- Part #: SWHEDM1063
- UPC:4717964705020
Product URL: https://www.pbtech.com/au/product/SWHEDM1063/Edimax-24-Port-Gigabit-Rack-Mount-Unmanaged-Switch
Features
Edimax 24 Port Gigabit Rack-Mount Unmanaged Switch
- Equipped 24 Gigabit Ethernet ports with full-duplex and 10KB jumbo frames support
- Supports IEEE802.1p QoS for ensuring first priority for video and voice traffic
- Supports IEEE 802.3x Flow Control, Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction
- Complies with IEEE 802.3az Energy Efficient Ethernet, Inactive Link Detection and Cable Length Detection for power saving
- No software or configuration required and designed for desktop, wall-mounted or rack-mounted flexible deployment
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.
QoS for Improved Traffic
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.
Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop, wall-mount or rack-mount for flexible deployment.
*Maximum performance, actual data rates, and coverage will vary depending on network conditions and environmental factors.
*Actual viewing resolution and frame rate of network cameras depend on connection speed.
*Product specifications and design are subject to change without notice.
Specifications
HARDWARE
Ports
24 x RJ-45 10/100/1000Base-T ports
Transmission Method
Store and forward
LED Indicator
Per port: Link/Act
Per unit: Power

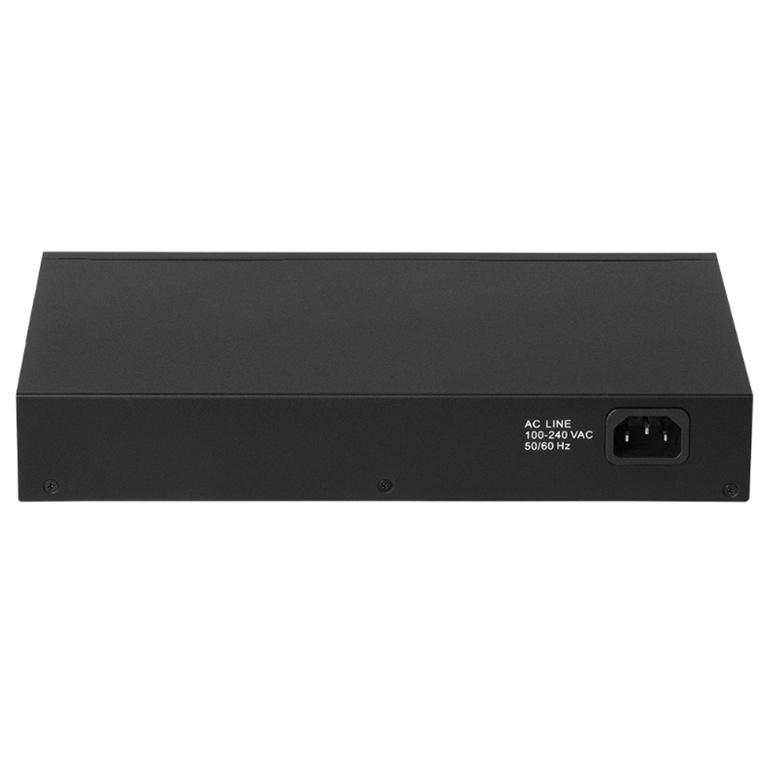

Power Input
100-240V AC, 50-60Hz, internal power supply
Power Consumption
19W (Max.)
Mounting
Rack-mount / wall-mount / desktop (rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimensions
268(W) x 42(H) x 160(D) mm
Weight
1.416kg
PERFORMANCE
Switching Capacity
48Gbps
MAC Address
8K
Buffer Memory
4.1Mb
Jumbo Frame
10KB
Filtering / Forwarding Rates
35.7Mpps(Max.)
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
OTHERS
Standard
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.1p QoS (Quality of Service)
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3az Energy Efficient Etherent
Environmental Condition
Operating Temperature: 32~104°F (0~40°C)
Storage Temperature: -40~158°F (-40~70°C)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 5~90% (NonCondensing)
Certification
CE, FCC, BSMI
