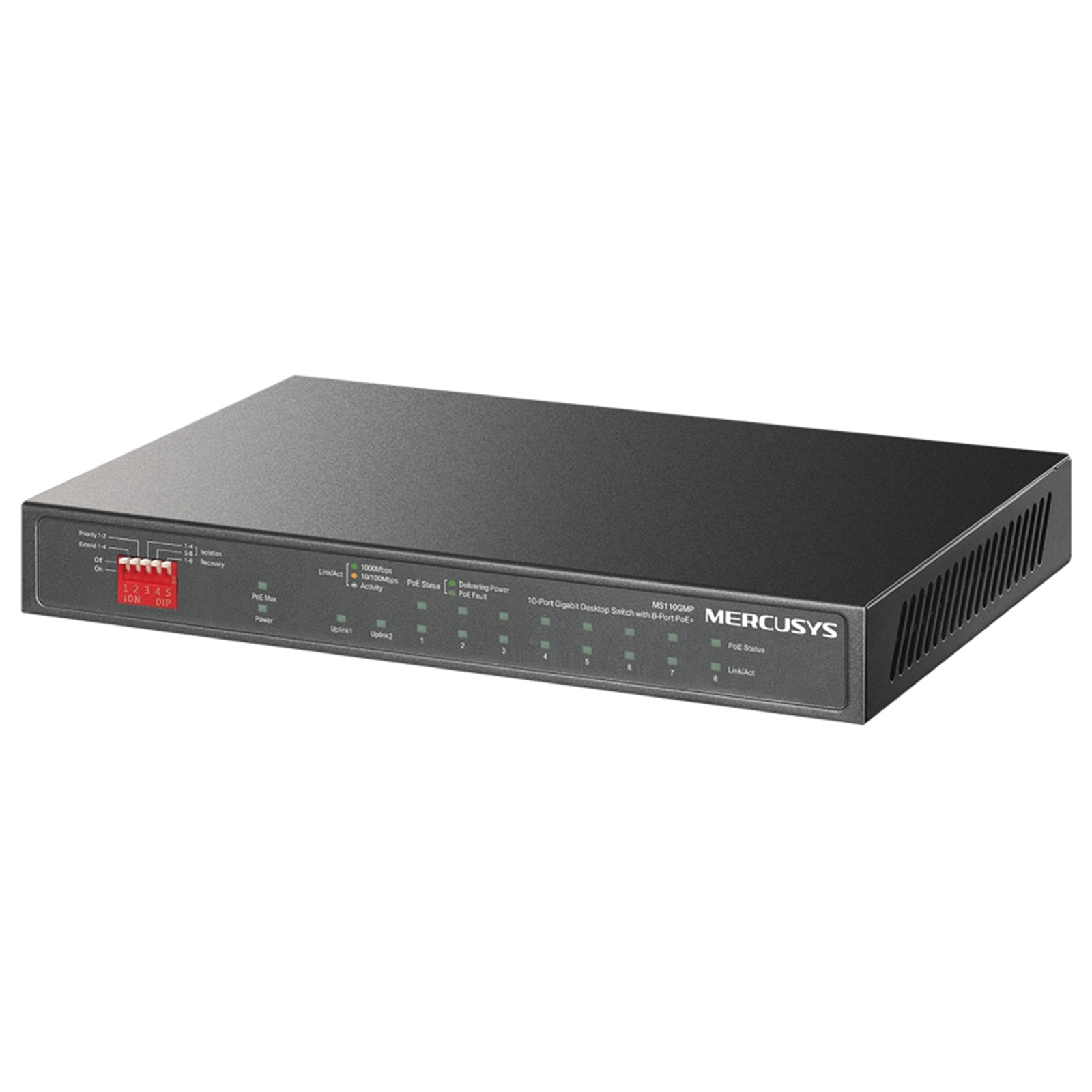

Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

PB Tech price
PB Tech price
NZD $ 97 .01
$ 97 .01
$97.01  +GST
$97.01

Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+

  • Brand: Mercusys
  • MPN: MS110GMP
  • Part #: SWHMES1102
  • UPC:
NEW ARRIVAL
PB Tech price
NZD $ 97 .01 $ 97 .01
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 11 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$97.01  +GST
$97.01
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: Mercusys
  • MPN: MS110GMP
  • Part #: SWHMES1102
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

N/A

Management Level

Not Specified

Number of Ports

10 Ports

PoE

Yes

PoE Ports

8 Ports

PoE Budget

110 Watts

View full specs
Returns & Warranty Bulk Quote Print Page

Features

10-Port Gigabit Desktop Switch with 8-Port PoE+

- 8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location

Specifications

Hardware

Dimensions

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

PoE Ports

RJ45 Ports
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1-8
- Power Supply: 111 W

Interfaces

- 8× 10/100/1000 Mbps PoE+ Ports
- 2× 1000 Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)

External Power Supply

External Power Adapter (Output: 54VDC / 2.22A)

Fan Quantity

Fanless

Physical Security Lock

Yes

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

MAC Address Table

4K

Max Power Consumption

- 7.37 W (220V / 50Hz with no PD connected)
- 129.4 W (220V / 50Hz with 111 W PD connected)

Max Heat Dissipation

- 25.13 BTU/h (220V / 50Hz with no PD connected)
- 441.25 BTU/h (220V / 50Hz with 111 W PD connected)

Software

Transfer Method

Store-And-Forward

Advanced Features

- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1-2)
- Isolation Mode Button (Ports 1-4 / 5-8)
- PoE Auto Recovery (Ports 1-8)
- MAC Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Performance

Packet Forwarding Rate

14.88 Mpps

Others

Certifications

FCC, CE, RoHS

Package Contents

- MS110GMP
- Power Adapter
- Installation Guide

Environment

- Operating Temperature: -10?~40? (14?~104?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
