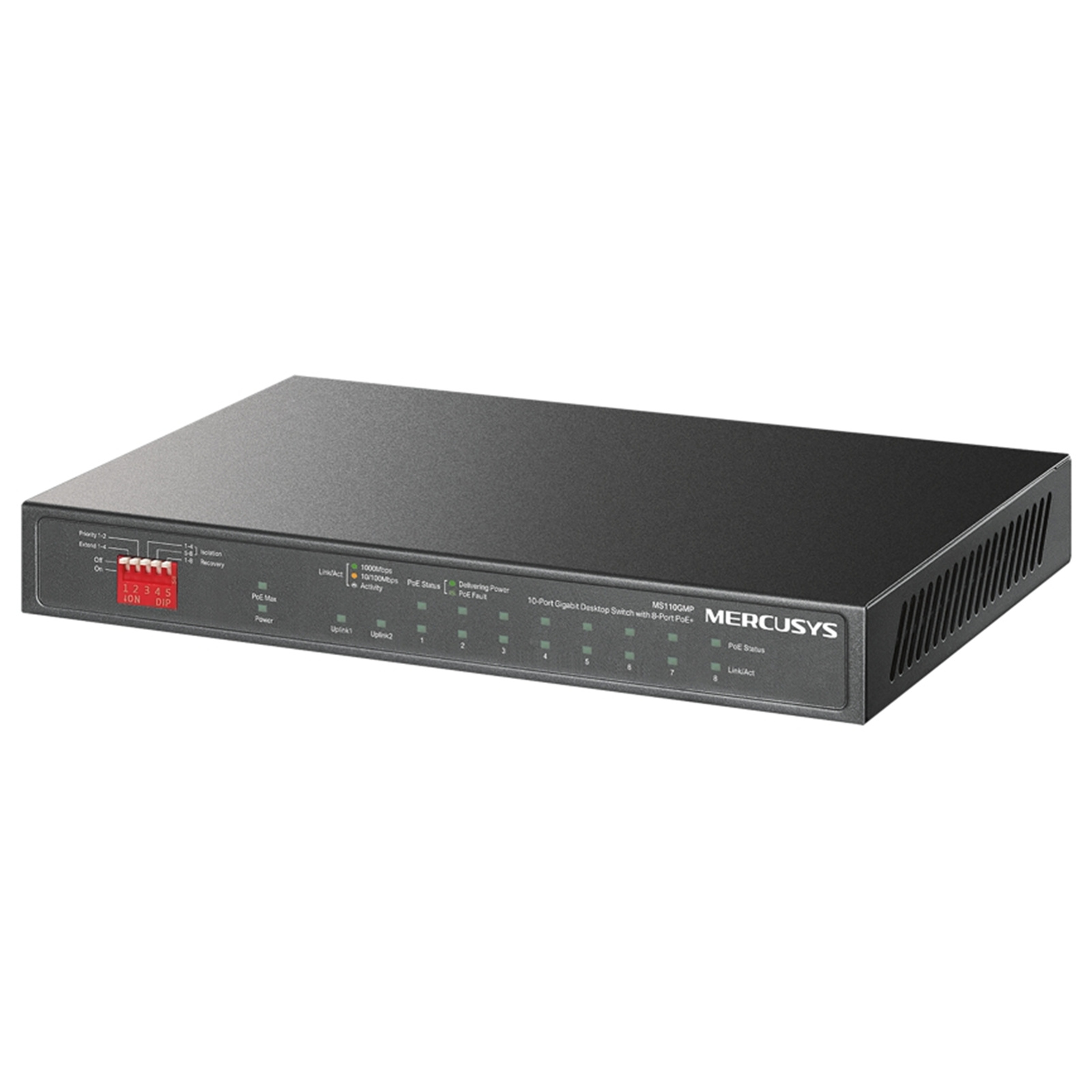

Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
- Brand: Mercusys
- MPN: MS110GMP
- Part #: SWHMES1102
- UPC:
View all shipping info
- Brand: Mercusys
- MPN: MS110GMP
- Part #: SWHMES1102
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
- Brand: Mercusys
- MPN: MS110GMP
- Part #: SWHMES1102
Product URL: https://www.pbtech.com/au/product/SWHMES1102/Mercusys-MS110CMP-8-Port-10100-Mbps--2-Port-Gigabi
Features
10-Port Gigabit Desktop Switch with 8-Port PoE+
- 8× Gigabit PoE+ ports, and 2× Gigabit Uplink Ports
- 8× PoE+ ports transfer data and power via a single cable with a total power budget of 111 W*
- Compliance with IEEE 802.3af/at PoE+, the switch supports PoE Power up to 30 W for each PoE port
- Up to 250 m data and power transmission range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of the sensitive applications
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto Recovery
- Plug and play with no configuration required
- Fanless design reduces power consumption and works silently in its location
Specifications
Hardware
Dimensions
8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
PoE Ports
RJ45 Ports
- Standard: 802.3 af/at compliant
- PoE Ports: Ports 1-8
- Power Supply: 111 W
Interfaces
- 8× 10/100/1000 Mbps PoE+ Ports
- 2× 1000 Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
External Power Supply
External Power Adapter (Output: 54VDC / 2.22A)
Fan Quantity
Fanless
Physical Security Lock
Yes
Jumbo Frame
16 KB
Switching Capacity
20 Gbps
MAC Address Table
4K
Max Power Consumption
- 7.37 W (220V / 50Hz with no PD connected)
- 129.4 W (220V / 50Hz with 111 W PD connected)
Max Heat Dissipation
- 25.13 BTU/h (220V / 50Hz with no PD connected)
- 441.25 BTU/h (220V / 50Hz with 111 W PD connected)
Software
Transfer Method
Store-And-Forward
Advanced Features
- Compatible With IEEE 802.3af/at Compliant PDs
- Extend Mode Button (Ports 1-4, Up to 250 m PoE power supply and data transmission)
- Priority Mode Button (Ports 1-2)
- Isolation Mode Button (Ports 1-4 / 5-8)
- PoE Auto Recovery (Ports 1-8)
- MAC Address Auto-Learning and Auto-Aging
- IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
Performance
Packet Forwarding Rate
14.88 Mpps
Others
Certifications
FCC, CE, RoHS
Package Contents
- MS110GMP
- Power Adapter
- Installation Guide
Environment
- Operating Temperature: -10?~40? (14?~104?)
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
