The Netonix® WISP Switch™ model WS-26-400-IDC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch. Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).
- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes - The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH) - Monitor DC voltage and current into the switch from your batteries - Monitors the DC power supply temperature with auto and programmable thermal shutdown - Program the switch to shut down lower priority POE ports when batteries get low and to restore them when sufficient reserves return or when it detects charging has resumed from solar or wind - If power gets too low it can be configured to shut down all POE ports and hibernate your remote site until it detects solar or wind charging has resumed and sufficient reserves are generated - Power Supply has its own micro processor to communicate to the switch itself allowing full control over the power supply and all relative telemetry generated by sensors built into the power supply
Specifications
Manufacturer's Code WS-26-400-IDC
Power Input 32-72VDC (Isolated)
Max. Power Consumption 400W
Operating Temperature -25 to 55°C
Passive PoE Configured Per Port via UI 24V 0.75A pins 4,5(+) 7,8(-), 48V 0.75A pins 4,5(+) 7,8(-), 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-), 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)
Warranty:
12 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Reviews
There are currently no reviews for this product
Do you own this product?
Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au
Returns & Warranty
7 day right of exchange
If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.
To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.
If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.
Please note, items purchased on finance cannot be exchanged for a gift card.
Hassle free warranty service
If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.
If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.

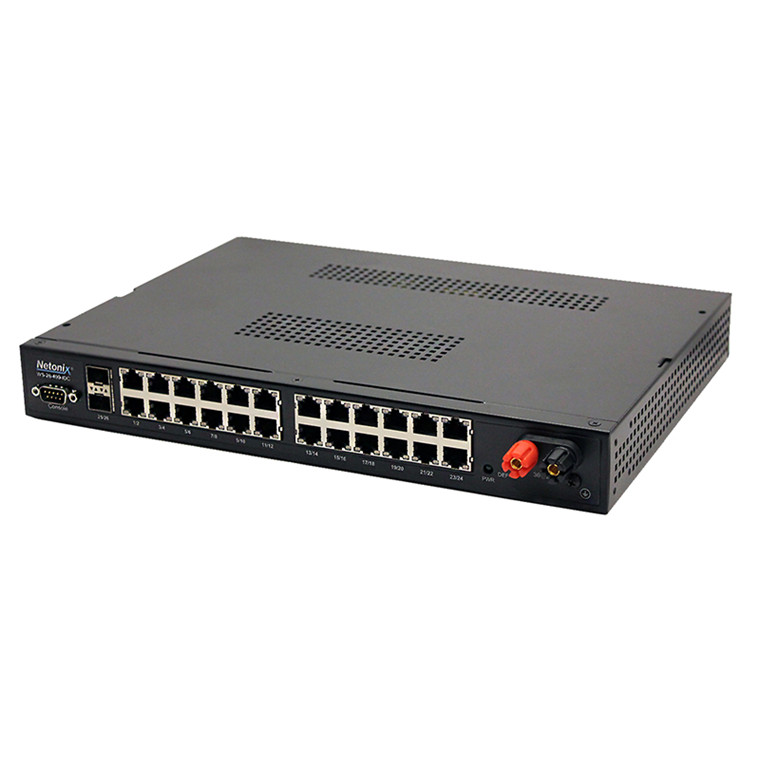

Netonix Managed PoE Switch 26 Port - 400W DC Powered
Brand:Netonix
MPN:WS-26-400-IDC
Part #:SWHNTN690060
UPC:858827005162
PB Tech price
NZD $1,724.35
Date Created: 16:44, 04-09-2025 Product URL: https://www.pbtech.com/pacific/product/SWHNTN690060/Netonix-Managed-PoE-Switch-26-Port---400W-DC-Power
Features
The Netonix® WISP Switch™ model WS-26-400-IDC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch. Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).
- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes - The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH) - Monitor DC voltage and current into the switch from your batteries - Monitors the DC power supply temperature with auto and programmable thermal shutdown - Program the switch to shut down lower priority POE ports when batteries get low and to restore them when sufficient reserves return or when it detects charging has resumed from solar or wind - If power gets too low it can be configured to shut down all POE ports and hibernate your remote site until it detects solar or wind charging has resumed and sufficient reserves are generated - Power Supply has its own micro processor to communicate to the switch itself allowing full control over the power supply and all relative telemetry generated by sensors built into the power supply
Specifications
Manufacturer's Code WS-26-400-IDC
Power Input 32-72VDC (Isolated)
Max. Power Consumption 400W
Operating Temperature -25 to 55°C
Passive PoE Configured Per Port via UI 24V 0.75A pins 4,5(+) 7,8(-), 48V 0.75A pins 4,5(+) 7,8(-), 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-), 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)
Netonix Managed PoE Switch 26 Port - 400W DC Powered
PB Tech price
PB Tech price
NZD $1,724.35$1,724.35
Product Attributes
Part #:SWHNTN690060
10 Gigabit:
No
Management Level:
Managed
Number of Ports:
26 Ports
PoE:
Yes
PoE Ports:
24 Ports
Uplink Ports:
2
Uplink Speed (Max):
Gigabit
