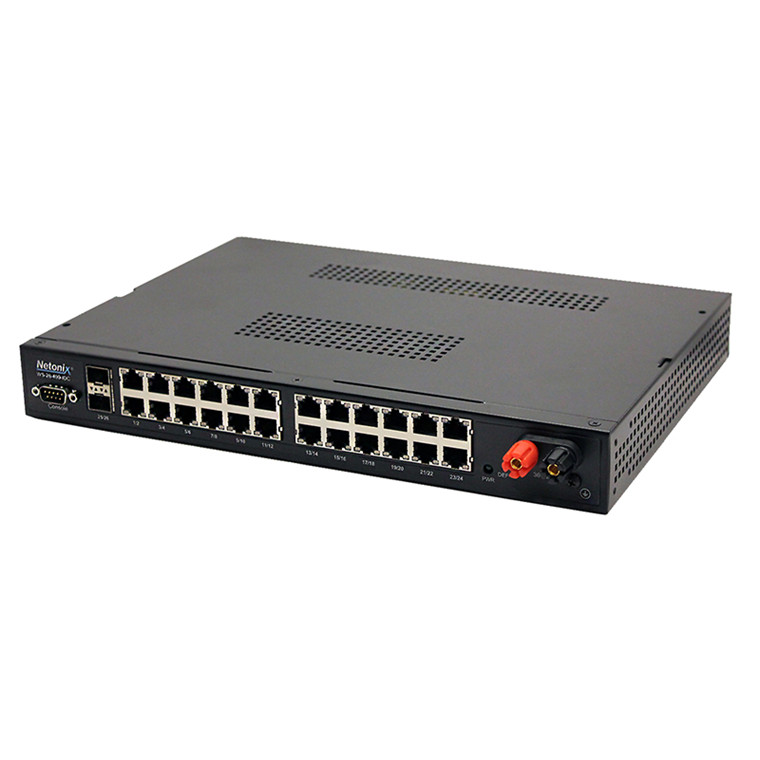

Netonix Managed PoE Switch 26 Port - 400W DC Powered

PB Tech price

$ 1,596 .72

+GST

$ 1,756 .39

inc GST

Netonix Managed PoE Switch 26 Port - 400W DC Powered

Brand: Netonix
MPN: WS-26-400-IDC
Part #: SWHNTN690060
UPC: 858827005162

PB Tech price

$ 1,756 .39

inc GST

+GST inc GST

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 11 Sep

Express Delivery Times

Metro - Within 2-3 working days

Rural - Within 3-5 working days

Standard Delivery Times

NSW, VIC, ACT, QLD - Within 3-7 working days

SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Netonix
MPN: WS-26-400-IDC
Part #: SWHNTN690060
UPC: 858827005162

Be the first to review this product

10 Gigabit

Management Level

Managed

Number of Ports

26 Ports

PoE Ports

24 Ports

Uplink Ports

Uplink Speed (Max)

Gigabit

View full specs

Returns & Warranty Bulk Quote Print Page

Features

The Netonix® WISP Switch™ model WS-26-400-IDC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Important: Check device POE type and pinout before enabling 24VH or 48VH Settings! i.e. 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c).

- Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes
- The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH)
- Monitor DC voltage and current into the switch from your batteries
- Monitors the DC power supply temperature with auto and programmable thermal shutdown
- Program the switch to shut down lower priority POE ports when batteries get low and to restore them when sufficient reserves return or when it detects charging has resumed from solar or wind
- If power gets too low it can be configured to shut down all POE ports and hibernate your remote site until it detects solar or wind charging has resumed and sufficient reserves are generated
- Power Supply has its own micro processor to communicate to the switch itself allowing full control over the power supply and all relative telemetry generated by sensors built into the power supply

Specifications

Manufacturer's Code
WS-26-400-IDC

Power Input
32-72VDC (Isolated)

Max. Power Consumption
400W

Operating Temperature
-25 to 55°C

Passive PoE Configured Per Port via UI
24V 0.75A pins 4,5(+) 7,8(-), 48V 0.75A pins 4,5(+) 7,8(-), 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-), 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)

PoE Out Voltage Range
48-50 VDC / 22-24 VDC

24V PoE Ports Pins
4,5 (+) Pins 7,8 (-) Ports 01-24

48V PoE Ports Pins
4,5 (+) Pins 7,8 (-) Ports 01-24

24VH PoE Ports Pins
1,2,4,5 (+) Pins 3,6,7,8 (-) Ports 01-02

48VH PoE Ports Pins
1,2,4,5 (+) Pins 3,6,7,8 (-) Ports 01-06

Ethernet Ports
(24) 10/100/1000 Ethernet Ports

SFP Ports
(2) SFP Ports

Dimensions
438mm x 44mm x 229mm

Manufacturer Part No:

WS-26-400-IDC

Brand:

Netonix

Product Type:

Managed PoE Switch

UPC

858827005162

Product Family:

Shipping Weight:

3.15 kg

PB Part No:

SWHNTN690060

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
