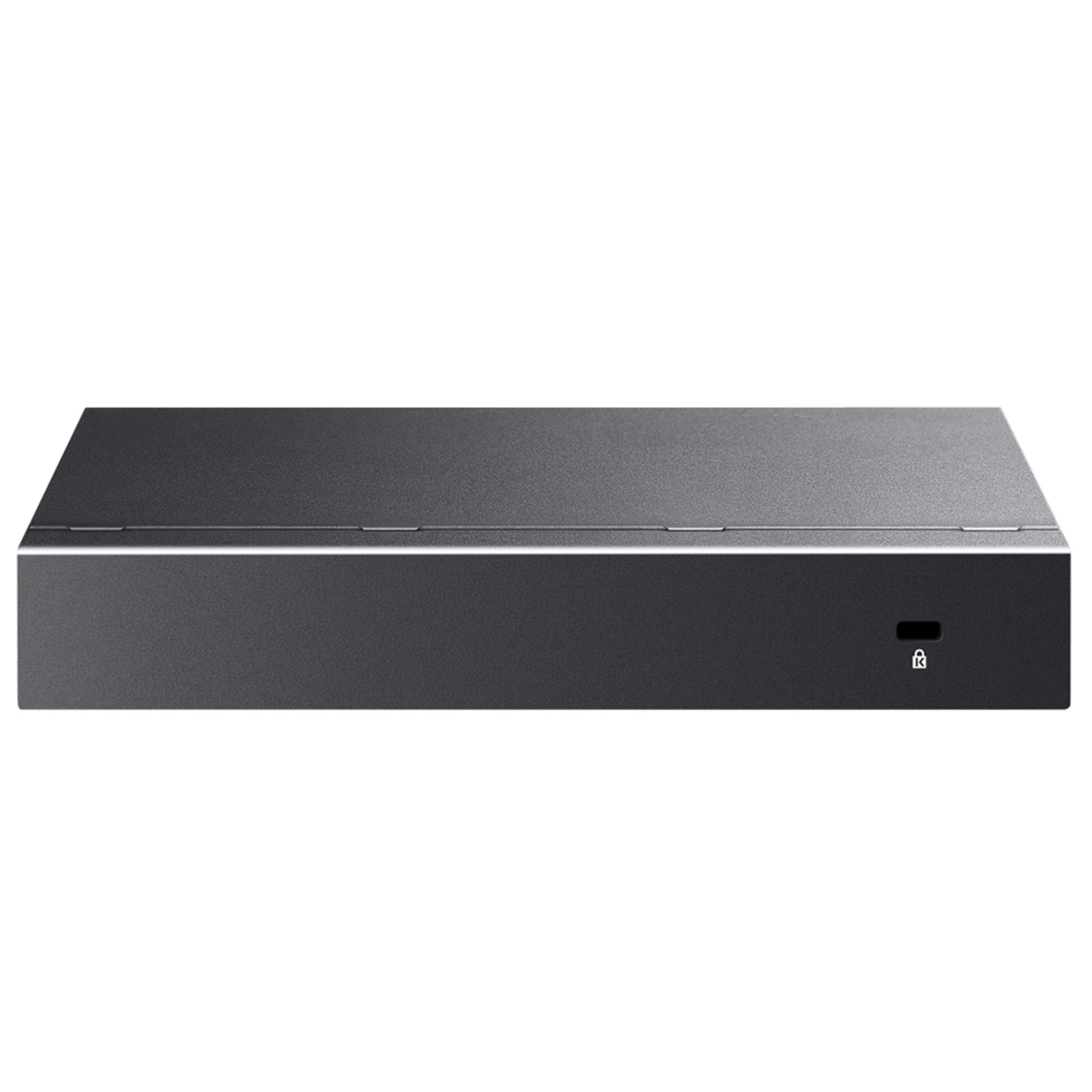

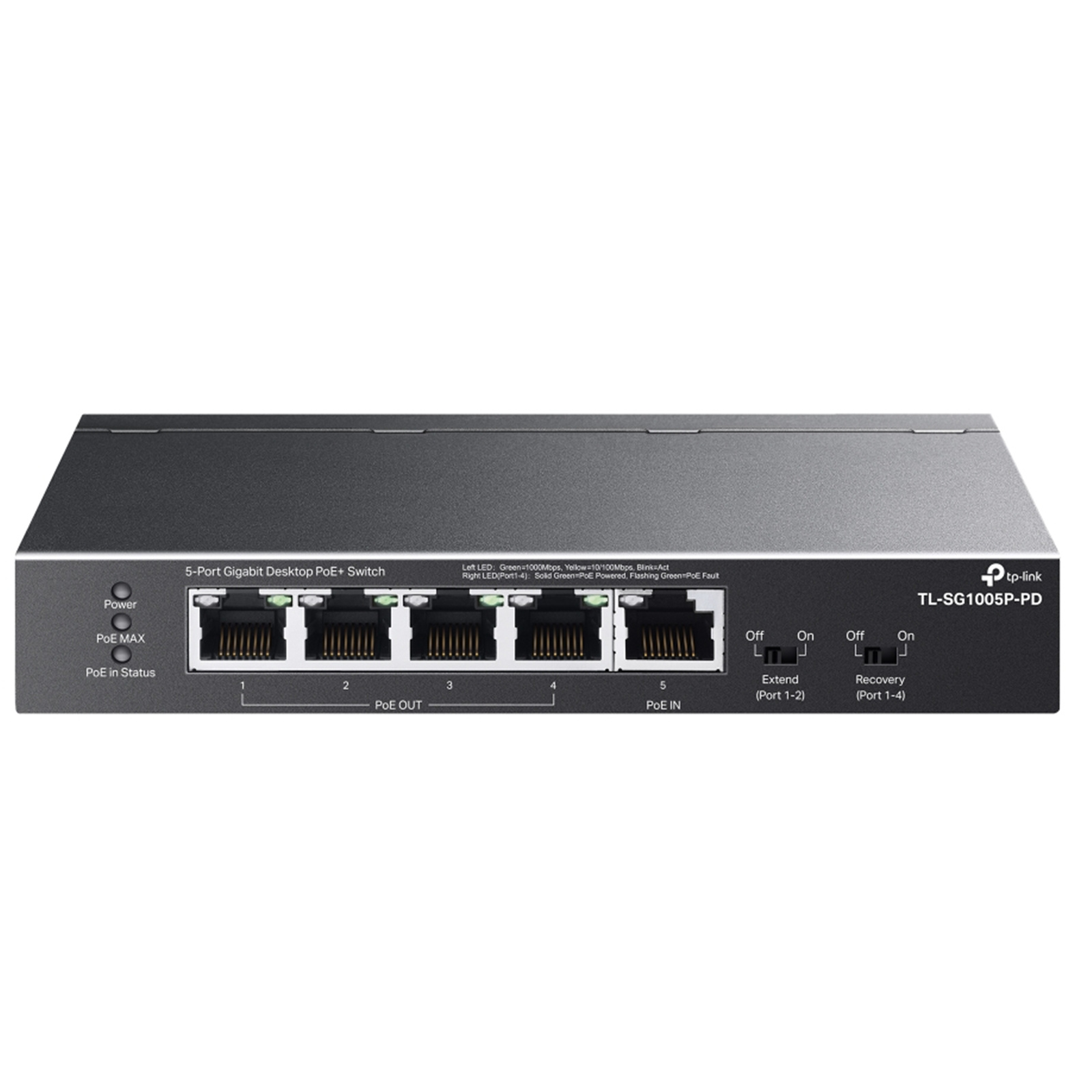

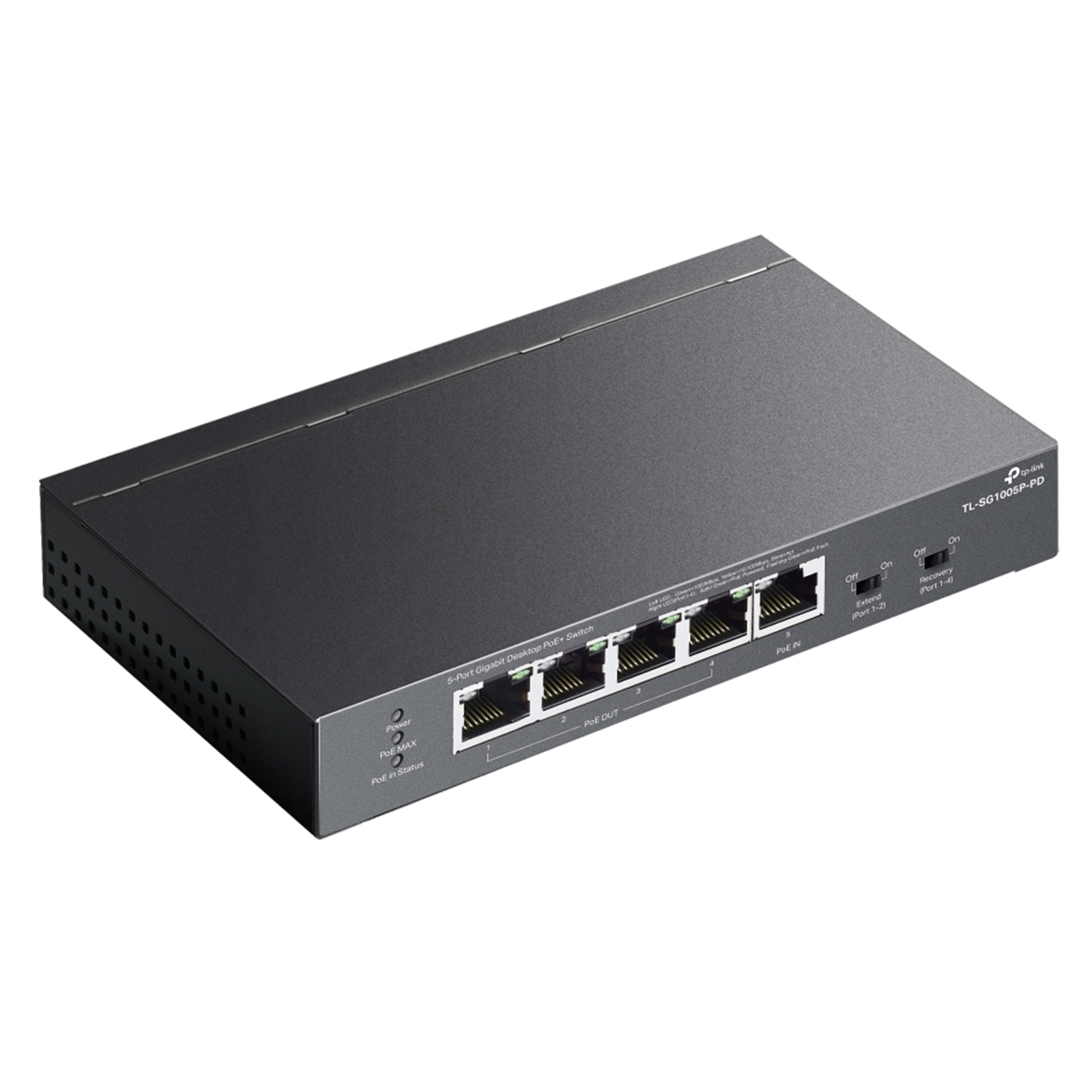

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out (Max 66W)

PB Tech price
PB Tech price
NZD $ 60 .00
$ 60 .00
$60.00  +GST
$60.00

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out (Max 66W)

  • Brand: TP-Link
  • MPN: TL-SG1005P-PD
  • Part #: SWHTPL10055
  • UPC:
1
PB Tech price
NZD $ 60 .00 $ 60 .00
In stock
Delivery: Order now and it ships on 09 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$60.00  +GST
$60.00
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: TP-Link
  • MPN: TL-SG1005P-PD
  • Part #: SWHTPL10055
  • UPC:

10 Gigabit

Not Specified

10 Gigabit Ports

Not Specified

Form Factor

Desktop

Management Level

Not Specified

Number of Ports

5 Ports

PoE

Yes

PoE Ports

5 Ports

PoE Budget

Not Specified

View full specs
Returns & Warranty Bulk Quote Print Page

Looking for a bargain? Shop Ex-demo stock for this item
Learn more about Ex-Demo Products

What PB Tech customers are saying about this product...

See More Reviews

"Perfect little poe switch to power my PTZ x2 and joystick controller. Just plug and play mo issues"

G
By: Guest 29/12/24

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+...
TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out (Max 66W)
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
Total:
NZD $ 144 .78
NZD $ 144 .78
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable

TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable

Ships on 09 Sep
NZD

$57.04

$57.04

TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

Ships on 08 Sep
NZD

$27.74

$27.74

Features

5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out

- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports

- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*

- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.

- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.

- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.

- Plug and Play: No configuration and installation required.

- Power Supply: The product only supports PoE power supply, not AC or DC power supply.

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p

Interface

- 5× 10/100/1000Mbps RJ45 Ports
- 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
- 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
- AUTO Negotiation
- AUTO MDI/MDIX

Network Media

- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

Power Supply

Only Powered by PoE Device

PoE Ports (RJ45)

- PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
- PoE Out Ports: Ports 1-4, compliance with 802.3af/at
- PoE Power Budget:
-66 W when powered by 802.3bt Type 4 (90 W)
-47 W when powered by 802.3bt Type 3 (60 W)
-21 W when powered by 802.3at (30 W)
-9 W when powered by 802.3af (15.4 W)

Dimensions ( W x D x H )

6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)

Max Power Consumption

- 2.68 W (90W PoE In, with no PD connected)
- 68.59 W (90W PoE In, with 66 W PD connected)

Max Heat Dissipation

- 9.112 BTU/h (90W PoE In, with no PD connected)
- 233.206 BTU/h (90W PoE In, with 66 W PD connected)

PERFORMANCE

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

MAC Address Table

2k

SOFTWARE FEATURES

Advanced Features

- Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
- Mac Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping

Transfer Method

Store-And-Forward

OTHERS

Certification

CE, FCC, RoHS

Package Contents

- TL-SG1005P-PD
- Installation Guide

Environment

- Operating Temperature: -30-70 ? (-22-158 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:
TL-SG1005P-PD
Brand:
TP-Link
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
SWHTPL10055
Product Model:
TL-SG1005P-PD
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 1 review
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
write a review
learn more

Excellent switch for the price

Perfect little poe switch to power my PTZ x2 and joystick controller. Just plug and play mo issues
