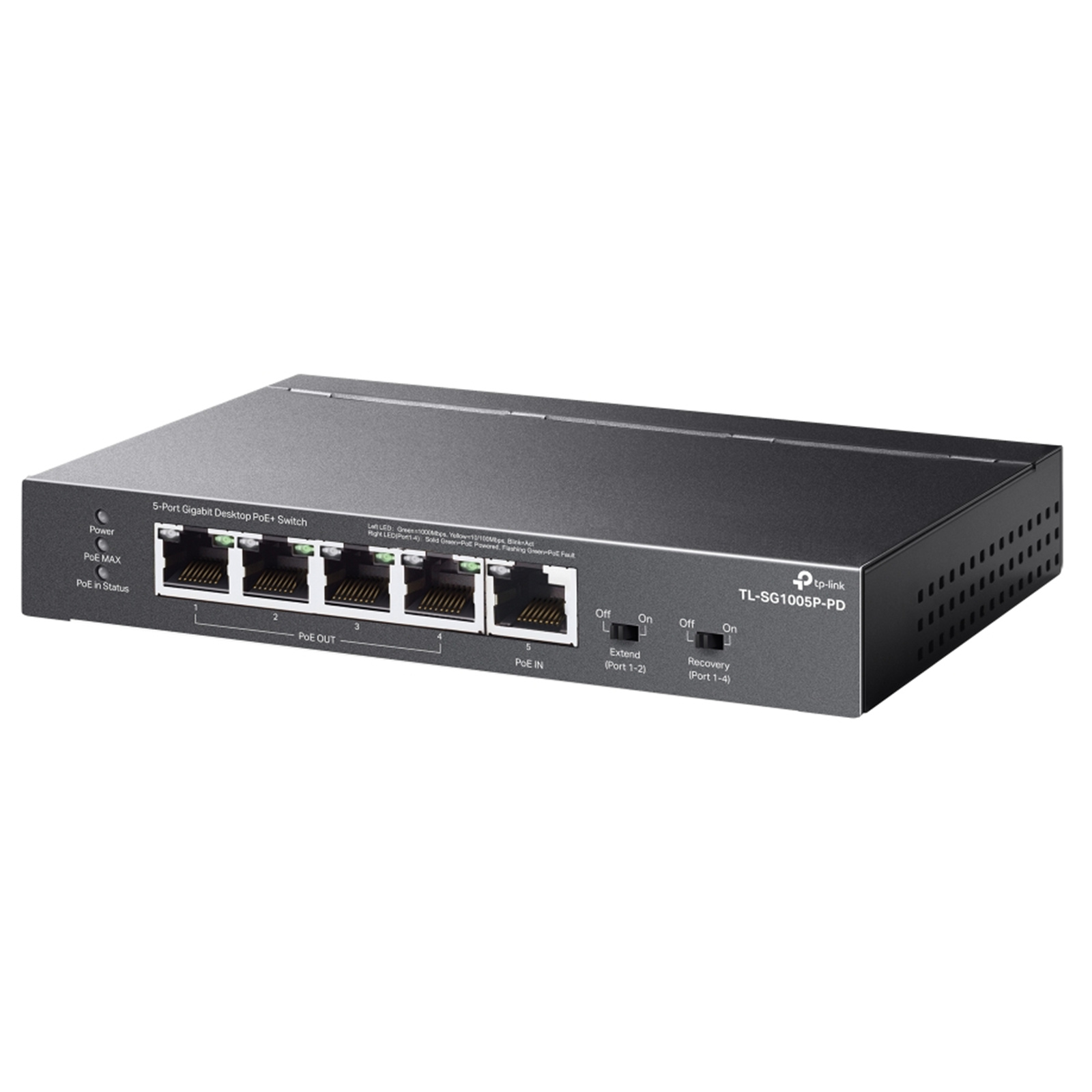

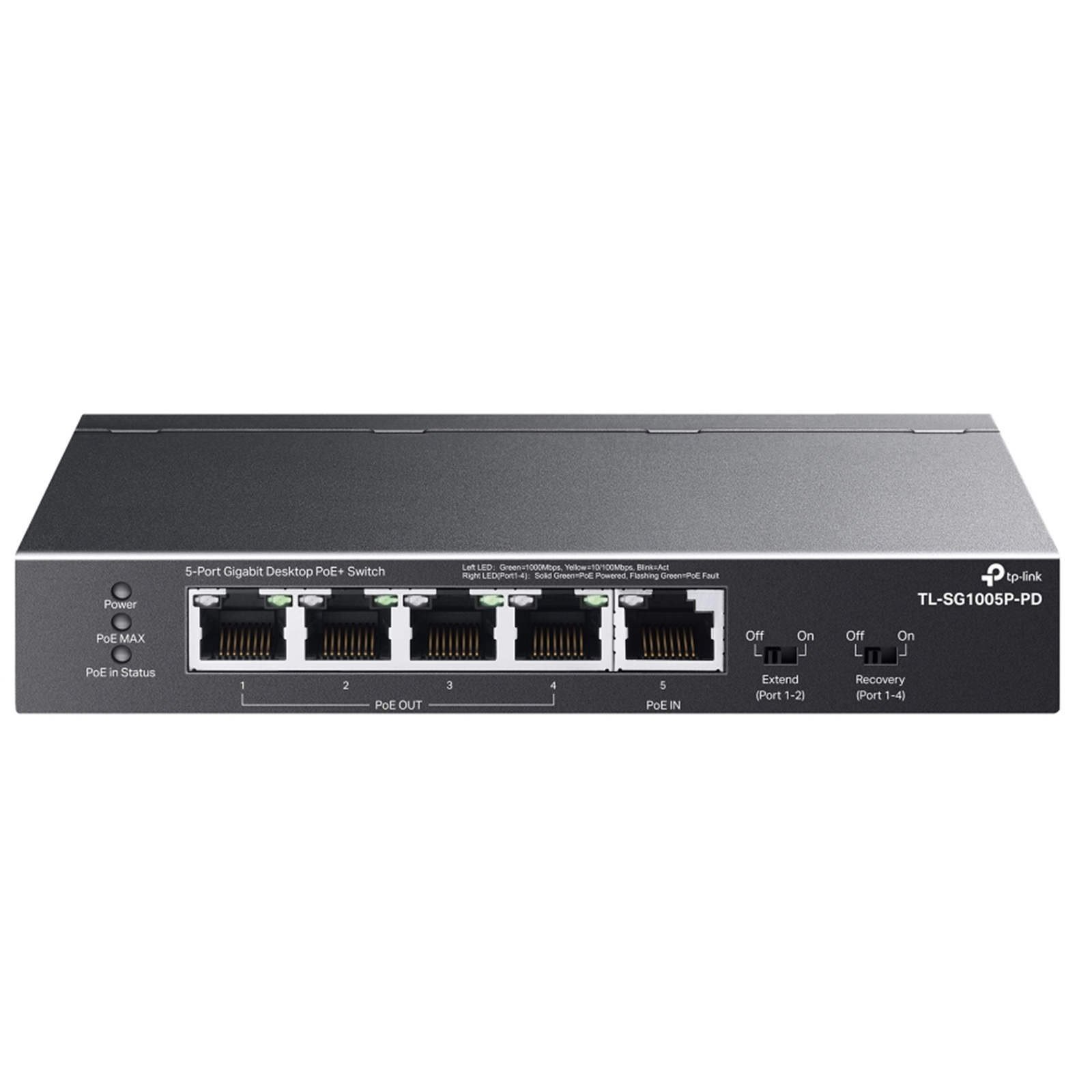

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out (Max 66W)
TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out (Max 66W)
- Brand: TP-Link
- MPN: TL-SG1005P-PD
- Part #: SWHTPL10055
- UPC:
View all shipping info
Looking for a bargain? Shop Ex-demo stock for this item
What PB Tech customers are saying about this product...
See More Reviews"Perfect little poe switch to power my PTZ x2 and joystick controller. Just plug and play mo issues"
COMBO DEALS: Frequently Bought Together
$63.97 +GST
$70.37
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security and Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, for DHL express delivery in-stock products typically arrive within 2-3 working days for metro areas and 3-5 working days for rural areas. For Standard delivery in-stock products typically arrive within 3-7 working days for NSW, VIC, ACT, QLD and SA deliveries and 5-10 working days for WA, TAS and NT.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out (Max 66W)
- Brand: TP-Link
- MPN: TL-SG1005P-PD
- Part #: SWHTPL10055
Product URL: https://www.pbtech.com/au/product/SWHTPL10055/TP-Link-TL-SG1005P-PD-5-Port-Gigabit-Desktop-PoE-S?is-review=1
Features
5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
- Ports: 5× 10 Mbps/100 Mbps/1 Gbps RJ45 ports
- 1-Port Gigabit PoE++ In and 4-Port PoE+ Out: Supports up to 66 W / 47 W / 21 W/ 9 W PoE budget output when powered by 802.3bt Type 4, 802.3bt Type 3, 802.3at, and 802.3af PoE standard, respectively.*
- Long-Range PoE+: With Extend Mode**, PoE transmission distance reaches up to 250 m, perfect for surveillance camera deployment in large areas.
- PoE Auto Recovery: It guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices.
- Metal Casing: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Silent Operation: Industry-leading fanless design ensures silent operation, ideal for any home or business.
- Plug and Play: No configuration and installation required.
- Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Specifications
HARDWARE FEATURES
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p
Interface
- 5× 10/100/1000Mbps RJ45 Ports
- 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
- 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Power Supply
Only Powered by PoE Device
PoE Ports (RJ45)
- PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4
- PoE Out Ports: Ports 1-4, compliance with 802.3af/at
- PoE Power Budget:
-66 W when powered by 802.3bt Type 4 (90 W)
-47 W when powered by 802.3bt Type 3 (60 W)
-21 W when powered by 802.3at (30 W)
-9 W when powered by 802.3af (15.4 W)
Dimensions ( W x D x H )
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)
Max Power Consumption
- 2.68 W (90W PoE In, with no PD connected)
- 68.59 W (90W PoE In, with 66 W PD connected)
Max Heat Dissipation
- 9.112 BTU/h (90W PoE In, with no PD connected)
- 233.206 BTU/h (90W PoE In, with 66 W PD connected)
PERFORMANCE
Switching Capacity
10 Gbps
Packet Forwarding Rate
7.44 Mpps
MAC Address Table
2k
SOFTWARE FEATURES
Advanced Features
- Extend Mode Button (Ports 1-2, Up to 250 m PoE power supply and data transmission)
- PoE Auto Recovery (Ports 1-4)
- Mac Address Auto-Learning and Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Transfer Method
Store-And-Forward
OTHERS
Certification
CE, FCC, RoHS
Package Contents
- TL-SG1005P-PD
- Installation Guide
Environment
- Operating Temperature: -30-70 ? (-22-158 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
