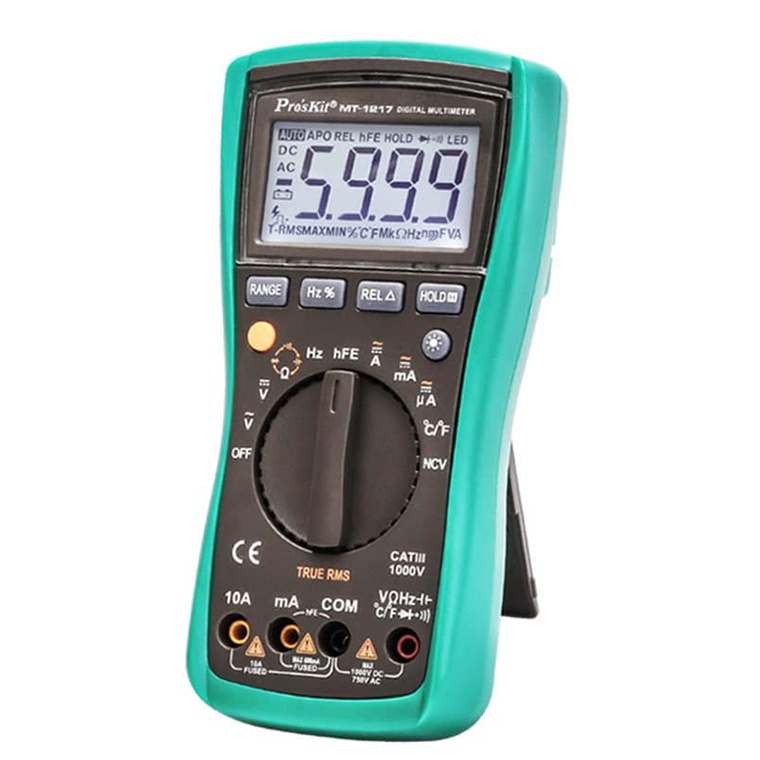

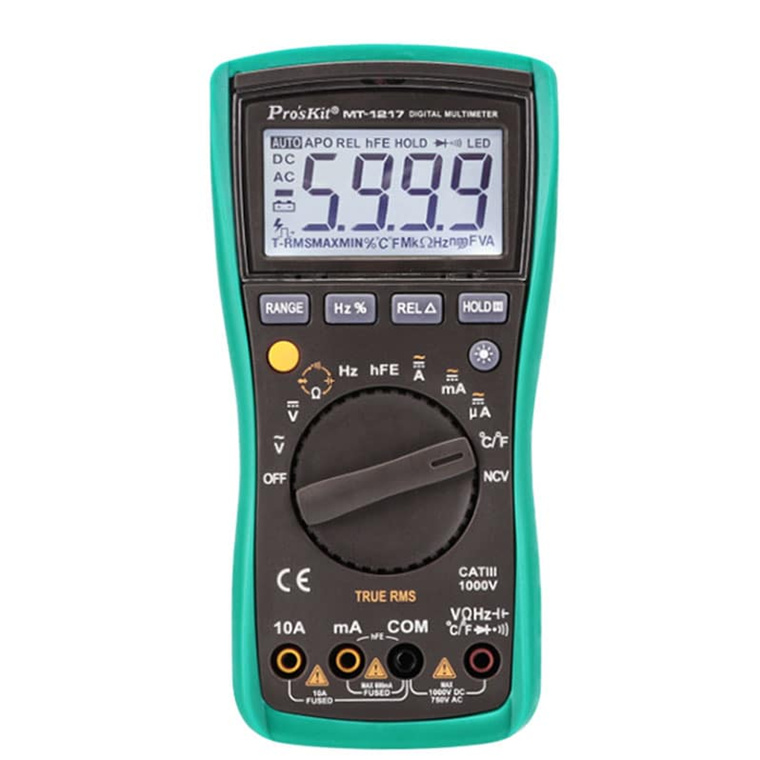

ProsKit MT-1217 3 5/6 Auto Range Digital Multimeter 3999 Counts 1000V 10A
ProsKit MT-1217 3 5/6 Auto Range Digital Multimeter 3999 Counts 1000V 10A
- Brand: ProsKit
- MPN: MT-1217-SH
- Part #: TOLPSK0036
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"At this price range, you really cant get better value and qu ...view more"
"It actually seems to be a 6000count unit, not the lower 3999count that the PBT description states.
AAMOI&FWIW: it didn't come with a 9V battery - which tallies with the "slightly ...view more"
"Awesome multimeter and got a temp probe as well - was not expecting that Cheers G"

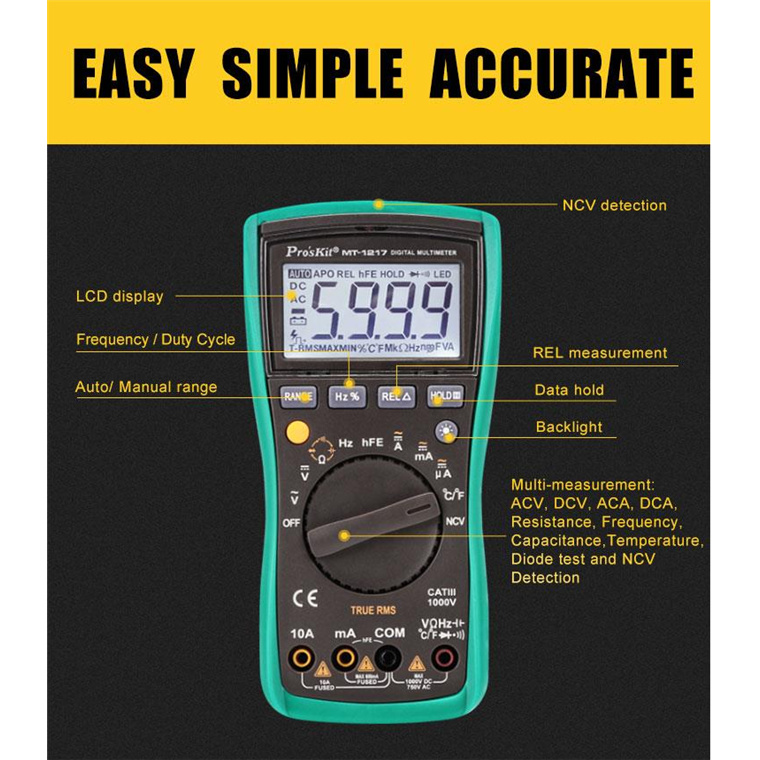

Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools
ProsKit MT-1217 3 5/6 Auto Range Digital Multimeter 3999 Counts 1000V 10A
- Brand: ProsKit
- MPN: MT-1217-SH
- Part #: TOLPSK0036
Product URL: https://www.pbtech.com/pacific/product/TOLPSK0036/ProsKit-MT-1217-3-56-Auto-Range-Digital-Multimeter
Features
How to install a battery?










Specifications
Digits
3 5/6digits, 5999 counts
DCV
600mV/6V /60V/600V±(0.5%+4d)
1000V ±(1%+6d)
ACV
600mV±(1%+10d),
6V /60V/600V±(0.8%+6d),
750V ±(1%+10d),
True RMS
DCA
600uA/6000uA/60mA/600mA,
±(1%+10d),
10A±(1.2%+10d)
ACA
600uA/6000uA/60mA/600mA,
±(1.5%+10d),
10A±(2.5%+15d),
True RMS
Frequency response
40Hz~1000Hz
Resistance
600O±(0.8%+5d),
6K/60K/600K/6M±(0.8%+4d),
60MO ±(1.2%+10d)
Capacitance
9.999nF ±(5 %+35)
9.999nF~~999.9uF
±(3.5%+8)
999.9uF~6mF
±(3.5%+35)
Frequency
10~20MHz±(1%+10d)
Temperature
-20 ~ 1000C, <400°C±(1.0%+5d)
=400°C±(1.5%+15d)
-4 ~ 1832F,< 752F±(1.0%+5d),
= 752F±(1.5%+15d)
NCV detection
Y
Buzzer
Y
Diode test
Y
Triode test
Y
Hz/% Test
Y
Relative value
Y
Data hold
Y
Auto power off
Y
LED backlight
Y
Safety standard
CE,CAT III 1000V
Power source
9V(6F22*1)
