Winmate R15IT3S-MRA3FP 15" Marine Pancel PC Intel Tiger Lake Core i5-1145G7E(vPro), 16G, 256GB SSD,P-CAP touch, Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional)
Out of stock
Winmate R15IT3S-MRA3FP 15" Marine Pancel PC Intel Tiger Lake Core i5-1145G7E(vPro), 16G, 256GB SSD,P-CAP touch, Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional)
- Brand: Winmate
- MPN: R15IT3S-MRA3FP
- Part #: WKAWMA15502
- UPC:
- Brand: Winmate
- MPN: R15IT3S-MRA3FP
- Part #: WKAWMA15502
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Winmate R15IT3S-MRA3FP 15" Marine Pancel PC Intel Tiger Lake Core i5-1145G7E(vPro), 16G, 256GB SSD,P-CAP touch, Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional)
- Brand: Winmate
- MPN: R15IT3S-MRA3FP
- Part #: WKAWMA15502

Product URL: https://www.pbtech.com/pacific/product/WKAWMA15502/Winmate-R15IT3S-MRA3FP-15-Marine-Pancel-PC-Intel-T
Features
Reliable Computing Certified for Marine Applications
Winmate ECDIS Marine Panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the marine industry's international regulatory requirements. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.

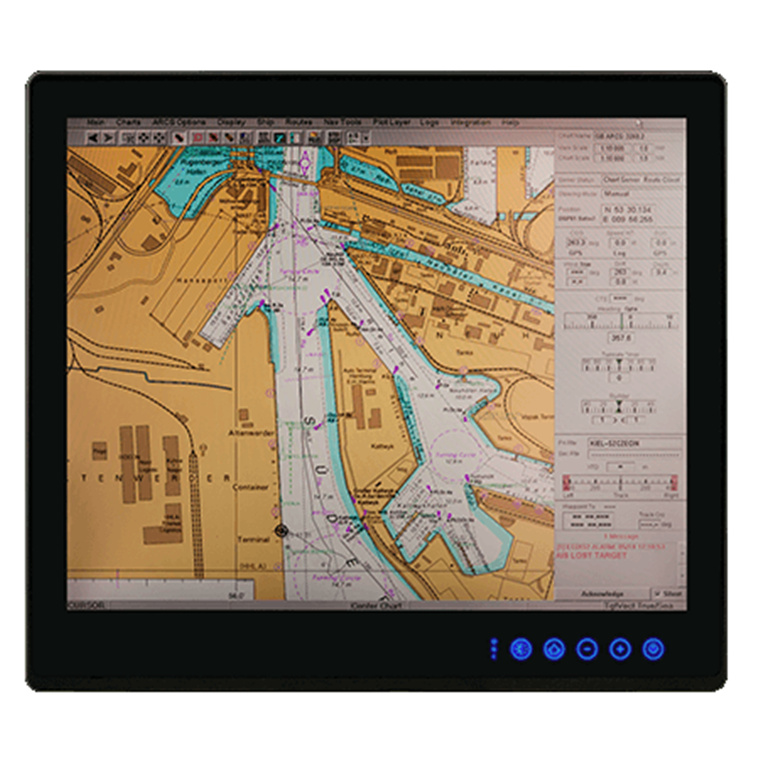

ECDIS Reliability for the Real Marine Colors Representation
On Winmate ECDIS, Marine Panel PC users can adjust to a day, dusk, or night mode through the capacitive touch key to accommodate any lighting situation. Winmate calibrates color settings at the factory for accurate color reproduction according to the IEC 61174 ECDIS Standard.
Sleek Design for Modern Bridge Workstations
Easy to maintain and clean. The glass cover lens provides excellent protection from scratch and reduces the gap for a possible accumulation of dust and liquid. The true-flat surface also gives a slim and elegant appearance to the device goes beyond that of the standard industrial, marine computers with a sleek and edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.
Ultimate Touch Experience
Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the ECDIS Marine Panel PC, and experience the ultimate durability in some of the most demanding applications, such as bridge navigation and control.
Peripheral Connectivity
Onboard connectivity consists of Ethernet LAN, two USB2.0, one USB3.0, HDMI, Optional 4-Channel Isolated Digital Input and Output, optional four COM ports RS232/422/485 - that meet the NMEA 0183 National Marine Electronics Association physical layer standard -switchable via software.
- 15"1024 x 768 PCAP touchscreen,Flat PCAP ECDIS Marine Panel PC
- 5th Gen. Intel® Core™ i5 -5350U @ 2.20GHz
- Edge-to-edge narrow bezel design and fanless cooling system
- Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
- Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10
Specifications
Display
Size
15 inches
Touch / Glass
Projected Capacitive Multi Touch Screen (AR Film)
AG film (Optional)
AR Glass (Optional)
Resolution
1024x768
Panel Brightness
500 nits
Contrast Ratio
2500:1
View Angles
88,88,88,88
Active Area
304.1x228.1 mm
System Specification
Processor
Intel Core i5-1145G7E vPro
Intel Core i5-5350U Processor 1.8GHz (up to 2.9GHz) (Optional)
Intel Core i5-5250U Processor 1.6GHz (up to 2.7GHz) (Optional)
Intel Core i5-5300U Processor 2.3GHz (up to 2.9GHz) (Optional)
Intel Core i5-5200U Processor 2.2GHz (up to 2.7GHz) (Optional)
Memory
1 x SO-DIMM, DDR3L 1600 MHz, 16GB
8GB (Optional)
Storage
1 x mSATA SSD 256GB
mSATA SSD up to 512GB (Optional)
Ethernet controller
Intel® Ethernet Controller I211-AT+
Intel® Ethernet Connection I218-LM
Operating System
Windows 11 IoT Enterprise
Linux Ubuntu 20.04 (Optional)
Environment
Operating Humidity
5% to 95%
Operating Temperature
-15~55°C
Shock
15G,11ms duration
Vibration
0.7g@DNVGL CG-0339 (Class A)
IP rating
IP66 (Front Side)
Certification
Certification
CE, FCC
DNVGL-CG-0339, IEC60945 4th, IACS E10
IO Ports
USB Port
2 x USB3.0
Serial Port
1 x RS232(Default)/422/485
LAN
2 x RJ45
Video
1 x HDMI (Optional)
Front Control
Power
Brightness +
Brightness -
Menu
Function Key(Default setting: ECDIS Mode)
Indicator
Day Mode
Dusk Mode
Night Mode
DIDO
8 Channel Isolated Digital Input/Output (Optional)
NMEA
4 x NMEA 0183 Port (Optional)

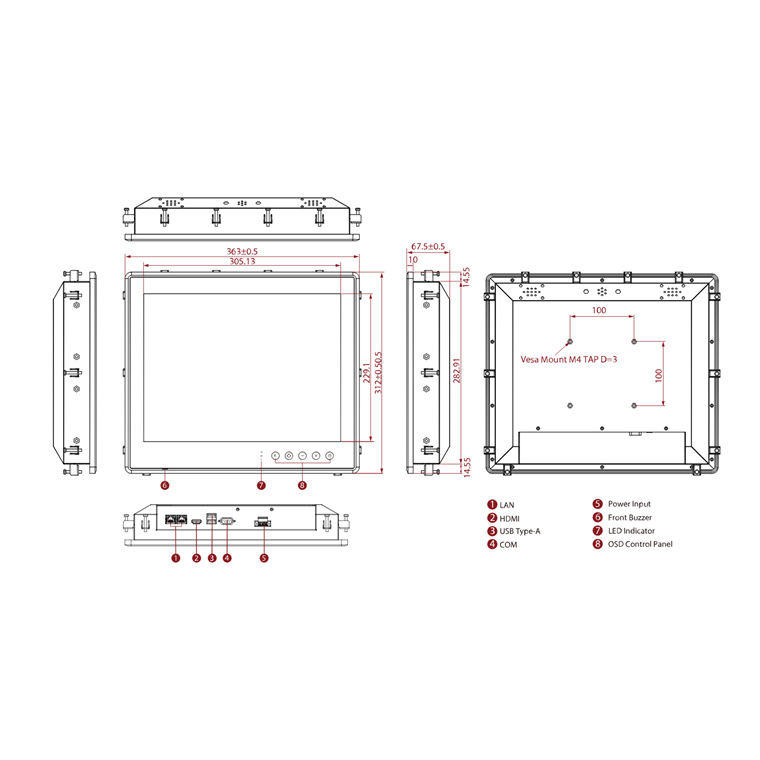

Mechanical
Dimension
363 x 312 x 6.5 mm
Cut out
338 x 288mm
Mounting
VESA Mount/ Panel Mount
Enclosure
Anodized Aluminum Bezel
Cooling System
Fanless Design
Accessory
Accessory
Driver CD & User Manual
AC to DC Adapter
Power Cord
3 pin Terminal Block to DC Jack
M4 x 12 Black Screw Bolts
Optional Accessory
Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional)
Power
Power Rating
24V DC-in with Isolation (Approval by Certificate)
9~36V DC Input Acceptable
Consumption
55W (Typical)
