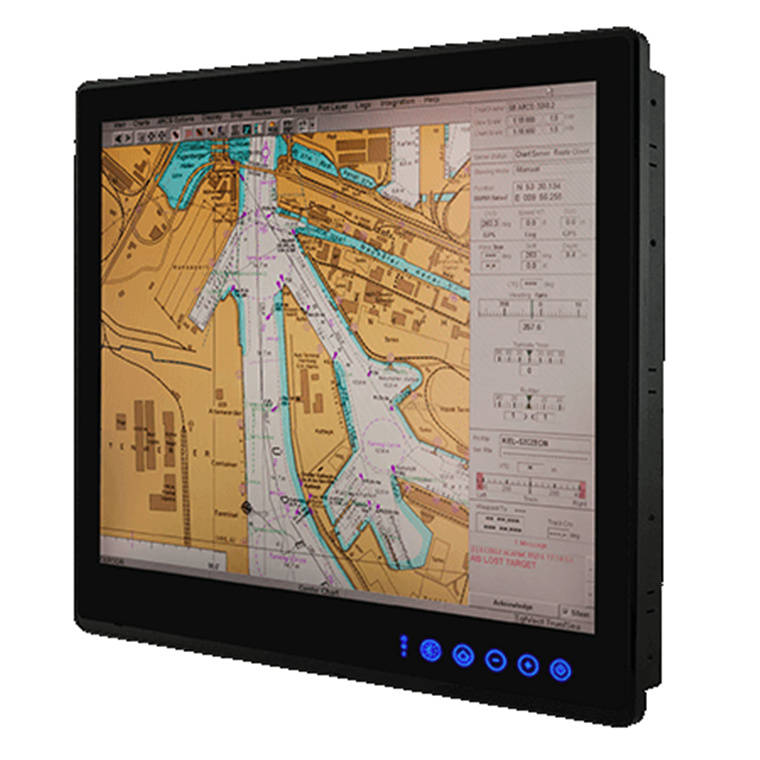

Winmate R15IT3S-MRA3FP 15" Marine Pancel PC Intel Tiger Lake Core i5-1145G7E(vPro), 16G, 256GB SSD,P-CAP touch, Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional)

Normally $6,203.33
Normally $6,203.33
You save $746
You save $746
AUD $ 5,456 .89
$ 5,456 .89

Out of stock

Winmate R15IT3S-MRA3FP 15" Marine Pancel PC Intel Tiger Lake Core i5-1145G7E(vPro), 16G, 256GB SSD,P-CAP touch, Win10 IoT, 2 x RJ45,1 x RS232/422/485,2 x USB3.0, 1 x HDMI(Optional)

  • Brand: Winmate
  • MPN: R15IT3S-MRA3FP
  • Part #: WKAWMA15502
  • UPC:
Normally $6,203.33
Normally $6,203.33
You save $746
You save $746
PB Tech price
AUD $ 5,456 .89 $ 5,456 .89


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info

Features

Reliable Computing Certified for Marine Applications

Winmate ECDIS Marine Panel PCs are built and tested according to DNVGL-CG-0339 Standard, IEC60945, and IACS-E10 to meet the marine industry's international regulatory requirements. Winmate performs in-house reliability test to ensure optimal performance in harsh maritime environments.

ECDIS Reliability for the Real Marine Colors Representation

On Winmate ECDIS, Marine Panel PC users can adjust to a day, dusk, or night mode through the capacitive touch key to accommodate any lighting situation. Winmate calibrates color settings at the factory for accurate color reproduction according to the IEC 61174 ECDIS Standard.

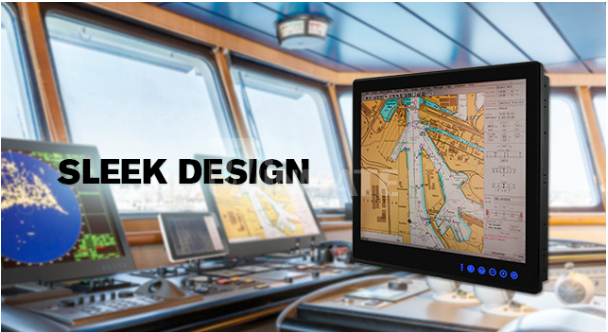

Sleek Design for Modern Bridge Workstations

Easy to maintain and clean. The glass cover lens provides excellent protection from scratch and reduces the gap for a possible accumulation of dust and liquid. The true-flat surface also gives a slim and elegant appearance to the device goes beyond that of the standard industrial, marine computers with a sleek and edge-to-edge design, rugged construction, powerful performance, and flexible mounting options.

Ultimate Touch Experience

Enhance customer experience with PCAP touch that supports multi-touch and can easily be controlled by fingers. Enjoy every touch and convenience when using the ECDIS Marine Panel PC, and experience the ultimate durability in some of the most demanding applications, such as bridge navigation and control.

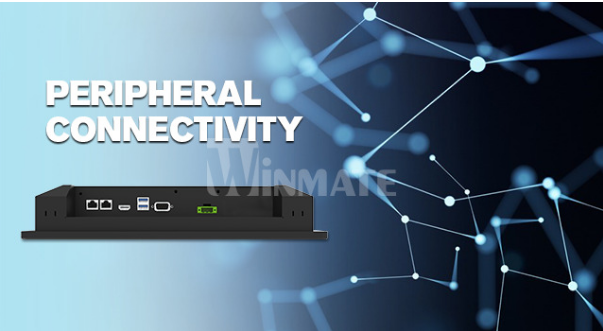

Peripheral Connectivity

Onboard connectivity consists of Ethernet LAN, two USB2.0, one USB3.0, HDMI, Optional 4-Channel Isolated Digital Input and Output, optional four COM ports RS232/422/485 - that meet the NMEA 0183 National Marine Electronics Association physical layer standard -switchable via software.

- 15"1024 x 768 PCAP touchscreen,Flat PCAP ECDIS Marine Panel PC
- 5th Gen. Intel® Core™ i5 -5350U @ 2.20GHz
- Edge-to-edge narrow bezel design and fanless cooling system
- Capacitive touch keys for quick function access and display control (Support ECDIS DAY, DUSK, and NIGHT mode switching)
- Meet the requirements of Industrial marine standards, including IEC60945 4th Edition, DNVGL-CG-0339, IACS E10

Specifications

Display

Size

15 inches

Touch / Glass

Projected Capacitive Multi Touch Screen (AR Film)
AG film (Optional)
AR Glass (Optional)

Resolution

1024x768

Panel Brightness

500 nits

Contrast Ratio

2500:1

View Angles

88,88,88,88

Active Area

304.1x228.1 mm

System Specification

Processor

Intel Core i5-1145G7E vPro
Intel Core i5-5350U Processor 1.8GHz (up to 2.9GHz) (Optional)
Intel Core i5-5250U Processor 1.6GHz (up to 2.7GHz) (Optional)
Intel Core i5-5300U Processor 2.3GHz (up to 2.9GHz) (Optional)
Intel Core i5-5200U Processor 2.2GHz (up to 2.7GHz) (Optional)

Memory

1 x SO-DIMM, DDR3L 1600 MHz, 16GB
8GB (Optional)

Storage

1 x mSATA SSD 256GB
mSATA SSD up to 512GB (Optional)

Ethernet controller

Intel® Ethernet Controller I211-AT+
Intel® Ethernet Connection I218-LM

Operating System

Windows 11 IoT Enterprise
Linux Ubuntu 20.04 (Optional)

Environment

Operating Humidity

5% to 95%

Operating Temperature

-15~55°C

Shock

15G,11ms duration

Vibration

0.7g@DNVGL CG-0339 (Class A)

IP rating

IP66 (Front Side)

Certification

Certification

CE, FCC
DNVGL-CG-0339, IEC60945 4th, IACS E10

IO Ports

USB Port

2 x USB3.0

Serial Port

1 x RS232(Default)/422/485

LAN

2 x RJ45

Video

1 x HDMI (Optional)

Front Control

Power
Brightness +
Brightness -
Menu
Function Key(Default setting: ECDIS Mode)

Indicator

Day Mode
Dusk Mode
Night Mode

DIDO

8 Channel Isolated Digital Input/Output (Optional)

NMEA

4 x NMEA 0183 Port (Optional)

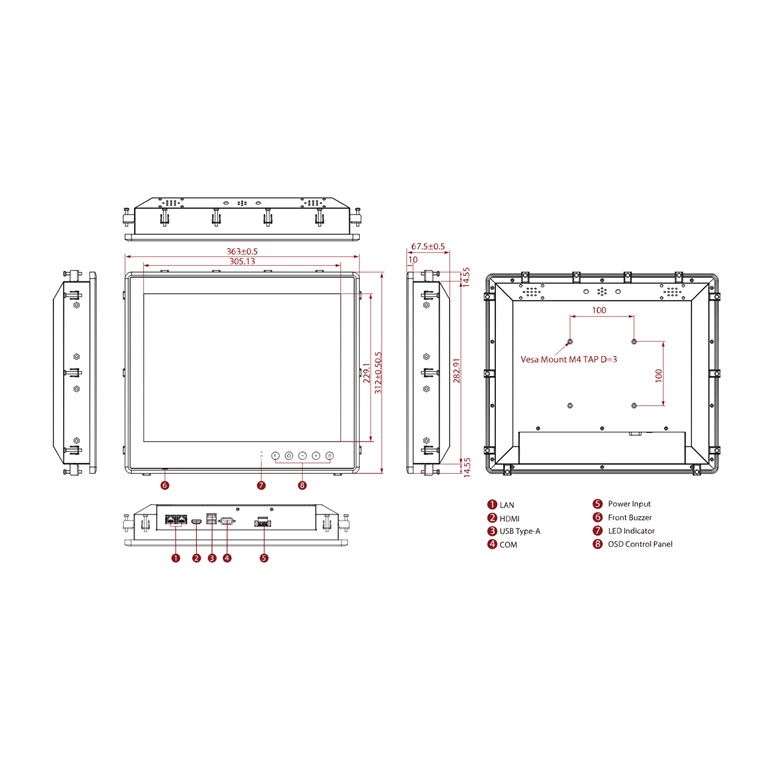

Mechanical

Dimension

363 x 312 x 6.5 mm

Cut out

338 x 288mm

Mounting

VESA Mount/ Panel Mount

Enclosure

Anodized Aluminum Bezel

Cooling System

Fanless Design

Accessory

Accessory

Driver CD & User Manual
AC to DC Adapter
Power Cord
3 pin Terminal Block to DC Jack
M4 x 12 Black Screw Bolts

Optional Accessory

Four 5 Pin Terminal Block 3.81 (Phoenix Type)*For NMEA port (Optional)

Power

Power Rating

24V DC-in with Isolation (Approval by Certificate)
9~36V DC Input Acceptable

Consumption

55W (Typical)

Manufacturer Part No:
R15IT3S-MRA3FP
Brand:
Product Type:
15" Marine Pancel PC
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKAWMA15502
Product Model:
R15IT3S-MRA3FP
Warranty: 12 months *
