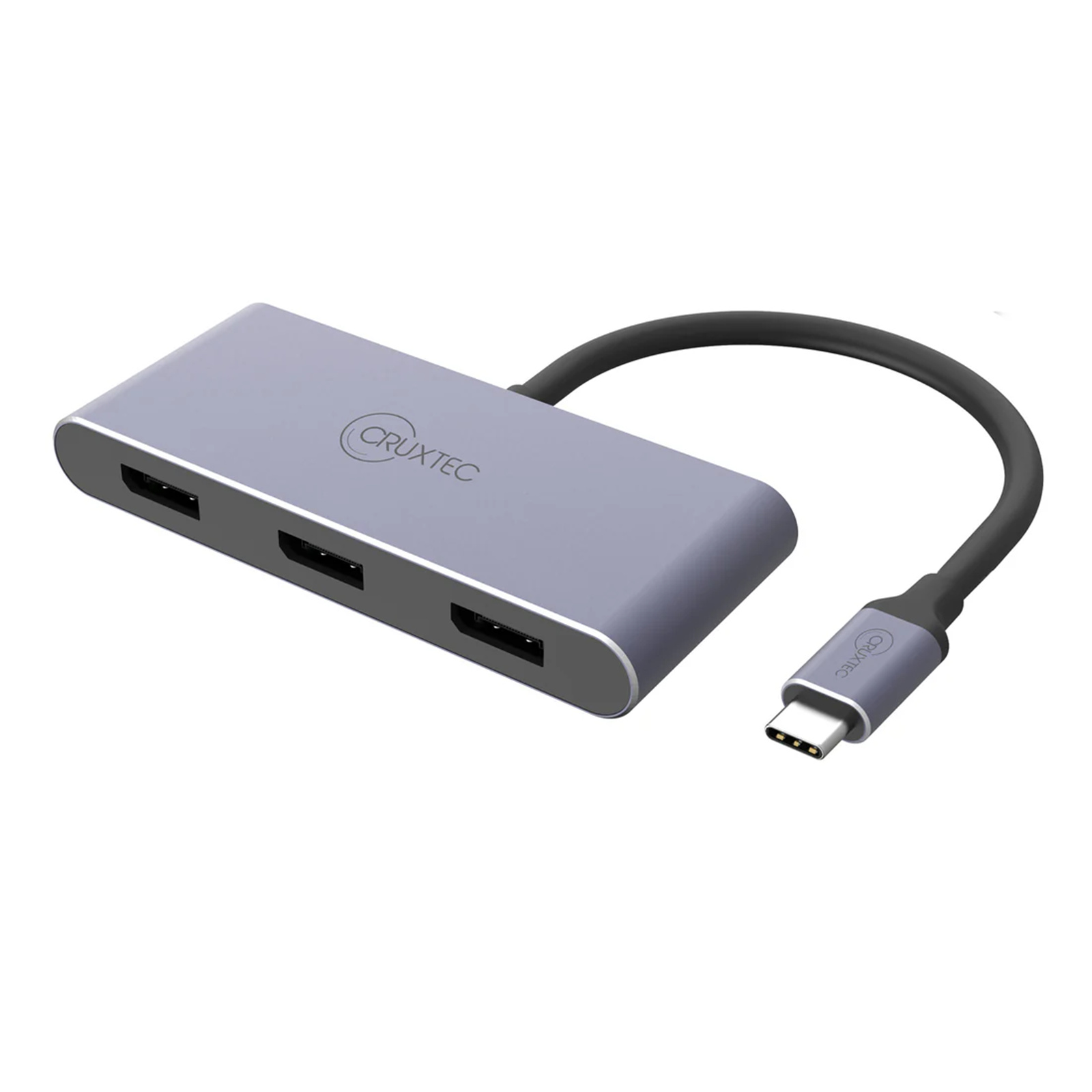

Cruxtec CT3D-8K-SG USB-C to 3x Displayport 1.4 Adaptor
- Brand: Cruxtec
- MPN: CT3D-8K-SG
- Part #: ADPCXT2513
- UPC:712179497672

Product URL: https://www.pbtech.com/product/ADPCXT2513/Cruxtec-CT3D-8K-SG-USB-C-to-3x-Displayport-14-Adap
Features
Cruxtec USB-C to 3 x DisplayPort Multi-Monitor 8K Adapter
The Cruxtec splitter adapter connects a device to three external monitors simultaneously via a single USB-C port, with a maximum resolution of 4K @ 144Hz/8K @ 60Hz.
Expand three DisplayPort through one USB-C interface
Supports up to 4K @ 144Hz/8K @ 60Hz.
In multi-screen application scenarios, it greatly enhances the device's display scalability.
Supports MST/SST on Windows; Supports resolution up to 4K @ 120Hz in dual-output or 4K @ 60Hz in triple-port output; the device needs to support HBR3 bandwidth or above.
On Mac OS with M1 CPU, supports only 1 external monitor display; Supports resolutions up to 4K @ 144Hz. On Mac OS with M2/M3 CPUs, supports multi-screen mirroring or extending; Supports resolutions up to 4K @ 144Hz in multi-port output.
Specifications
Tech Specs
1 x USB-C input for host connection.
3 x DisplayPort 1.4 outputs, each port supports up to 4K @ 144Hz/8K @ 60Hz.
1 x Micro USB 5V1A Charging Port.
Supports Display Stream Compression (DSC).
Supports MST/SST on Windows; Supports resolution up to 4K @ 120Hz in dual-output or 4K @ 60Hz in triple-port output; the device needs to support HBR3 bandwidth or above.
On Mac OS with M1 CPU, supports only 1 external monitor display; Supports resolutions up to 4K @ 144Hz.
On Mac OS with M2/M3 CPUs, supports multi-screen mirroring or extending; Supports resolutions up to 4K @ 144Hz in multi-port output.
Using the same model of monitors, updating the graphics card driver will reduce compatibility issues
Chip solution
Realtek.
Cable length
15 cm.
