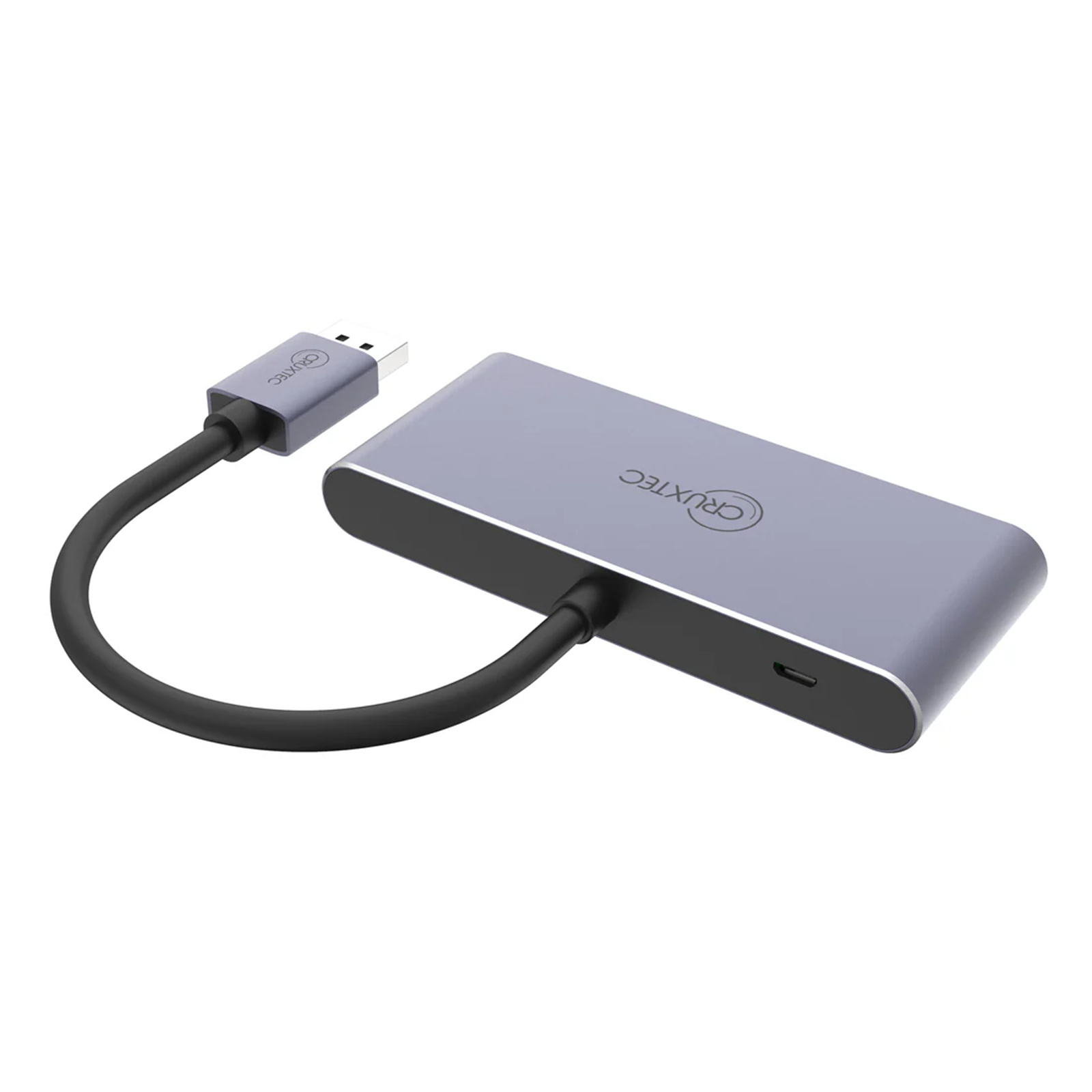

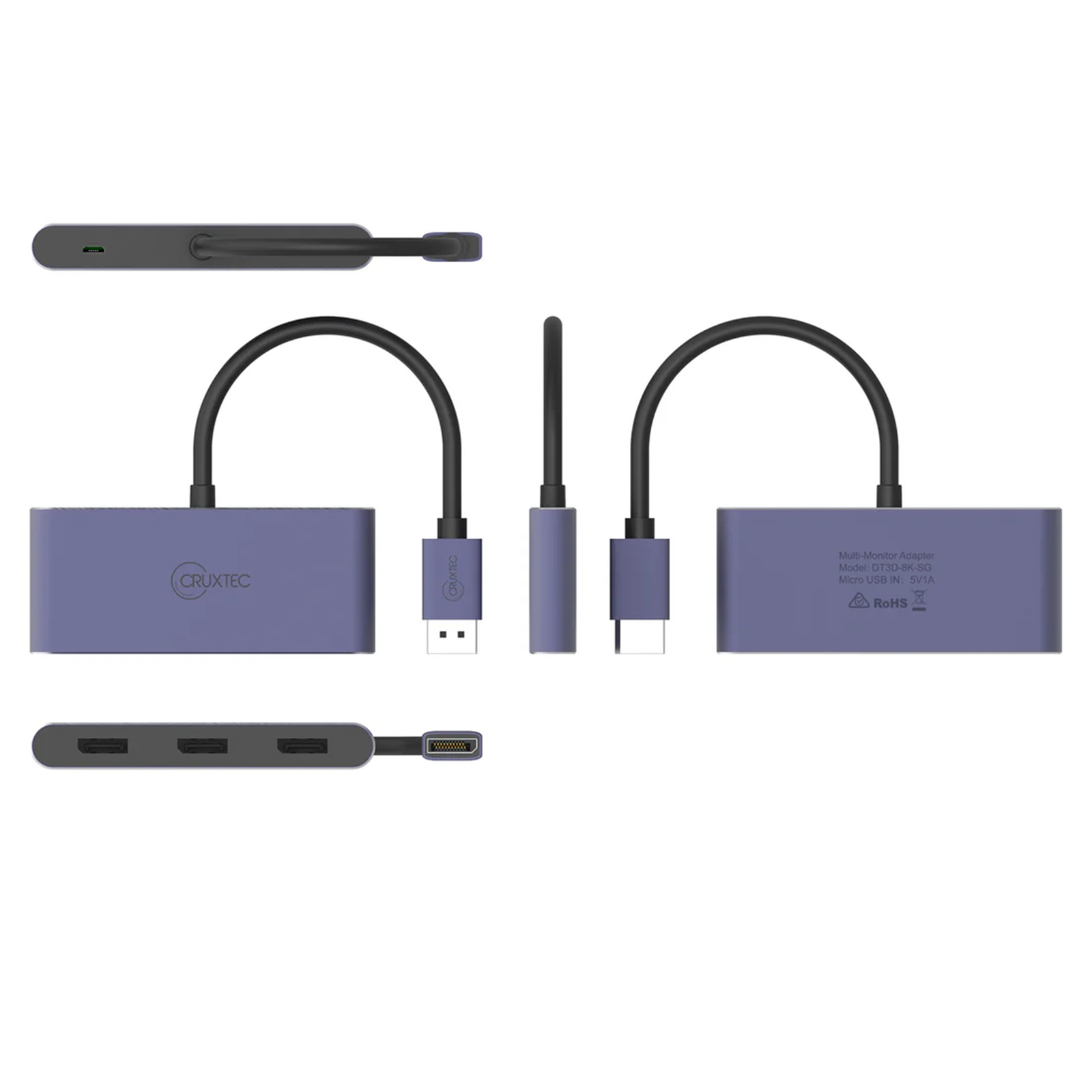

Cruxtec DT3D-8K-SG Multi-Display Adaptor From 1x DislayPort v1.4 to 3x DisplayPort v1.4
Cruxtec DT3D-8K-SG Multi-Display Adaptor From 1x DislayPort v1.4 to 3x DisplayPort v1.4
- Brand: Cruxtec
- MPN: DT3D-8K-SG
- Part #: ADPCXT2523
- UPC: 712179497665
COMBO DEALS: Frequently Bought Together
$6.49
$6.49
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$59.50
$59.50
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular DisplayPort Adapters
Cruxtec DT3D-8K-SG Multi-Display Adaptor From 1x DislayPort v1.4 to 3x DisplayPort v1.4
- Brand: Cruxtec
- MPN: DT3D-8K-SG
- Part #: ADPCXT2523
- UPC:712179497665
Product URL: https://www.pbtech.com/product/ADPCXT2523/Cruxtec-DT3D-8K-SG-Multi-Display-Adaptor-From-1x-D
Features
Cruxtec DisplayPort to 3 x DisplayPort Multi-Monitor 8K Adapter
The Cruxtec splitter adapter connects a device to three external monitors simultaneously via a single DisplayPort, with a maximum resolution of 4K @ 144Hz/8K @ 60Hz.
Expand three DisplayPort through one DisplayPort interface

Supports up to 4K @ 144Hz/8K @ 60Hz.

In multi-screen application scenarios, it greatly enhances the device's display scalability.

Supports MST/SST on Windows; Supports resolution up to 4K @ 120Hz in dual-output or 4K @ 60Hz in triple-port output; the device needs to support HBR3 bandwidth or above.

On Mac OS with M1 CPU, supports only 1 external monitor display; Supports resolutions up to 4K @ 144Hz.On Mac OS with M2/M3 CPUs, supports multi-screen mirroring or extending; Supports resolutions up to 4K @ 144Hz in multi-port output.

Independent micro USB power input, improves the stability of high resolution and refresh rate

Specifications
Tech Specs
1 x DisplayPort 1.4 input for host connection.
3 x DisplayPort 1.4 outputs, each port supports up to 4K @ 144Hz/8K @ 60Hz.
1 x Micro USB 5V1A Charging Port.
Supports Display Stream Compression (DSC).
Supports MST/SST on Windows; Supports resolution up to 4K @ 120Hz in dual-output or 4K @ 60Hz in triple-port output; the device needs to support HBR3 bandwidth or above.
On Mac OS with M1 CPU, supports only 1 external monitor display; Supports resolutions up to 4K @ 144Hz.
On Mac OS with M2/M3 CPUs, supports multi-screen mirroring or extending; Supports resolutions up to 4K @ 144Hz in multi-port output.
Using the same model of monitors, updating the graphics card driver will reduce compatibility issues
Chip solution
Realtek.
Cable length
15 cm.
