StarTech.com HSB3SATSASBA Mob Rack Backplane 3.5in SAS II/SATA III
StarTech.com HSB3SATSASBA Mob Rack Backplane 3.5in SAS II/SATA III
- Brand: StarTech.com
- MPN: HSB3SATSASBA
- Part #: ADPSTT2560922
- UPC: 065030855297
- Brand: StarTech.com
- MPN: HSB3SATSASBA
- Part #: ADPSTT2560922
- UPC: 065030855297
What PB Tech customers are saying about this product...
See More Reviews
"Works well and my TrueNAS system is humming away nicely however the quality of the hinged doors is a little suspect.
If you are as ham-fisted as I generally am you will break the ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Drive Bays & Mounts





StarTech.com HSB3SATSASBA Mob Rack Backplane 3.5in SAS II/SATA III
- Brand: StarTech.com
- MPN: HSB3SATSASBA
- Part #: ADPSTT2560922
- UPC:065030855297

Product URL: https://www.pbtech.com/product/ADPSTT2560922/StarTechcom-HSB3SATSASBA-Mob-Rack-Backplane-35in-S?is-review=1
Features

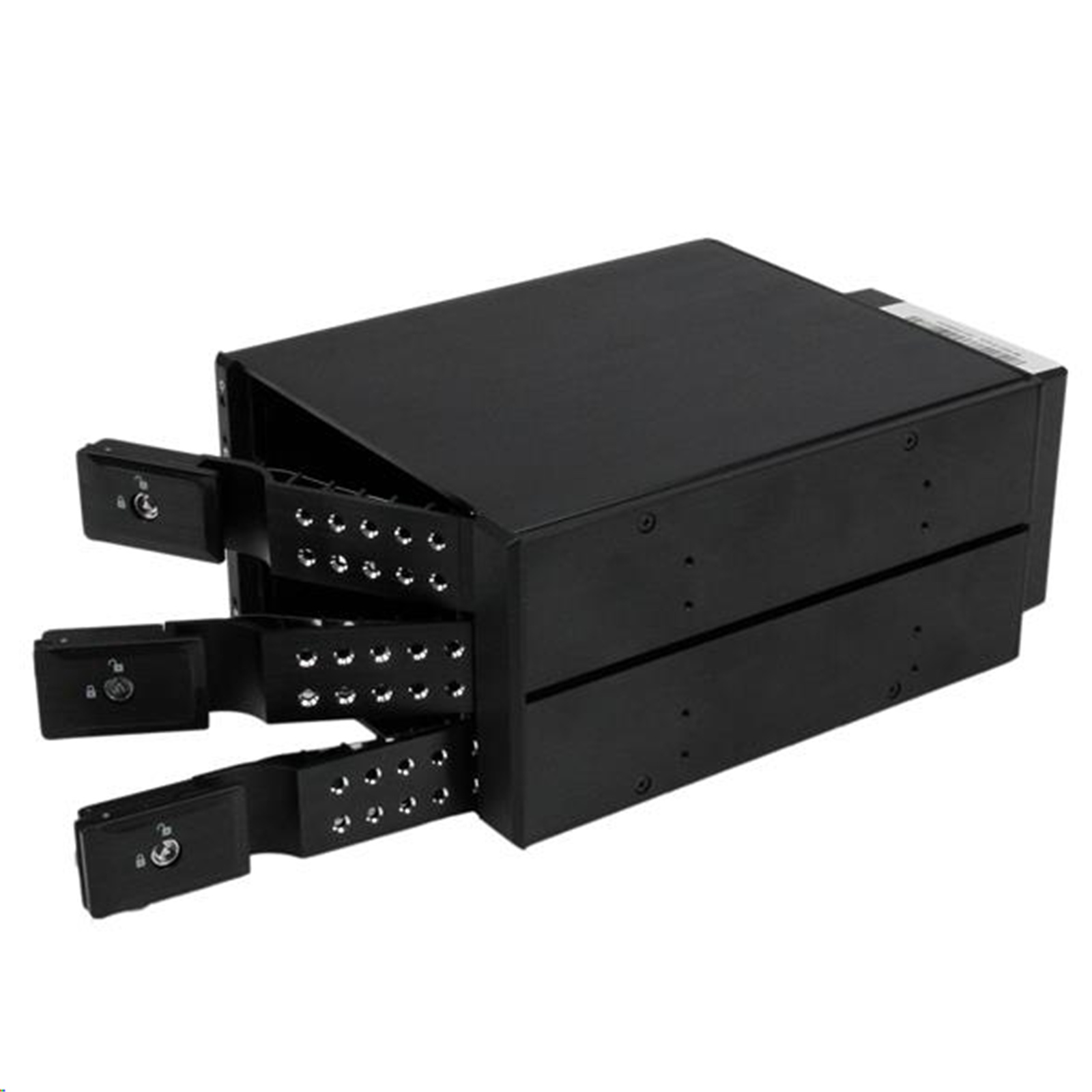

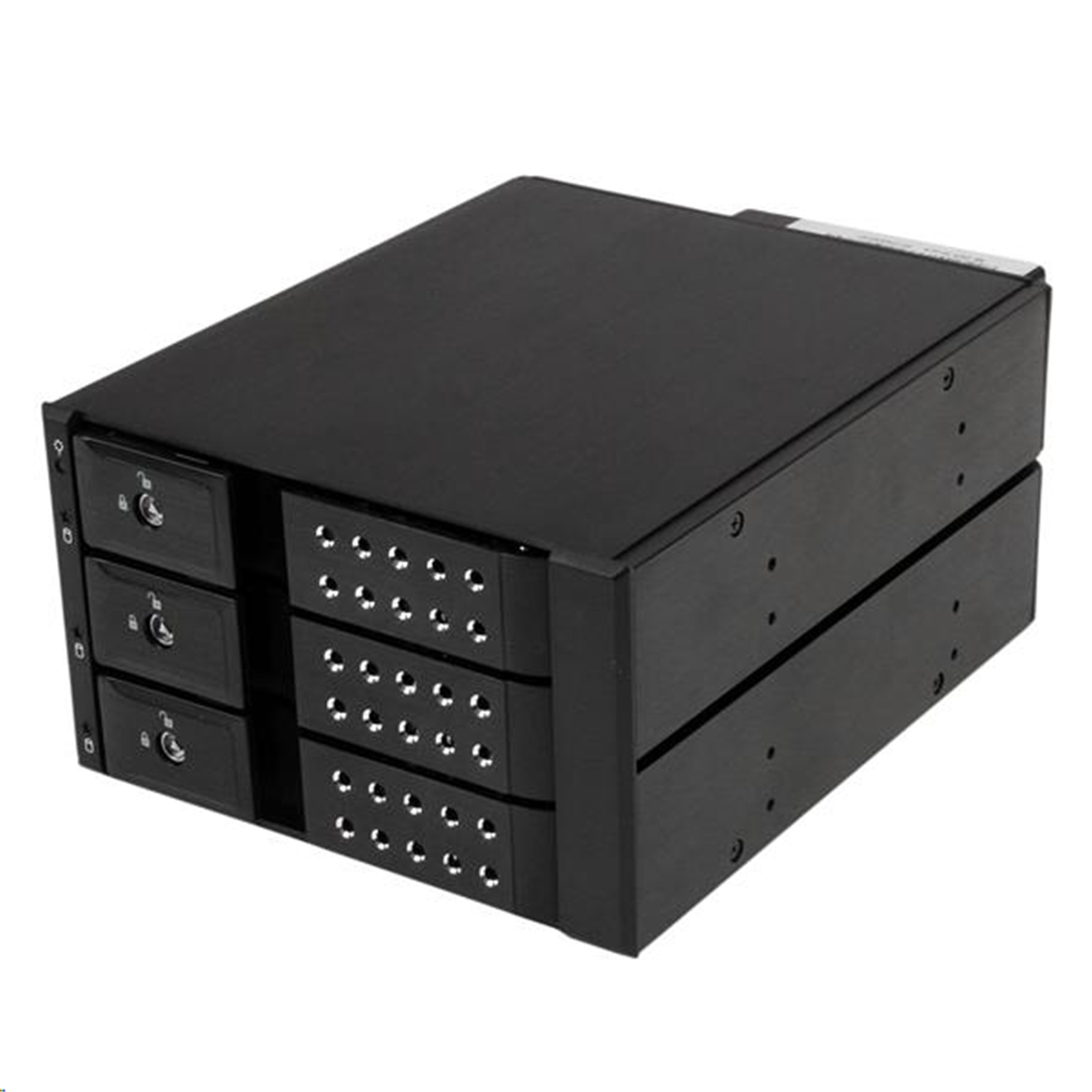

The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD). For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure. The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Delivers peak drive performance, with support for full SATA III/SAS II data transfer speeds up to 6Gbps
- Flexible drive options with support for both SATA and SAS drive interfaces
- Helps maintain ideal drive operating temperatures by providing excellent heat dissipation, vented aluminum housing and a built-in fan
Specifications
SAS & SATA
Drive Installation
Removable
Drive Size
3.5in
Fan Bearing Type
Sleeve Bearing
Fan(s)
Yes
Fans
1 - 70 mm
Interface
SATA
Key Lock
Yes
Number of Drives
3
Number of internal
3.5 inch bays 3
Fan Specifications
Speed: 3000 RPM+10% Airflow: 27.60CFM (At zero static pressure) Noise level: 26.72dB-A
Max Drive Capacity
Currently tested with up to 4TB 7200 RPM hard drives
Maximum Data
Transfer Rate 6 Gbit/s
Type and Rate
SATA III (6 Gbps)
Drive Connectors
3 - SFF-8482 (29 pin, Data & Power, Internal SAS) Receptacle

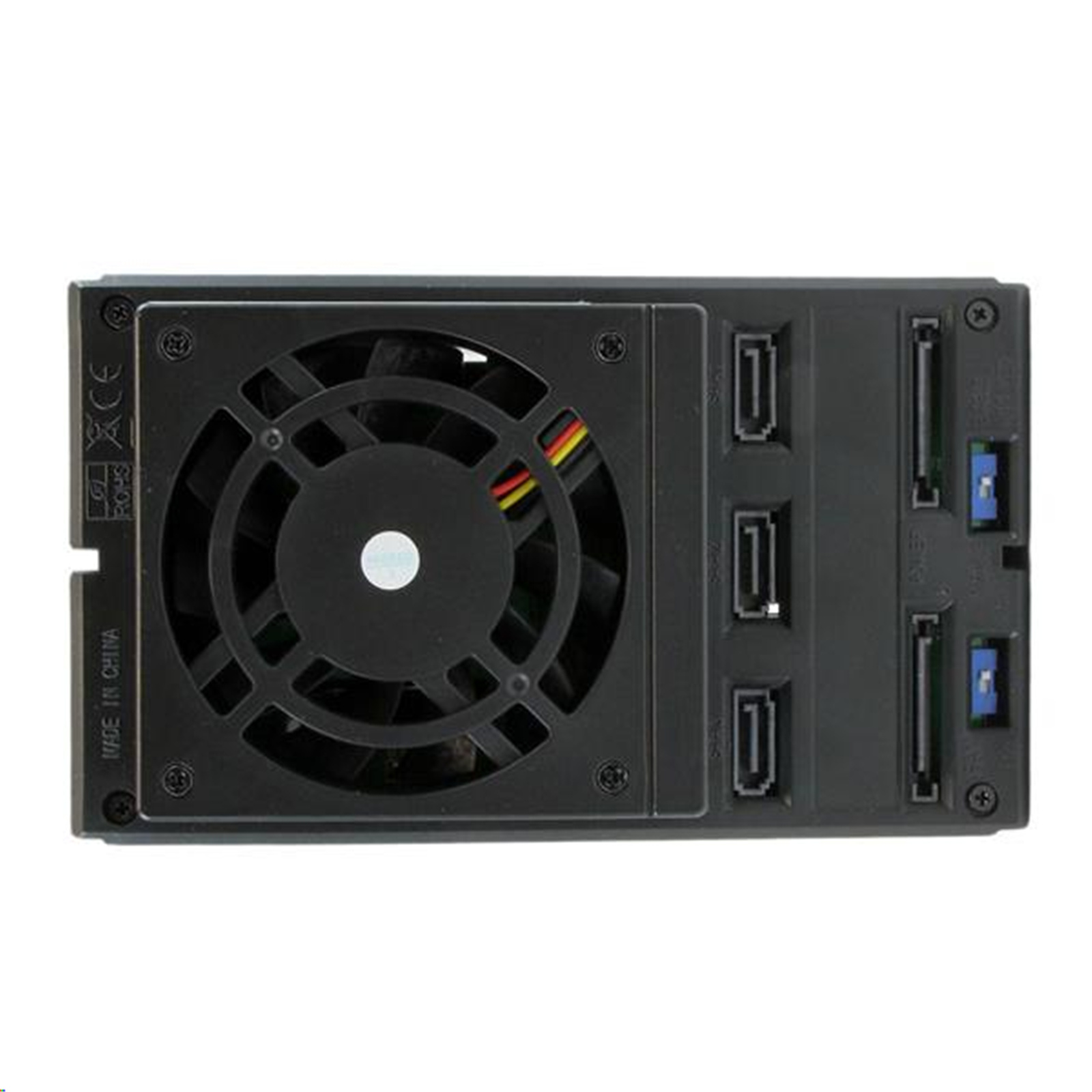

Host Connectors
2 - SATA Power (15 pin) Receptacle
3 - SATA (7 pin, Data) Receptacle
OS Compatibility
OS independent; No software or drivers required
LED Indicators
1 - Power LED
1 - Drive 1 Activity LED
1 - Drive 2 Activity LED
1 - Drive 3 Activity LED
Humidity
5%~85% RH
Operating Temperature
0°C to 55°C (23°F to 95°F)
Storage Temperature
-20°C to 60°C (-4°F to 122°F)
Colour
Black
Enclosure Type
Aluminum

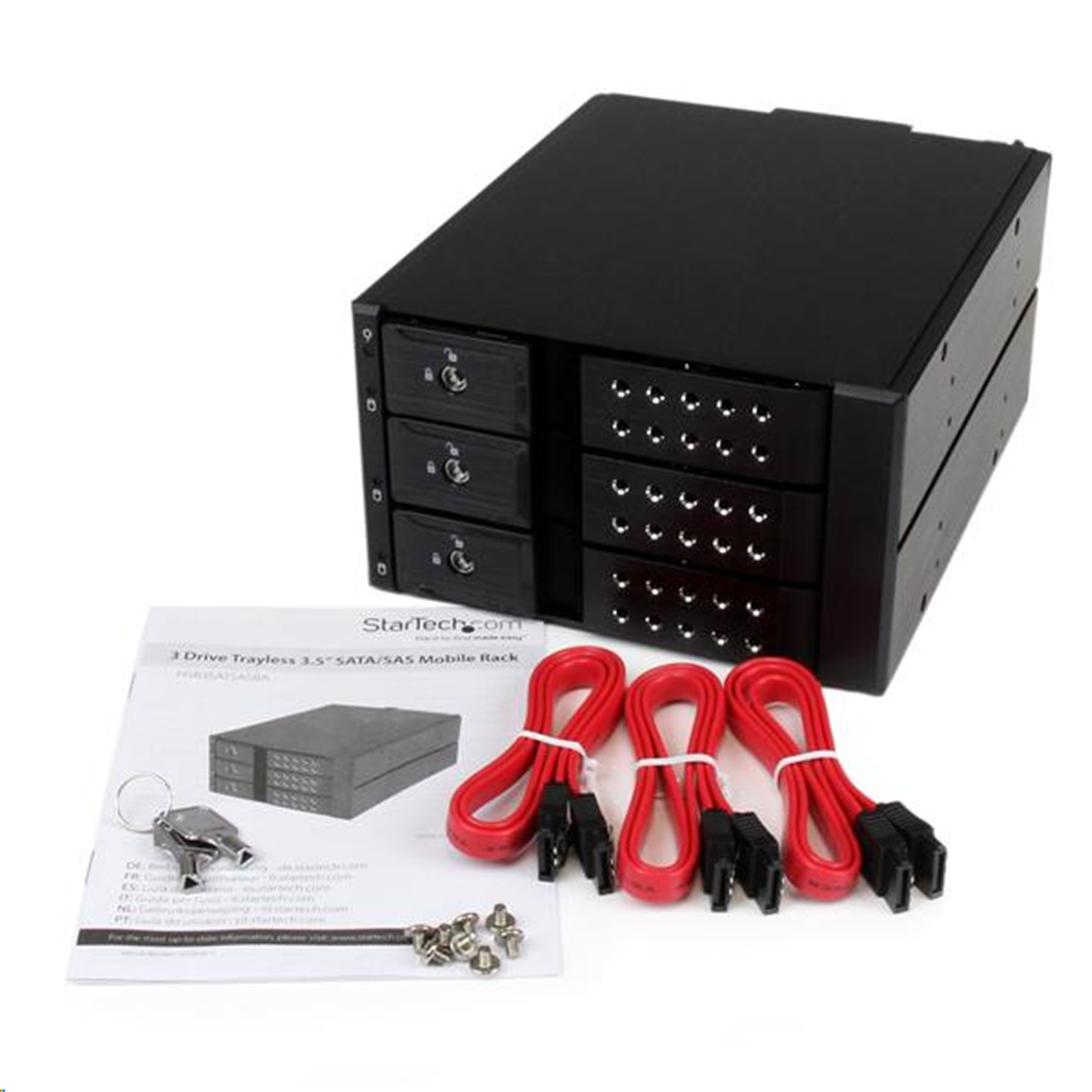

Included in Package
1 - 3 SATA HDD Backplane
1 - Installation screw kit
1 - Instruction Manual
2 - Bay Key
3 - 18" SATA Cable
