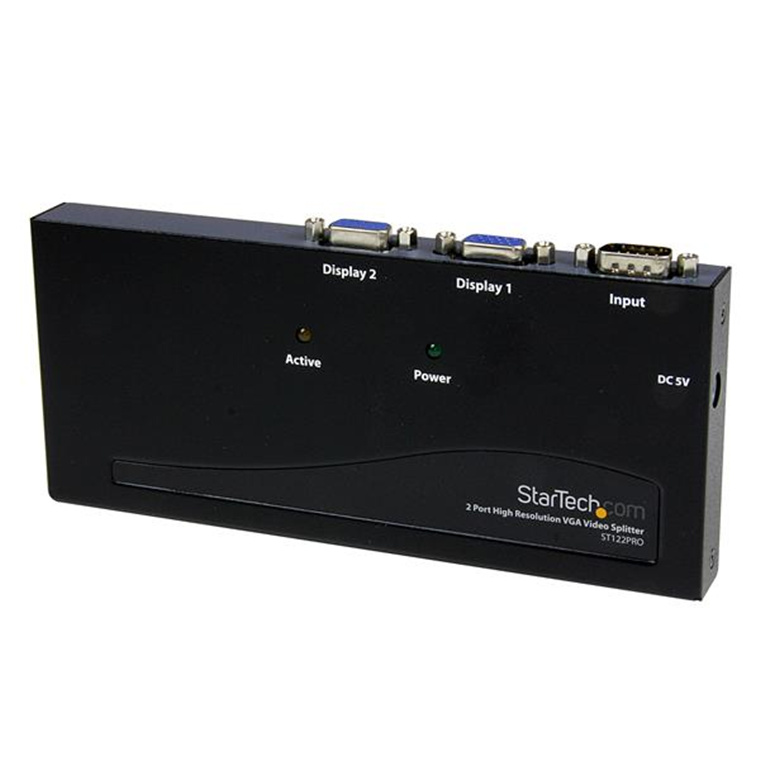

The ST122PRO 2 Port High Resolution VGA Video Splitter - 350 MHz splits a VGA video source signal to 2 monitors or projectors simultaneously - a professional grade solution that is perfect for presentations, classrooms, tradeshows, or in-store displays, where the highest quality video on several monitors is needed.
This High Resolution VGA Splitter supports monitors with up to 350MHz of video bandwidth and display resolutions up to 2048x1536 @80Hz. For added versatility, the VGA splitter features an integrated booster circuit that allows the video signal to be extended up to 210 feet (65 meters), enabling you to situate your displays in the most convenient location based on your application.
Specifications
Audio No
Industry Standards DDC compatible - all other monitors must be able to support the highest video resolution of the DDC-type monitor connected to Video Out 1
Ports 2
Regulatory Approvals FCC Part 15 Class A, CE Mark
Bandwidth (-3db): 350 MHz
General Specifications Male to Female VGA extension cable required (MXT101HQ)
Maximum Analog Resolutions 2048x1536 @ 80Hz
Maximum Cable Length 213.2 ft [65 m]
MTBF 1,588,136 Hours

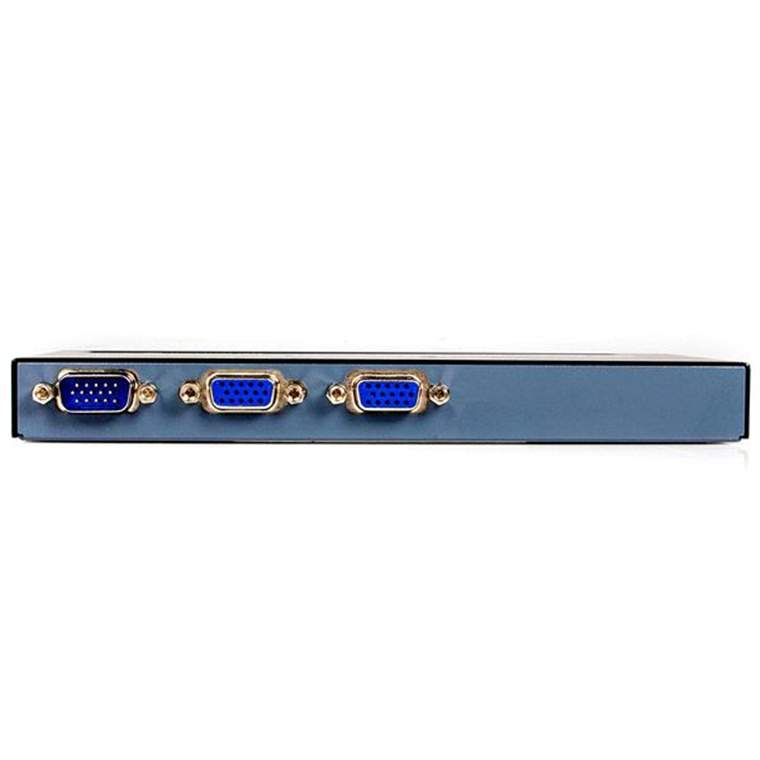

Connector Type(s) 1 - VGA (15 pin, High Density D-Sub) Male 2 - VGA (15 pin, High Density D-Sub) Female
Output Current 0.6A
Output Voltage 5 DC
Plug Type N
Power Consumption (In Watts) 3
Power Source AC Adapter Included
Humidity 0~80% RH Non-condensing
Operating Temperature 5°C to 40°C (41°F to 104°F)
Color Black
Product Height 0.8 in [21 mm]
Product Length 7.1 in [180 mm]
Product Weight 2.1 lb [1 kg]
Product Width 3.1 in [80 mm]
Included in Package 1 - 2 Port High Res. Video Splitter 4 - Rubber feet 1 - Power Adapter 1 - Instruction Manual
Warranty:
24 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
