StarTech.com DKT30CVAGPD USB C Multiport Adapter - Mini USB-C Dock w/ Single Monitor VGA 1080p Video - 60W Power Delivery Passthrough - USB 3.1 Gen 1 Type-A 5Gbps, Gigabit Ethernet - Docking Station
- Brand: StarTech.com
- MPN: DKT30CVAGPD
- Part #: ADPSTT4283766
Product URL: https://www.pbtech.com/product/ADPSTT4283766/StarTechcom-DKT30CVAGPD-USB-C-Multiport-Adapter
Features

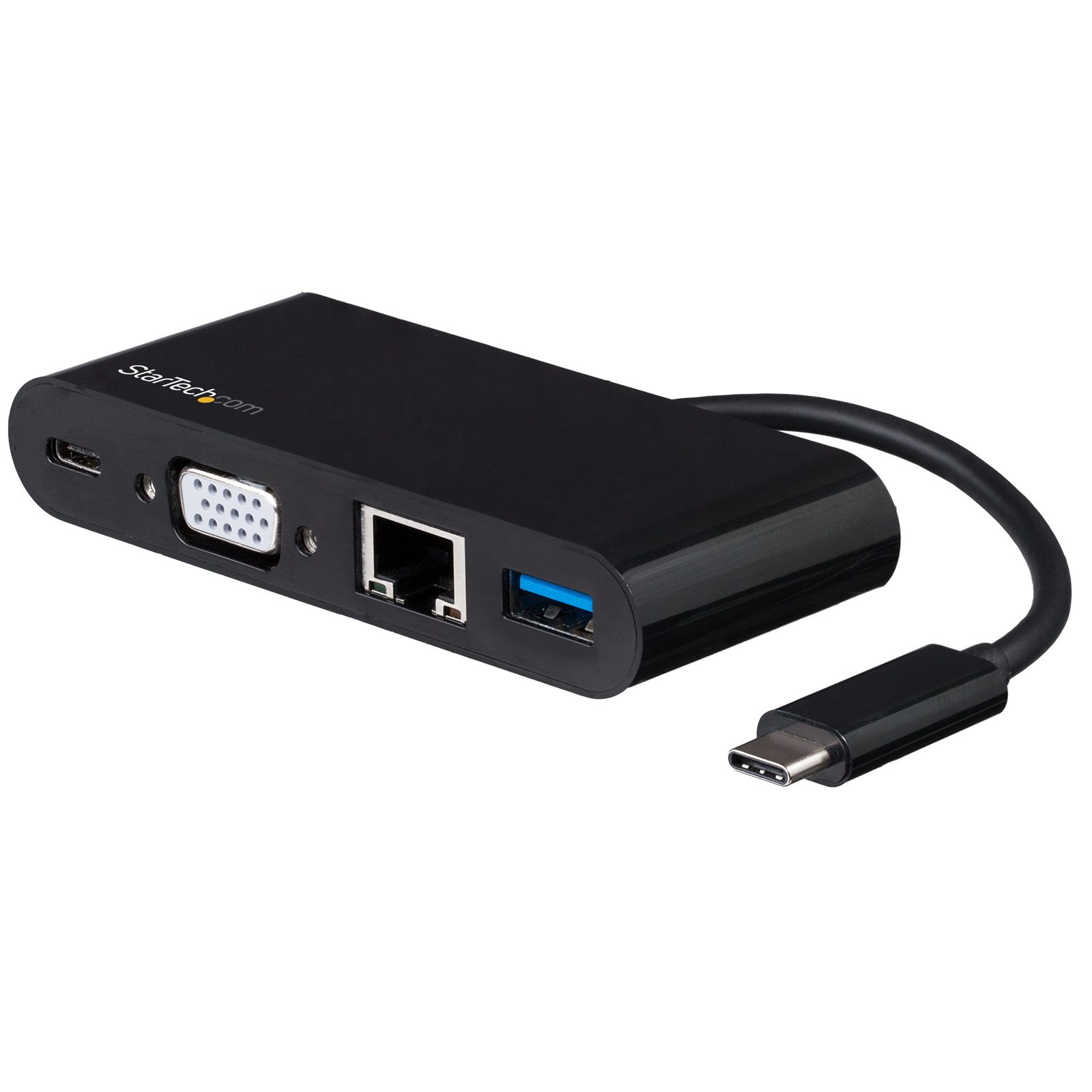

Expand the connectivity of your USB-C™ laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt™ 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows® and Chrome OS™ compatible, it's the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation
Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop's USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup

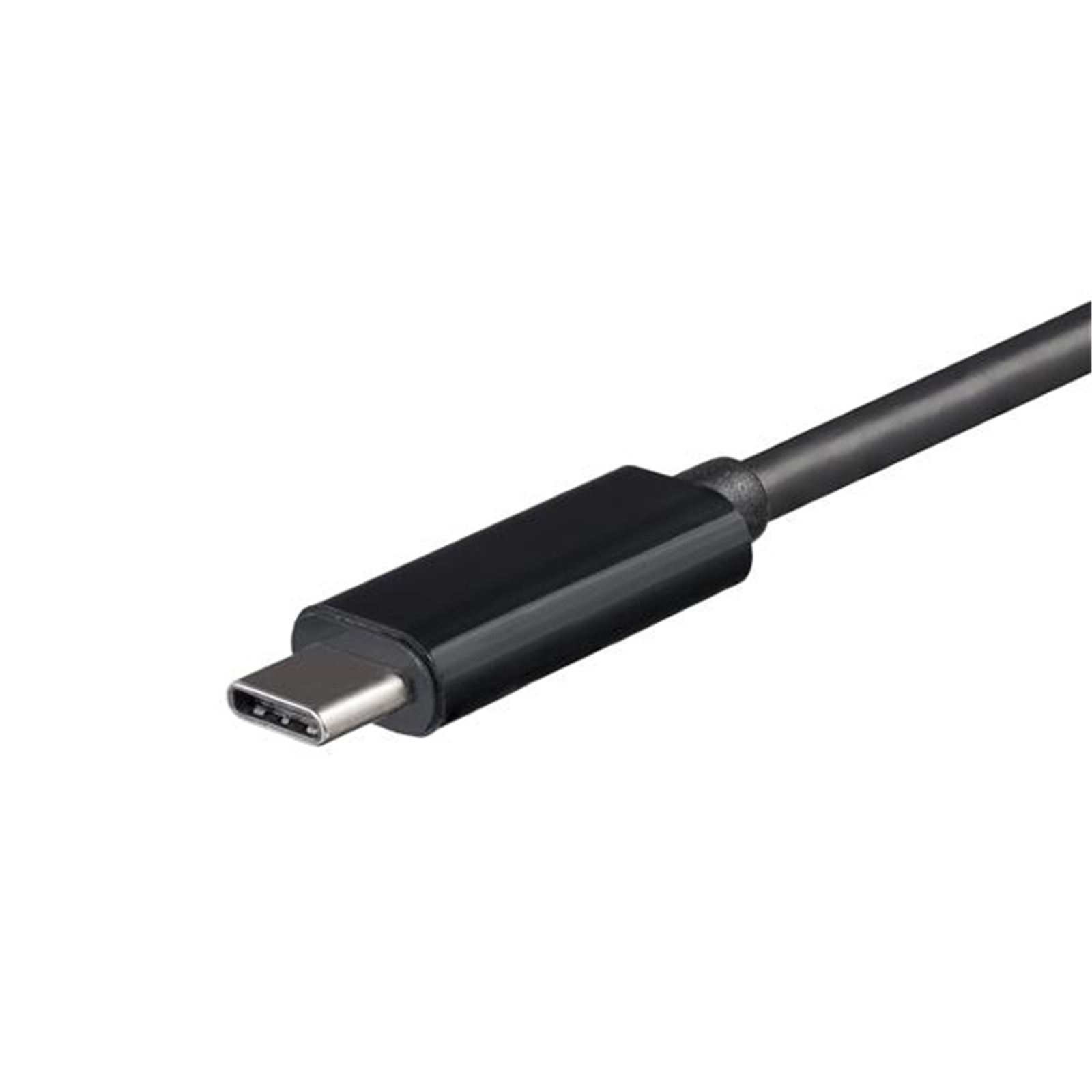

The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
Applications
- Connect your laptop to a monitor/projector
- Reduce clutter in a small workspace
- Connect to a reliable wired GbE network
Specifications
HARDWARE
4K Support
No
Bus Type
USB-C
Chipset ID
VIA Labs - VL100
VIA Labs - VL813
NXP - PTN3355
Realtek - RTL8153
Displays Supported
1
Fast-Charge Port(s)
Yes
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB Battery Charging Specification Rev. 1.2
USB 3.0 - Backward compatible with USB 2.0 and 1.1
PERFORMANCE
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions
1920 x 1200 @60Hz or 1920 x 1080 @60Hz
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
CONNECTOR(S)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
1 - VGA (15 pin, High Density D-Sub) Female
1 - USB-C (24 pin) USB Power Delivery only Female
1 - RJ-45 Female
1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed)
SOFTWARE
OS Compatibility
Windows® 7, 8, 8.1, 10
Mac OS® 10.11 to 10.14
Chrome OS™ v55+
SPECIAL NOTES / REQUIREMENTS
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
The adapter can connect to a host laptop's USB-C port that doesn't support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter)
POWER
Power Delivery
60W
Power Source
USB-Powered
ENVIRONMENTAL
Humidity
10 - 85% RH (Non-condensing)
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 80°C (14°F to 176°F)
PHYSICAL CHARACTERISTICS
Cable Length
5.6 in [143 mm]
Color
Black
Enclosure Type
Plastic
Product Height
0.6 in [16.5 mm]
Product Length
3.8 in [96 mm]
Product Weight
1.7 oz [49 g]
Product Width
1.6 in [40 mm]
