StarTech.com ST124HDVW Video Wall Controller - 4K 60Hz

PB Tech price
PB Tech price
AUD $ 1,442 .12
$ 1,442 .12
$1,442.12  +GST
$1,442.12

StarTech.com ST124HDVW Video Wall Controller - 4K 60Hz

NEW ARRIVAL
PB Tech price
AUD $ 1,442 .12 $ 1,442 .12


Delivery: Order now and it ships on 19 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,442.12  +GST
$1,442.12

Features

StarTech.com Video Wall Controller - 4K 60Hz

This video wall controller lets you connect your HDMI video source to multiple HDMI displays, with support for Ultra HD resolutions and 7.1 surround sound audio. You can use the controller as a video splitter to distribute the same HDMI signal to four displays or you can combine your video source across four displays to create a 2x2 video wall.

Supports True 4K at 60Hz

Not all 2x2 video wall matrix controllers are created equal. While some HDMI 1.4 video wall controllers can achieve 4K resolutions, they'll only work at a 30Hz refresh rate. This 4K 60Hz HDMI video wall processor offers full support for HDMI 2.0, including true 4K resolution at 60Hz.

Widely Compatible

The HDMI video wall splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs around your site or in your digital signage application.

Easy Installation and Setup

For hassle-free setup, the 4K HDMI splitter offers easy plug-and-play installation. Simply connect your source and 4 displays and the 4k video wall splitter will automatically create a video wall at the appropriate resolution.

2x2 HDMI Video Wall Controller

- Hardware-based video wall processor can split & scale a 4K 60Hz (4096x2160) HDMI video input into 4x HDMI 1080p output signals to create a large image across 4 displays for digital signage
- 7.1ch audio, HDCP 2.2/1.4

Easy Setup

- The 2x2 video wall setup is pre-configured by default
- HDMI video wall splitter w/ EDID emulation allows source video to be detected and properly split w/ the correct video format
- Bezel compensation ensures accurate image display

Serial & IP Control

- Features RS232 & Ethernet ports for input/output control & configuration features w/the Windows-only app, command line, Telnet/UDP
- Various layouts: 2x2/1x1/1x4/mirror-duplication

Mount Anywhere

- Flexible environment/system setup with durable & ventilated metal housing
- Built-in mounting brackets for wall/surface mount
- Supports screw locking cables (HDMI & power)
- ESD protection

Applications

- Create versatile 4K digital signage using multiple TVs
- 2x2 video wall function allows you to combine four separate displays into one large format display

Specifications

Connector(s)

Connector A

1 - HDMI (19 pin)
1 - RJ-45
1 - DB 9-pin Serial
1 - USB 2.0 Type-A (4 pin, 480Mbps)

Connector B

4 - HDMI (19 pin)

Hardware

AV Input

HDMI - 2.0

AV Output

HDMI - 2.0

Audio

Yes

Indicators

LED Indicators

1 - Video Input (IN)
4 - Video Output (OUT - A,B,C,D)

Performance

Video Revision

HDMI 2.0

Supported Resolutions

HDMI: 4096×2160 (4K) / 60Hz
Additional resolutions and refresh rates may be supported

Wide Screen Supported

Yes

Audio Specifications

HDMI - 7.1 Channel Audio

Physical Characteristics

Color

Black

Product Height

1.8 in [4.5 cm]

Product Length

8.3 in [21.2 cm]

Weight of Product

2.3 lb [1.0 kg]

Product Width

6.2 in [15.8 cm]

Material

Steel

Power

Power Source

AC Adapter Included

Input Voltage

100 - 240 AC

Input Current

1A

Output Voltage

24 DC

Output Current

1.25A

Center Tip Polarity

Positive

Plug Type

M

Environmental

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Humidity

20-90%RH (non- condensing)

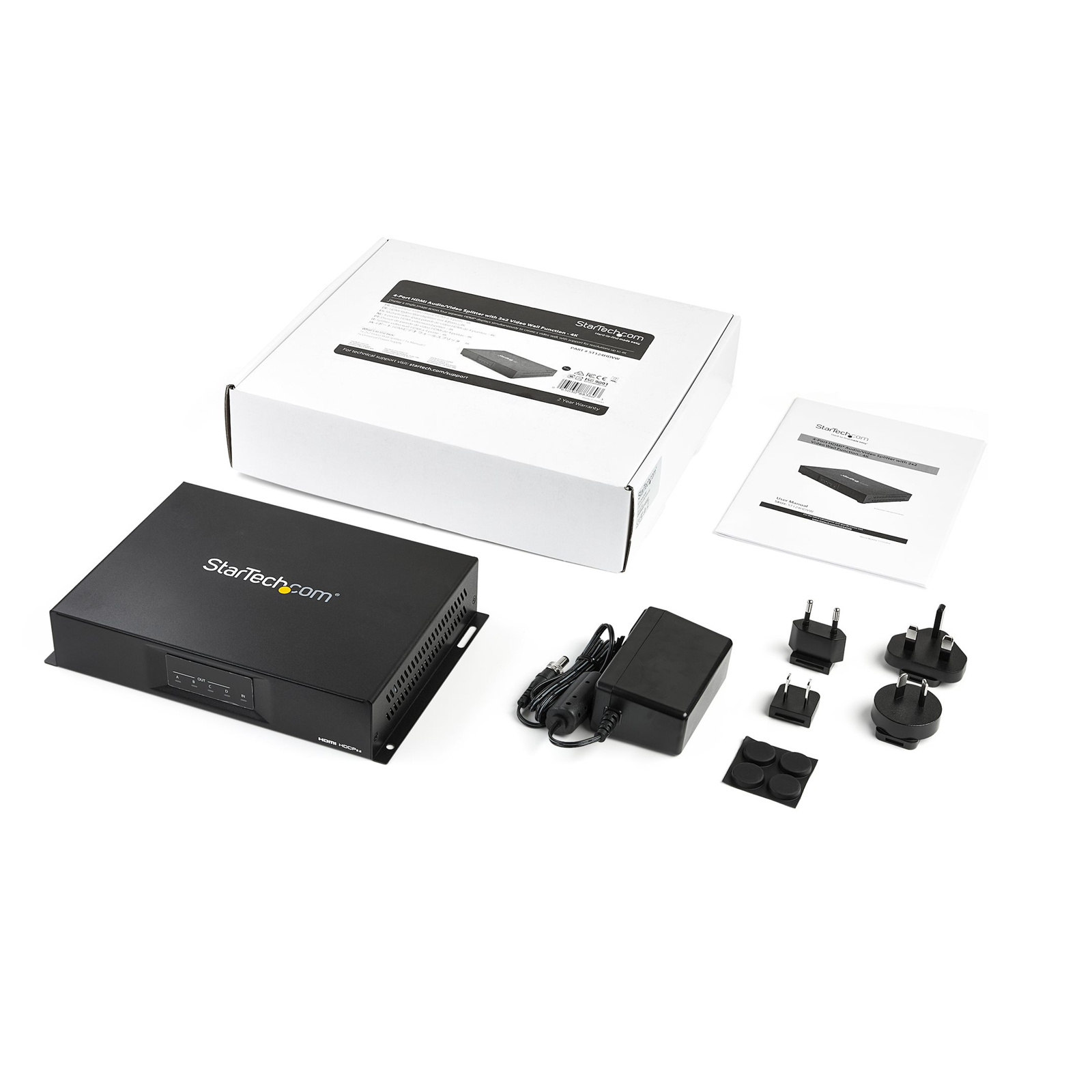

What's in the Box

Included in Package

1 - 2x2 Video Wall Splitter
1 - Manual
1 - Universal Power Supply

Manufacturer Part No:
ST124HDVW
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
ADPSTT4889831
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
