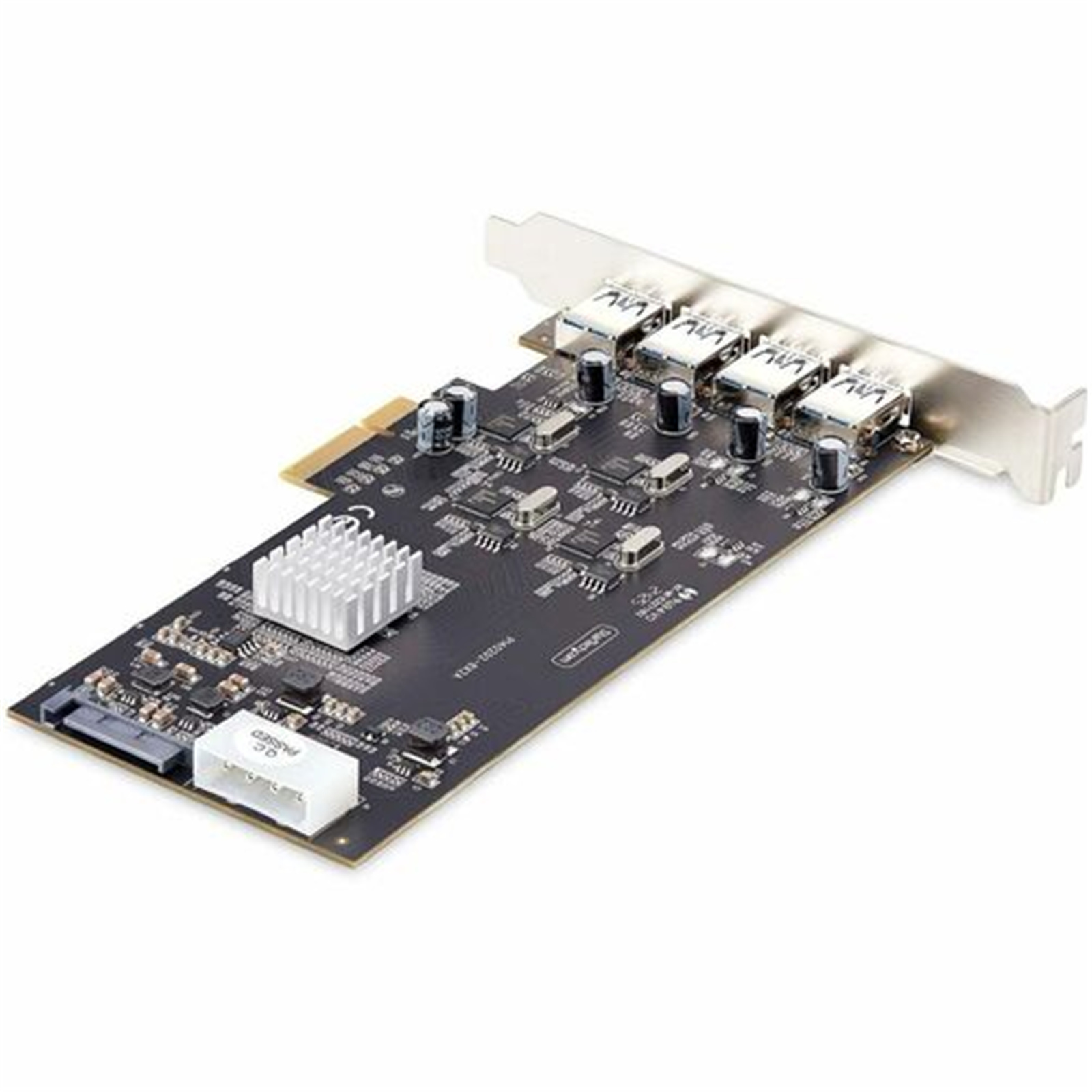

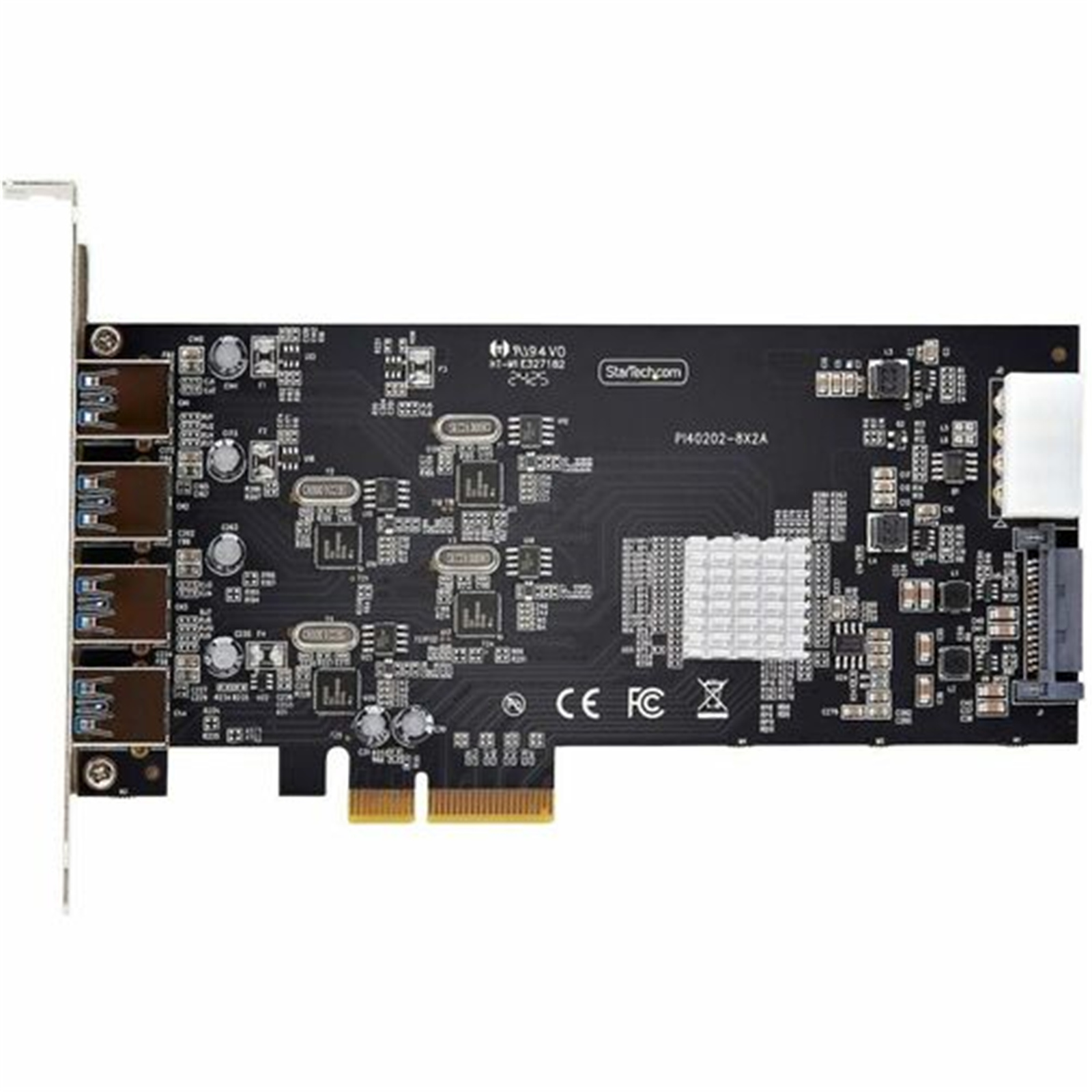

StarTech.com P5Q4A-USB-CARD4-Port USB-A PCIe Card USB 3.2 5Gbps

4-Port USB PCIe Card, USB 3.2 5Gbps, PCI Express Expansion Card with 4x Independent USB Controllers, 4x USB-A Ports, Windows/Linux

- HIGH-PERFORMANCE USB CARD: Upgrade or expand a desktop or server's USB connectivity by adding four USB Type-A ports, each with a dedicated controller capable of up to 5Gbps, via a single PCI Express 2.0 x4 connection

- 4X INDEPENDENT USB CONTROLLERS: Dedicated USB controllers per port enhance data throughput and ensure each device has up to 5Gbps bandwidth available; Ideal for simultaneously transferring large files or editing photos/videos on external storage devices

- HORIZONTAL USB PORTS: Enhance compatibility with different computer cases, reducing the risk of port clearance issues, and accommodating a wider range USB devices and cables

- HIGH POWER: USB PCIe Expansion Card with SATA/LP4 power connectors provides additional power to the USB ports (when motherboard power is insufficient), supporting the Battery Charging 1.2 (5V 1.5A) specification & providing up to 5V 2A (10W) per port

- COMPATIBILITY: Drivers auto-install in most major operating systems including Windows 8 & up, and Linux; Works with all hardware platforms, including Intel and AMD, that have a PCI Express 2.0 (or higher) x4, x8, or x16 slot

Upgrade or expand the USB connectivity of a desktop computer or server by adding four independent USB Type-A 5Gbps ports over a single PCI Express 2.0 x4 connection.

Dedicated USB 5Gbps Per Port

When multiple devices are connected, traditional single-bus USB 3.2 Gen 1 cards share the maximum bandwidth across all ports. By employing four host controller chipsets, each port operates on its own independent channel, providing up to 5Gbps to each USB port, reducing performance bottlenecks and effectively quadrupling the total available bandwidth to 20Gbps.

Charge USB Devices

This USB PCIe expansion card can receive supplemental power through SATA or LP4 connectors. It supports the Battery Charging 1.2 (5V 1.5A) specification and provides up to 5V 2A (10W) on the USB Type-A ports when the bus power from the motherboard is insufficient.

Compatibility

The PCI Express USB card drivers auto-install in most major operating systems, including Windows 8 and later, and Linux. The expansion card supports hardware platforms such as Intel and AMD, and fits in PCI Express x4, x8, and x16 slots. Horizontal USB ports enhance compatibility with different computer cases, reduce the risk of port clearance issues, and accommodate a wider range of USB devices and cables.
