Adeunis CURRENT SENSOR, Bundle ANALOG + Current sensor 100A LoRaWAN EU863-870
- Brand: Adeunis
- MPN: ARF8190BA-B02
- Part #: ADU1012

Product URL: https://www.pbtech.com/product/ADU1012/Adeunis-CURRENT-SENSOR-Bundle-ANALOG--Current-sens
Features

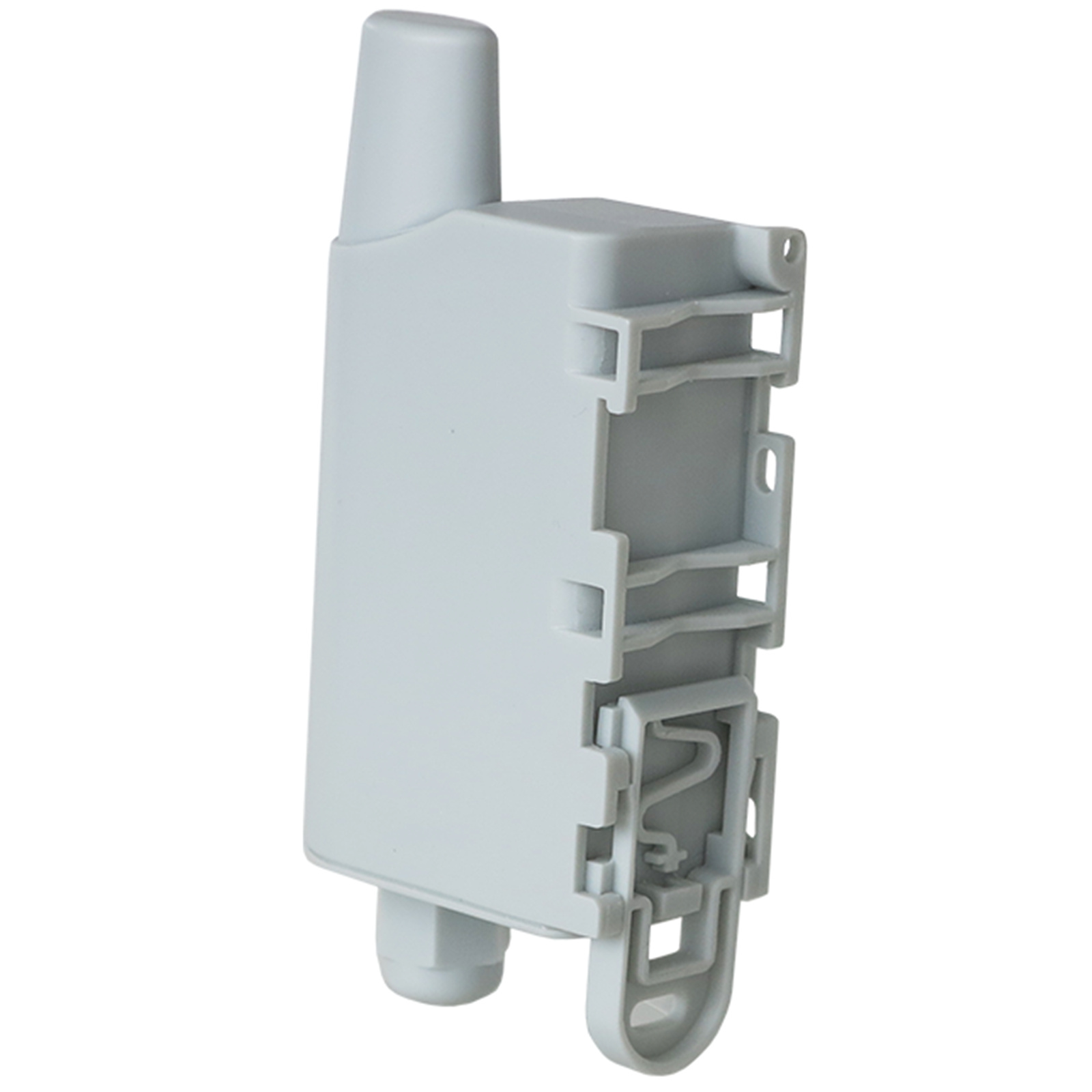

The Adeunis ARF8190BA-B02 is a 100A Current Sensor with Analog Transceiver for LoRaWAN IoT EU868

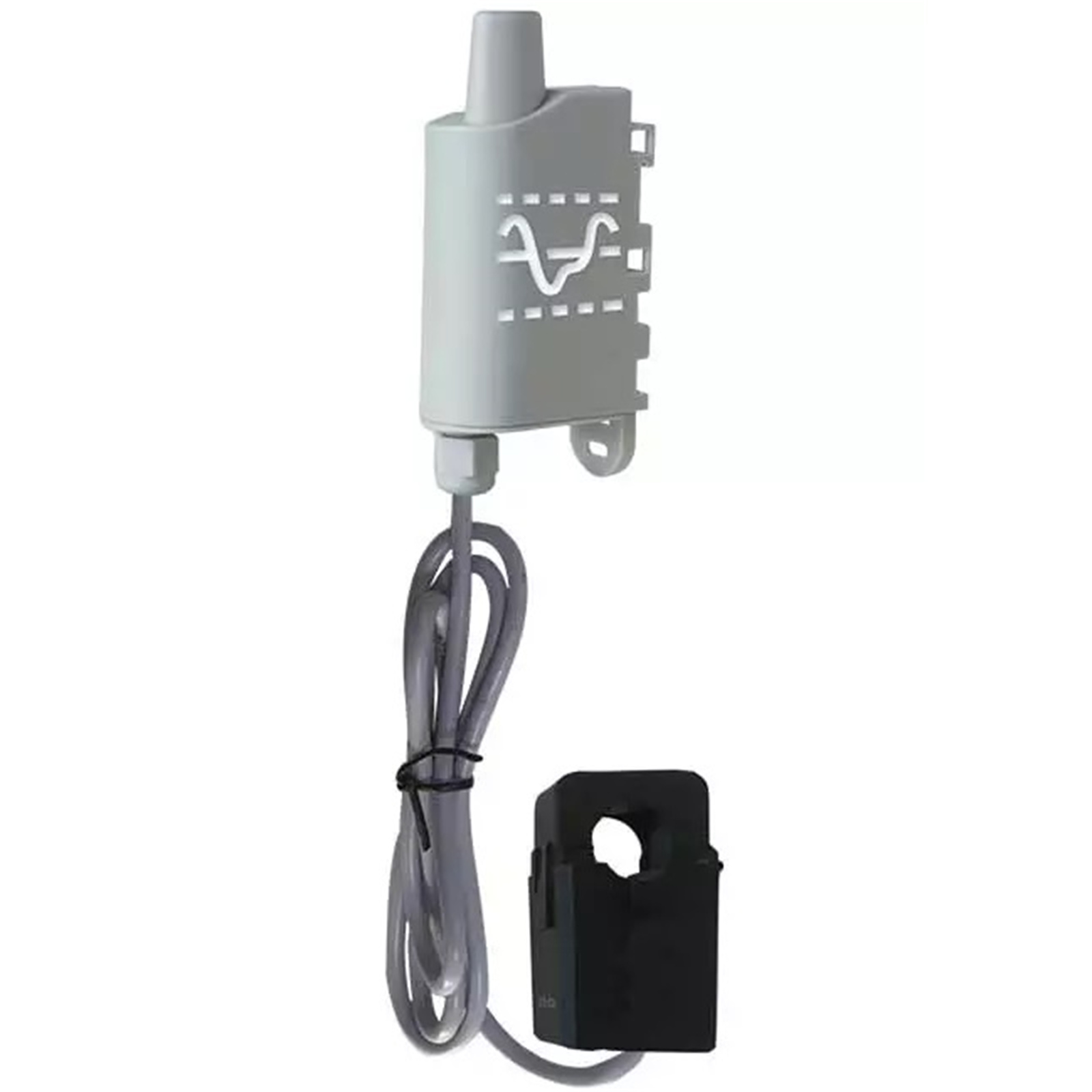

This is a ready to use product enabling you to measure the current and so monitor intensity thresholds. The package is composed of an ANALOG transceiver and a current transducer (50 A or 100 A, model dependant). Default settings have been established to simplify product installation by the user.
- Monitor to prevent in case of a malfunction
- Prevention in case of machine stoppages
- Control the production of energy
- Track and analyze consumption
- Compatible with EU863-870 LoRaWAN™ networks
- Ready to use solution
- Self powered
- Periodic emission of the measurement or event on parametric thresholds (Alert)
- Replaceable battery
FEATURES OF THE IoT SENSOR
MONITOR
- Monitor energy production
- Monitor and analyse consumptions
ALERT--AND/OR Trigger an alarm if:
- high and/or low threshold(s) exceeded
- event on one of the 2 dry contact input
Specifications
Product code
ARF8190BA-B02
Suitable for
LoRaWAN
Frequency band
868MHz
LoRaWAN network protocol
V1.0.2
Current sensor
0 - 100 A AC
Configuration
USB Configuration
Battery
1 x 2700mAh ER14505
Battery life
10 years (SF7)
Operating Temperature
-25°C to +70°C
Edit
DIN rail mounting, Wall/wall mounting
IP rating
IP67
Weight
70 grams
Dimensions
105x50x27mm
