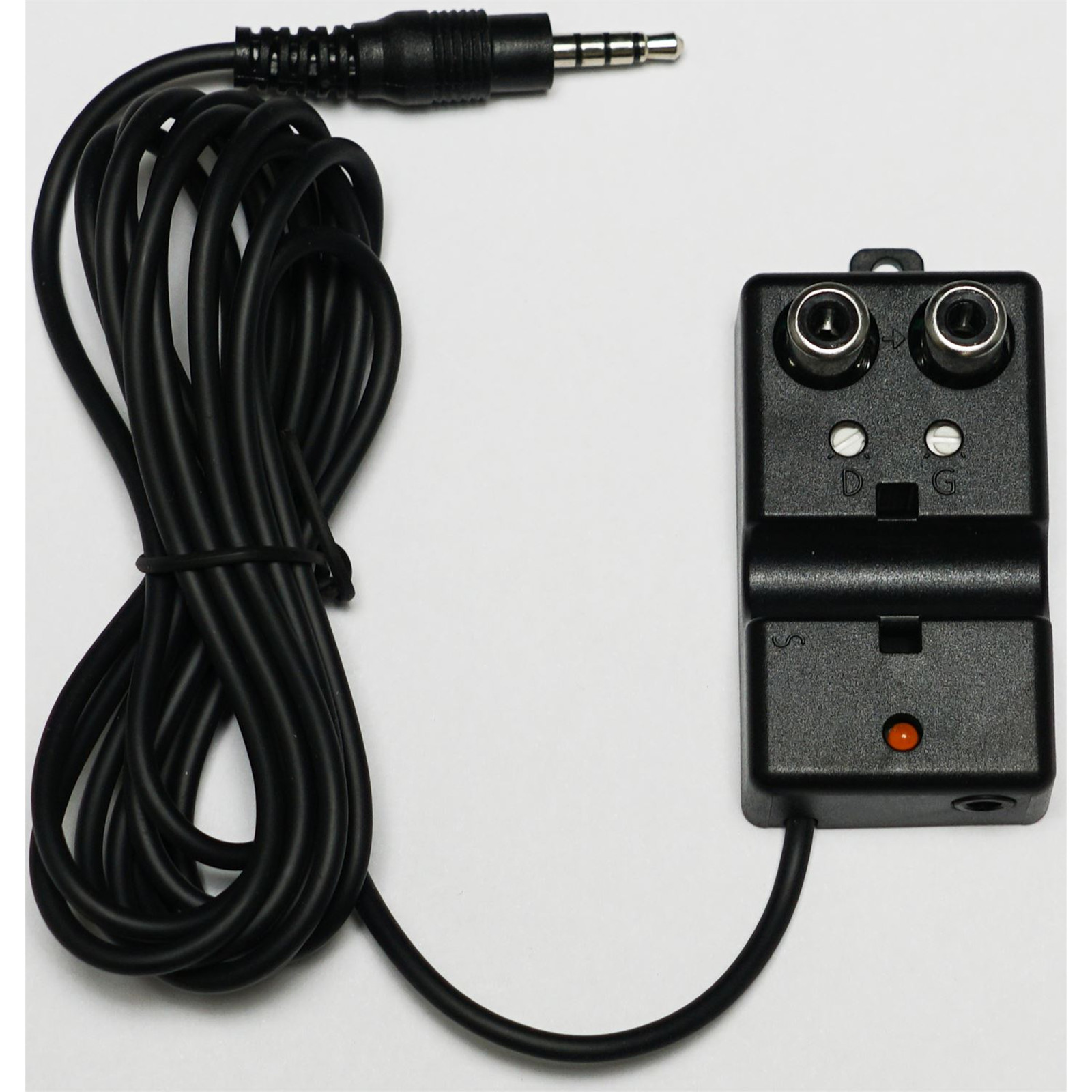

AXIUM AX-S4 Current Sensor Detects mainscurrent, video (composite or component), Digital Audio, Analogue audio, sensitivity & time delay adjustment.
Out of stock
AXIUM AX-S4 Current Sensor Detects mainscurrent, video (composite or component), Digital Audio, Analogue audio, sensitivity & time delay adjustment.
- Brand: AXIUM
- MPN: AXS4
- Part #: AUDAXI1016
- UPC:
- Brand: AXIUM
- MPN: AXS4
- Part #: AUDAXI1016
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Audio Accessories





AXIUM AX-S4 Current Sensor Detects mainscurrent, video (composite or component), Digital Audio, Analogue audio, sensitivity & time delay adjustment.
- Brand: AXIUM
- MPN: AXS4
- Part #: AUDAXI1016

Product URL: https://www.pbtech.com/product/AUDAXI1016/AXIUM-AX-S4-Current-Sensor-Detects-mainscurrent-vi
Features
The Axium AXS4 Quad Sensor can accurately detect either Mains Current, Digital Audio, Analog Audio or Video signals without interfering with the original signal by using a Magnetic Sensor to detect very small levels of current.
In addition, this clever device has a manual gain adjustment to enable the detection of the smallest signals and an adjustable "detect off delay" so gaps between songs do not cause false triggers. The AXS4 is designed to connect to the IR out of the Axium AXR4D or the (Legacy) AXR4 Controllers. This connection allows "flag" status setting in macros for accurate source or system status in an Axium system.
The IR port that is used on the AXR4 router is provided as an output on the AXS4. Standalone connection to 3rd party systems is made available by following the pinouts in the instruction sheet provided.
Specifications
Switch 'On' Resistance
3.5O
Switch Current
0.22A continuous
0.8A pulsed <300µs
Detect LED indicator
Orange
RCA input resistance
200KO
Delay adjustment
2~20 seconds
Gain: adjustment range suitable for detecting a minimum of:
0.1A current in Mains conductor (must be firmly seated & optimally rotated in the sensing channel)
1.0V CVBS composite video or Y component video signal
0.5V SPDIF Digital Audio signal
0.5V RMS analogue audio signal
Cable length
2m
Isolation:
RCA: 200VDC (500VAC)
Current: >5KV~
Power requirement
12V DC 10mA
Dimensions
32mm x 55mm x 14mm
Weight
32g - excluding packaging
Ambient Operating Temperature
0°C~50°C
Ambient Operating Humidity
5%~95% non-condensing
Approvals
C-Tick CISPR22, FCC, RoHs
IR emitter output socket
Mounting flange
