Shure UA874WB UHF ACTIVE DIRECTIONAL ANTENNA RPL

PB Tech price
PB Tech price
AUD $ 900 .41
$ 900 .41
$900.41  +GST
$900.41

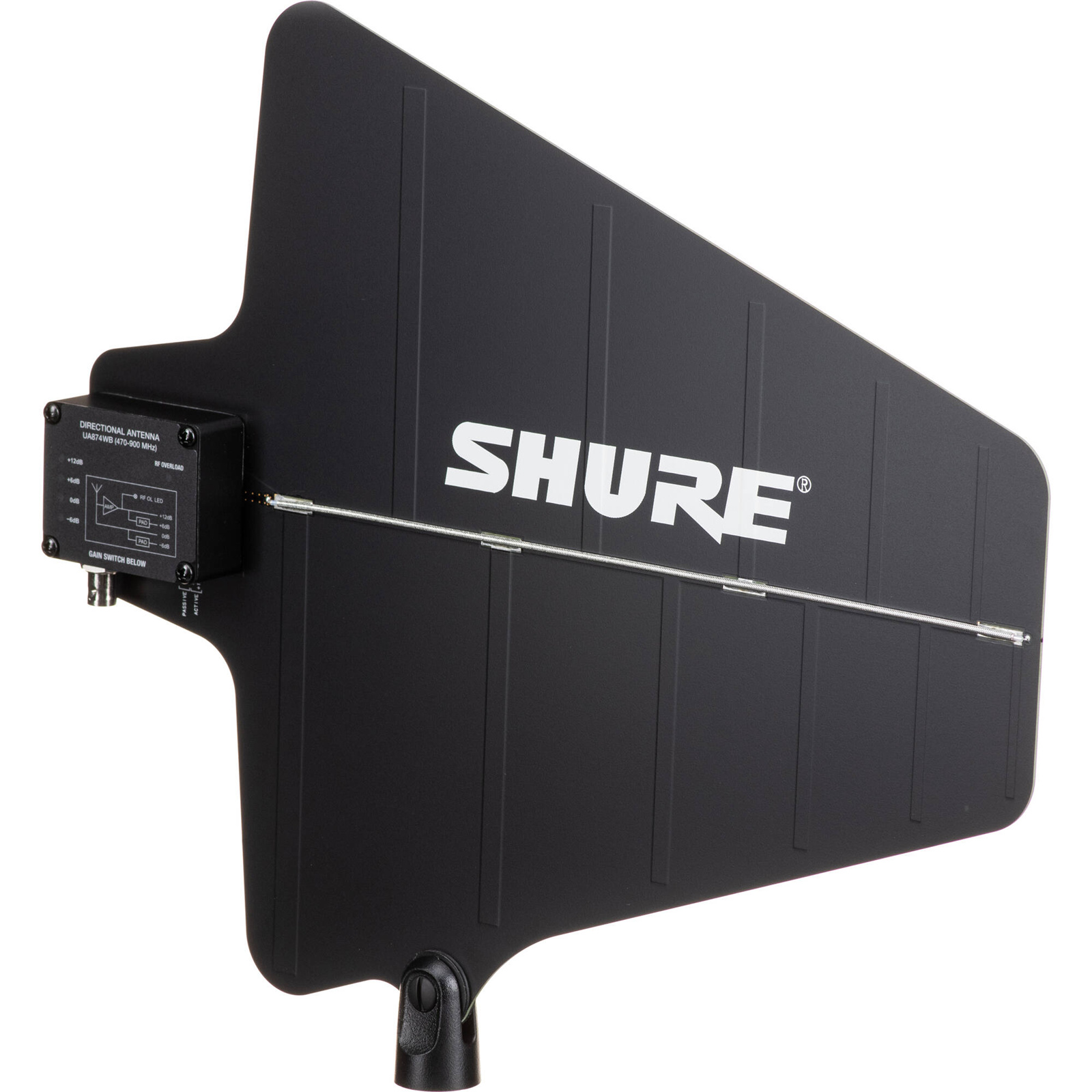

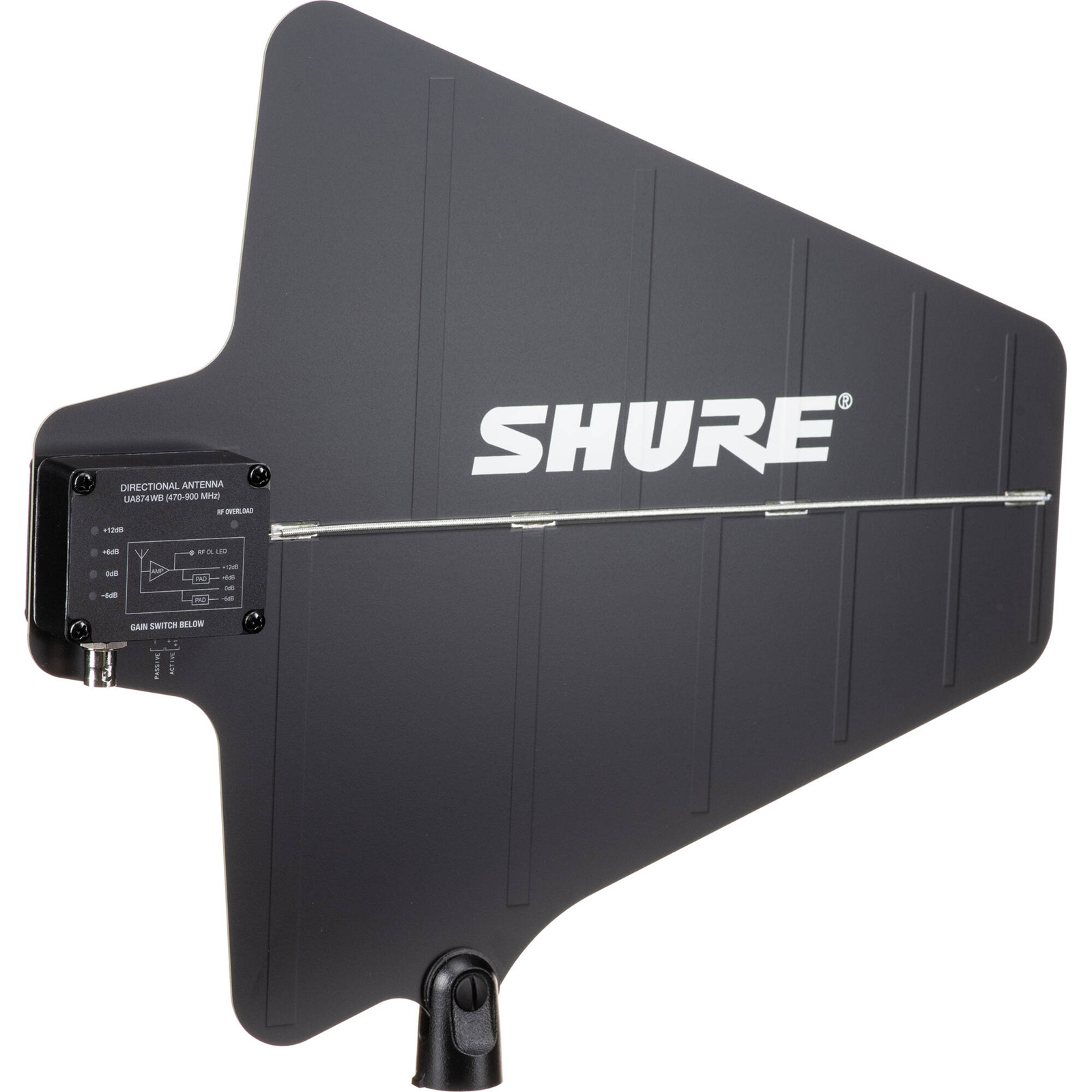

Shure UA874WB UHF ACTIVE DIRECTIONAL ANTENNA RPL

  • Brand: Shure
  • MPN: UA874WB
  • Part #: AUDSHU1007
  • UPC:
NEW ARRIVAL
PB Tech price
AUD $ 900 .41 $ 900 .41


Delivery: Order now and it ships on 12 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$900.41  +GST
$900.41

Features

Signal Precision & Enhanced Reception

The Shure UA874WB is a wideband active directional antenna engineered to significantly improve wireless signal reception. It features a log-periodic dipole array (LPDA) design that focuses its reception into a cardioid pattern, effectively concentrating on the desired coverage area while rejecting RF interference from unwanted directions-surpassing typical half-wave omnidirectional antennas in performance.

Integrated Amplification with Adjustable Gain

This antenna includes an integrated low-noise amplifier, which offers four selectable gain settings to counteract signal loss in coaxial cables. Specifically, it provides active gain options of +12 dB and +6 dB, as well as passive settings of 0 dB and -6 dB.

Broad Frequency Range & Technical Specs

Covering a broad frequency range of 470 to 900 MHz, the UA874WB is built for versatile UHF wireless applications. Additional technical specs include:

- Antenna gain: 7.5 dBi on-axis
- Reception beam width: 70° (3 dB)
- Impedance: 50 Ohms
- Connector: Female BNC
- OIP3 (Third-order intercept point): Greater than 30 dBm

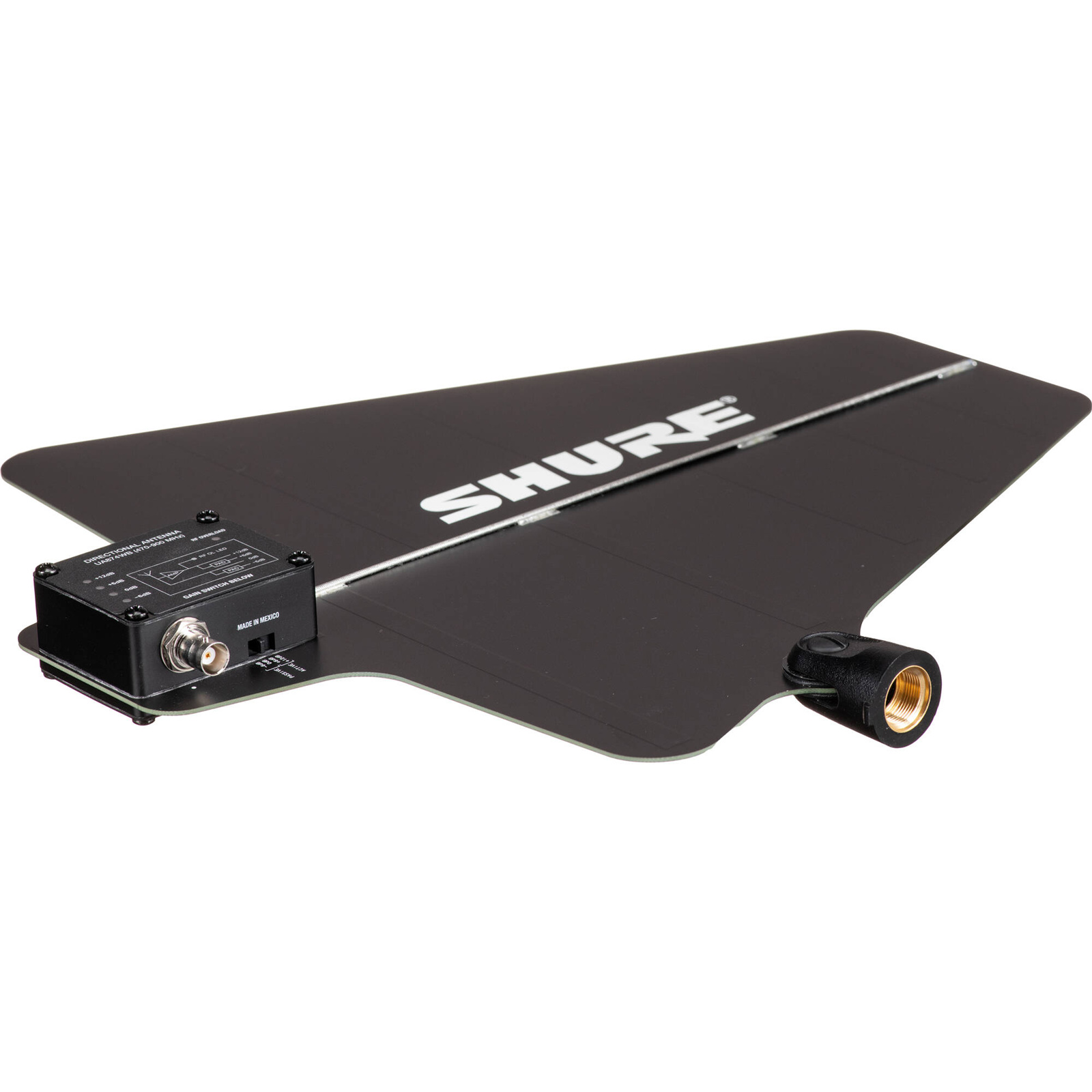

Rugged, Flexible Mounting Design

Constructed with robust durability, the UA874WB is ideal for professional live-sound, broadcast, and installed-AV environments. Its integrated swivel bracket allows for versatile mounting options-stand-mounted, wall-mounted, or ceiling-suspended-for optimal positioning.

Power, Size & Environmental Specs

The antenna operates on 10 to 15 V DC, drawing approximately 75 mA of bias power via the coaxial connector. It withstands an operating temperature range from -18 °C to 63 °C (0-145 °F) and a storage range of -29 °C to 74 °C (-20-165 °F). Its physical dimensions are roughly 359 × 316 × 36 mm (14.1″ × 12.4″ × 1.4″), with a weight around 317 g (11.2 oz).

Specifications

RF Frequency Range

470 to 900 MHz

Connector Type

BNC, Female

Impedance

50 Ohms

Reception Pattern

70°, 3 dB Beam Width

Third-order Overload Intercept Point

OIP3 >30 dBm

Antenna Gain

7.5 dBi, On Axis

Signal Gain

Switchable

Active

+12 dB, +6 dB (±1 dB)

Passive

0 dB, -6 dB (±1 dB)

RF Overload LED Threshold

-5 dBm, RF Overload LED Does Not Operate for Passive Gain Settings

Power Requirements

10 to 15 VDC Bias from Coaxial Connection, 75 mA

Operating Temperature Range

0 to 145°F / -18 to 63°C

Storage Temperature Range

-20 to 165°F / -29 to 74°C

Dimensions

14.1 x 12.4 x 1.4" / 359 x 316 x 36 mm

Weight

11.2 oz / 317 g

Manufacturer Part No:
UA874WB
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.2 kg
PB Part No:
AUDSHU1007
Product Model:
UA874WB
Warranty: 12 months *
