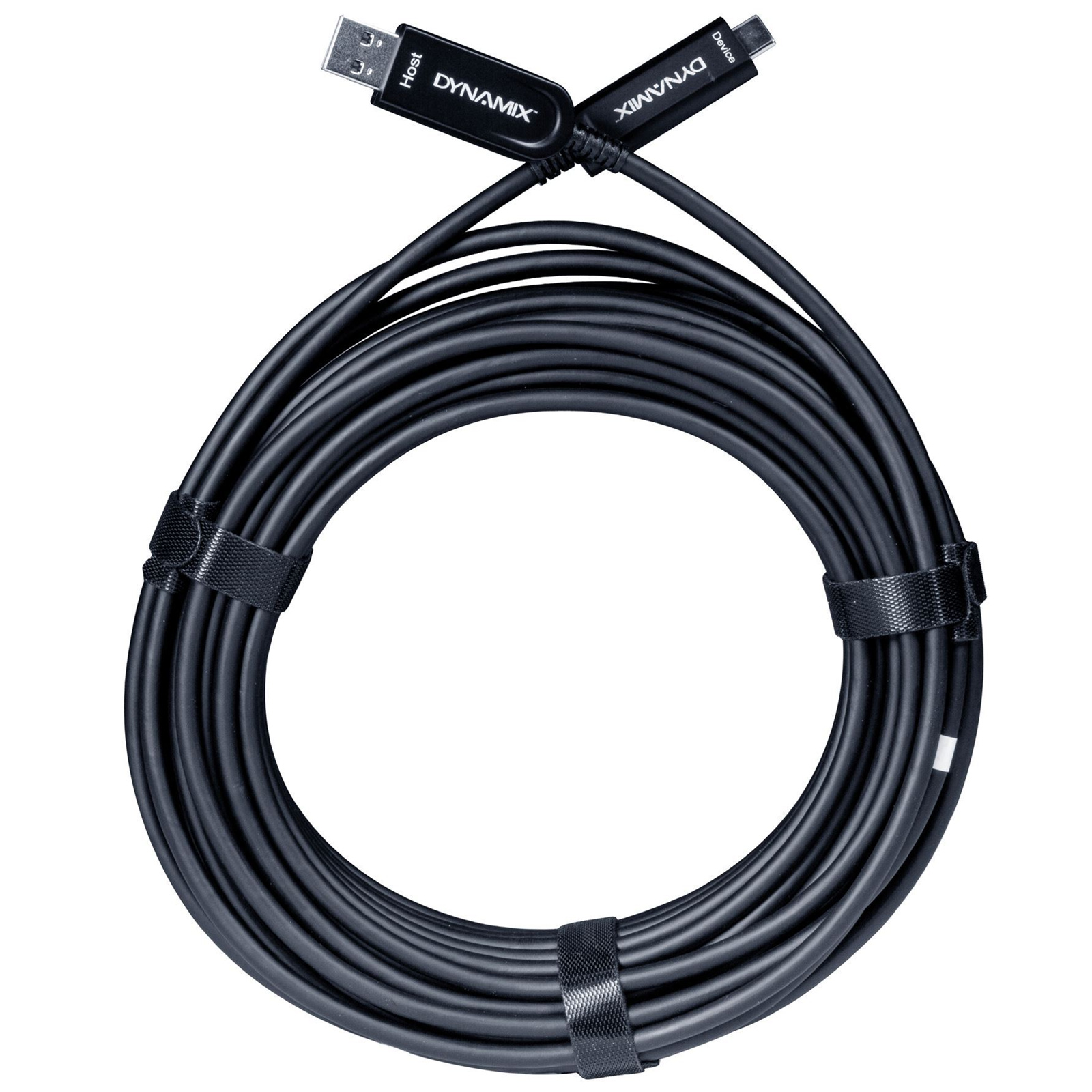

Dynamix 10M USB 3.2 Type A to C Hybrid Active Optical Cable
- Brand: Dynamix
- MPN: C-U32-LL-AC-10
- Part #: CABDNX3060
- UPC:9420065713799
Product URL: https://www.pbtech.com/product/CABDNX3060/Dynamix-10M-USB-32-Type-A-to-C-Hybrid-Active-Optic
Features
The DYNAMIX C-U32-LL-AC is a high-performance USB 3.2 Gen2 Active Optical Cable (AOC) designed for long-distance, high-speed data transmission. Featuring a USB Type-A Male to USB Type-C configuration, this hybrid fiber optic cable supports bandwidth up to 10gbps while maintaining backward compatibility with USB 2.0 & 1.1 devices.
By combining fiber optics for data transmission with copper wiring for power delivery, the C-U32-LL-AC overcomes the distance & signal limitations of traditional USB cables. Supporting lengths up to 15 meters without requiring an external power supply, it is ideal for machine vision, remote monitoring, & other professional applications where stable, interference-free performance is critical.
- USB 3.2 Gen2 compliant
- Data transfer speeds up to 10gbps
- Hybrid fiber + copper construction
- Supports cable lengths up to 15m
- No external power required
- Plug-and-play design
- Supports charging up to 800mA/5V DC
- Backward compatible with USB 2.0/1.1
- No RF interference; stable in complex environments
- Data-only configuration
Specifications
Cable Type
USB 3.2 Gen2 Active Optical Cable (AOC), Data Only
Connector Type
USB-A Male/USB-C Male
USB Standard
USB 3.2 Gen2
Maximum Data Rate
Up to 10gbps
Backward Compatibility
USB 2.0/USB 1.1
Cable Type
Hybrid Fiber & Copper Active Optical Cable (AOC)
Optical Components
VCSEL laser & PIN photodetector
Optical Wavelength
850nm
Power Consumption
≤ 0.5W (TX & RX AOC)
Supply Voltage
4.5 ~ 5.5V
Power Delivery
DC 5V/0.8A
Cable Length
10m
Power Supply
No external power required
Cable O.D
4.8mm
Tensile Strength (Short Term)
300N
Tensile Strength (Long Term)
150N
Crush Resistance (Short Term)
500N/100mm
Crush Resistance (Long Term)
100N/100mm
Dynamic Bend Life
20,000 cycles (180° swing, no open)
Minimum Bend Radius (Static)
40 mm
Minimum Bend Radius (Dynamic)
20 mm
Operating Temperature
-40°C ~ +70°C
Flammability Rating
UL13 Standard
Jacket Material
PVC
Compliance
CE, FCC, RoHS, REACH, UKCA
Plug & Play
Yes
