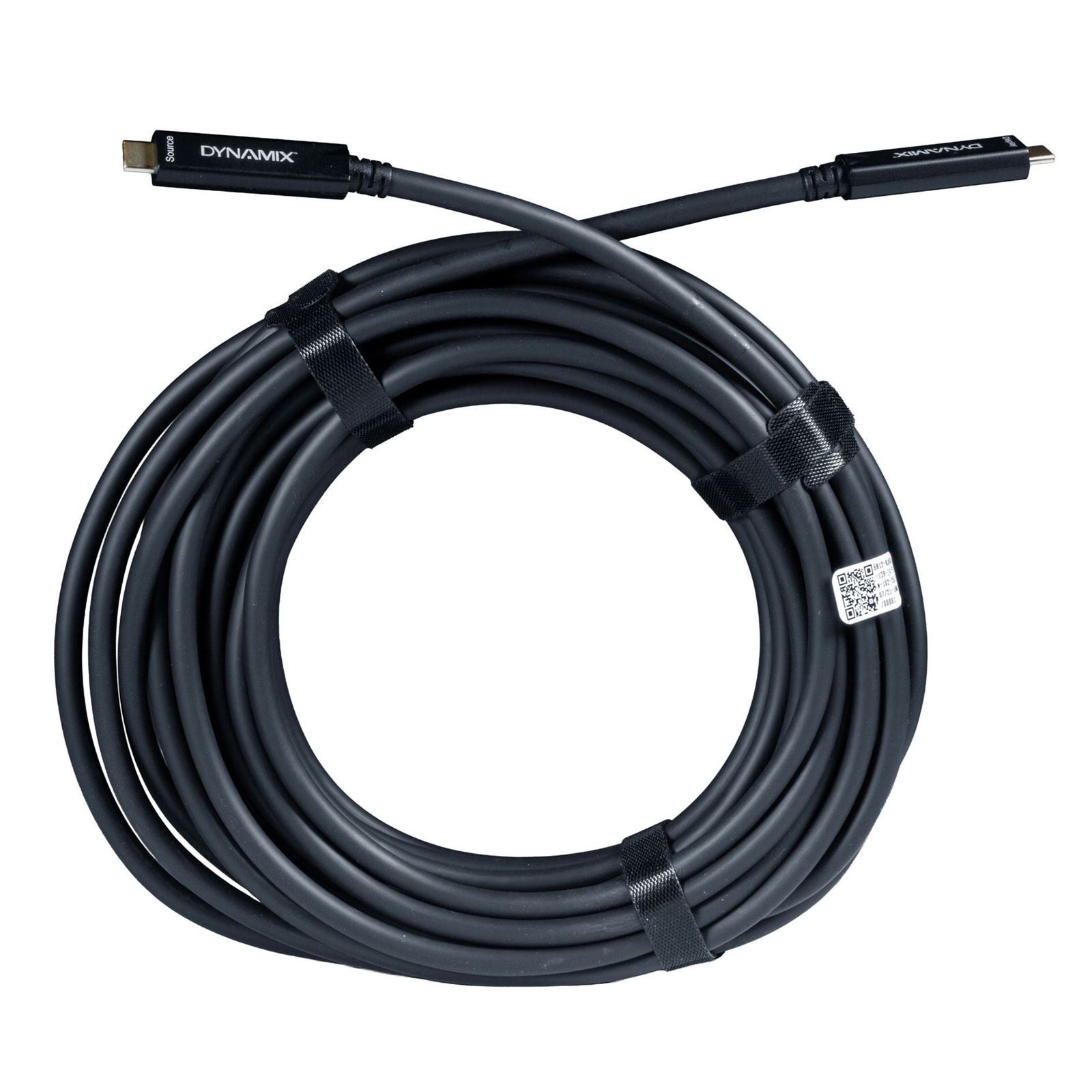

Dynamix 15M USB 3.2 Type C to C Hybrid Active Optical Cable
- Brand: Dynamix
- MPN: C-U32-LL-CC-15
- Part #: CABDNX3063
- UPC:9420065713829
Product URL: https://www.pbtech.com/product/CABDNX3063/Dynamix-15M-USB-32-Type-C-to-C-Hybrid-Active-Optic
Features
The DYNAMIX C-U32-LL-CC is a USB 3.2 Gen2 Type-C to Type-C Active Optical Cable (AOC) designed for high-speed data transmission over extended distances. Utilizing a hybrid copper & fiber architecture, it enables stable 10gbps data transfer while minimising signal loss & eliminating electromagnetic interference (EMI), making it ideal for long-distance USB connectivity beyond traditional copper limitations.
Engineered for professional & commercial environments, the cable supports plug-and-play operation & is backward compatible with USB 2.0 & USB 1.1 standards. Support lengths up to 15m & wide system compatibility, the Dynamix C-U32-LL-CC provides a reliable solution for high-performance USB data transmission applications.
- USB 3.2 Gen2 compliant
- Data transfer speeds up to 10gbps
- Hybrid fiber + copper construction
- Supports cable lengths up to 15m
- No external power required
- Plug-and-play design
- Supports charging up to 800mA/5V DC
- Backward compatible with USB 2.0/1.1
- No RF interference; stable in complex environments
- Data-only configuration
Specifications

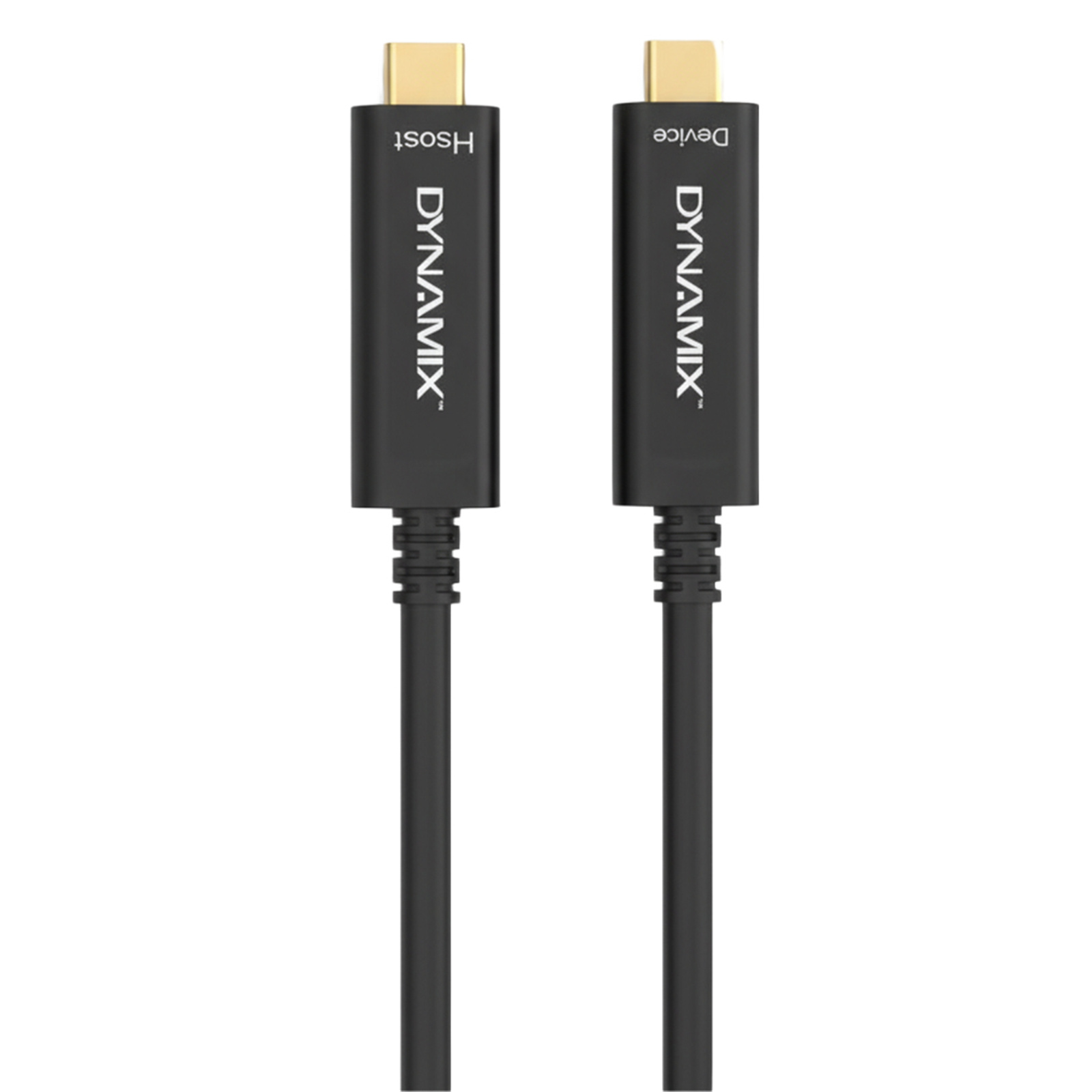

Connector Type
Type C Male Type C Male
USB Standard
USB 3.2 Gen2
Maximum Data Rate
Up to 10gbps
Backward Compatibility
USB 2.0/USB 1.1
Cable Type
Hybrid Fiber & Copper Active Optical Cable (AOC)
Optical Components
VCSEL laser & PIN photodetector
Optical Wavelength
850nm
Power Consumption
≤ 0.5W (TX & RX AOC)
Supply Voltage
4.5 ~ 5.5V
Power Delivery
DC 5V/0.8A
Cable Lengths
15m
Power Supply
No external power required
Cable O.D
4.8mm
Tensile Strength (Short Term)
300N
Tensile Strength (Long Term)
150N
Crush Resistance (Short Term)
500N/100mm
Crush Resistance (Long Term)
100N/100mm
Dynamic Bend Life
20,000 cycles (180° swing, no open)
Minimum Bend Radius (Static)
40 mm
Minimum Bend Radius (Dynamic)
20 mm
Operating Temperature
-40°C ~ +70°C
Flammability Rating
UL13 Standard
Jacket Material
PVC
Compliance
CE, FCC, RoHS, REACH, UKCA
Plug & Play
Yes
