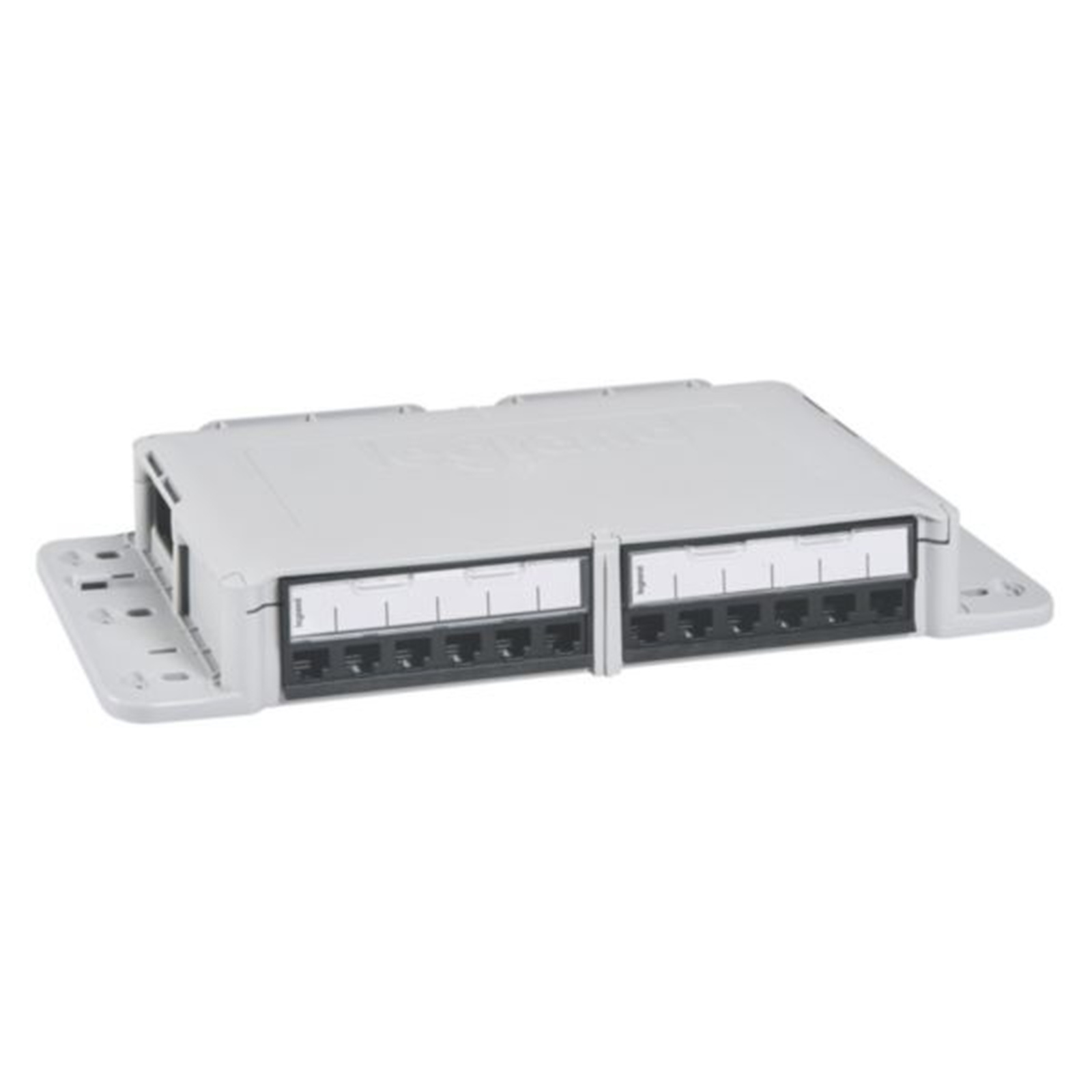

Legrand 33796 Distribution Box - 12 Port Includes Plates & Cassettes
- Brand: Legrand
- MPN: 033796
- Part #: CABLGD1694

Product URL: https://www.pbtech.com/product/CABLGD1694/Legrand-33796-Distribution-Box---12-Port-Includes
Features
Area distribution box to be equipped with up to 12 RJ45 connectors
Area distribution boxes are used to pre-equip a work area with consolidation points. They centralise connections to provide flexibility in RJ45 sockets installation and workstations layout changes in the future.
Product charateristics
- To be equipped with Cat. 5e, Cat. 6, Cat. 6A or Cat. 8 RJ45 connectors.
- Connection to the patching enclosure or floor cabinet with 4 twisted pairs cables.Connection to RJ45 sockets with a RJ45/stripped cord or to a RJ45 socket with copper feedthrough with a RJ45/RJ45 cord.
- Can be installed in raised access floor, in false ceiling or on metal cable trays.
- Fixing with screws, nails or cable ties. Compatible with gas fixing tool like Spit®.
- IP21 : protected against solid bodies larger than 12,5mm and against vertically-falling drops of water (condensation).
Recommendation / Restriction
As all consolidation point use, it may have an impact on maximum recommended permanent link and channel length to ensure high performance. Please check the datasheets.
The product's benefits
The product's benefit
Installation
This area distribution box offers many fixing solutions on various supports. Fixing with screws, nails (compatible with gas fixing tool like Spit®) and cable ties in raised access floor, false ceiling or on metal cable trays.
Usage
Both workstations location change and new workstations addition can be done very quickly without significant investment and without a highly skilled workforce. Just change the length or add a cord between the area distribution box and the RJ45 socket. No need to pull a new cable from the cabinet in the technical room up to the workstation.
Avantages
Area distribution boxes accomodate the same connectors as patchpanels.
Specifications
Number of buses/couplings
0
Suitable for number of connectors
12
Type of connector
RJ45 8(8)
Screened
Yes
Category
Other
Connection type
Insulation displacement connector
Colour
Grey
RAL-number
7035
Mounting method
Other
Height
51 mm
Width
353 mm
Depth
148 mm
Degree of impact strength (IK)
IK07
Degree of protection (IP)
IP21
Operating / setting temperature
-10-65 °C
Storage temperature
-25-70 °C
Terminal marking indication
No
Prewired
No
Cable nature for connection
Flexible or rigid
Label space/information surface
Yes
Cable support
Not applicable
